A Pair of LED Glasses With Outwards Facing LED Ring


This is a pair of LED glasses I used the 24Xsk6812 side outwards facing ring and Blinkytape controller.

Materials

Screenshot 2021-07-03 at 17.45.42.png
Screenshot 2021-07-03 at 17.45.26.png

2pc LED ring with 24 right-angle LEDs, outwards facing

1pc Blinkytape controller

2 pair 1.25mm pitch Molex PicoBlade-to-PicoBlade Cable type

Tools

FDM 3d Printer

Solder iron

Stl File

Video

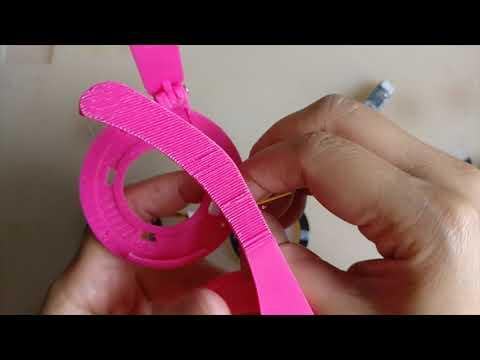

Make a pair of led glasses with outward facing ring

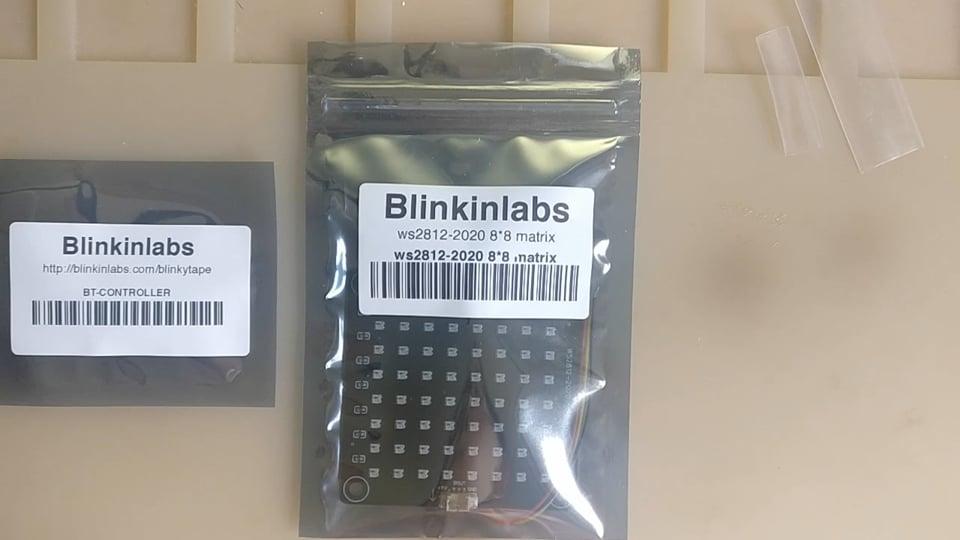

How to Solder the Controller

solder the wires onto the Blinkytape controller

How to solder the blinkytape controller

How to Program the Controller

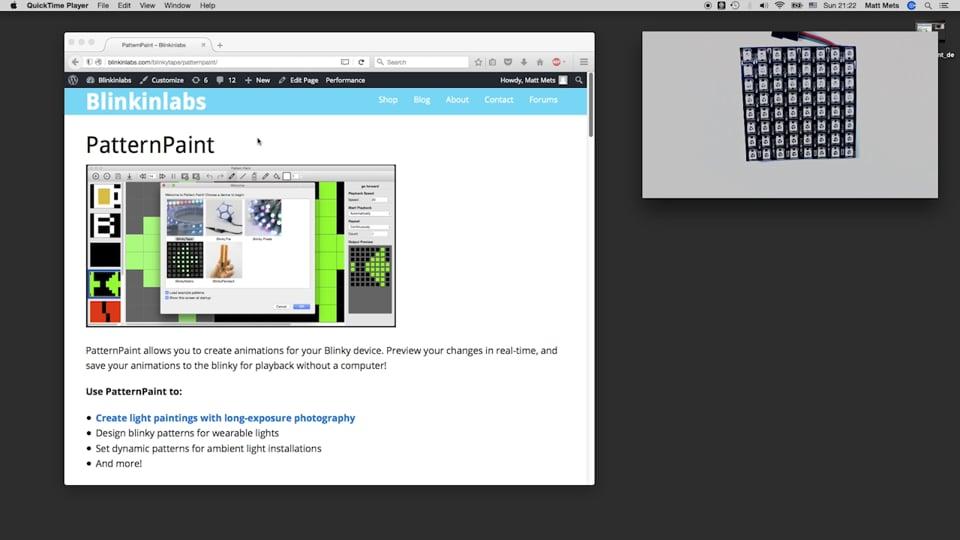

pattern paint tutorial

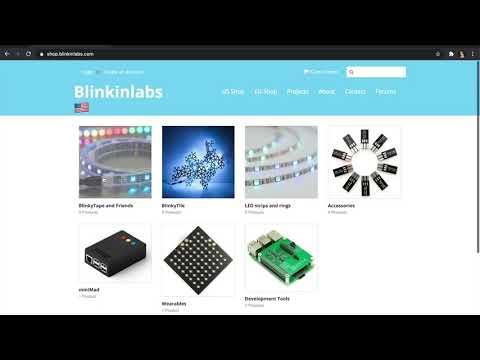

How to program the Blinkytape controller with Arduino

Program the controller with Pattern Paint

Program the controller with Arduino

Review

Need to improve--

nose pad need to become a little wider to fit my flat nose :P

add cable holder in the glass bridge part for the connectors.

print the parts with 0.1~0.15 resolution instead use 0.2 low quality version and add support for it.

add 2 mounting holes on the left side temple to add the power management like battery and boost circuit.
