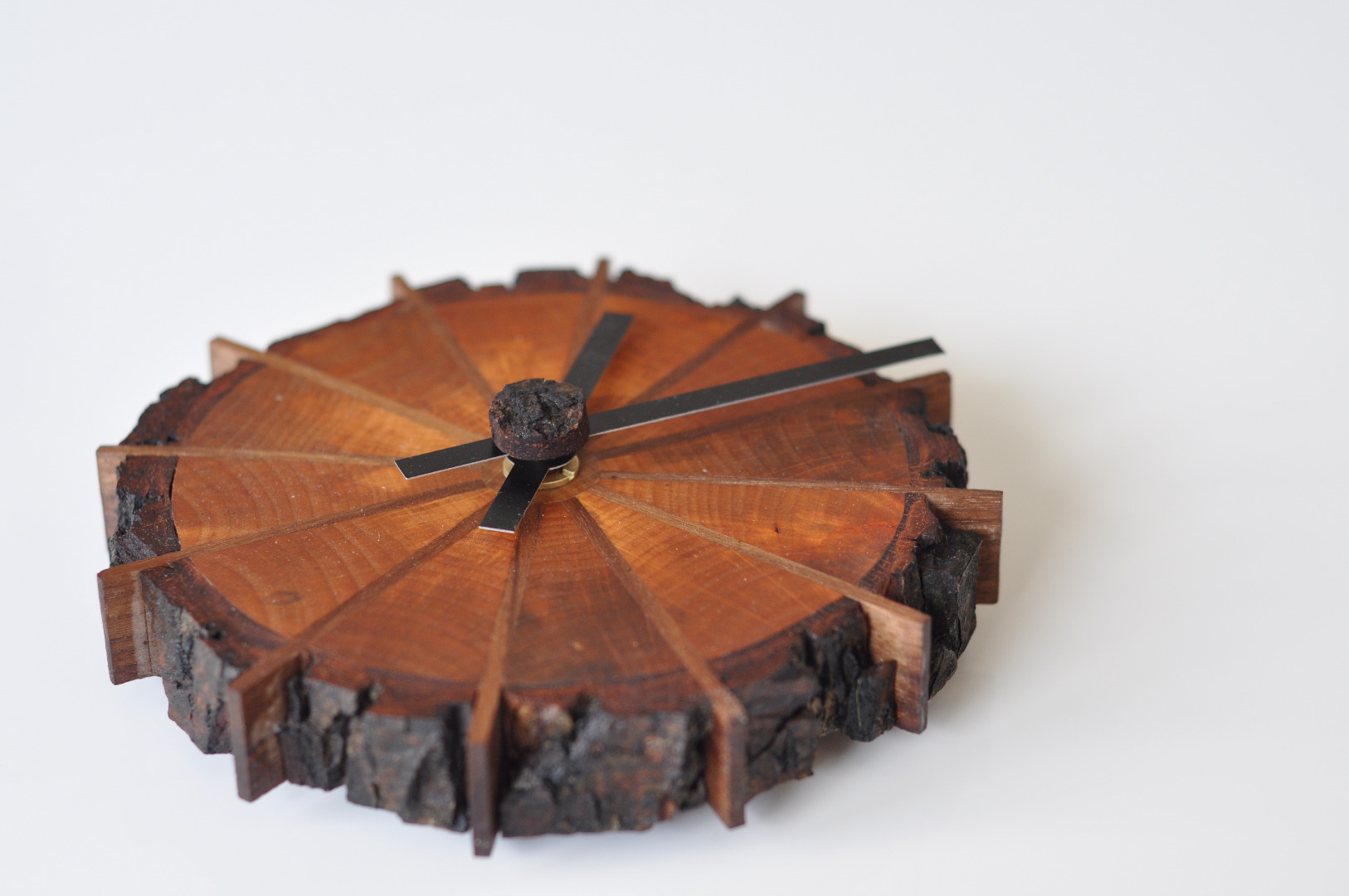

A Natural Edge Shop Clock

㎿ A Natural Edge Shop Clock

I always forget the time when I am in the shop. I definitely need a shop clock. In this project I show how I made a clock from alder and walnut. Something special of this clock is the backwards grain pattern.

Please also watch the video on YouTube about this build and subscribe to my channel!

The Design

Foto 26.02.15 12 06 44.jpg

My plan was to use two slaps of alder I got when I made my chainsaw license/certification. To make it more interesting I wanted to inverse the growth rings by cutting the two pieces into triangles and glue them inside out.

Removing the Chainsaw Marks


I had to remove the chainsaw marks and after some problems at the lathe I finally got rid of them with my plane.

Layouting the Parts


I used my compass to draw a more or less complex pattern onto the slaps to create the most biggest pieces of inside out triangles. The pointed angle has to be 30° so that 12 of them create a circle. One piece for each hour.

Cutting and Glueing the Parts


Unfortunately there was a lot of waste after cutting all pieces on the band saw but maybe I can use it in a future project.
For contrast I also resawed a piece of walnut and glued everything in an alternating pattern together. I chopped up the bark I cut off earlier and glued it to the clock.

Finishing and Attaching the Mechanics


In the end I finished everything with boiled linseed oil and finally I attached the clock mechanics.
