A Circuit for Making a Robot Go Forward

by Lakshya Raheja in Circuits > Computers

140 Views, 1 Favorites, 0 Comments

A Circuit for Making a Robot Go Forward

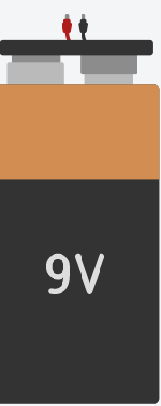

9 volt battery.png

Get the Materials

  • Breadboard
  • 9 Volt battery
  • 5 Volt Regulator
  • L293D
  • 2 Motors

Circuit Wires Conection

Screenshot (21).png

Connect the wires as shown in the above picture

Simulation

Start the simulation and watch the motors rotate
