9v Altoid USB Charger

by Charger_06 in Circuits > USB

46808 Views, 58 Favorites, 0 Comments

9v Altoid USB Charger

g 002.JPG
Just one more 9v USB charger!

Materials

- Altoid tin
- 5v regulator
- Wire
- Small LED
- Soldier
- Female USB
- Epoxy (i used J.B. Weld)
- Small slide switch
- Tape

Perpare the Tin

chargers 001.JPG
chargers 008.JPG
chargers 010.JPG

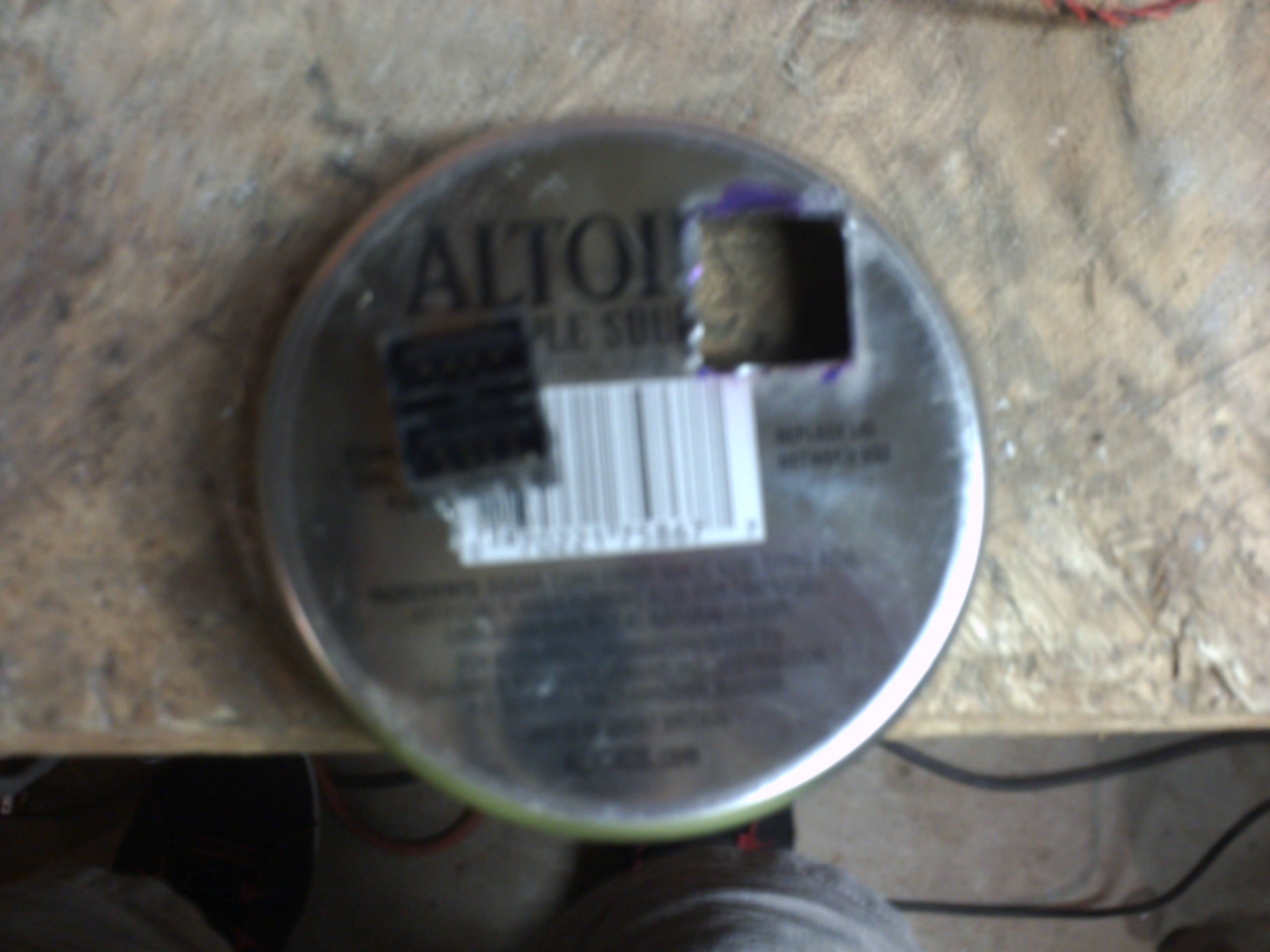

Trace the outline of the USB on the bottom of the tin near the edge. Mark the spot where you want to put the LED. Drill it out with a drill bit slightly larger than the led. Use a drimmal to cut out the hole for the USB. Sand the surface smooth with sand paper then use a smaller girt to polish it.

The Circuit

chargers 004.JPG
chargers 009.JPG

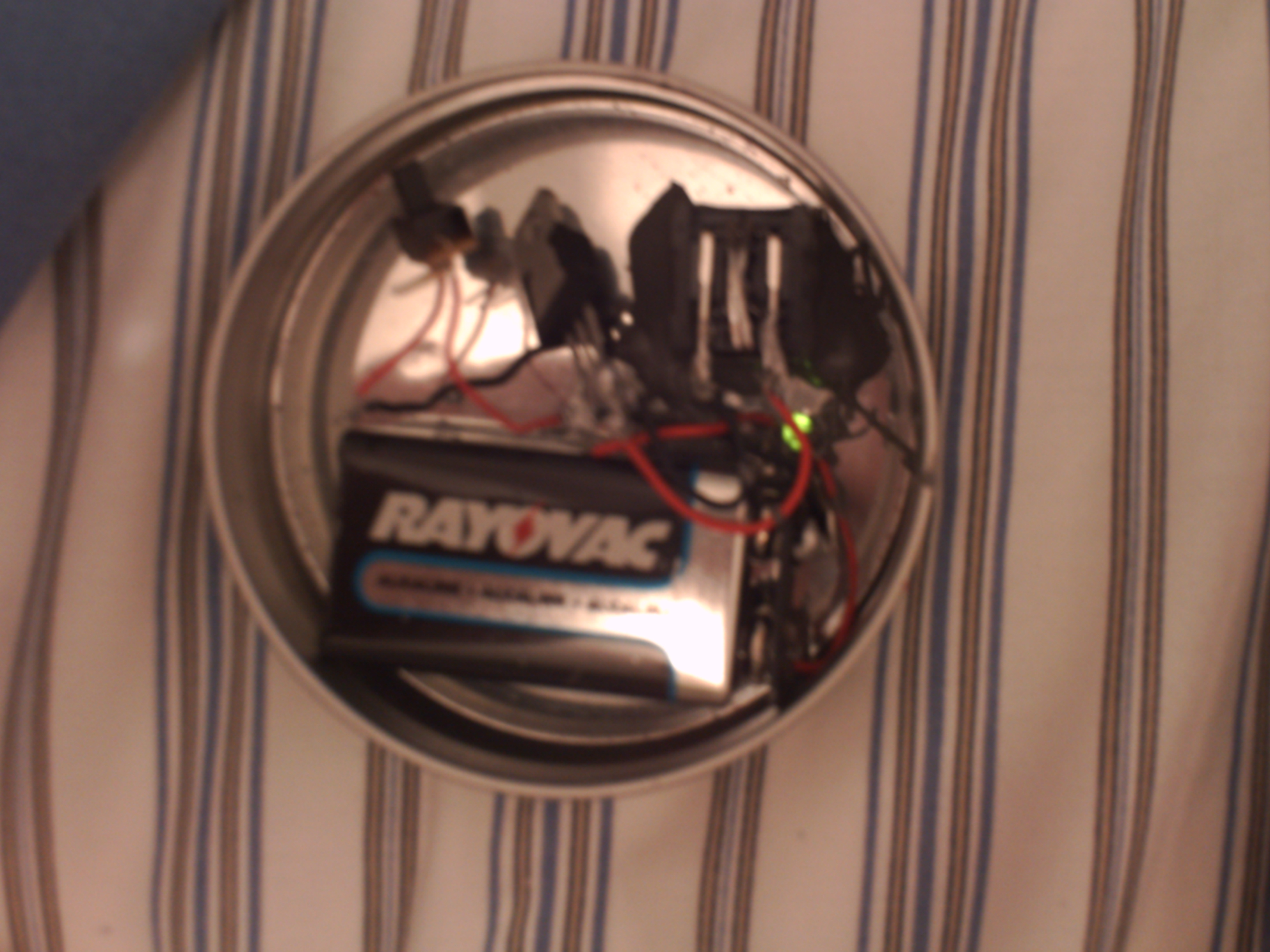

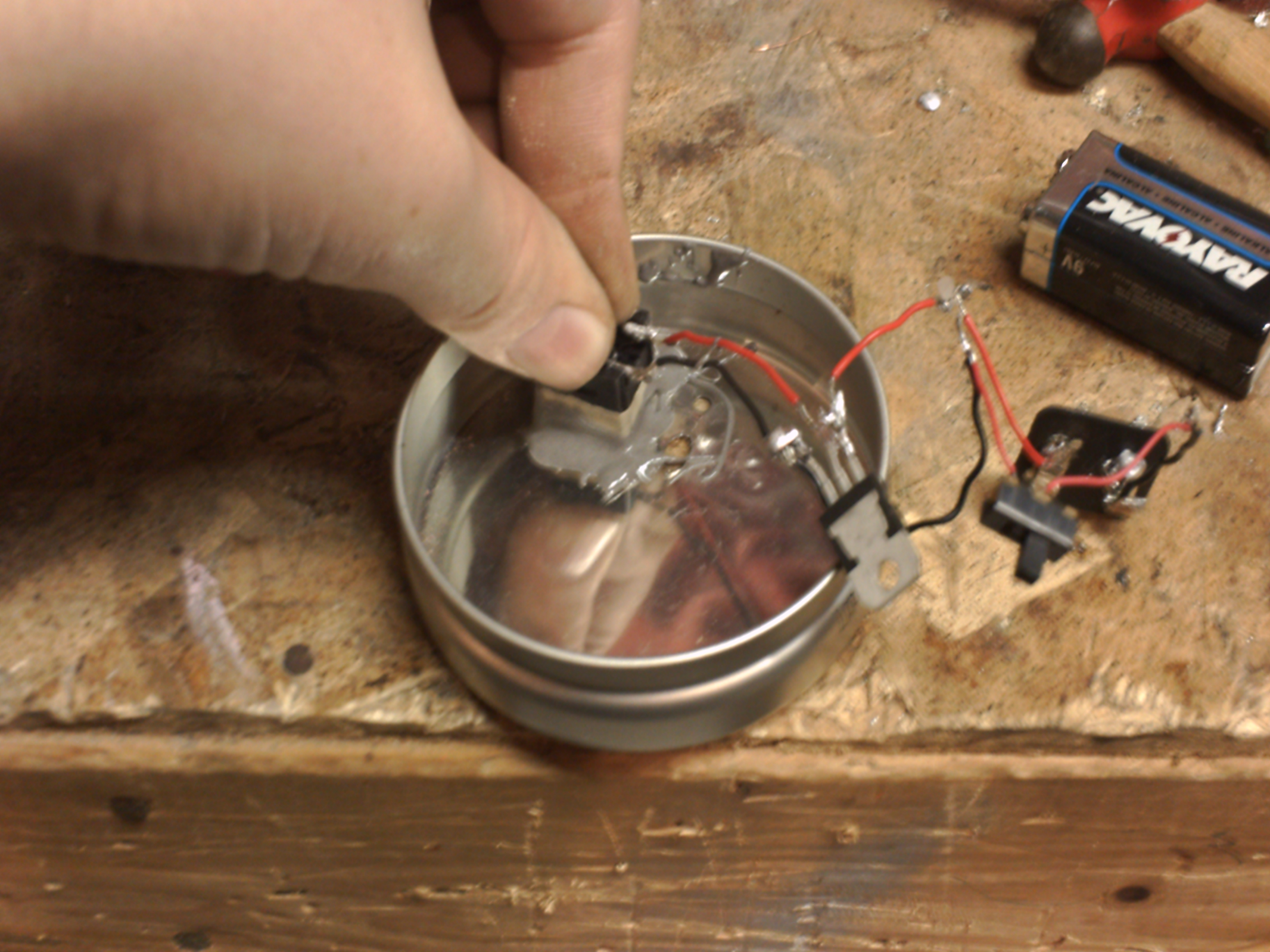

The circuit is very simple. The usb has 4 pins you will only use the 1st and 4th one. The regulator has 3 pins the 1st one is the ground the 2nd one it out and the 3rd one is in. Now follow the diagram.

Assembly

chargers 013.JPG
g 001.JPG
Now tape around the usb near the bottom so the glue wont get in side it. tape the hole on the tin on the out side. as shown in the previous picture. Stick the usb in the hole then mix up your epoxy.spread it all around the usb. Wait till it drys then glue the LED in the hole too.

Finshed

g 002.JPG

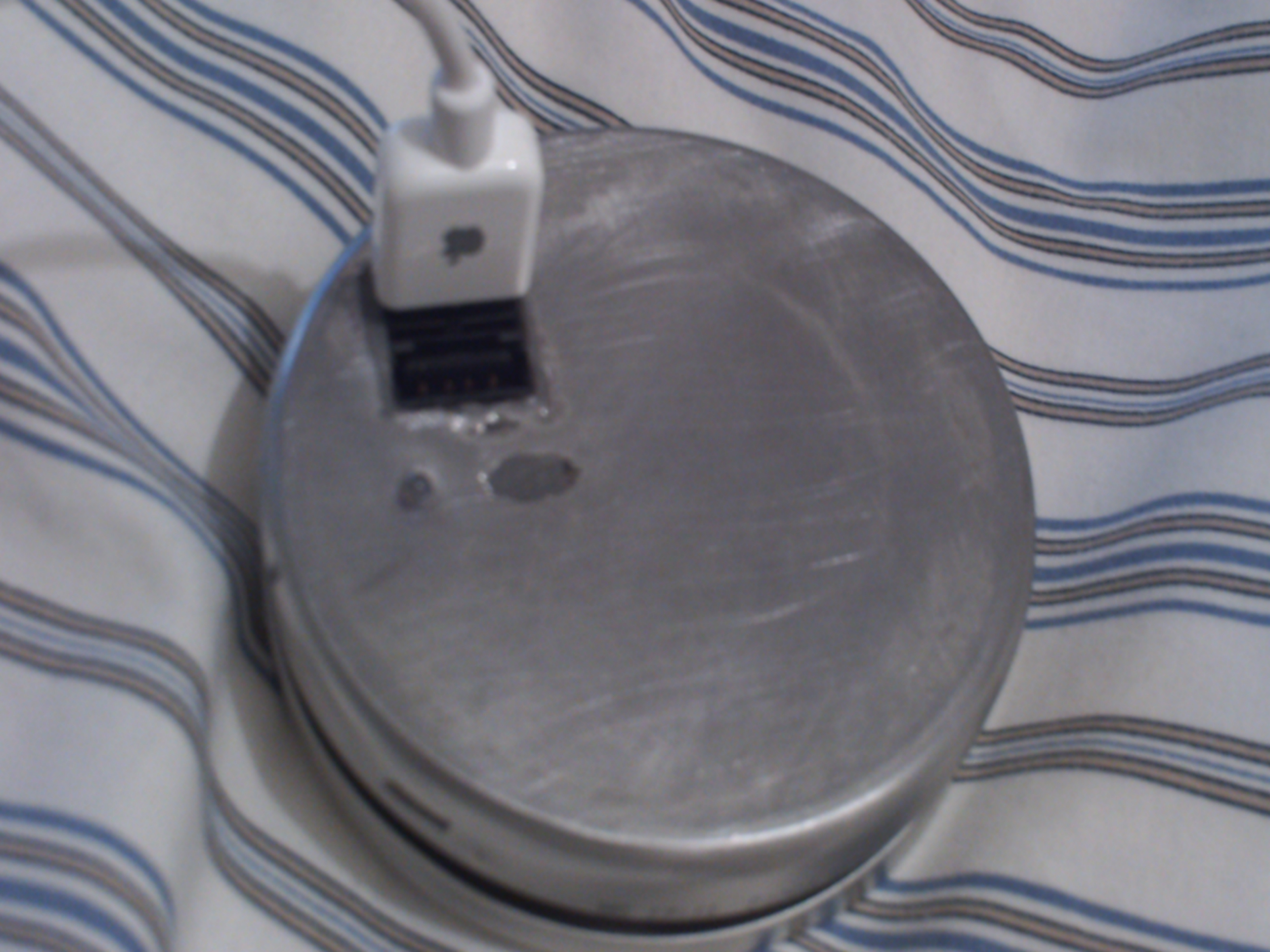

This is the finished product!
