8*8 LED Madrix Using Arduino

8*8 LED matrix is one of the best display module. It is super easy to use and you can join multiple modules to make a big screen. You can display any text, images, videos and you can make games. In this article, we are going to display some scrolling text on it using Arduino UNO.

Arduiono uno * 1

8*8 dot matrix * 1

Jumper wires

MAX7219 MODULE(S) ARDUINO UNO

CLK --------- SCK (PIN 13)

CS --------- CS (PIN 9)

DIN --------- MOSI (PIN 11)

GND --------- GND

VCC --------- 5V

• Open your Arduino software if you don't have software click here.

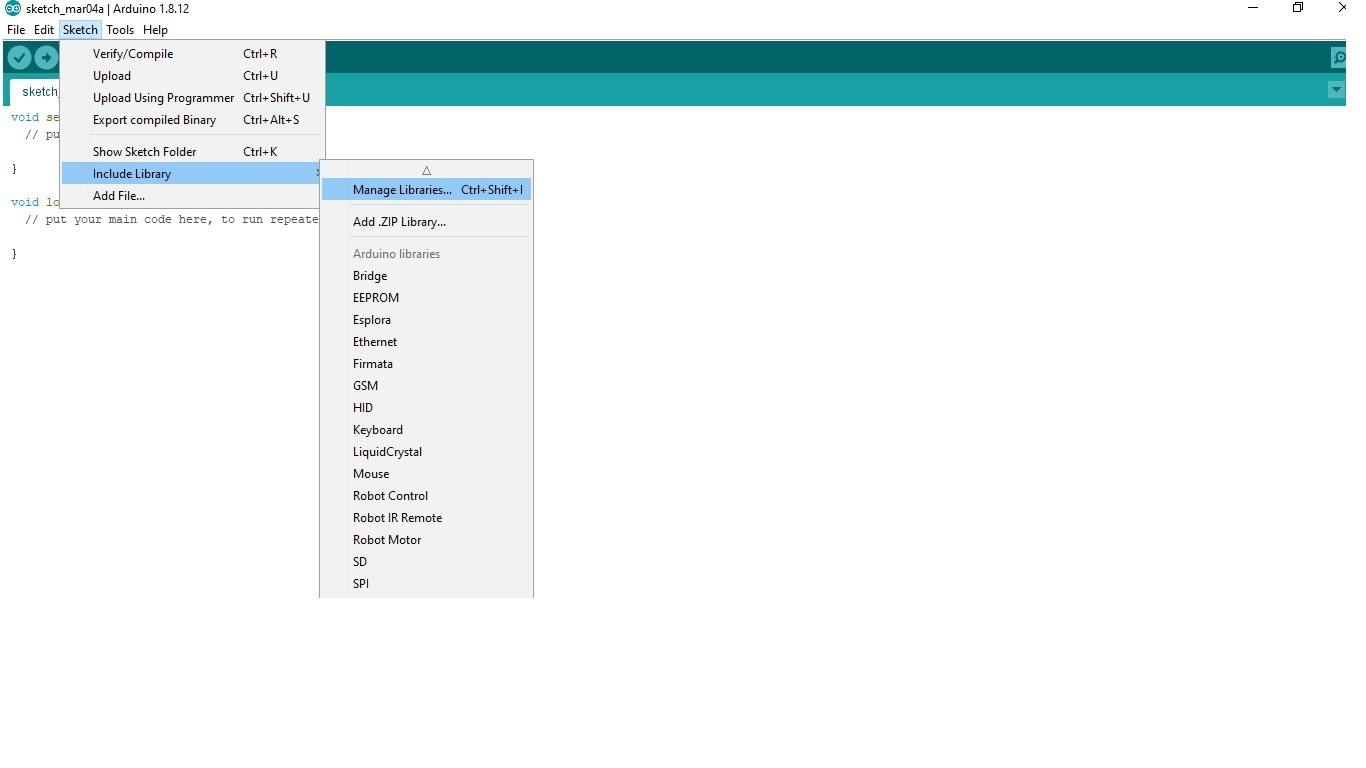

• Go to sketch > include library > manage library

in search option type LEDMatrixDriver and install latest version.

Cope and upload the code on your Arduino UNO.
