72V 28Ah Li-ion Custom Battery (2kWh) by EVMadrid
by EVMadrid in Workshop > Electric Vehicles
2360 Views, 10 Favorites, 0 Comments
72V 28Ah Li-ion Custom Battery (2kWh) by EVMadrid

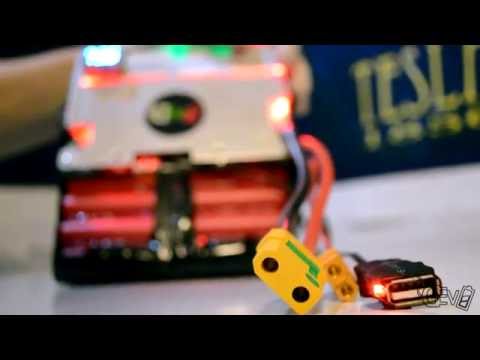

![72V 28Ah li-ion custom battery (2kWh)](/proxy/?url=https://content.instructables.com/FMF/MMW9/IRXPY8N0/FMFMMW9IRXPY8N0.jpg&filename=72V 28Ah li-ion custom battery (2kWh))
Specifications:
- 20 serial, 8 paralleled 3.5Ah 3C max continuous Sanyo NCR18650 GA LiNiCoAlO2 (NCA) Lithium-ion cells.
- spot welded with a single layer 0.12mm x 6mm pure nickel strips.
- 60A max continuous balancing function and led indicators built-in BMS.
- 10 AWG wires according with the BMS and the aimed max discharge of 60A continuous.
- individual insulated 10s8p shrink wrapped modules.
- XT90s anti-spark connectors for discharge port
- XT60 for charge port
- total weight: 8.2Kg
- volume: 3.15 litres
- energy density: 640Wh/L
- specific energy: 245 Wh/Kg
Performance:
- 96Amax continuous capabilities (7kWnom)
- 160Amax burst capabilities (12kWnom)
- 60Amax continuous BMS limited (4kW)
- 140Amax burst BMS limited (9kW)
