Eveybody likes a secret thing, this is a projet to hide objects inside a wall canva!!!

Follow my youtube channel tutorial:

www.youtube.com/@pistacchiographic

Software that is used in this project:

OBS Studio: Record the screen

Fusion 360 ----> CAD design and export the PDF drawing instructions

Affinity Publisher: Make the Technical Drawing E-Book

This is the back part of our project, this part is responsible to ground in the wall and place all the objects inside.

There are 3 parts in this step:

1) Side board [1 unit]

2) Bottom [1 unit]

3) Up/down board [2 units]

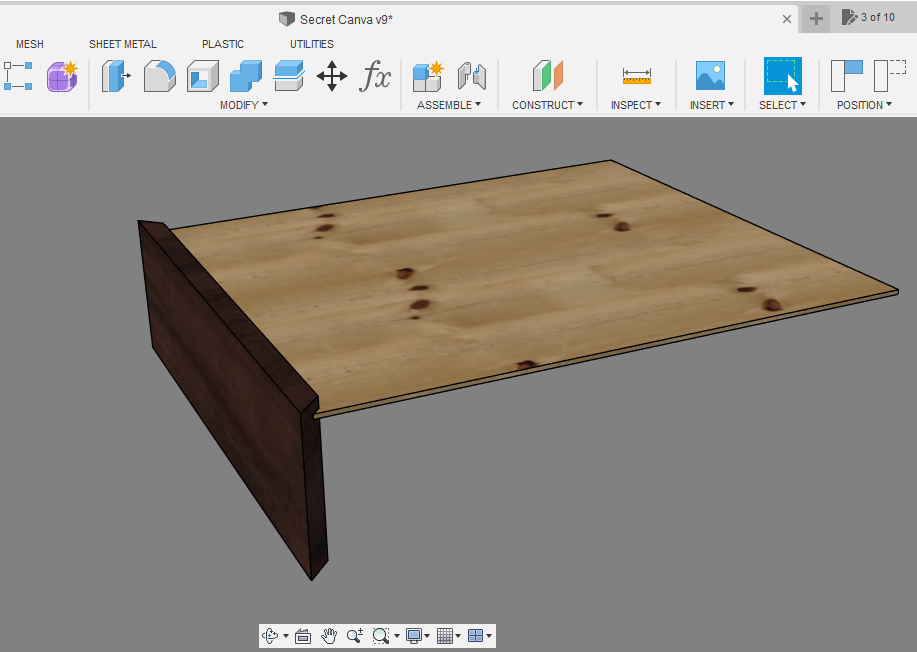

This part is responsible to cover the canva and to slide to reveal the secret compartment.

Important: To fit in the "Cover" the "Side Board Narrow" is 0,2mm smaller than the "Side Board". This requires use of glue.

There are 2 parts in this step:

1) Side board narrow [1 unit]

2) Cover [1 unit]
