6283 IC Single Channel Audio Amplifier Board Wiring

Hii friend,

Today I am going tell you how can we connect wires of speaker, aux cable, power supply and volume potentiometer in 6283 IC Single channel audio Amplifier board.This audio amplifier board will give 30W output power.

Let's get started,

(1.) Amplifier board - 6283 IC single channel amplifier board. x1

(2.) Speaker - 30W x1

(3.) aux cable x1

(4.) Connecting wires

(5.) Step-down Transformer with rectifier - 12-0-12 2A (For 12V DC Power supply)

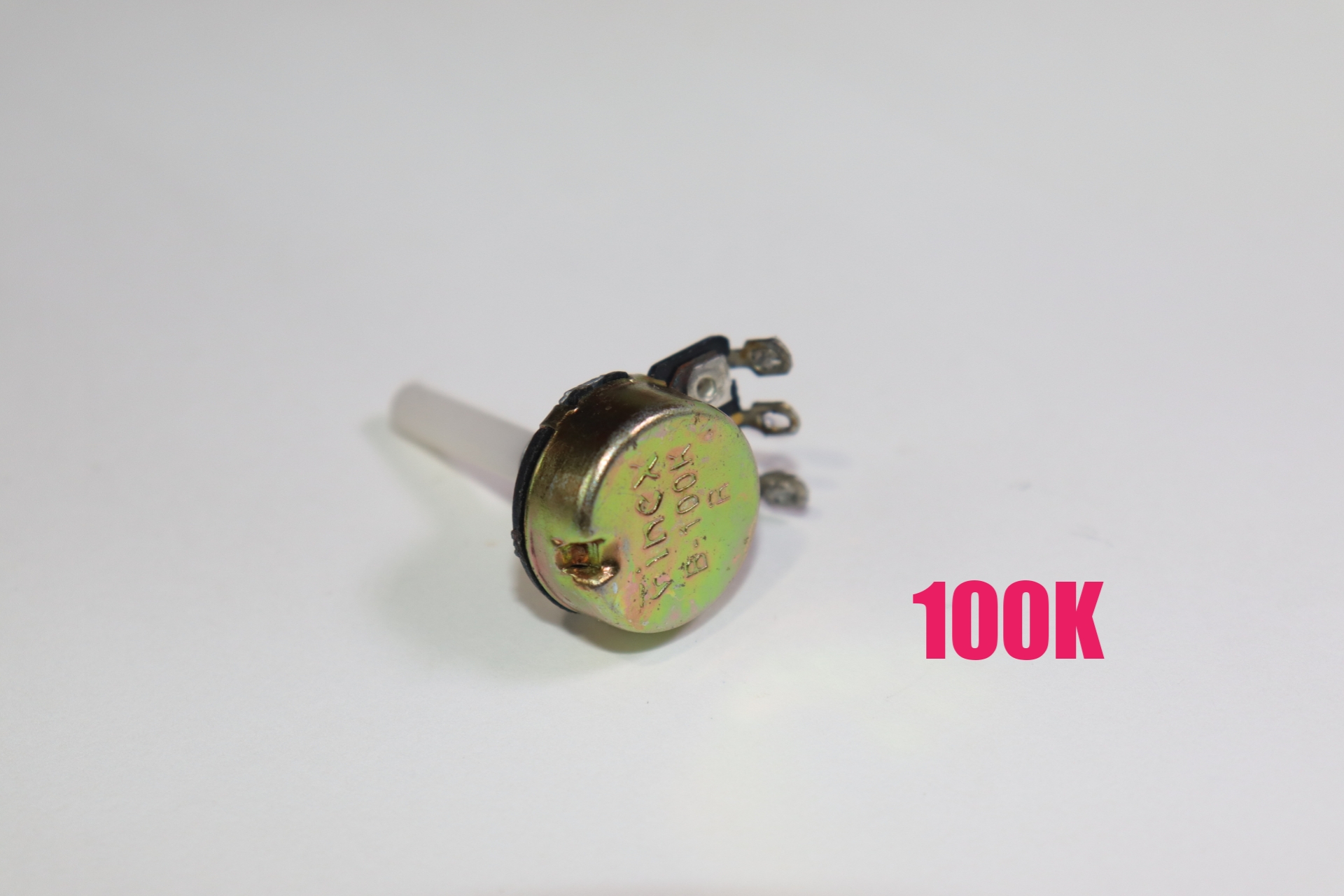

(6.) Potentiometer (variable resistor) - 100K

Solder wires of all parts as shown in the picture.

Indication -

Black line - GND (-) Wire and

Red / Blue is +ve wire.

Firstly we have to connect wires of speaker.

Connect +ve and -ve wire of speaker to amplifier board as shown in the picture.

Next we have to connect aux cable wire to the circuit.

Connect +ve wire of aux cable to 1st pin of potentiometer and

connect -ve wire of aux cable to 3rd pin of potentiometer as you can see in the picture.

NOTE : 3rd pin of potentiometer we can say as Ground pin.

Next connect wires in the potentiometer as shown in the picture.

Connect a wire in middle pin of potentiometer and

solder a wire in the ground pin of potentiometer.

This wires is audio output wire.

Next connect output audio wire of potentiometer to the amplifier boars as you can see in the picture.

Brown wire is +ve and black wire is -ve.

Now connect power supply wire to the amplifier board as shown in the picture.

NOTE : We have to give 9-12V DC Input power supply to the amplifier board.

Give power supply to the amplifier board and connect aux cable to mobile phone and play music.

This audio amplifier will give maximum 30W output.

If you want to make more electronic projects like this the follow utsource now.

Thank you
