6283 IC Double Channel Amplifier Board Wiring

Hii friend,

This blog is on Amplifier board which is 6283 IC Double channel Audio Amplifier board.In this blog we will learn how can we connect wires of speakers, aux cable, Volume potentiometer, and power supply in double channel amplifier board.

Let's get started,

Materials required -

(1.) Potentiometer - 100K (Double channel) x1

(2.) aux cable x1

(3.) 6283 IC Board - Double channel x1

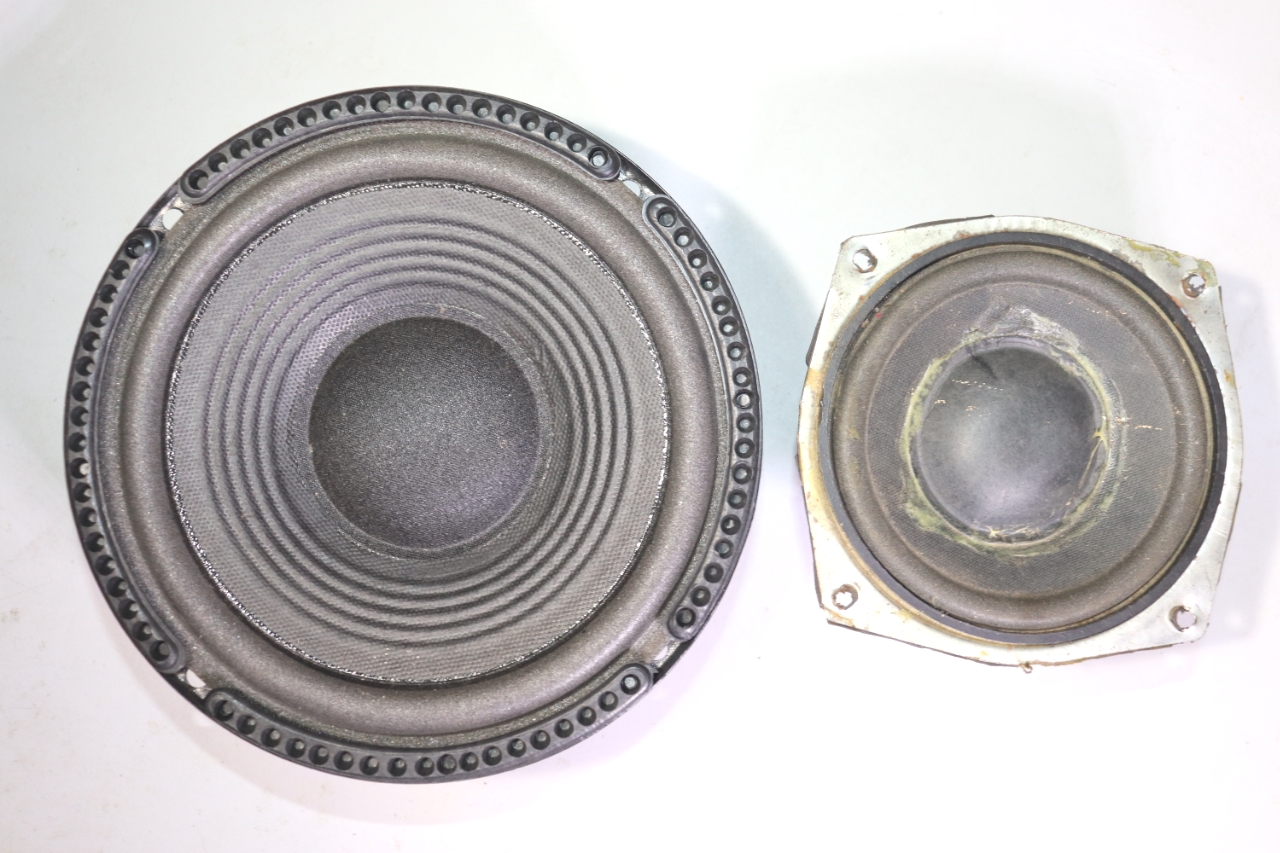

(4.) Speaker - 30W x2

(5.) Connecting wires

(6.) Power supply - 12V DC

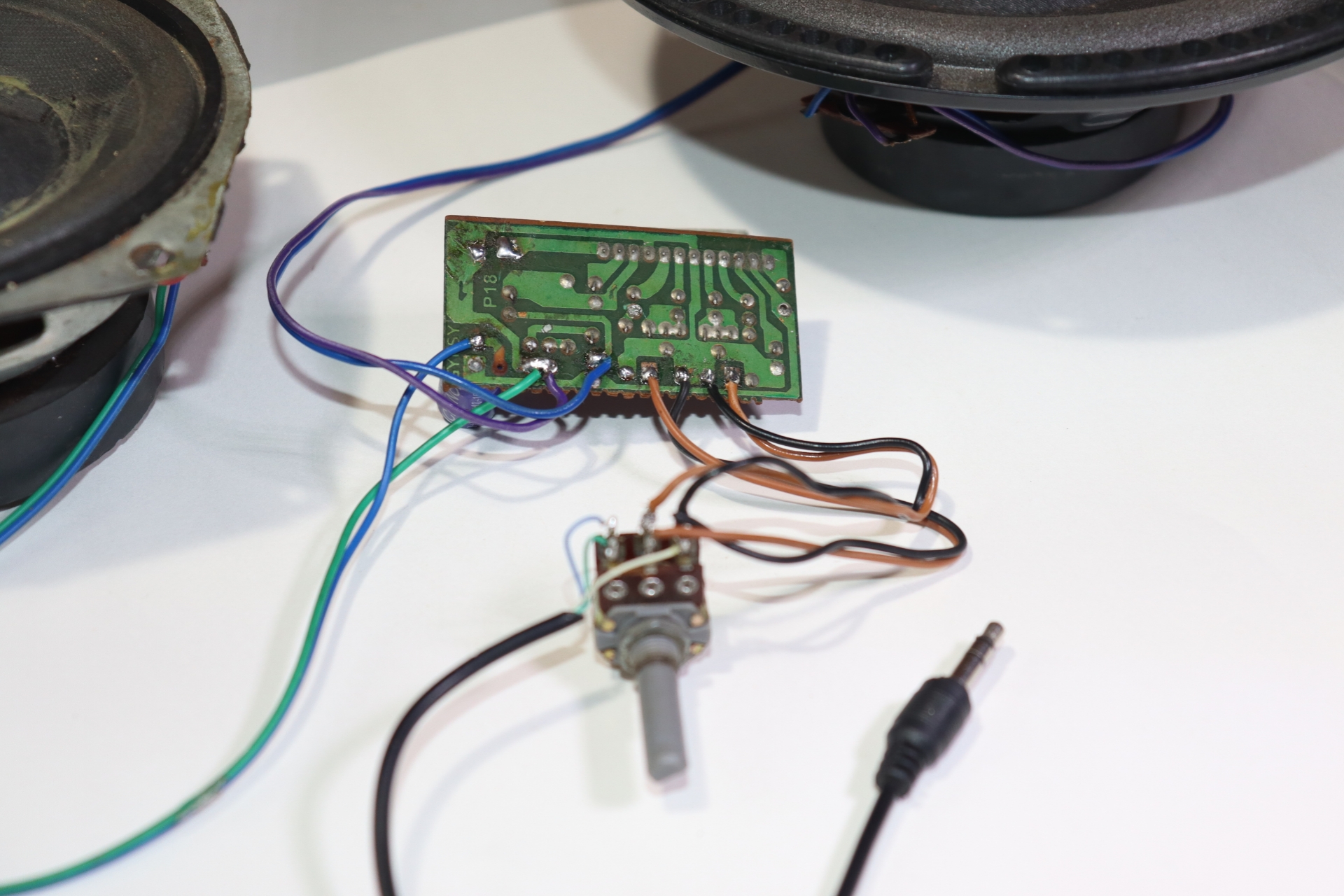

Connect all parts like speakers, aux cable etc. as shown in picture.

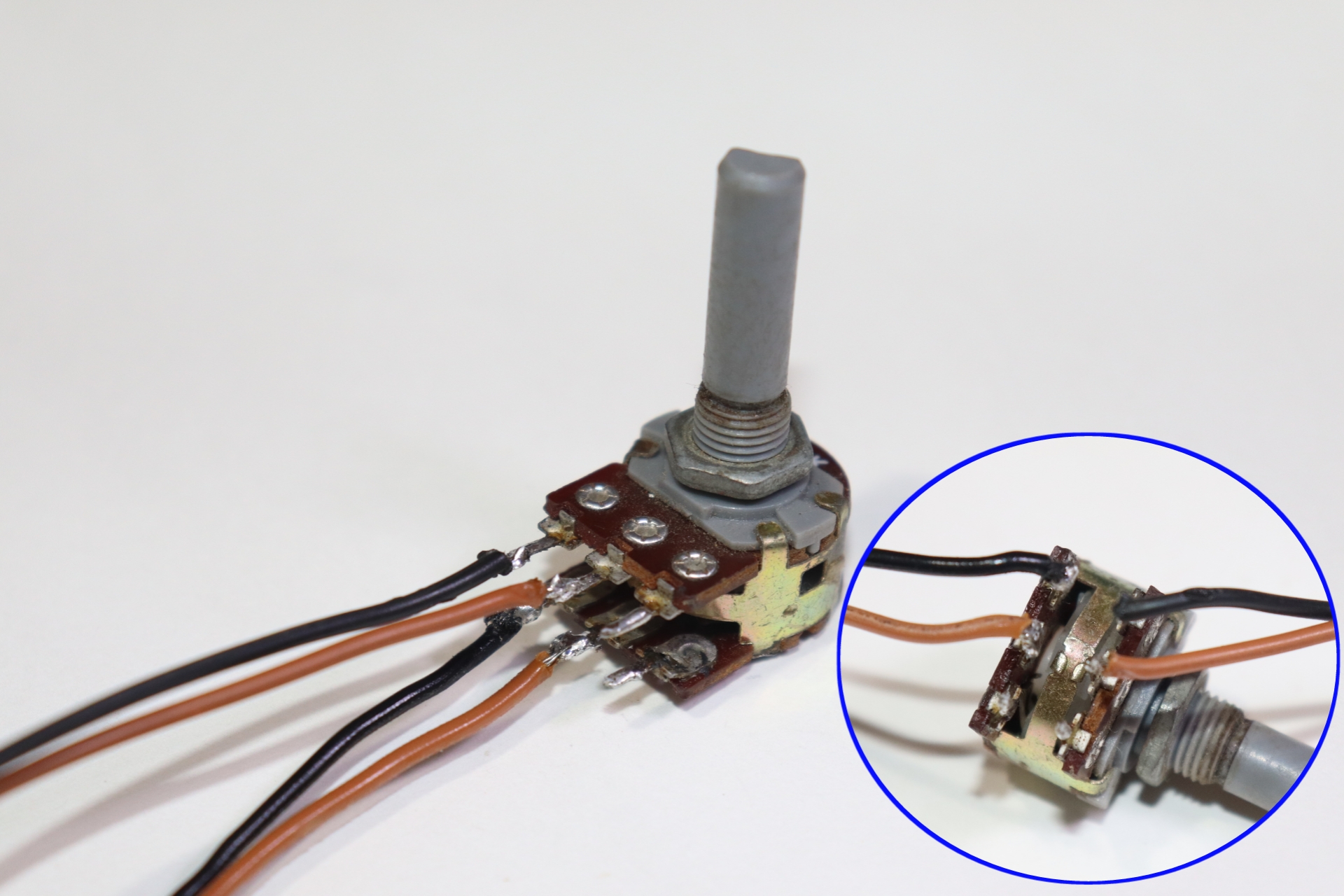

We have to solder two wires in two pins of potentiometer as shown in picture.

Again solder two wires in another channel of potentiometer as you can see in the picture.

Next we have to solder wires of aux cable.

Connect Left, Right and GND wire of aux cable as solder in the picture.

Next connect audio input wire and speakers wire to the amplifier board.

Connect audio input wire from potentiometer .Solder GND wire of both channel of potentiometer and then connect L & R wire as input to the amplifier board.

Now connect speakers wire.

Solder GND wires of both speakers to each other and then solder it on the GND pin of amplifier kit as solder in the picture.Next connect +ve wire of both speakers, connect it on the kit as shown in the picture with diagram.

Now we have to connect power supply wire to the amplifier board.

Solder power supply wire as solder in the picture / as solder in the circuit diagram picture as you can see in the thumbnail.

HOW TO USE IT -

Give power supply to the circuit and plug in aux cable to the mobile phone and play songs.

NOTE : We can decrease/increase the volume of both speakers at a time.
