6 Watt Amplifier Using TDA2614

A good quality of sound is provided by this amplifier.It is powered by a dual regulated power supply which makes the circuit easy for building it uses LM7812 and LM7912 and a transformer of 12-0-12 Volt 5 Amp

The TDA2614 Is a SIP9 Packaged IC Which is a breadboard friendly package it is easy to build circuits from this type of IC

It uses dual regulated power supply circuit uses 7812 and 7912 ic.the power supply circuit can be builded from the datasheets of this voltage regulators it is powered from a 12 volt centre tapped transformer use of capacitors is important they work as filters use of regulator ic gives a good filtered power at the output which gives a noise free sound at output

Use a 20K Pot to control sound.i have used Nokia Bluetooth Headset to provide input to the amplifier use a 1uF capacitor before connecting the input to the amplifier ic using a 1uF Capacitor gives good output

here at the output i have used a 30 Watt Woofer and 40 Watt Speaker

1 x TDA2614
1 x LM7812
1 x LM7912
2 x 1000uF Capacitors
2 x 220uF Capacitors
Screw Connectors (Optional)
2 x LED (Any Color)
2 x Resistors (1K)
Heatsinks
Breadboard
1 x 20K Pot
1 x 1uF Capacitor
Jumper Wires

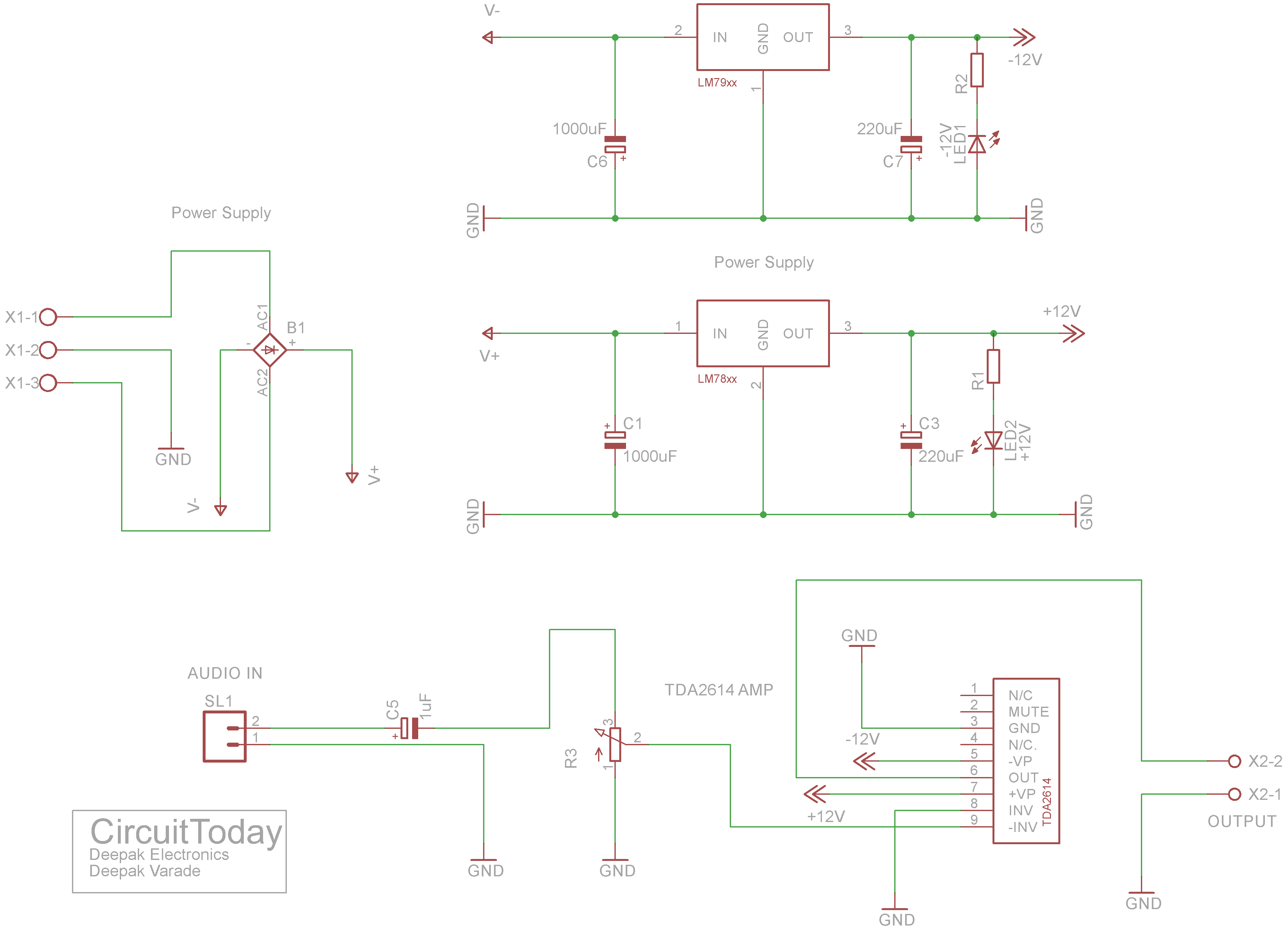

Circuit Diagram
Use the circuit diagram as a refrence to build the Amplifier
