5x5 Calculator Keyboard

by farmerlj in Circuits > Arduino

279 Views, 0 Favorites, 0 Comments

5x5 Calculator Keyboard


you will need:

25 19x19mm white keycaps

25 gateron blue cherry mx switches

25 vinyl keyboard stickers

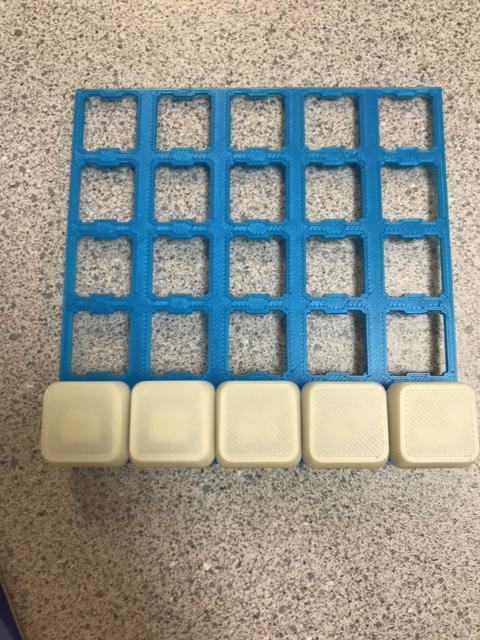

5x5 keyboard base

arduino mega

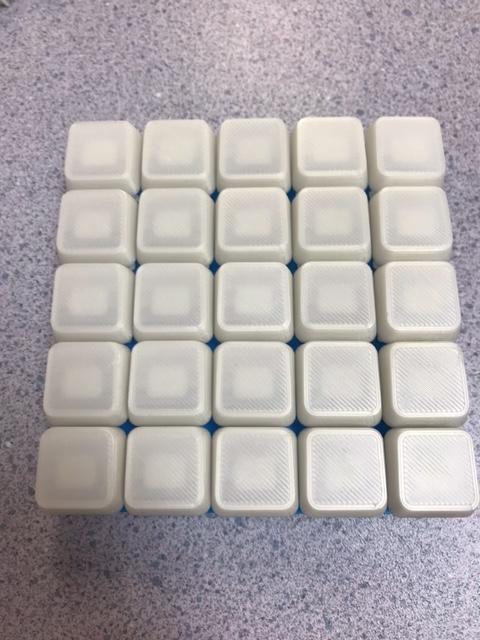

Assemble the Keyboard

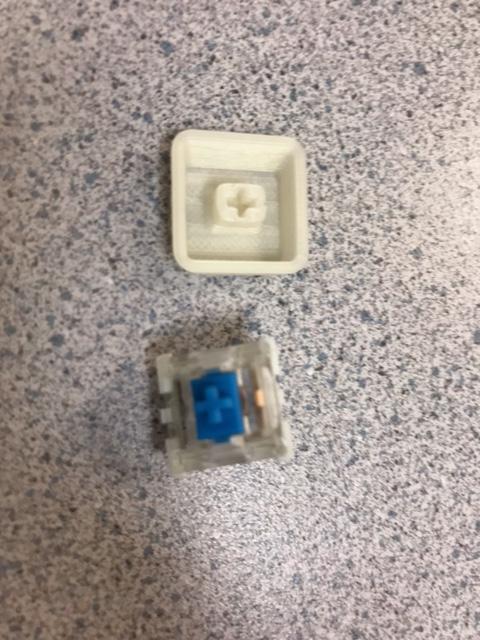

click each switch into the plate and fit the keycaps onto the switches

Soder the Pins

image1 (1).jpeg
image0 (1).jpeg

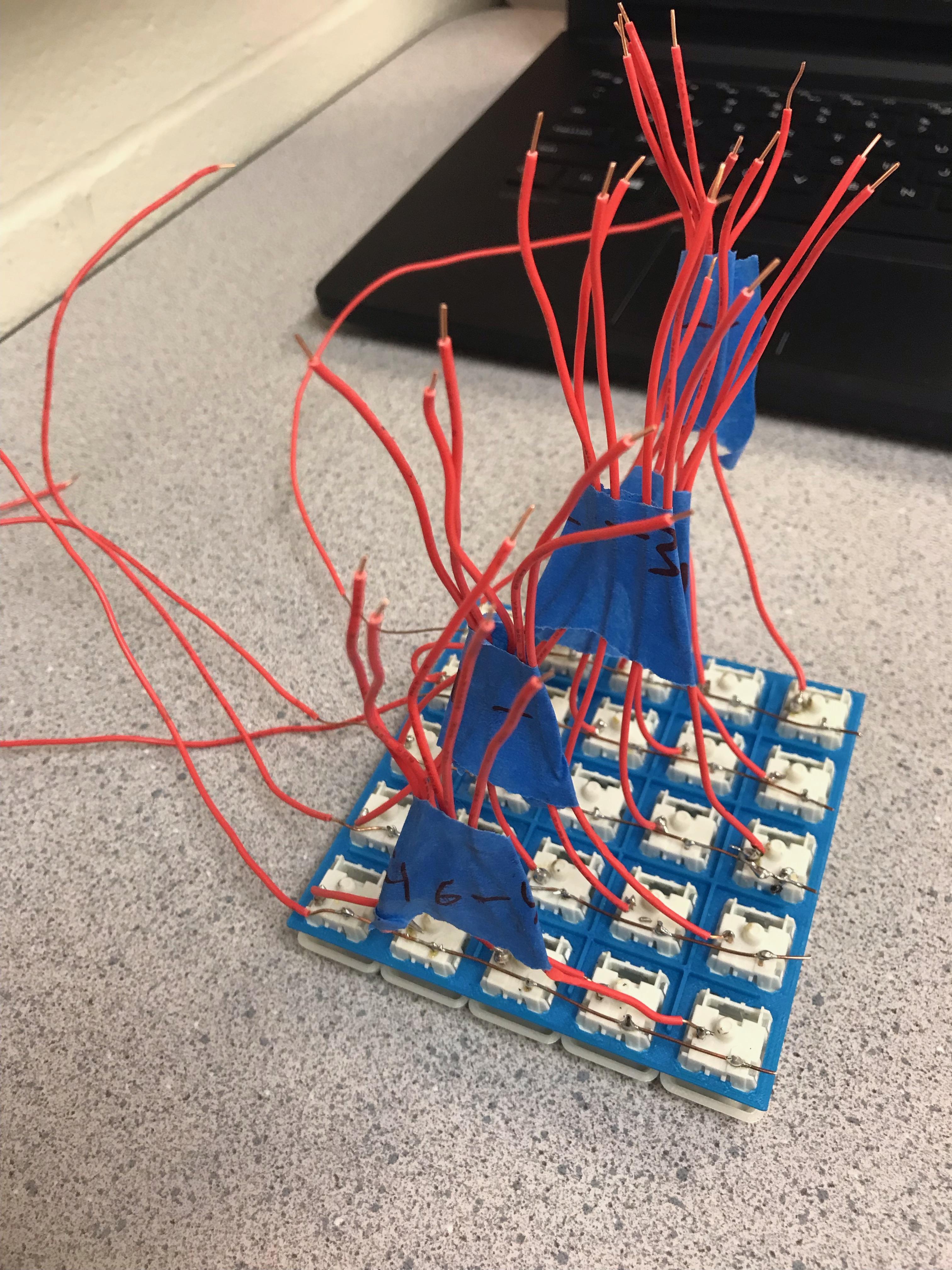

1 wire to every button with a ground wire across each row.

Stick the Stickers on the Keyboard


Upload the Code to the Arduino

image2 (1).jpeg

upload the attached code file to the Arduino.

Wire the Keyboard to the Arduino

image0 (2).jpeg

plug the ground wires to ground, and each other wire in order from 22 to 46
