5V Stabilised Supply for USB Hub

This is a stabilised supply intended to be used with a bus powered USB hub in order to deliver a stabilised + 5 volt supply to the devices connected to it.

Due to the resistance of the connecting cable, and the resistances introduced for current sensing for overcurrent protection, the voltage at the hub can be anywhere between +4.5 V(loaded) and +5.5 V. This circuit will deliver a stabilized +5 V in both the cases, ie, it is a buck/boost design, using the TPS63000 switch mode regulator chip manufactured by Texas Instruments.

It can deliver +5 V at 500 mA from input voltages as low as 2 Volts so a rechargeable battery and its (USB powered) charger can be added to make this into a USB UPS for the USB hub.

I decided to do a ground plane based layout. The chip has ten solder pads and a thermal pad to be soldered, and this was a different method to try with these types of leadless packages.

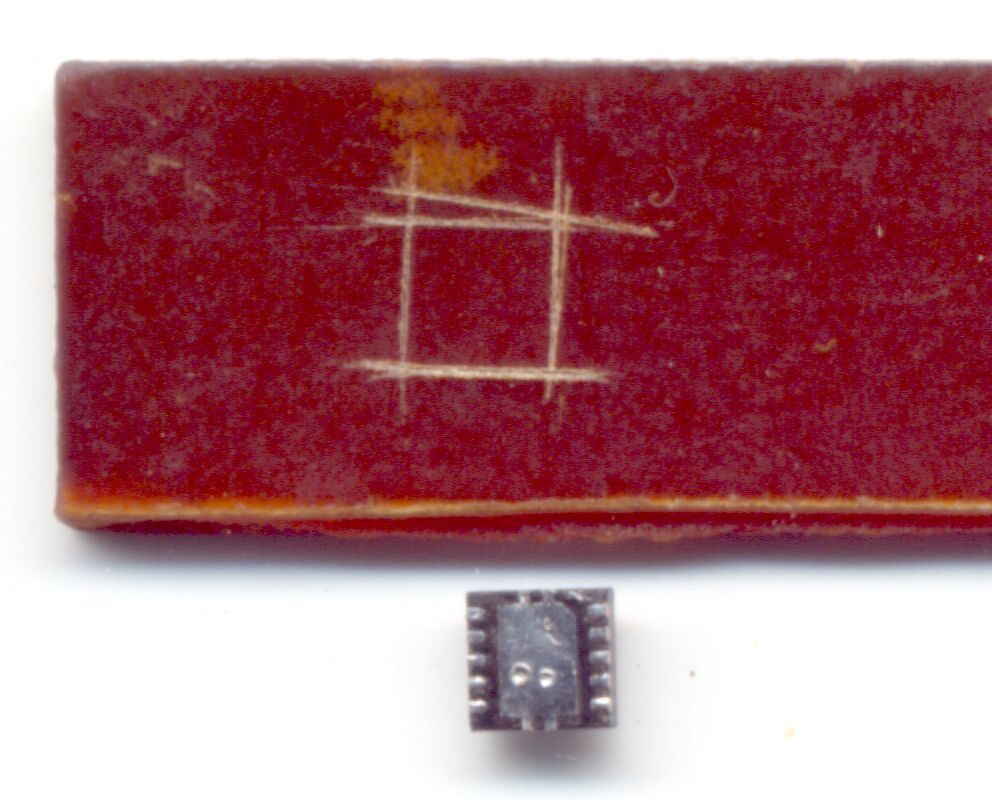

A scrap of single sided paper phenolic copper clad was cut to size and the outline of the chip drawn on its unclad side.

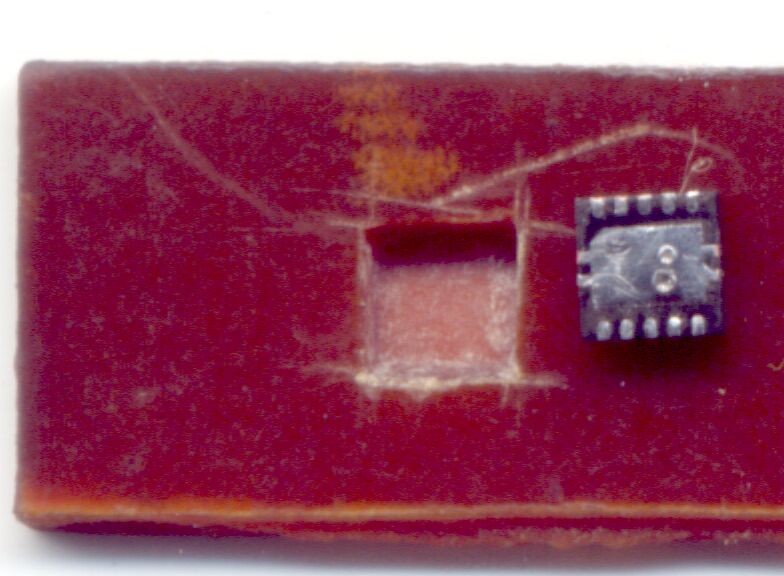

Then with a small screwdriver sharpened into a chisel, material was removed, making a niche for the chip to sit in.

The chip is then glued into the space so dug out.

This is, strictly speaking, unnecessary but I liked the feel of gouging out the PCB material, and it was fun to add some three dimentionality to the circuit.

Now that the chip is firmly inside the board, it is time to plan on connecting the ground leads.

Since the other side is an unbroken ground plane, this is easy: just drill holes and solder a wire.

Looking at the schematic, three pads of the ic have to be connected to ground. So three holes are drilled at the appropriate places.

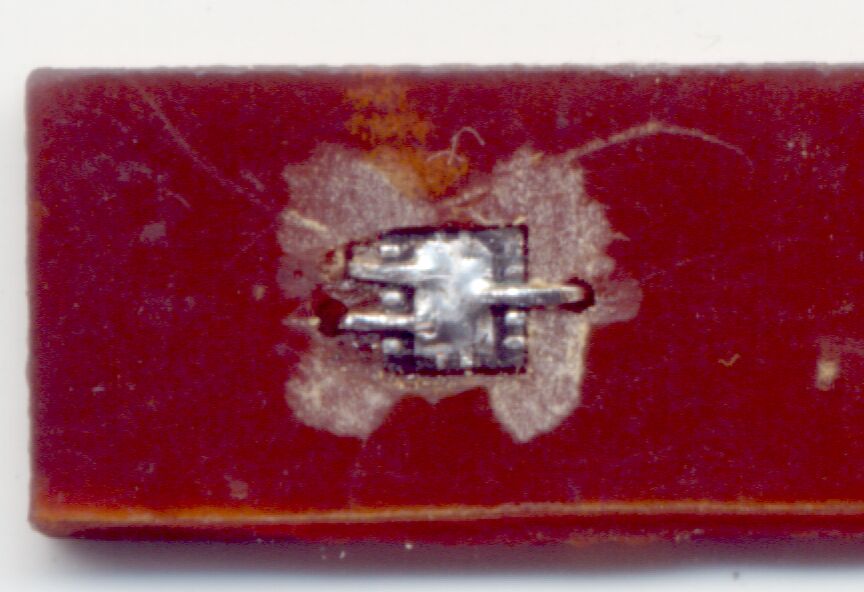

Three wires are first soldered at the copper side, then bent over the ic, cut to size and soldered to the pads and the central thermal pad.

A moulded 2.2 microhenry inductor was heated in a flame, its encapsulation removed, and the turns counted (there were 12). It was then rewound using fresh wire over the bare ferrite core.

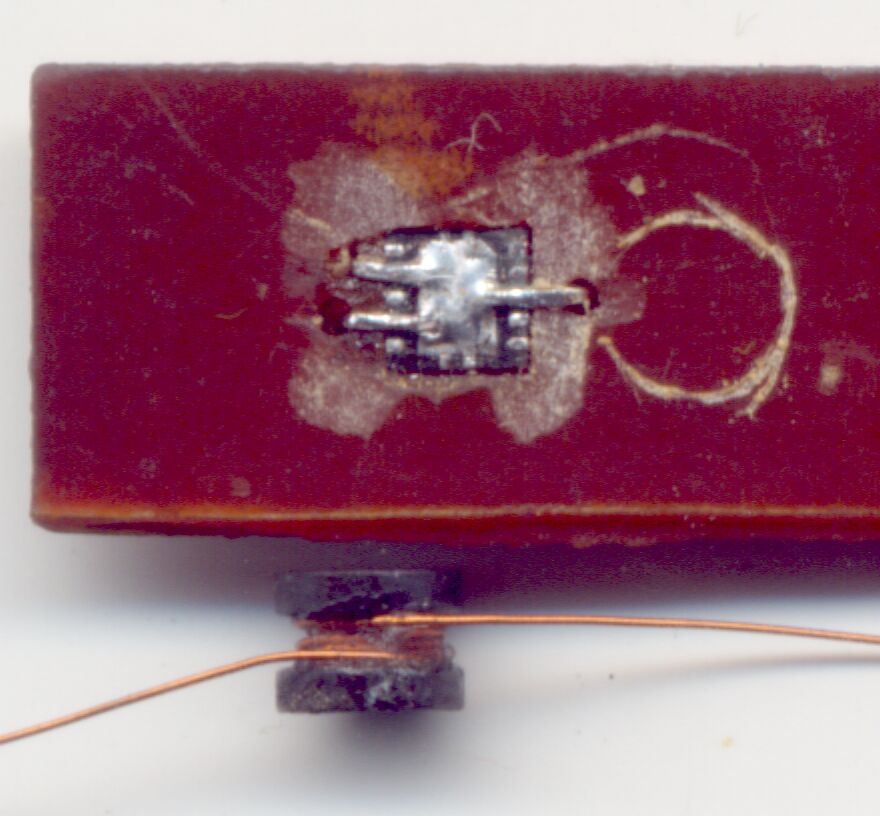

I decided to dig the inductor in (for protection) so its shape has been marked on the board.

All this is, of course, really unnecessary.

This is another wiew of the prepared inductor.

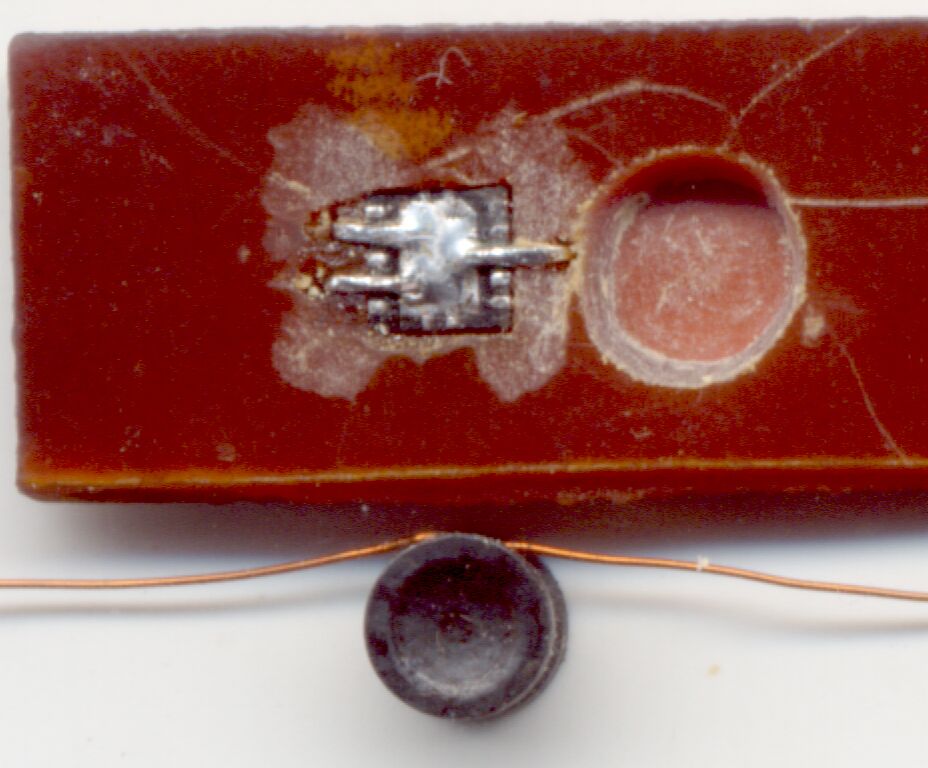

I have carved out a nice hole for the inductor to sit in.

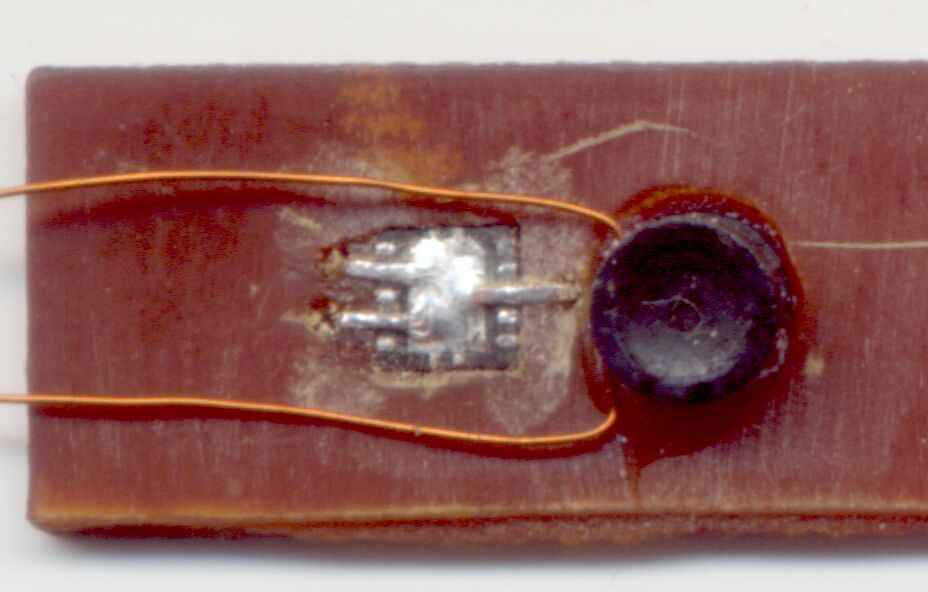

This is how the inductor looks when fitted into place.

The power to the Analogue section of the chip has to be filtered by a series resistor and capacitor to ground. These components have been fitted in position. Copper foil from another scrapped board was lifted, cut into shape and stuck in place to connect the components.

This makes the layout into a double sided board - sort of.

A pair of pins from an old motherboard was pressed into service for the 5 volt regulated output. The 10 microfarad tantalum surface mount capacitor was soldered across it.

All the resistors and capacitors were rescued from junked hard disks.

The feedback input of the TPS63000 has to be fed a voltage of 500 millivolts derived from the output. With a 5 volt nominal output, this means a division ratio of ten or two resistors, one nine times the other.

Ransacking all my surface mount boards (in my junkbox) threw up the pair you see in the figure. They were connected together as shown, then connected to a battery and my trusty multimeter verified that the division ratio was indeed ten.

If you are confused, on the left is a 523K resistor ie, 5, 2 and 3 followed by three zeroes, in ohms. On the right is a 4.7 Megohm resistor, ie, 4 and 7 followed by five zeroes, in ohms.

47 divided by nine is approximately 5.23.

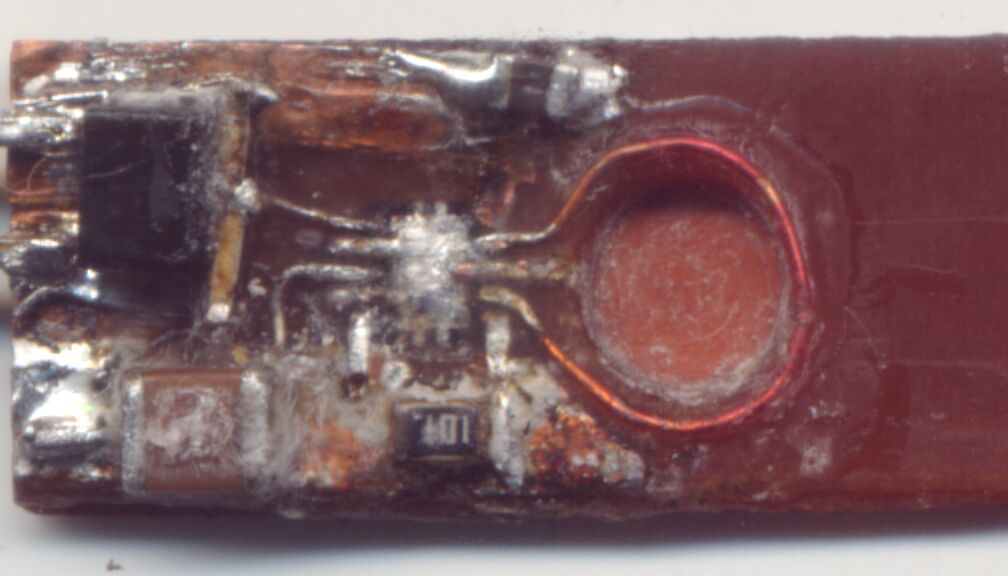

The resistors have been soldered into place, though due to limitations of space they had to be stuck upright to the output capacitor.

The whole thing is held together with liberal applications of superglue - otherwise the solder joints might come apart each time the board fell off the table.

Now all that remains is for the inductor and input capacitor.

I decided to cut into the board for the input capacitor, and use solder pins for the input connection.

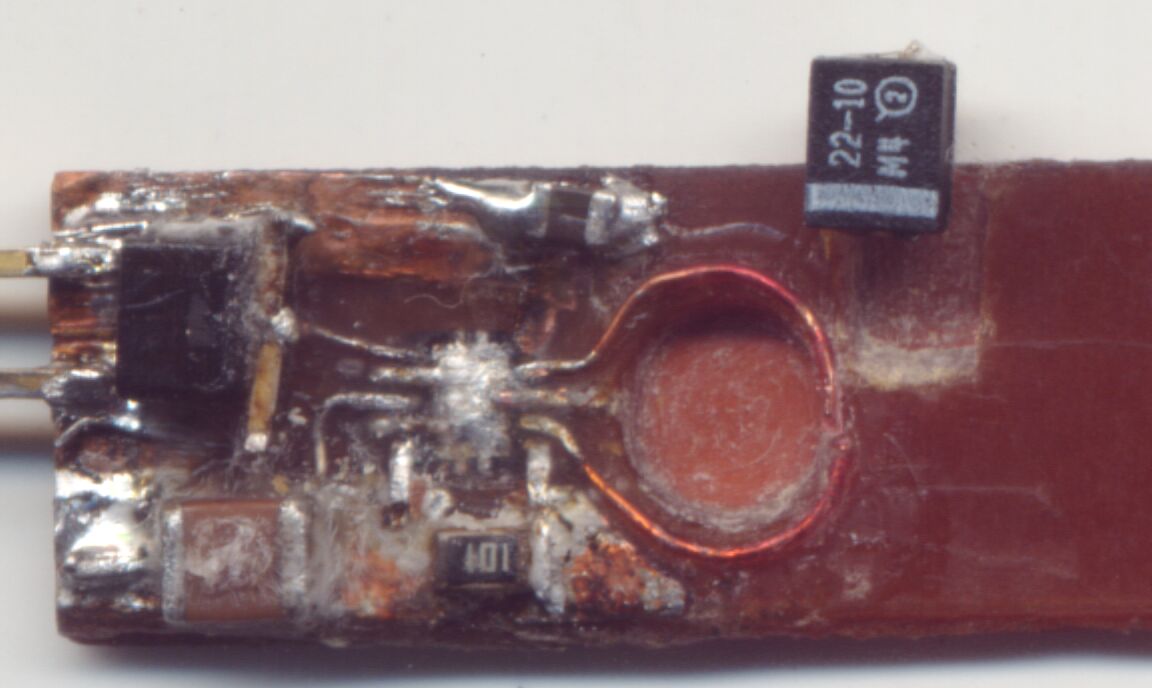

The outline of the capacitor has been marked on the board for cutting out.

The capacitor trench is ready for use.

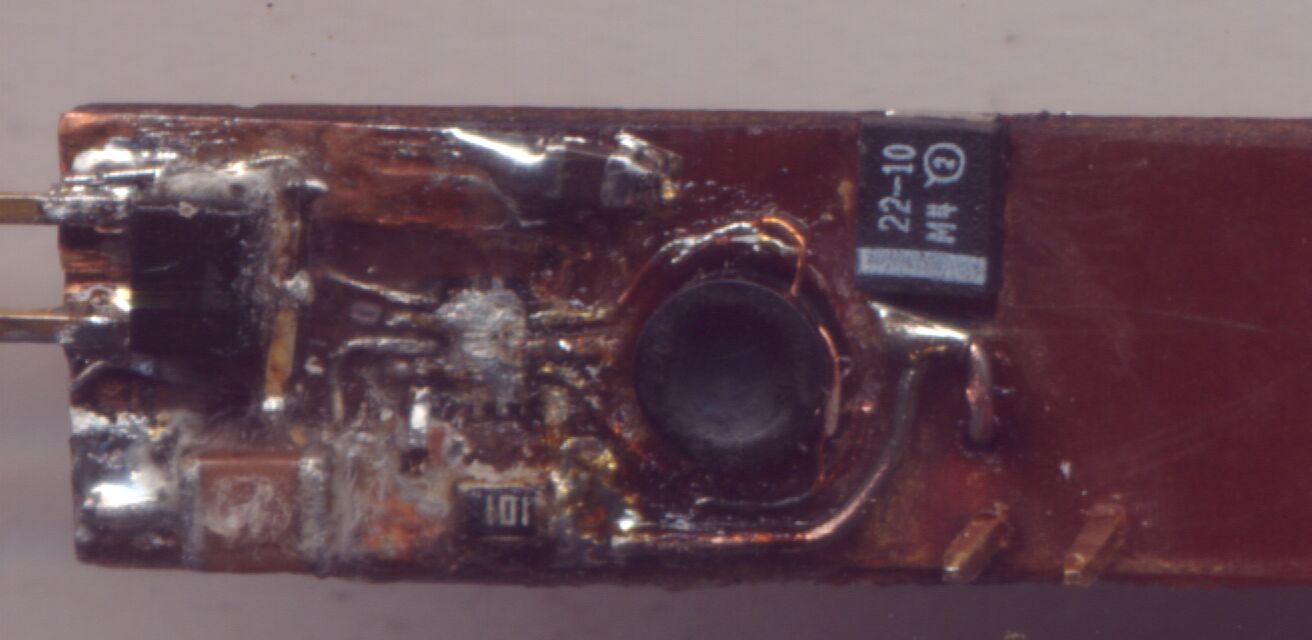

The board is finished, all components are in position.

It was tested.

First with two rather weak penlight cells - I did not trust my handiwork that much - and the output was 5.04 volts

Elated with the success, I tried it with three good cells - an input voltage of 4.5 volts - and the output was still 5.04 volts

Then I tried the voltage from the USB port of my computer - around 5 volts, though liable to jump around on the lower two digits - and still the output held steady at the same old 5.04 volts.

So it would seem that this thing works, at least during preliminary tests.

According to the datasheet it will start at 1.9 volts and accept a maximum of 5.5 volts, and hold its output voltage steady.

It is a buck - boost converter, which means it can accept input voltages above and below its output voltage, switching between modes automatically in order to keep the voltage steady.

It could be fed from a rechargeable cell in order to maintain the USB supply voltage even when the cable is disconnected from the computer - if that is any good.
