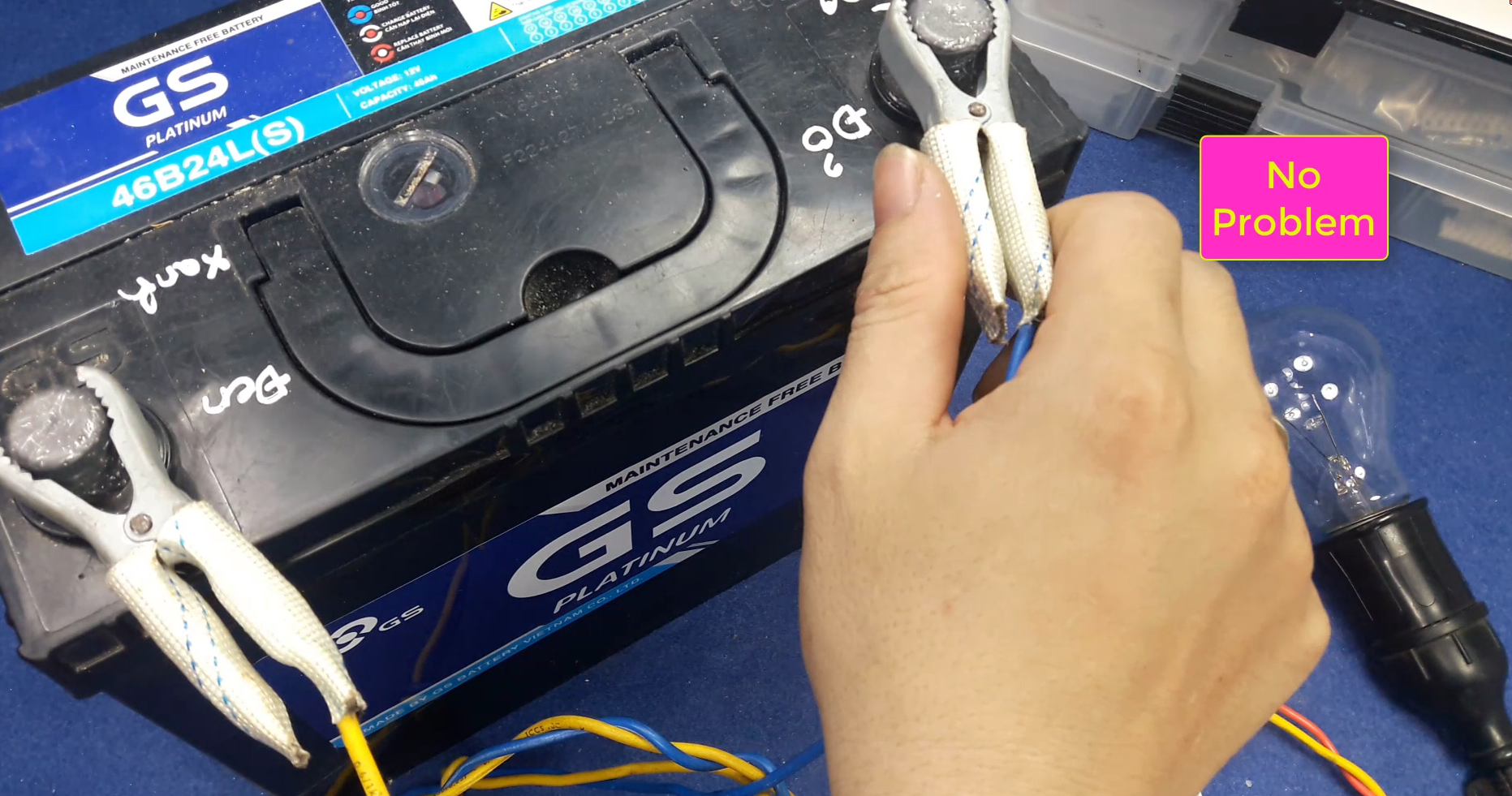

500W Power Inverter With Reverse Polarity Protection

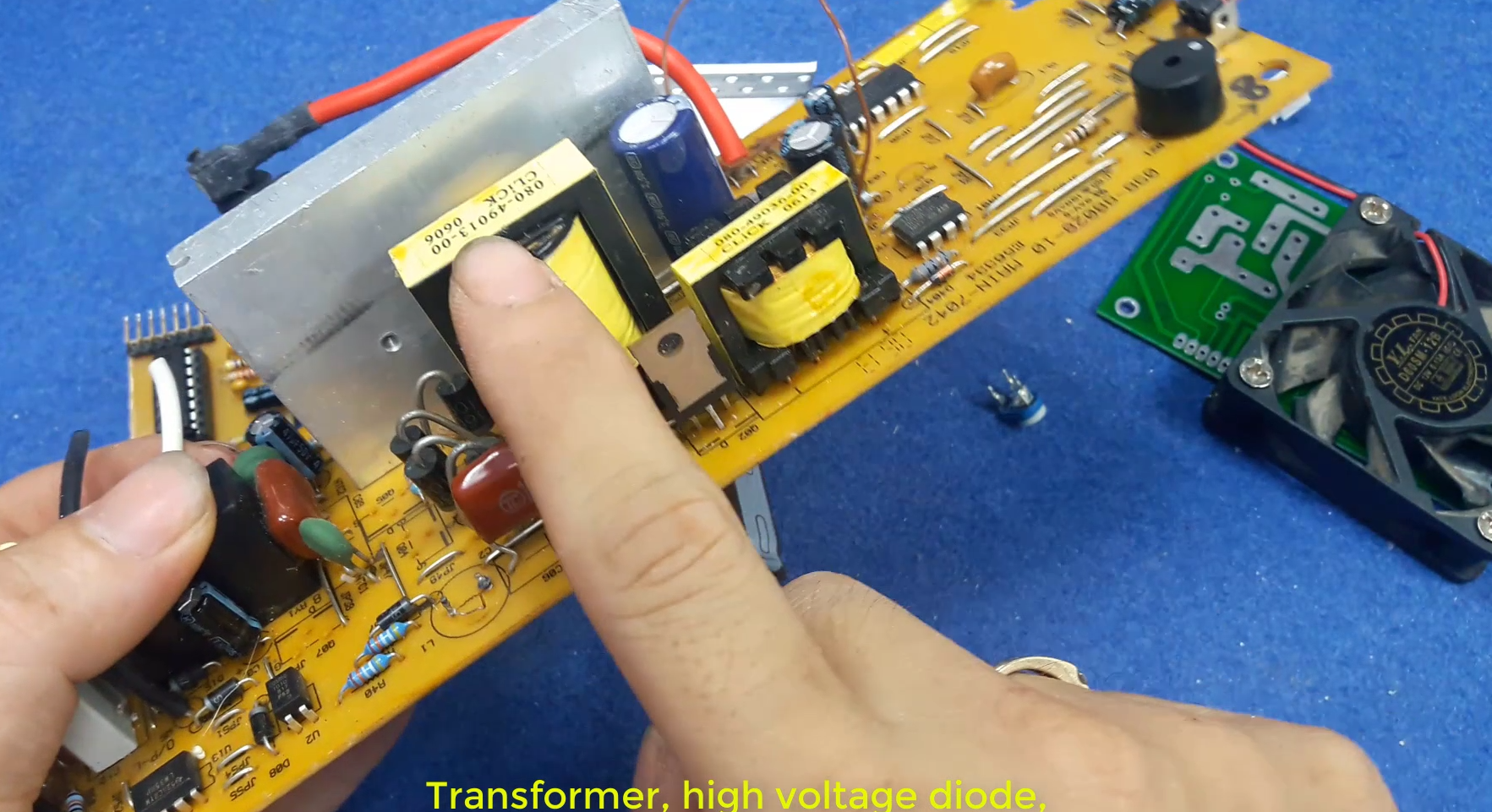

Hi friends. I have TG500 UPS but it have some problem so, i use it's transformer, mosfet,diode,capacitor for make new Inveter. I hope you like it

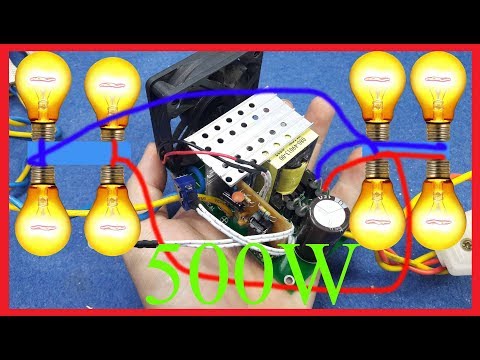

In this video i show you how to make 500w inverter. With the electric component from UPS Tg500.

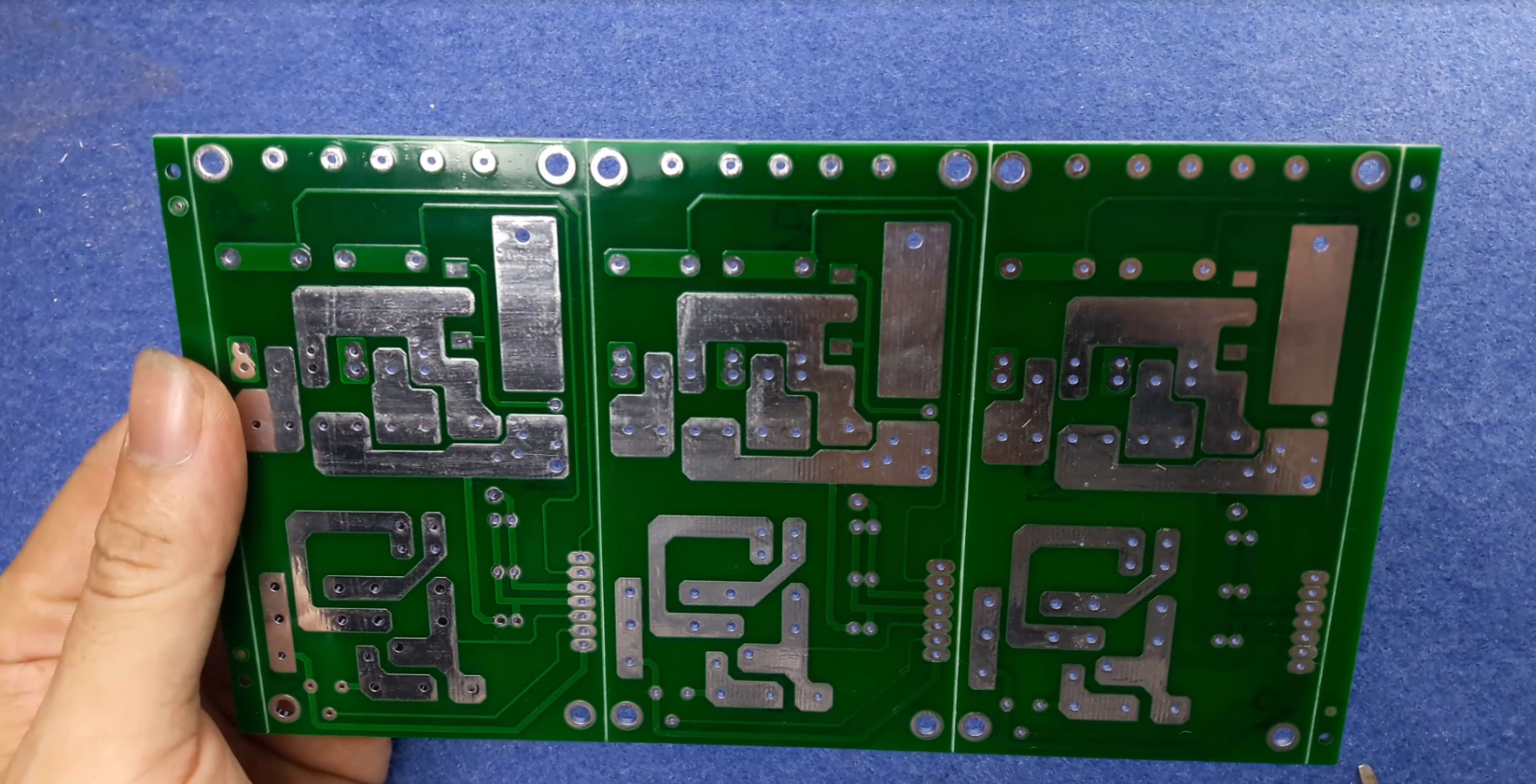

I use Eagle software for make layout and make gerber file, after that i upload to JLCPCB.COM for make PCB online, you can make it by yourselt at home. You can download all file here with include Schematic (TG500) gerber and PDF file.

List of component below.Your can order online them from LCSC.COM

STD45N10F7 SMD X2 : https://bit.ly/2Jy6x1b

R 10K X2 : https://bit.ly/2P2XR9c

R 10 X3 : https://bit.ly/2CZmTyW

R 1K : https://bit.ly/2SG20xS

UPS TG500 TRANSFORMER : Take from old TG500 board

DIODE MUR 460 X4 : https://bit.ly/2QeNoUN

R 0.47 /2W : https://bit.ly/2CVP7KS

Trimpot Variable Resistor 6MM 5K :https://bit.ly/2qob65F

CAPACITOR 450V/100UF : https://bit.ly/2EZeDS2

CAPACITOR 3300UF/35V : https://bit.ly/2PGxqpu

12V FAN : https://bit.ly/2SH6Bjj

IRF3205 X2 : https://bit.ly/2PzDv72

Header 2P XH2.54-2P X3 : https://bit.ly/2JxSVTB

2.54mm 1X40P Single Row 90 Degree Curved Needle Connector Pin Header : https://bit.ly/2yON8oK

SG3525 (KA3525) : https://bit.ly/2Rt8lvl

CAPACITOR 10UF/16V : https://bit.ly/2qpQLN7

CAPACITOR 104 X2 : https://bit.ly/2P17c18

CAPACITOR 102 : https://bit.ly/2QeOhN7

R 20K : https://bit.ly/2zx0w0r

R 47 : https://bit.ly/2qscPXn

R 150 X4 : https://bit.ly/2JxTcWD

My inverter have 310V DC of ouput. I can run TV,laptop,computer can not run fan,ac motor

Becareful with high electric voltage
