5 Inch HDMI Plug and Play Camera Monitor

In this project, we're going to make a DIY monitor using an 5 inch HDMI touch screen and a 3D printed enclosure.

A display monitor is a very helpful tool for video production, you can check the pictures right away to make the adjustment。

OK, let's find out what we need：

1. A camera which support HDMI output. such as NICON or Cannon and so on.

2. 3D printer.

3. 5 Inch 800*480 HDMI Resistive Touch Screen LCD Display for Raspberry Pi 2/3/B+

4. HDMI cable with MiniHDMI cable or a MiniHDMI converter.

5. A bracket, you can just design it and print it by 3D printer or make it by yourself.

6. M3 screw X 4

At the very beginning, print out the screen enclosure, you can just download from the links below:

5 Inch LCD HDMI Touch Screen enclosure

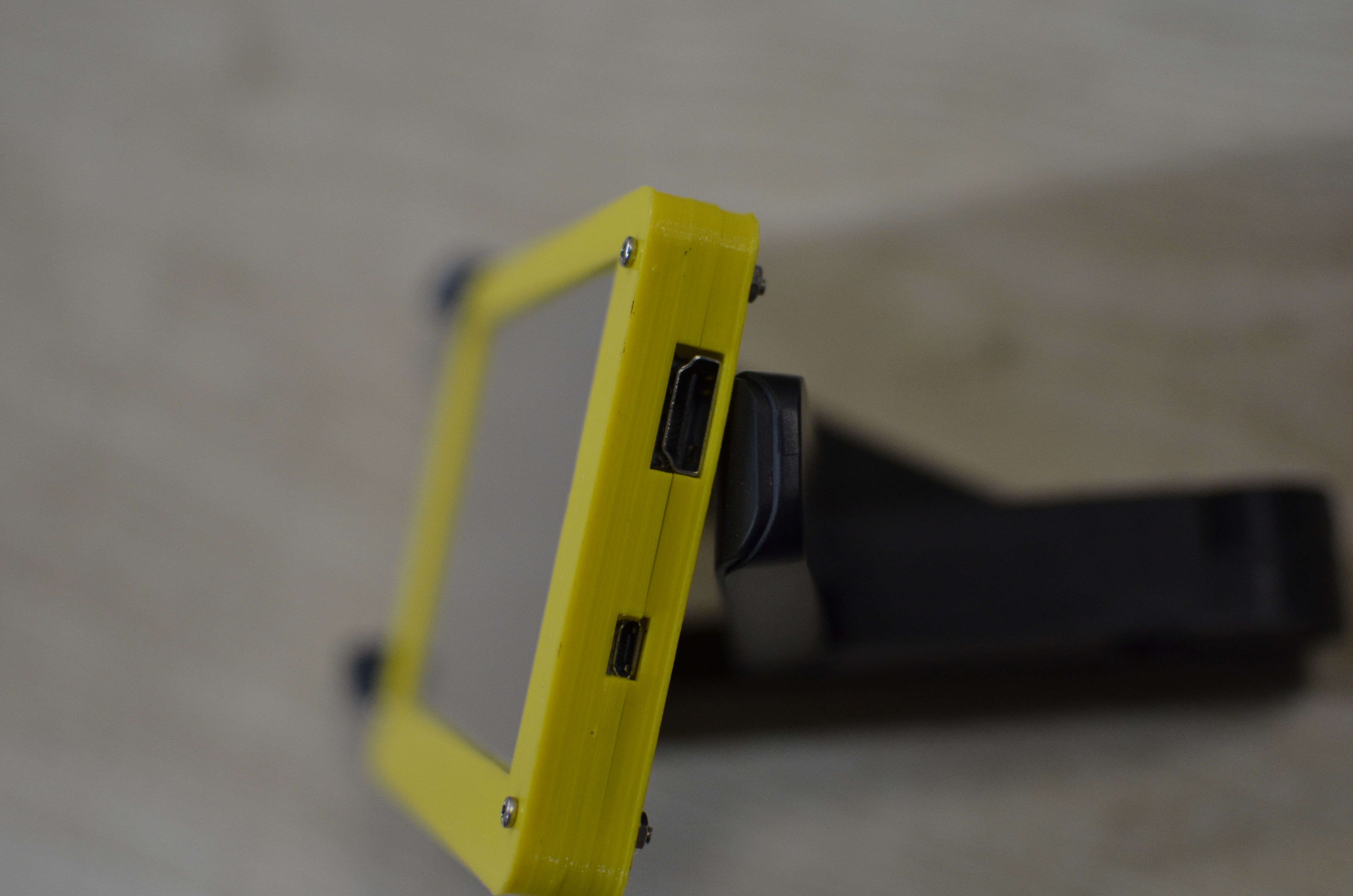

You can assemble it after printing the enclosure just by that four screws.

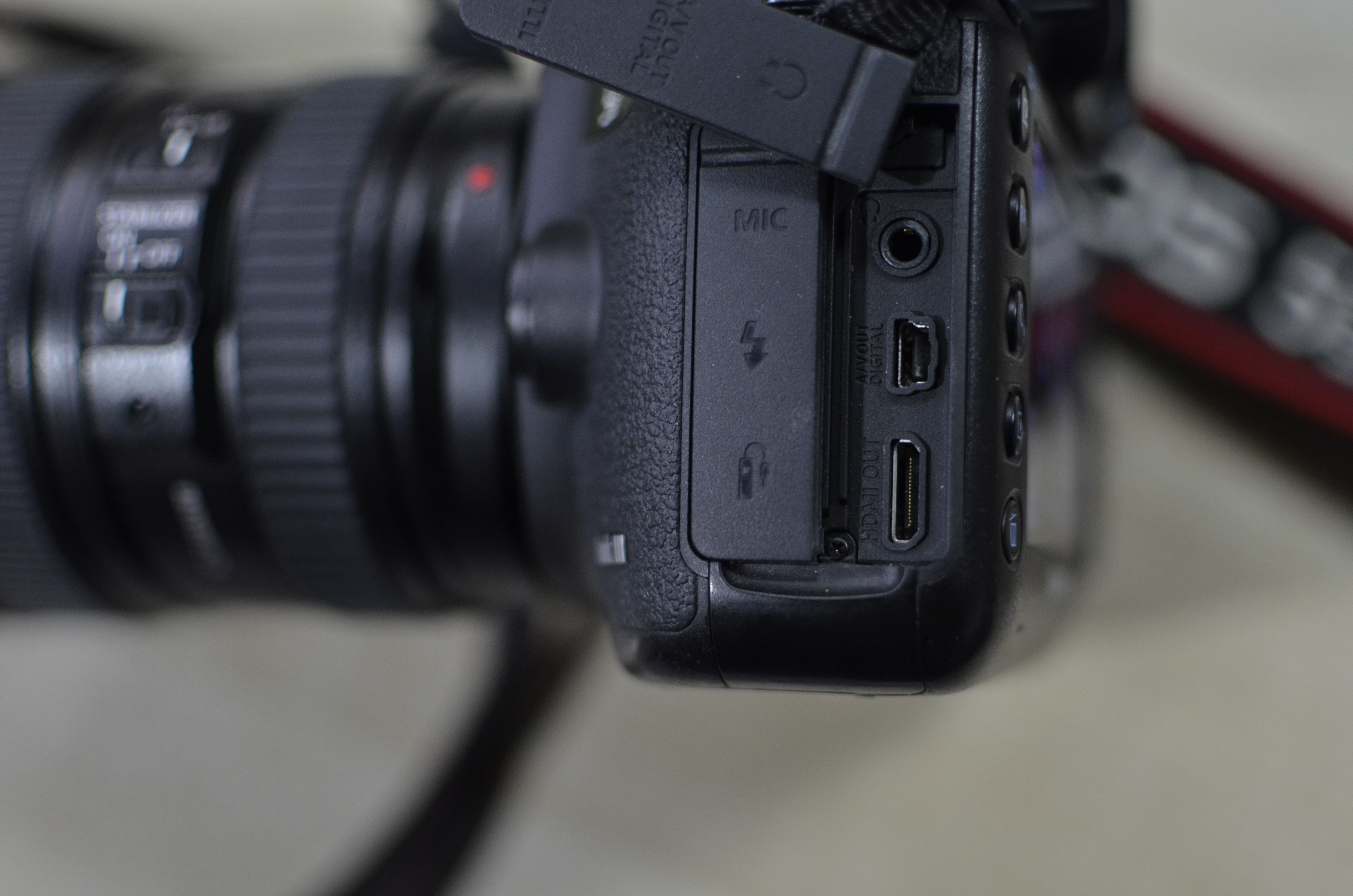

You can just plug it into your camera with HDMI cable.you can see that MiniHDMI cable is smaller than normal HDMI cable, and also you can just buy a HDMI converter as the pictures that showing.

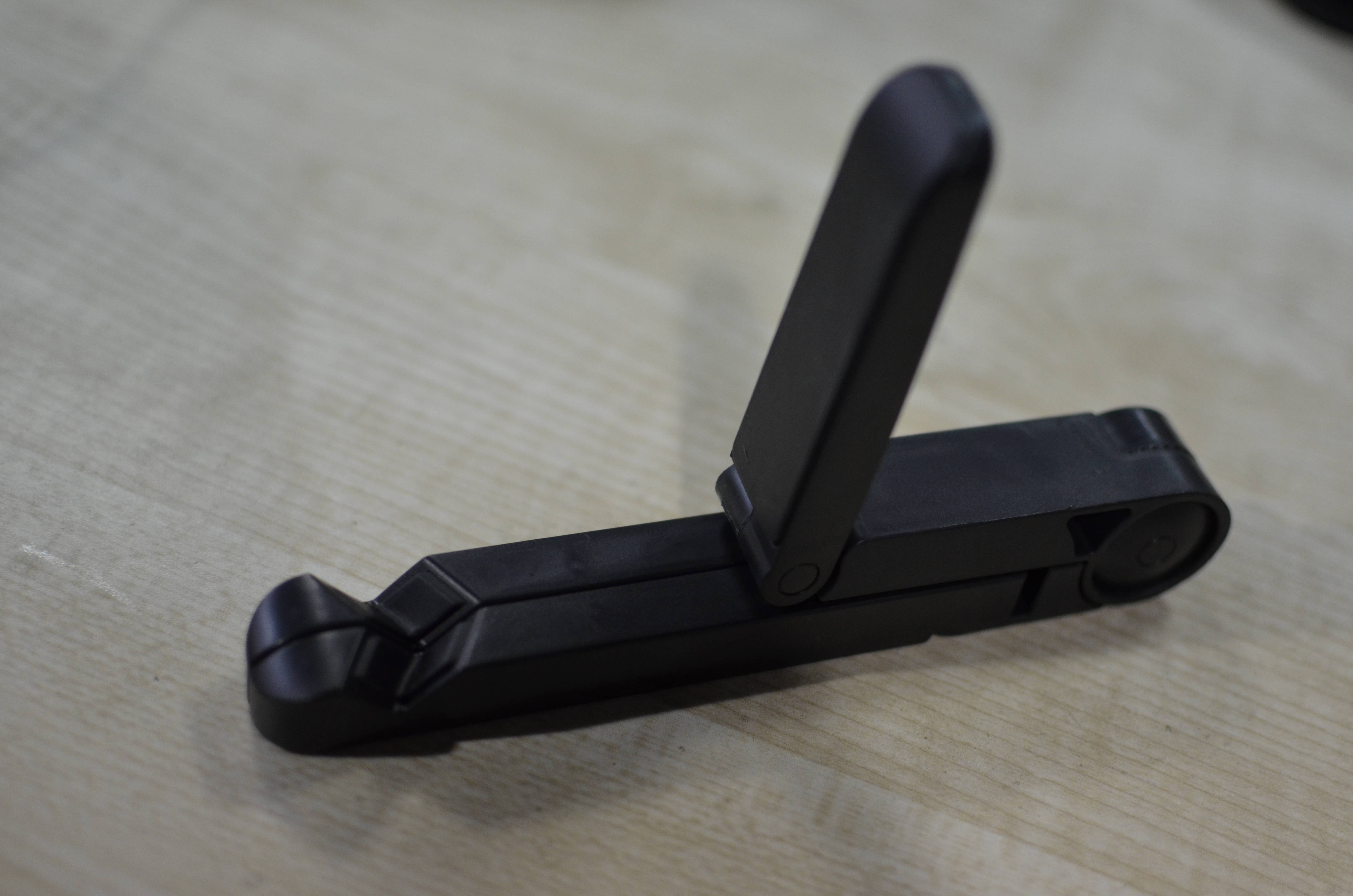

Setup the bracket for the monitor, and put your 5 inch touch screen on it. It's perfect fit for this screen...

let my camera focus on my Mac book pro, and take a photo.

That is really nice,fantastic and low-cost display perfect for DIY projects like monitoring arial drone shots, mobile gaming, and of course video production and photography. Thanks for your watching!
