5 Gallon Bucket Hydroponics

by spaktashabit in Workshop > Hydroponics

22081 Views, 116 Favorites, 0 Comments

5 Gallon Bucket Hydroponics

14, 3:14 PM.jpg
I did this for about 30$ but I already had the pump it's relatively simple to make and works good for indoor planting

Things You Need

14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
A 5 gallon bucket (got mine at homedepot)
A lid for the bucket
A pond water pump (or some sort if water pump)
A 4 outlet retrofit drip manifold (also got at Home Depot)
1/4 inch drip line
4 three inch pots with holes in the bottom
And don't forget the most important thing safety glasses

The Top Lid

14, 3:14 PM.jpg
14, 3:14 PM.jpg

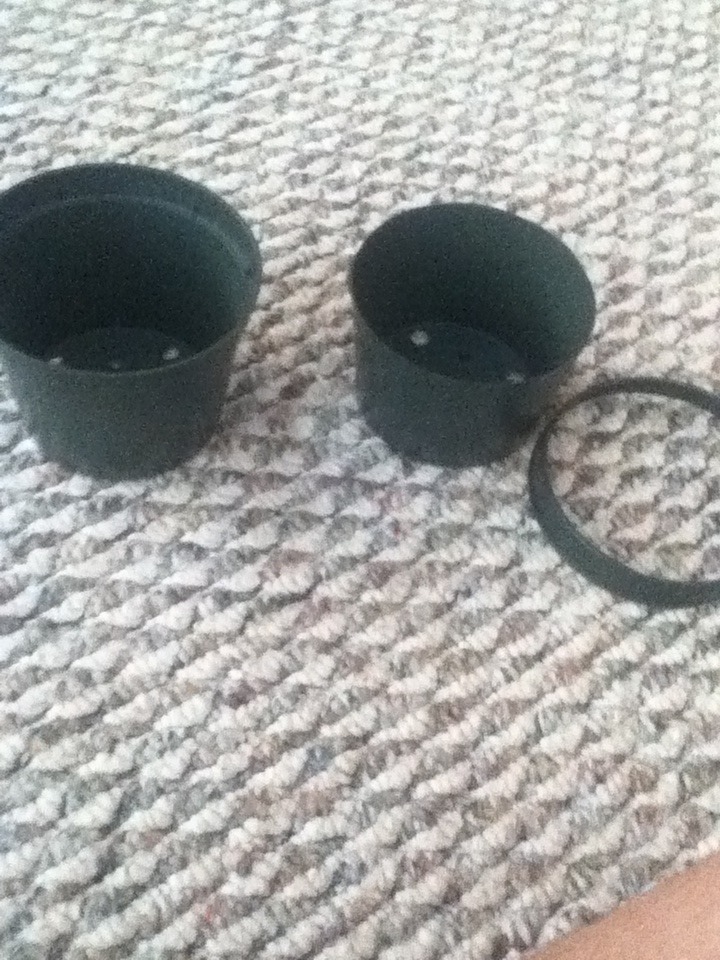

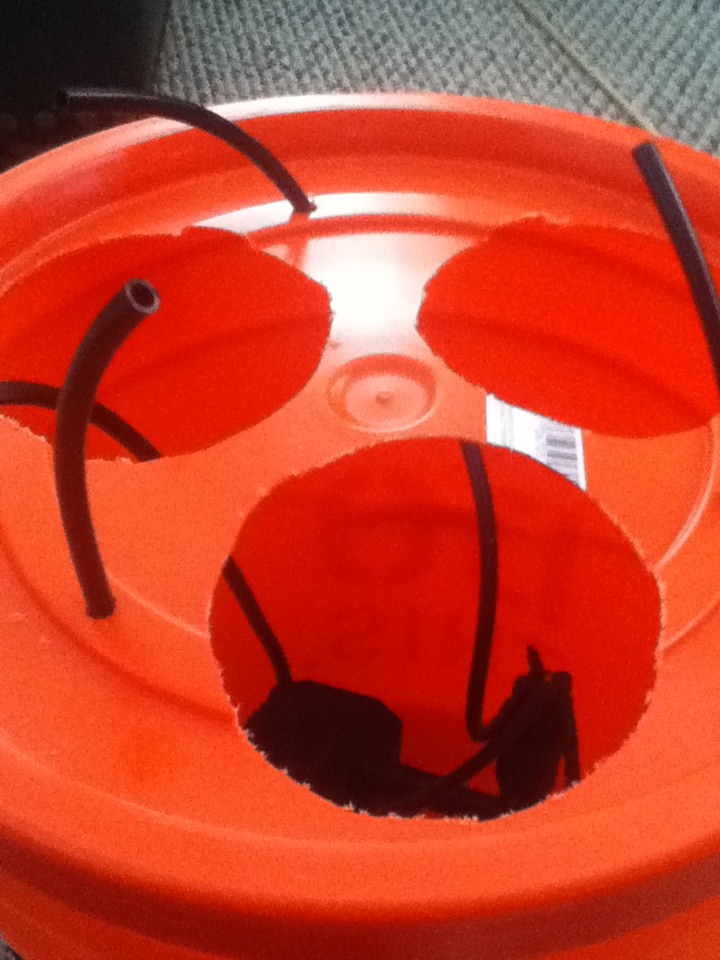

Well with the pots I have I needed to cut it down so it would rest on the edge that was sticking out you don't need to do this if you have a hydroponics pot then draw out the holes for the pots then cut them out

The Main Tank

14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
Get your pond water pump and connect it to the adaptor then place it in the middle of the bucket then mark where you want the cord to come out then cut

Pump Assemble

14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
14, 3:14 PM.jpg
Then cut the pipe to the length needed to get it to your plants then mark holes where the pipe will come out then drill holes for pipe then add the pots

Finishing

14, 3:14 PM.jpg
Ad a fill line then pick your growth medium like hydroton or clay I'm using a sponge with dirt over it then plant your seeds in then bring to where your going to grow your plants and fill it it also works better if you have a timer for your pump so you can water your plants without worry
