4x4x4 LED Cube, With MSP430, Using Only 3 Pins
by Samartist in Circuits > Microcontrollers
13048 Views, 41 Favorites, 0 Comments
4x4x4 LED Cube, With MSP430, Using Only 3 Pins
This is my 4x4x4 led cube project, done with MSP430, using only 3 pins of MSP, the circuit diagram is shown in the photos, the hardware consists of 3 shift registers, 74595, and 4 NPN transistors...
you can learn how to make a 4x4x4 LED cube by instructables or youtube or some other sites, its easy to make...

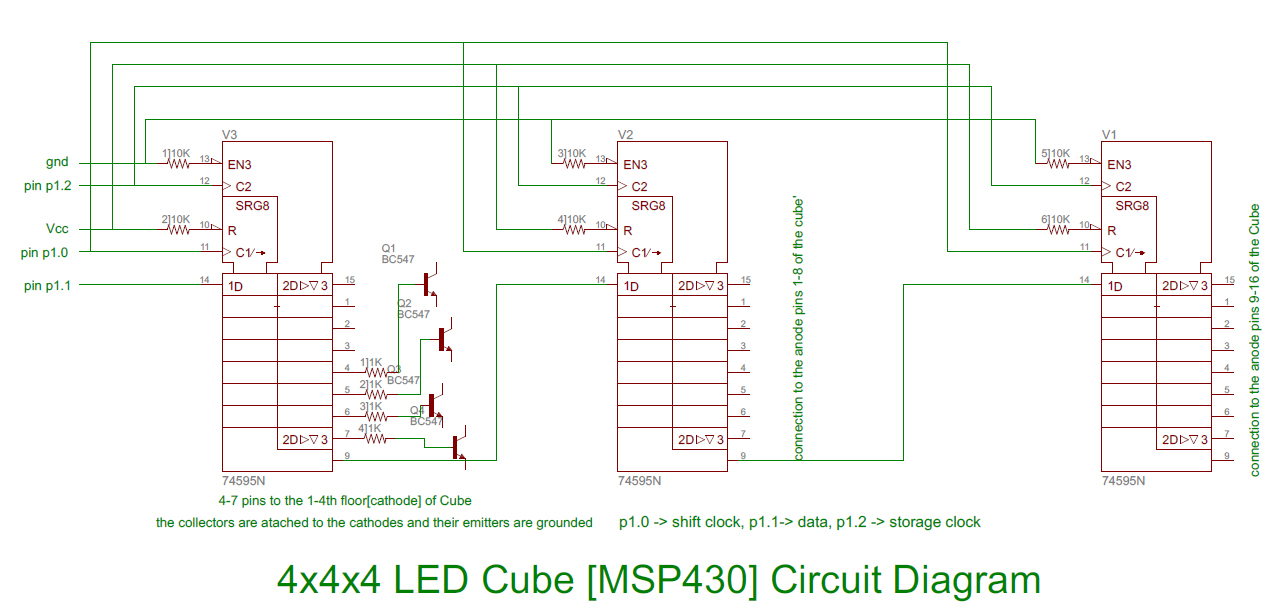

but make sure that you make exact same connections as shown in the cicuit diagrams... or else this code won't work in the new hardware...

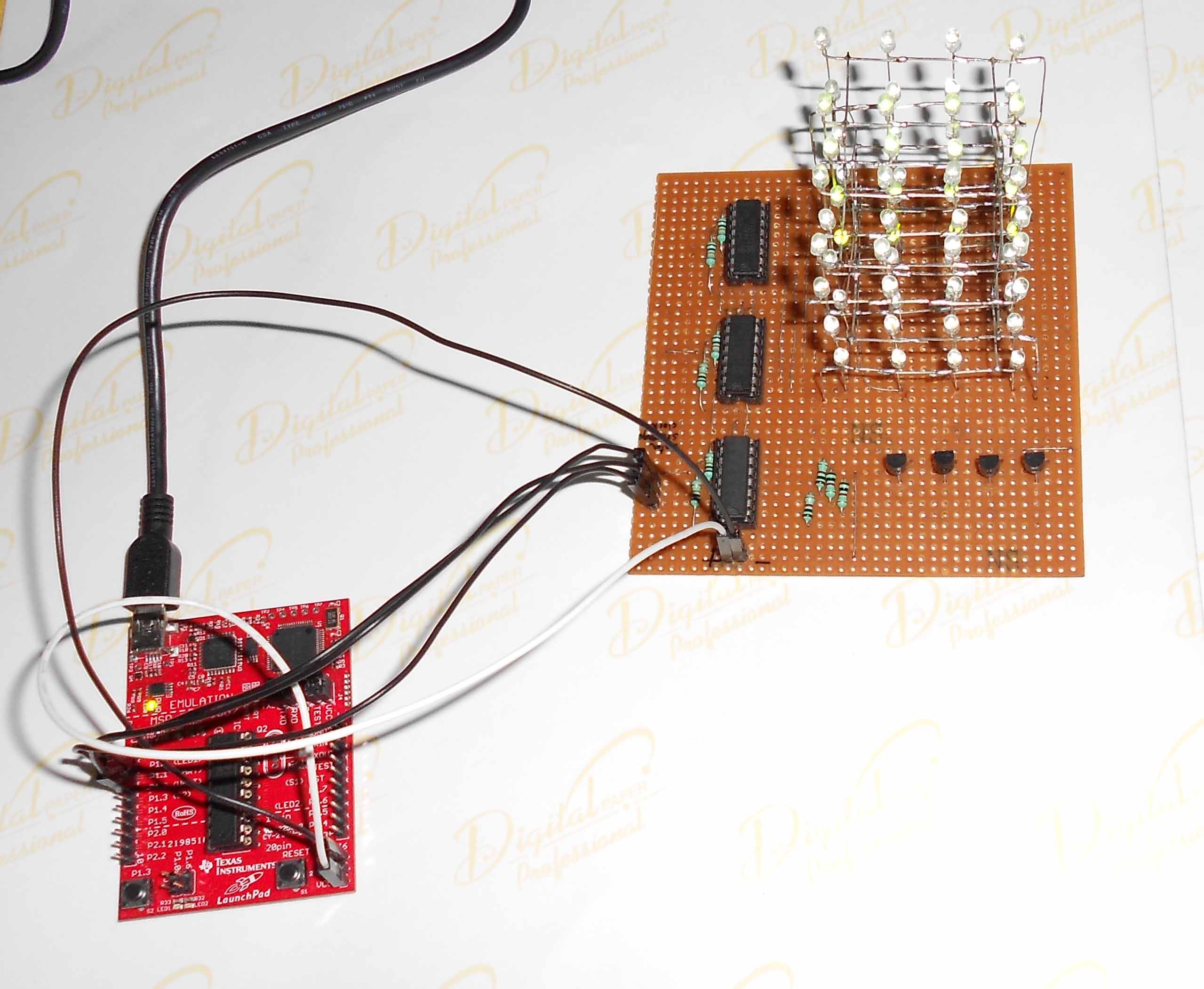

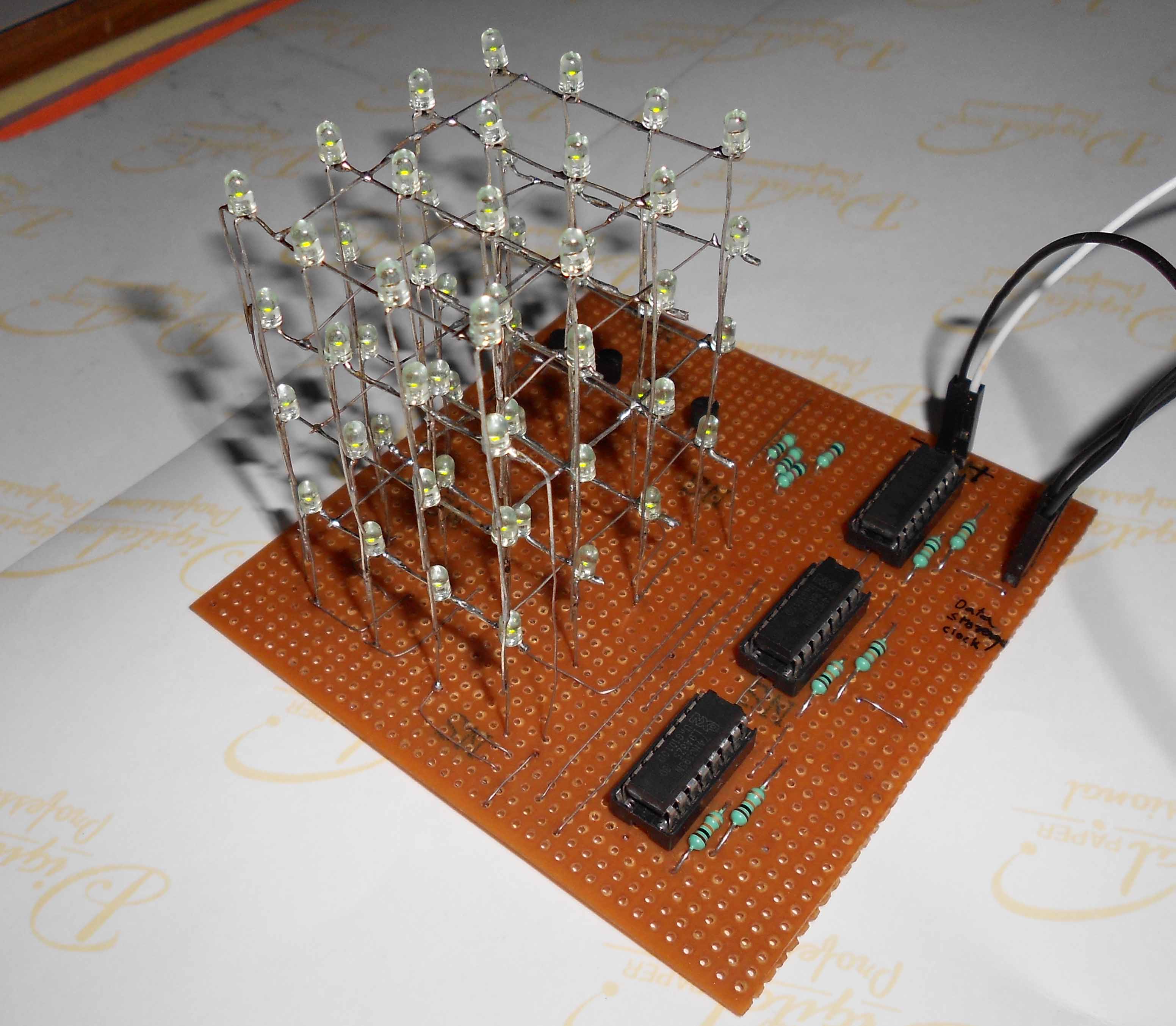

the hardware can be built as shown in the circuit diagram...
the code is given below, you can changes it and make your own animation with it....
you can learn how to make a 4x4x4 LED cube by instructables or youtube or some other sites, its easy to make...
but make sure that you make exact same connections as shown in the cicuit diagrams... or else this code won't work in the new hardware...
the hardware can be built as shown in the circuit diagram...
the code is given below, you can changes it and make your own animation with it....
