Hi there. New to Multisim? This is for you!
In this project we will build a simple 4 bit manual counter using NI Multisim software.
Newbie special :) Follow us for more cool projects and visit us at www.bits4bots.com
Parts List (if Building on Breadboard)
![parts list 4 bit counter.PNG](/proxy/?url=https://content.instructables.com/FHB/J004/HZ13K3KK/FHBJ004HZ13K3KK.png&filename=parts list 4 bit counter.PNG)
![74ls47 diagram.PNG](/proxy/?url=https://content.instructables.com/FWI/WNDH/HZ13K0ZC/FWIWNDHHZ13K0ZC.png&filename=74ls47 diagram.PNG)
![multisim logo.png](/proxy/?url=https://content.instructables.com/FKQ/H4ZJ/HZ13K12Z/FKQH4ZJHZ13K12Z.png&filename=multisim logo.png)
![www.bits4bots.com](/proxy/?url=https://content.instructables.com/FWR/BVFW/I5MZ19KK/FWRBVFWI5MZ19KK.jpg&filename=www.bits4bots.com)
NI Multisim Software
******Parts needed: www.bits4bots.com
- 4 Pin Dip Switch
- 74LS47 TTL
- 7 Segment Display (any color)
- Jumper Wires
- 5V Power Supply
FAQ:
Hey Bits4Bots I want to build this but I have only have a 74LS48 TTL.
Answer: No problem. If you use a 74LS48 TTL you will need to use a Common Cathode Display.
Multisim Circuit Connection
![4 bit tut1.PNG](/proxy/?url=https://content.instructables.com/FUO/OUWS/HZ13K5VD/FUOOUWSHZ13K5VD.png&filename=4 bit tut1.PNG)
![4 bit tut2.PNG](/proxy/?url=https://content.instructables.com/FNE/Y75Q/HZ13K5VI/FNEY75QHZ13K5VI.png&filename=4 bit tut2.PNG)
![4 bit tut3.PNG](/proxy/?url=https://content.instructables.com/F01/M66N/HZ13K5VV/F01M66NHZ13K5VV.png&filename=4 bit tut3.PNG)
![4 bit tut4.PNG](/proxy/?url=https://content.instructables.com/FDY/5555/HZ13K5W4/FDY5555HZ13K5W4.png&filename=4 bit tut4.PNG)
![4 bit tut5.PNG](/proxy/?url=https://content.instructables.com/FEP/IPB7/HZ13K5WL/FEPIPB7HZ13K5WL.png&filename=4 bit tut5.PNG)
![4 bit tut6.PNG](/proxy/?url=https://content.instructables.com/F5E/ZTB9/HZ13K5X6/F5EZTB9HZ13K5X6.png&filename=4 bit tut6.PNG)
![4 bit tut7.PNG](/proxy/?url=https://content.instructables.com/FRP/UVUG/HZ13K5XE/FRPUVUGHZ13K5XE.png&filename=4 bit tut7.PNG)

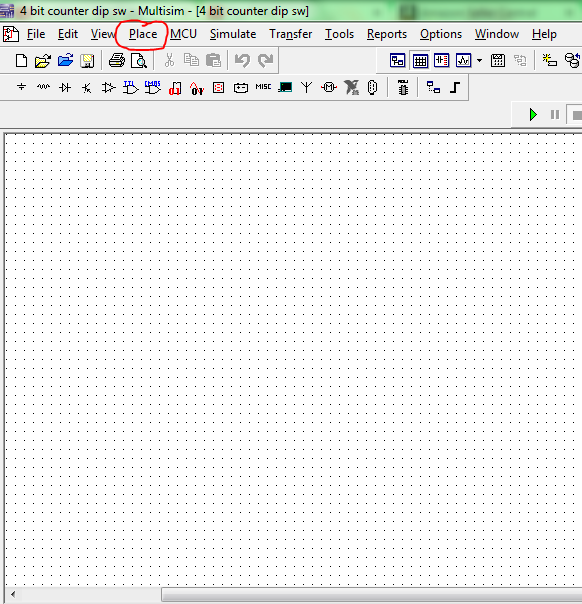

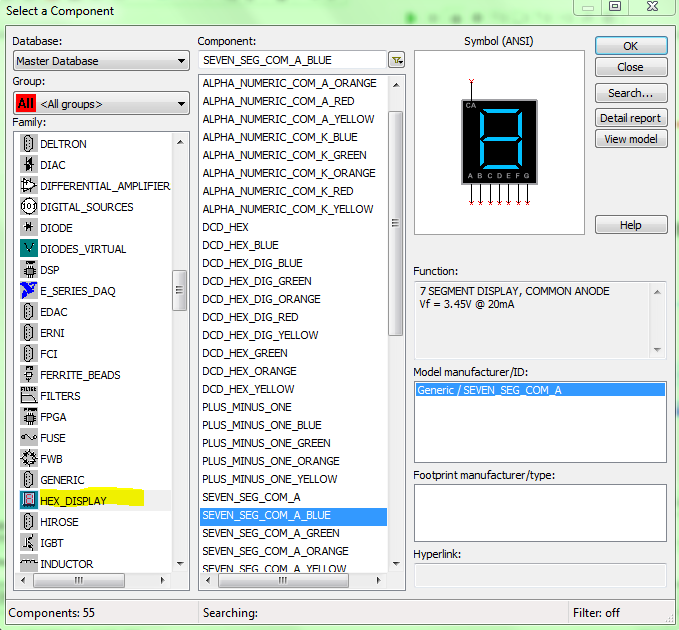

Open Multisim

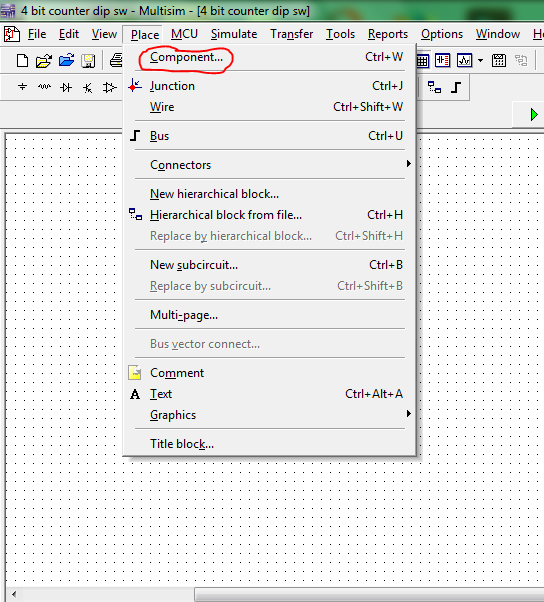

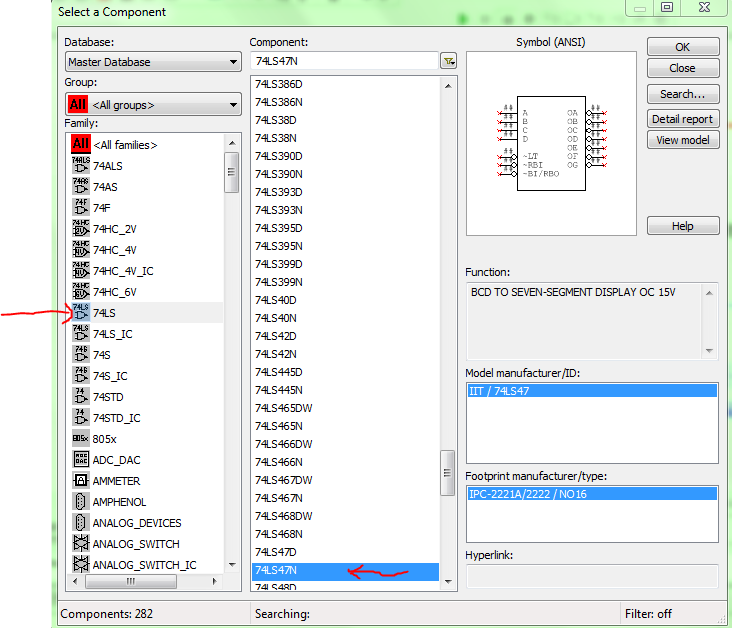

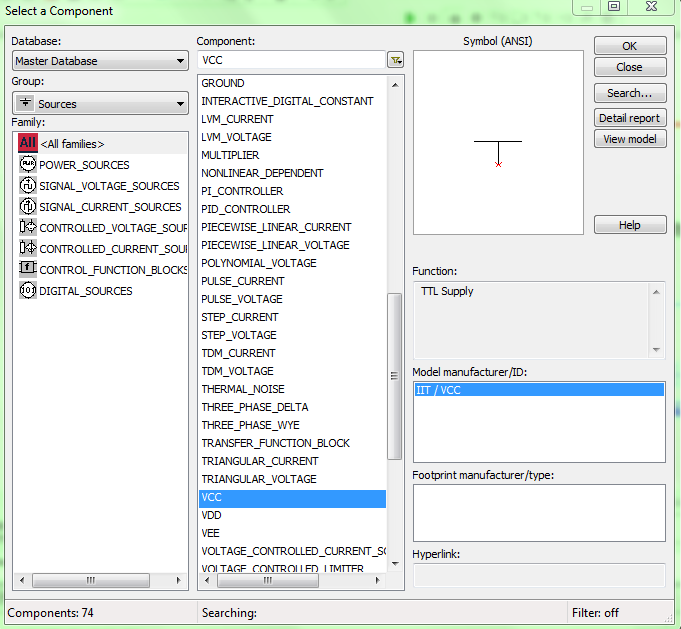

- Select components needed. I have decided to use images for this process.
Click the tabs in order that are circled in red or highlighted.
Breadboard Circuit Connection
![4 bit counter dip 1.PNG](/proxy/?url=https://content.instructables.com/FTV/2LTJ/HZ13K0YE/FTV2LTJHZ13K0YE.png&filename=4 bit counter dip 1.PNG)
![4 bit bb layout.PNG](/proxy/?url=https://content.instructables.com/FA4/269X/HZ13K7TN/FA4269XHZ13K7TN.png&filename=4 bit bb layout.PNG)
![blue 7 seg.JPG](/proxy/?url=https://content.instructables.com/F7E/B4CE/HYWT53YV/F7EB4CEHYWT53YV.jpg&filename=blue 7 seg.JPG)

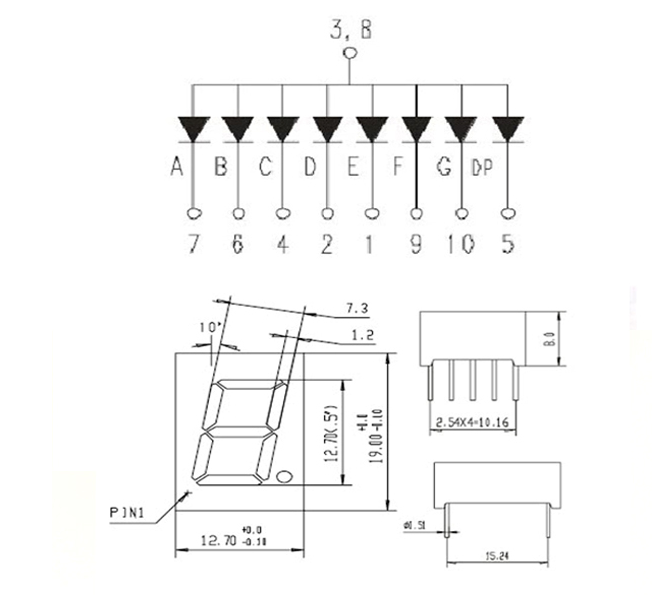

![blue 7 seg pin out.PNG](/proxy/?url=https://content.instructables.com/FG5/TH10/HYWT57WI/FG5TH10HYWT57WI.png&filename=blue 7 seg pin out.PNG)
- Connect the top 4 pins of the dip switch to VCC (5V)
- Connect the bottom row of the dip switch pins individually to the A, B, C & D of the 74LS47 IC

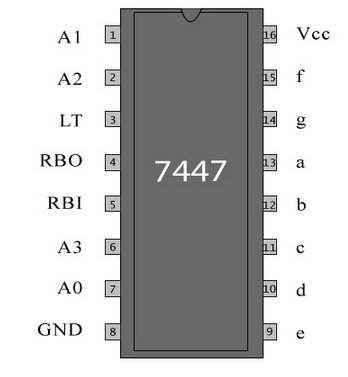

- Connect the 74LS47 accordingly.
- Pin 3, 4 & 5 of the 74LS47 should be powered.
- Connect the 7 Segment Display. I used a Common Anode.
Test the Circuit
![DecBinHex1.png](/proxy/?url=https://content.instructables.com/FOV/ME0E/HZ13K9R9/FOVME0EHZ13K9R9.png&filename=DecBinHex1.png)
Now that everything is connected we can now test the circuit.
A zero should show on the display when the circuit is powered.
- When the right>>>>>most switch is on (high) the display should show a 1.
- Flip the switch to low again.
- Move one over to the left<<<< and flip the switch. A 2 should display.
- To display the number 3 flip both previous switches.
- By now you should have an idea of how the manual counter works :)

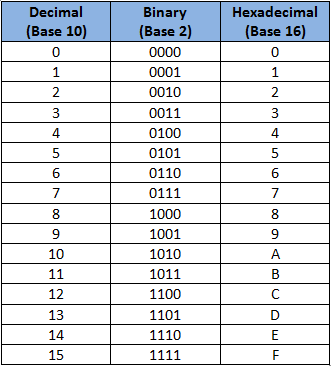

I have included a binary to decimal chart for your convenience.

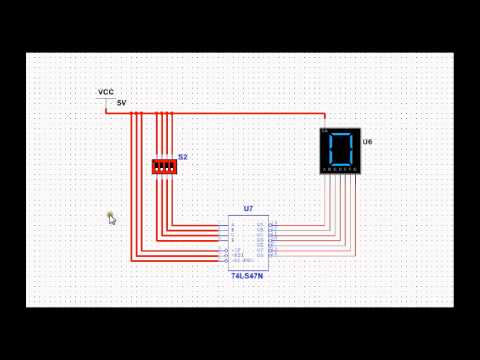

Watch Me Build This Project!
![NI Multisim: Build a 4 Bit Manual Counter in 10 minutes!](/proxy/?url=https://content.instructables.com/FIV/ILEC/HZ13KAEK/FIVILECHZ13KAEK.jpg&filename=NI Multisim: Build a 4 Bit Manual Counter in 10 minutes!)
If you like this project please follow me or subscribe to my YouTube channel.
