3d Printed Solar Panel Mount
by Unboxingexperience7 in Workshop > 3D Printing
480 Views, 0 Favorites, 0 Comments
3d Printed Solar Panel Mount
![3d printed solar panel mount.jpeg](/proxy/?url=https://content.instructables.com/F9X/11IY/LJEASD9V/F9X11IYLJEASD9V.jpg&filename=3d printed solar panel mount.jpeg)
![3d printed solar panel mount](/proxy/?url=https://content.instructables.com/F63/ALRU/LJFQ8LUV/F63ALRULJFQ8LUV.jpg&filename=3d printed solar panel mount)

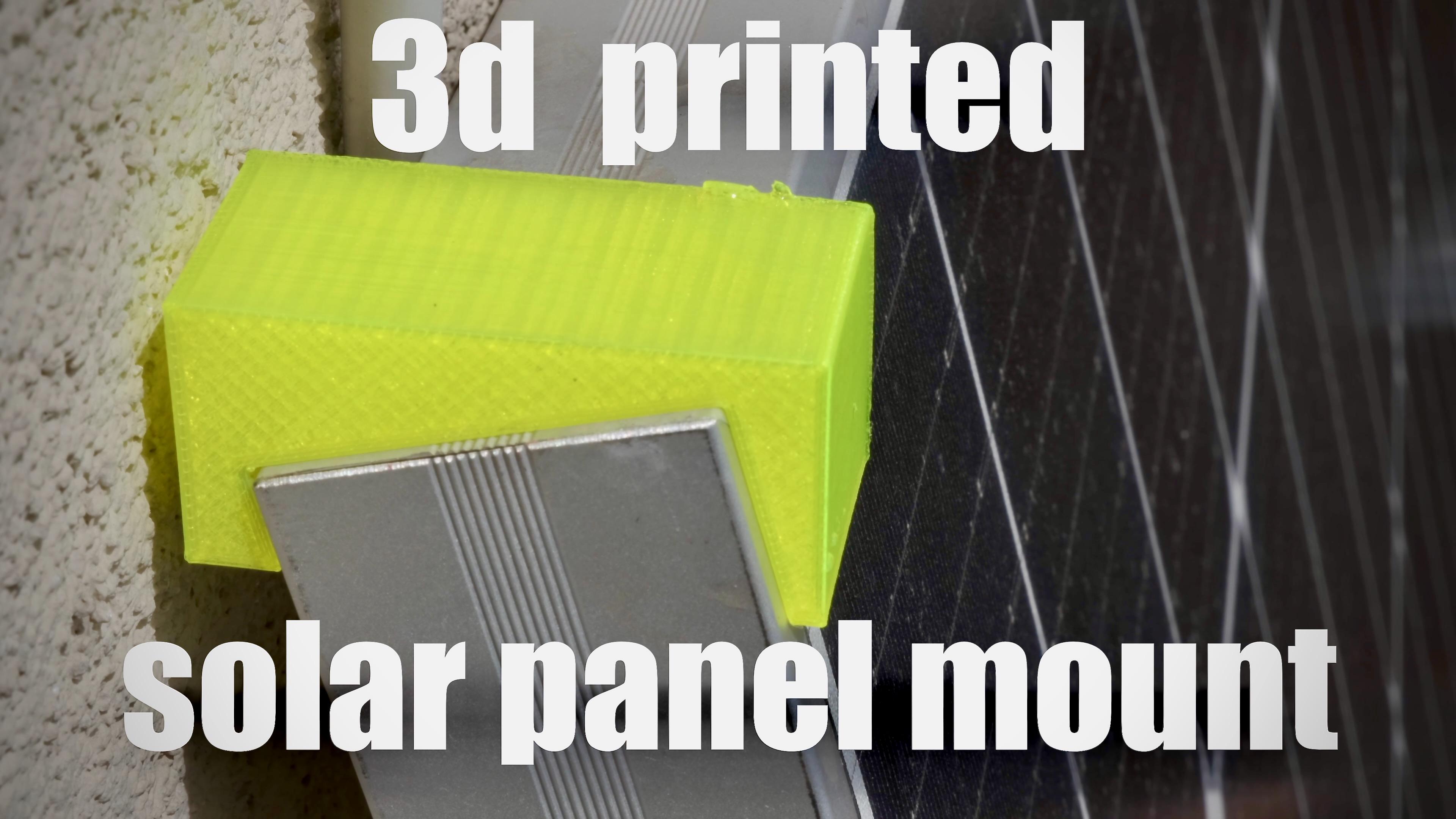

Small PV power plants are becoming popular and inexpensive. However, mounts are quite expensive. This is a 3d printed solution which is inexpensive and fits all kind of modules. This mount can be used to hold the panels on a flat surface, like e.g. balcony, terrace, lawn, ...
Supplies
TPU filament
3d printer
3d Print Mounts
![2.jpg](/proxy/?url=https://content.instructables.com/FLB/SGXJ/LJEASDA0/FLBSGXJLJEASDA0.jpg&filename=2.jpg)
![6.jpg](/proxy/?url=https://content.instructables.com/FPT/VVOP/LJEASD9Y/FPTVVOPLJEASD9Y.jpg&filename=6.jpg)
- There are 2 different versions with 15° respectively 30° angle. Moreover, the 2 versions are available for 30, 35 and 40mm solar panels.
- Print 4 mounts per panel. Before printing, check which version you want to use. First measure the depth of your panel and choose the version (30/35/40mm) you need. Then decide about the angle. 15° saves space but produces less power. 30° is more efficient but takes more room. Use TPU and infill of at least 25%.
Install Mounts
![1.jpg](/proxy/?url=https://content.instructables.com/FNX/E3KE/LJEASDA1/FNXE3KELJEASDA1.jpg&filename=1.jpg)
![5.jpg](/proxy/?url=https://content.instructables.com/FMH/43ZF/LJEASD9Z/FMH43ZFLJEASD9Z.jpg&filename=5.jpg)

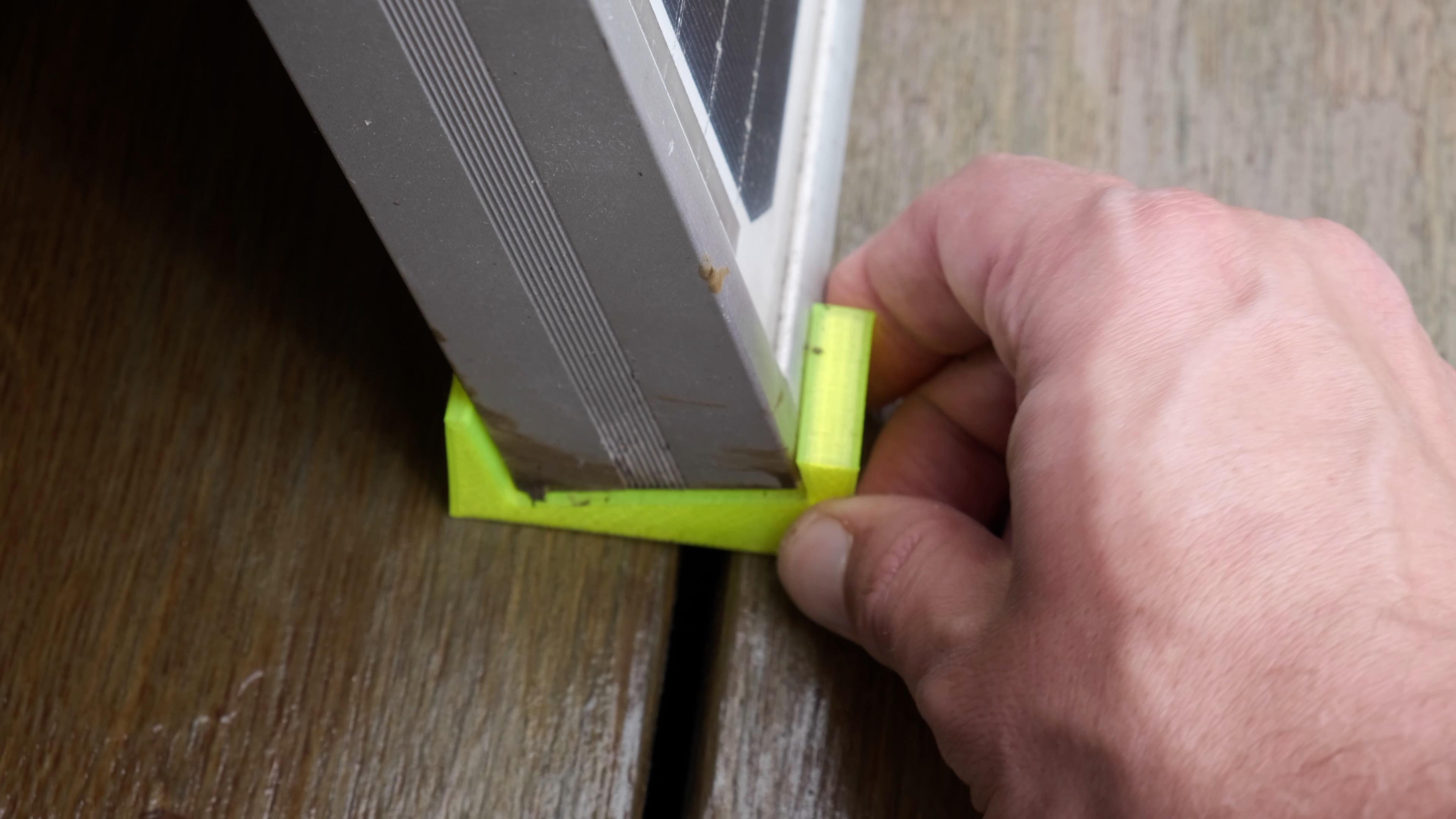

- Put mounts in each corner
- Mounts on top face in opposite direction to mounts on floor
