3d Printed Electric Guitar Wall Mount
My 3d design is a electric guitar wall mount, using PLA. This project is for a 3d printing class.
Supplies
Need supplies; 3d printer, computer, printing filament, thumb drive/wifi supported printer, tinkercad, and makerbot platform.
Step One: the Bass
First get a 20mm/126mm/126mm square
Step Two: the Prongs - Pt 1
To make the prongs, it is very difficult and quite tedious. The way I made the prongs was getting a donut shape, and making it 150.90mm, 126.28mm, 28.66mm. Then using the grouping to carve out most of the prong (do twice).
Step Three: the Prongs - Pt 2
For the second part of the prongs, all you need to get is a cylinder that is 20mm, 28.22mm, 22mm. And put it at the end of the prong (do twice).
Step Four: Merge Step 1 X 2/3 Together
Now get the prongs comfortably on base, make sure to keep them around the electric guitars neck width (around 1.7inches) and keep them even in to the middle with the right prong up a bit higher than the left to slow the neck to rest comfortably.
Step Five: the Screws
Now make the screw holes, the head is 4mm, 15.41mm, 15.41mm. And the body is 20mm, 7.60mm, 7.54mm. Then put 4 of them and put them evenly in each corner then put it in hole mode. And merge them all together.

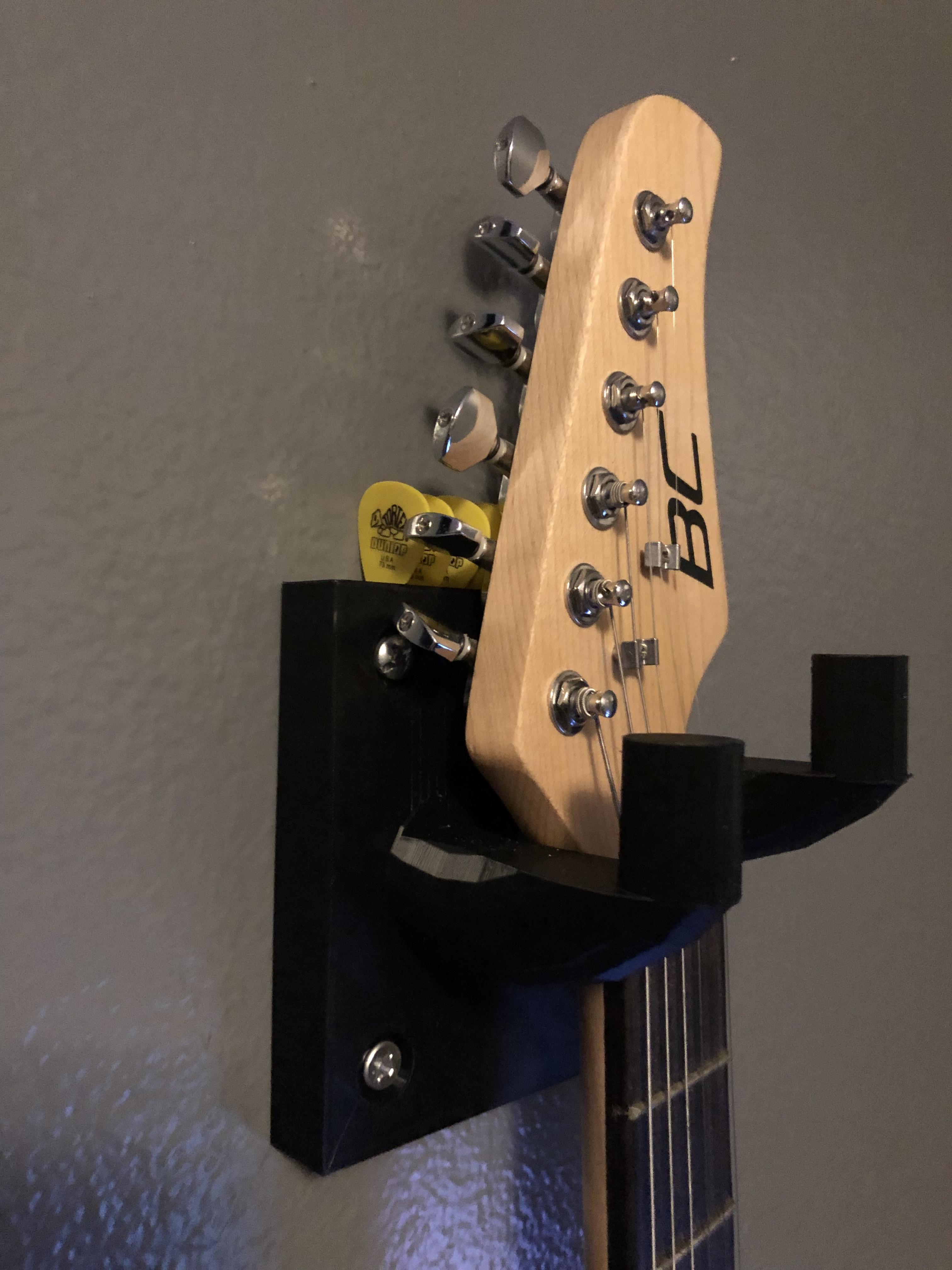

The Final Product
