3d Print Custom Covers for Pendrive
![IMG_20210615_201623-01.jpeg](/proxy/?url=https://content.instructables.com/FRM/LT0A/KPY21K6W/FRMLT0AKPY21K6W.jpg&filename=IMG_20210615_201623-01.jpeg)
Hi All,
Today I will share, how to customize your USB flash drive or Pendrive with super cool cases
What Do We Need?
![IMG_20210516_105629.jpg](/proxy/?url=https://content.instructables.com/FWB/CO8K/KPY21K9E/FWBCO8KKPY21K9E.jpg&filename=IMG_20210516_105629.jpg)
- Chip version - Pen drive
- Tinkercad
- 3D printer
- Imagination
Base Shape
![Bat2.PNG](/proxy/?url=https://content.instructables.com/F73/857E/KPZSOGDG/F73857EKPZSOGDG.png&filename=Bat2.PNG)
![ghost2.PNG](/proxy/?url=https://content.instructables.com/F9F/1ZC7/KPZSOGJ8/F9F1ZC7KPZSOGJ8.png&filename=ghost2.PNG)
- To make a custom case,
- we need a simple image like batman logo or ghost etc
- or a STL file like among us or lego
- If you have decided to use simple Image
- Download a black and white image from google (best results with black and white)
- Using any jpg to SVG convertor, convert into svg (eg: https://www.pngtosvg.com/)
- Alternatively, you can download STL model from Thingiverse or cult3d or many other sites
Tinkercad
![Screenshot 2021-06-17 150756.png](/proxy/?url=https://content.instructables.com/F08/KOXS/KPZSOGDF/F08KOXSKPZSOGDF.png&filename=Screenshot 2021-06-17 150756.png)
![Screenshot 2021-06-17 151734.png](/proxy/?url=https://content.instructables.com/F70/OC0M/KPZSOJ65/F70OC0MKPZSOJ65.png&filename=Screenshot 2021-06-17 151734.png)
- Tinkercad is a simple online 3D modelling tool
- Import your model or Image in it. I will use an image
- Import the attached SVG into Tinkercad
- Adjust the dimensions to 25x 40 x 5 mm
- Add two holes for eyes
- Based on the USB drive dimensions make another hole
- I am showing the placement of this hole by making the ghost also a hole (works like x-ray)
- Now create a duplicate and invert by 180 degrees
- Using holes cut the two models into upper body and lower body
- We have our 3d model ready to print
Downloads

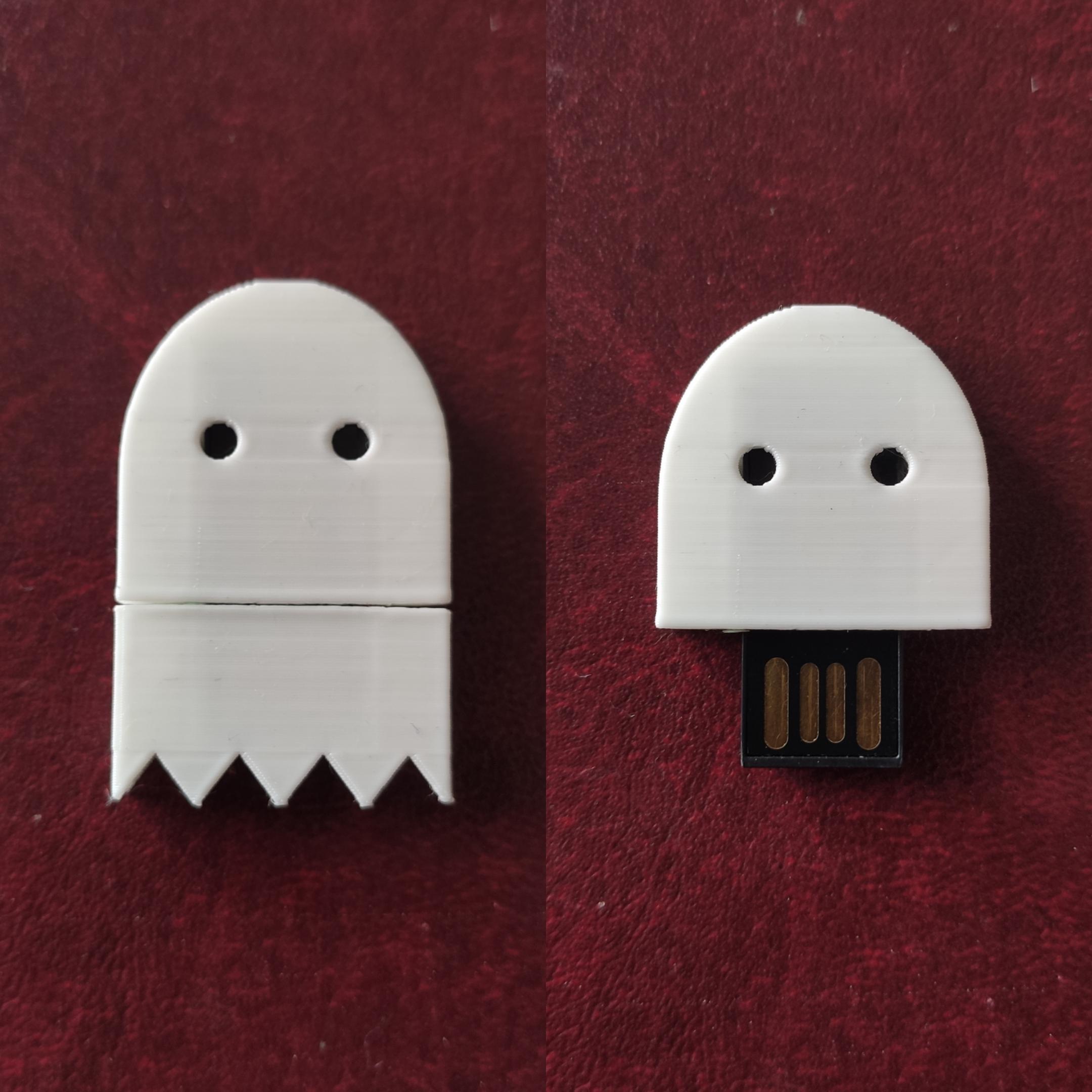

Ghost
![IMG_20210613_110159.jpg](/proxy/?url=https://content.instructables.com/F5X/ZRS7/KPY21KAF/F5XZRS7KPY21KAF.jpg&filename=IMG_20210613_110159.jpg)
- Download the STL file from here
- Resolution : 0.2mm
- Support: Tree (Cura)
- Raft: No
- Print time: less than 1 hr
- Once printed, superglue the USB drive an we are done
Batman Logo Pendrive
![IMG_20210611_172623.jpg](/proxy/?url=https://content.instructables.com/FGM/OEPA/KPY21KBE/FGMOEPAKPY21KBE.jpg&filename=IMG_20210611_172623.jpg)
- Follow the same steps as the Ghost image to make the batman logo Pendrive case
- Download the STL file from here
- Resolution : 0.2mm
- Support: Tree (Cura)
- Raft: No
- Print time: less than 1 hr
- Once printed, superglue the USB drive and we are done

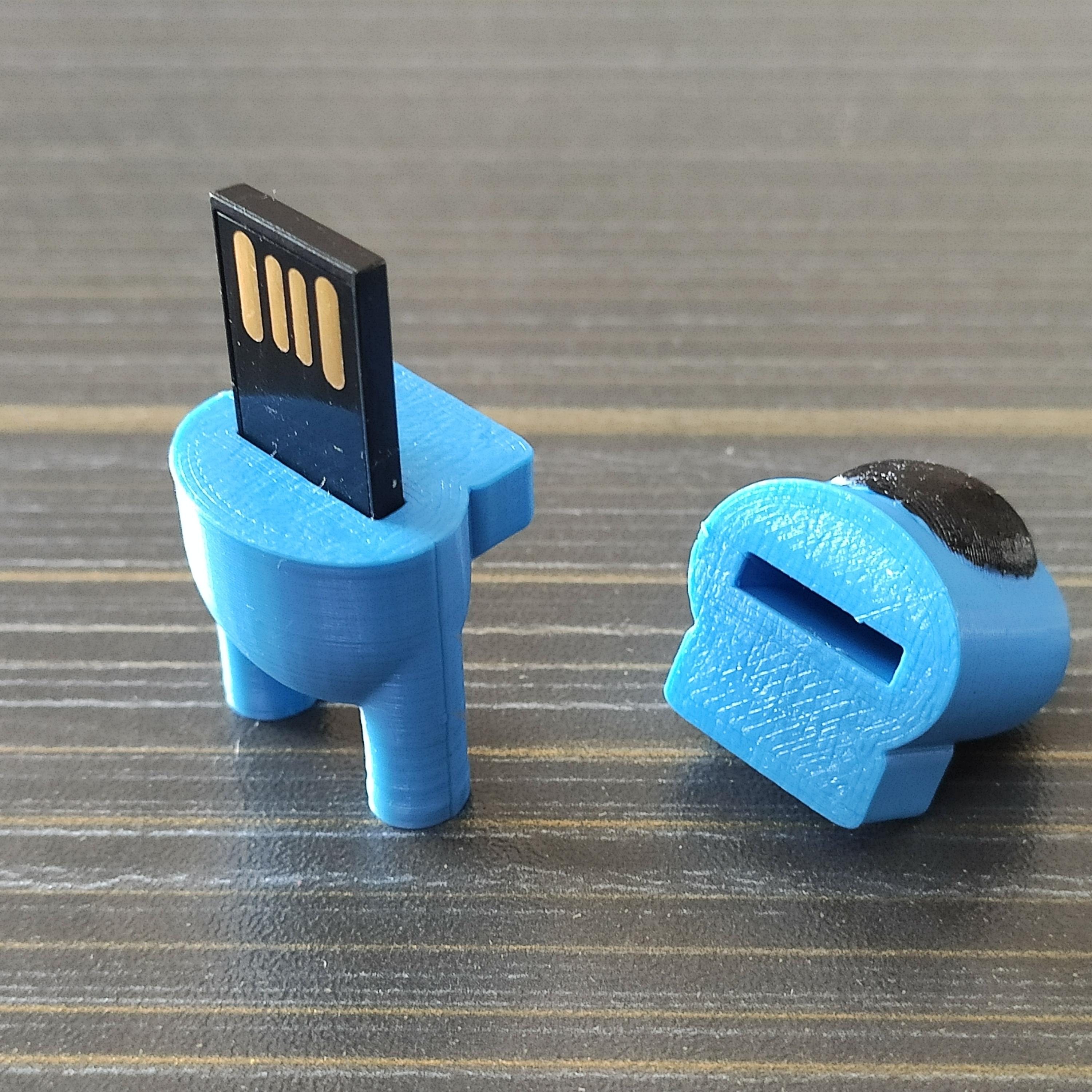

AmongUs Pendrive Case
![IMG_20210606_172652.jpg](/proxy/?url=https://content.instructables.com/FPS/P28N/KPY21K9H/FPSP28NKPY21K9H.jpg&filename=IMG_20210606_172652.jpg)
![IMG_20210606_173053.jpg](/proxy/?url=https://content.instructables.com/F59/0358/KPY21KBO/F590358KPY21KBO.jpg&filename=IMG_20210606_173053.jpg)
- An existing 3d model was imported in tinkercad
- Shrink it to the dimensions and then create a hole based on the USB dimension
- Duplicate and cut into half
- Download the STL file from here
- Resolution : 0.2mm
- Support: Tree (Cura)
- Raft: NoPrint time: less than 1 hr
- Once printed, superglue the USB drive and we are done
I hope you enjoyed reading, Do share if you print these or create your own design
