3D Companion Cube. Its Time to Fire Up Inventor and Make My Own Companion Cube.
![2404561454_f50e300147[1].jpg](/proxy/?url=https://content.instructables.com/F90/3R2H/FPBKZZAD/F903R2HFPBKZZAD.jpg&filename=2404561454_f50e300147[1].jpg)
Portal (Valve Software - Orange Box) Go out and buy it! Then you will understand why you might want a companion cube. So after several hours of game play gone, Its time to fire up Inventor and make my own companion cube.
Kdjames@berkscareer.com
Kdjames@berkscareer.com
Inventor
![2404574524_ef73a24504[1].jpg](/proxy/?url=https://content.instructables.com/FEV/QPY9/FPBKZZAG/FEVQPY9FPBKZZAG.jpg&filename=2404574524_ef73a24504[1].jpg)

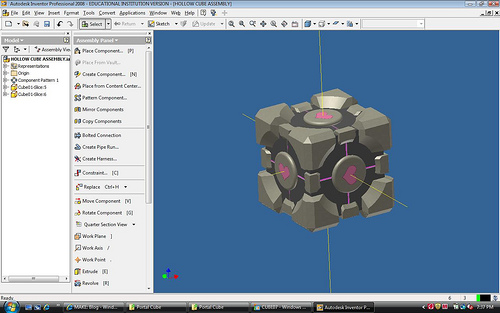

Created in Inventor 2008, now that I have the solid model it's time to create sides to print out.
3x2cube-proto-01
![2403734443_73644389b5[1].jpg](/proxy/?url=https://content.instructables.com/FOK/L95B/FPBKZZAH/FOKL95BFPBKZZAH.jpg&filename=2403734443_73644389b5[1].jpg)

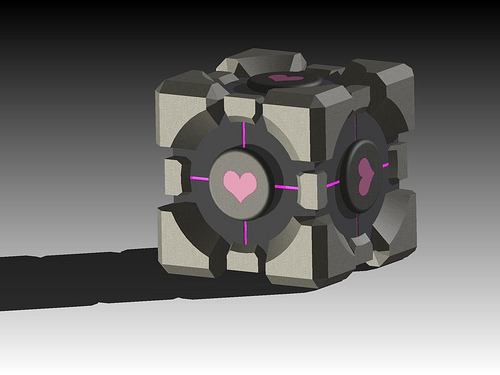

O.k. enough rendering it's time to print!
I sliced the cube to six sides and layed the sides out on a 3 X 2 grid. Total RP printing time 7.2 hrs
I sliced the cube to six sides and layed the sides out on a 3 X 2 grid. Total RP printing time 7.2 hrs
Cheap Led Light
![2404561328_3043a8b1a3[1].jpg](/proxy/?url=https://content.instructables.com/FIK/PF5P/FPBKZZAE/FIKPF5PFPBKZZAE.jpg&filename=2404561328_3043a8b1a3[1].jpg)
Take one cheap LED $2.50 flash light and dremel cut everything but lights off add 3 ohm resistor to a cut off USB cord add a little hot glue and bobs your uncle you have a USB light! ( I know crappy photo)
Let There Be Light
![2404559028_5193f1a21e[1].jpg](/proxy/?url=https://content.instructables.com/FSB/LZOK/FPBKZZAF/FSBLZOKFPBKZZAF.jpg&filename=2404559028_5193f1a21e[1].jpg)
Hot glue the sides together and... Let there be
Light! Now when ever my computer is on I will be comforted by the glow of my little companion cube
Light! Now when ever my computer is on I will be comforted by the glow of my little companion cube
