3D Steampunk Heart



This gear heart is able to move the sword is the key used to move the gears and made with steam punk theme. I wanted to challenge myself with Tinkercad and I hope others edit this and make it there own styles!


I started with the provided heart and i edited the dimensions to 99.16 140.00 and 4.00 high


Copy and paste that last copy two times and put one to the side then move the work plane onto one of the new copies and move the last heart on top of the copy and shrink it and make it a hole


You should now have a shell like this you want to make a copy of it and save the copy for later

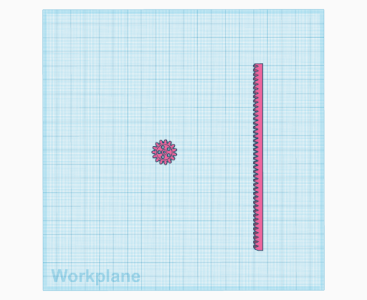

i had to import the gear and track i used from this project: https://www.thingiverse.com/thing:2072364

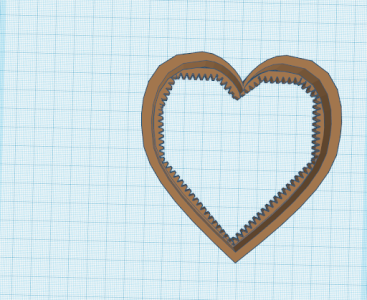

Using the imported track I would place it around the edges and erase the excess this process took me two days to complete.


After I got the track all around the heart I used the copy of the outline I had made to put a hole and get rid of any small bits I missed.


take your unused outline and group the track and outline.

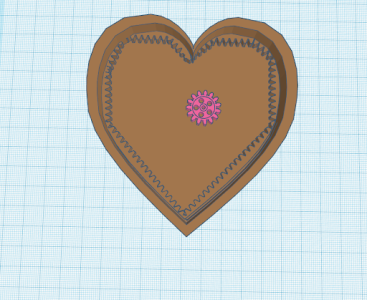

Add the base and group all three together.


use the gear we had brought in and I suggest copy and pasting it ton.


Fill in the area with how it best fills it in make sure to leave room for the gears to move.


Fill in the area with how it best fills it in make sure to leave room for the gears to move.


You will want to make copies of the pegs and line each one with the center to the gears.


I hid the track and base and grouped all the gears and brought back only the base and hid the gears and now group all the pegs to the base


Bring back the gears


I took one of the pegs from the gear in the middle and put it higher 28.30.


I made a disc with a cylinder and flatten to form a disk the dimensions i used are 6.90 and 7.00 and 1.00 high


put the disk on top of the peg and add a gear i used the provided gears in tinkercad


I took the sword from out of the tinkercad shapes and added various gears of size and colors and added them to the sword this is the key to having the gears move


Line up the gear peg you had made with hole at the top.


unhide everything else and your done!
