3D Puzzle
![IMG_3792.JPG](/proxy/?url=https://content.instructables.com/F4G/J8C9/KDRDZH15/F4GJ8C9KDRDZH15.jpg&filename=IMG_3792.JPG)
![IMG_3790.JPG](/proxy/?url=https://content.instructables.com/FL5/6931/KDRDZGHQ/FL56931KDRDZGHQ.jpg&filename=IMG_3790.JPG)
![IMG_3800.JPG](/proxy/?url=https://content.instructables.com/FKF/QHJ9/KDRDZI8L/FKFQHJ9KDRDZI8L.jpg&filename=IMG_3800.JPG)
![IMG_3799.JPG](/proxy/?url=https://content.instructables.com/FXK/FC4F/KDRDZI4K/FXKFC4FKDRDZI4K.jpg&filename=IMG_3799.JPG)
![IMG_3798.JPG](/proxy/?url=https://content.instructables.com/F6V/4FZB/KDRDZI0E/F6V4FZBKDRDZI0E.jpg&filename=IMG_3798.JPG)
![IMG_3797.JPG](/proxy/?url=https://content.instructables.com/FOI/0ARZ/KDRDZHSP/FOI0ARZKDRDZHSP.jpg&filename=IMG_3797.JPG)
![IMG_3796.JPG](/proxy/?url=https://content.instructables.com/FCG/10XE/KDRDZHOL/FCG10XEKDRDZHOL.jpg&filename=IMG_3796.JPG)
![IMG_3795.JPG](/proxy/?url=https://content.instructables.com/FU6/BE71/KDRDZHKS/FU6BE71KDRDZHKS.jpg&filename=IMG_3795.JPG)
![IMG_3794.JPG](/proxy/?url=https://content.instructables.com/FVH/SLSB/KDRDZHKI/FVHSLSBKDRDZHKI.jpg&filename=IMG_3794.JPG)
For Christmas, Olivierbricole's shop made a 3D puzzle, inspired from a model I found on Pinterest, but I can't find again the source.

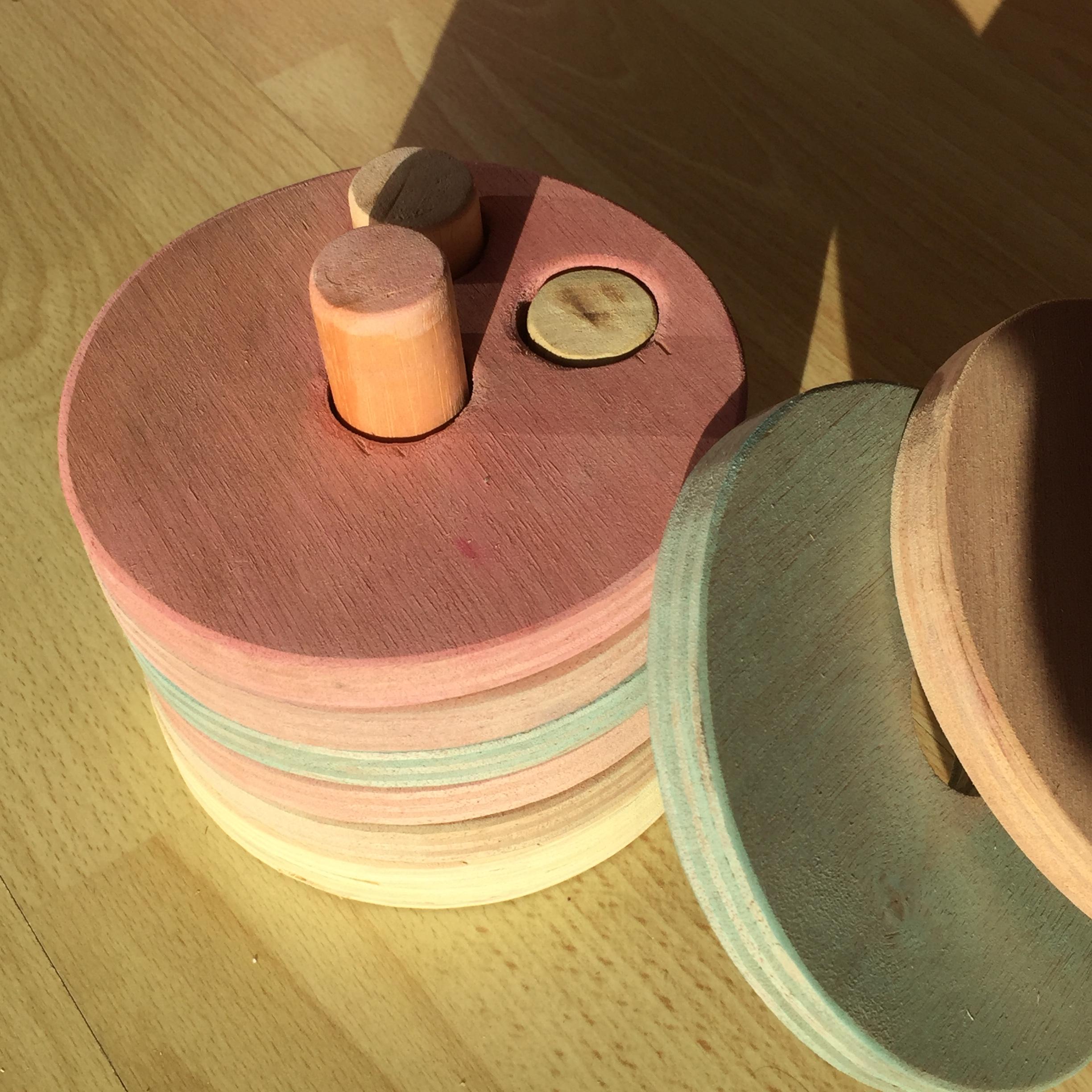

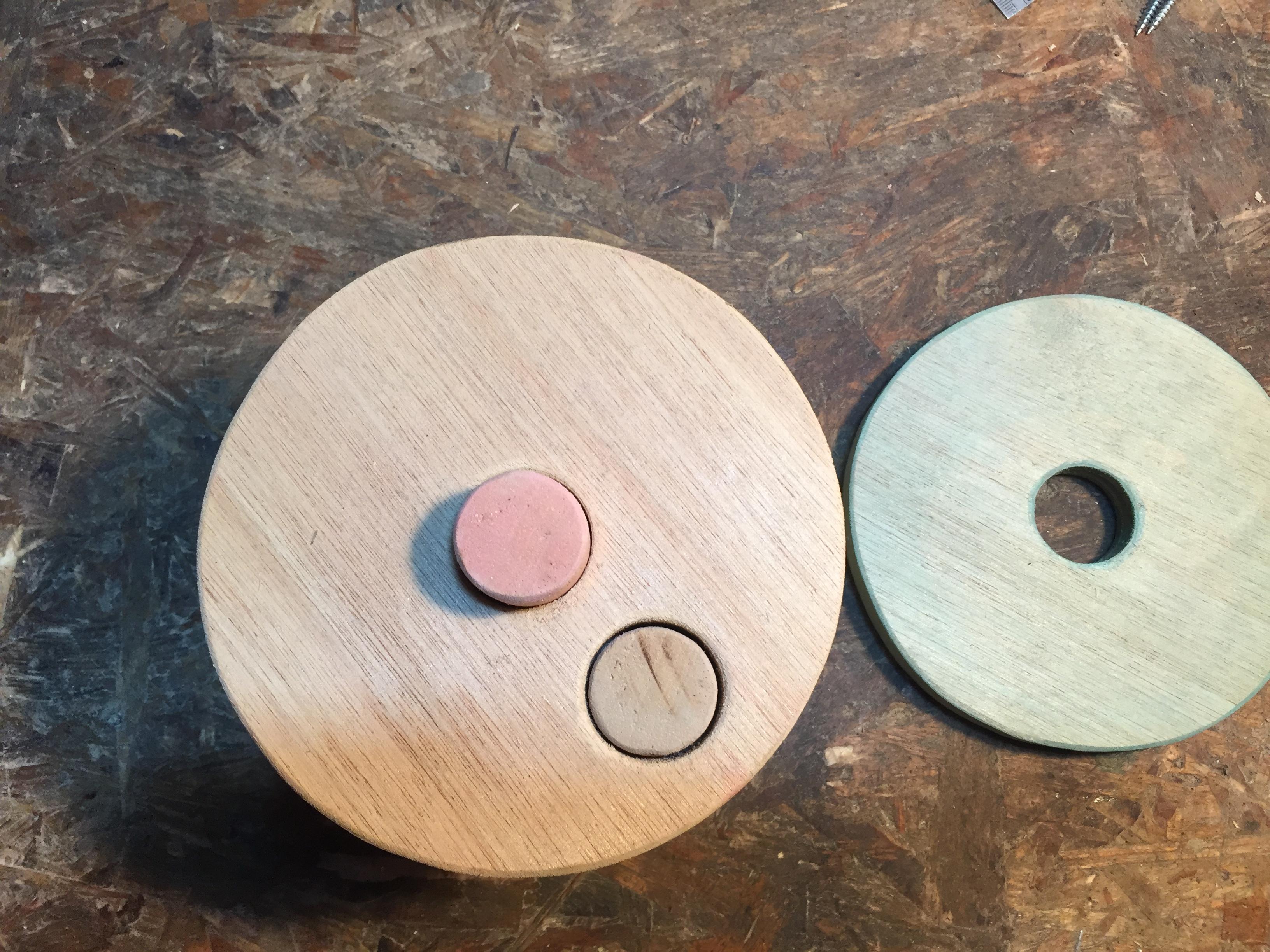

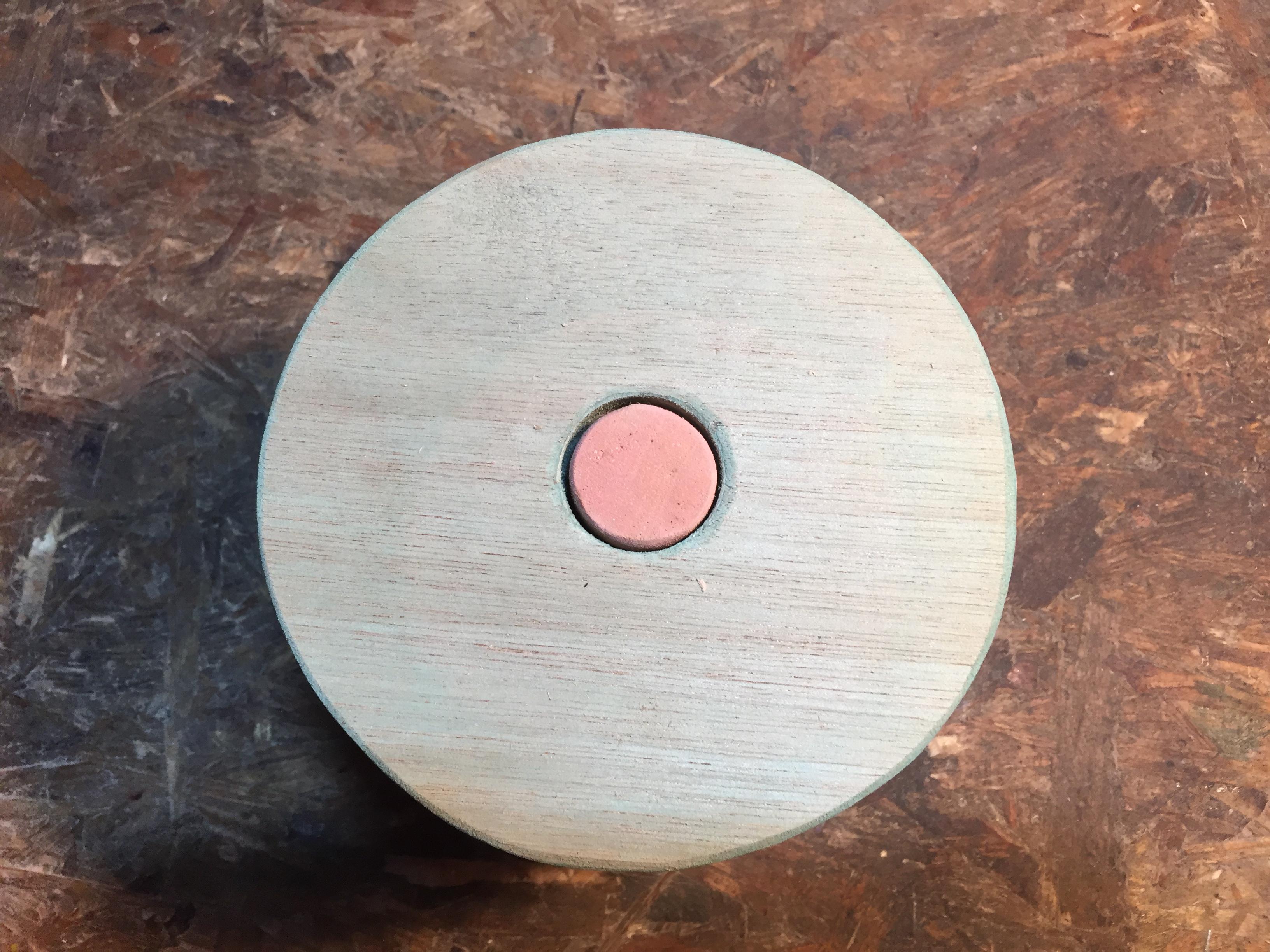

On a wooden basis are attached wooden rods with different lengths. disks with different hole patterns are inserted on the rods in a given sequence. When finished, the puzzle is a complete cylinder.
Better have a look to the pictures which shows the sequence to understand.
I first published this instructable in french on my blog. You can visit it, there are many other articles.
Cut the Disks
![IMG_3728.JPG](/proxy/?url=https://content.instructables.com/FWK/EU5R/KDRDZ9LY/FWKEU5RKDRDZ9LY.jpg&filename=IMG_3728.JPG)
![IMG_3730.JPG](/proxy/?url=https://content.instructables.com/FK8/F6O0/KDRDZA0O/FK8F6O0KDRDZA0O.jpg&filename=IMG_3730.JPG)
![IMG_3731.JPG](/proxy/?url=https://content.instructables.com/FEV/QLPW/KDRDZA81/FEVQLPWKDRDZA81.jpg&filename=IMG_3731.JPG)
![IMG_3733 (1).JPG](/proxy/?url=https://content.instructables.com/FWU/3GZS/KDRDZAMU/FWU3GZSKDRDZAMU.jpg&filename=IMG_3733 (1).JPG)
![IMG_3732.JPG](/proxy/?url=https://content.instructables.com/FXI/ISZF/KDRDZAJ4/FXIISZFKDRDZAJ4.jpg&filename=IMG_3732.JPG)
![IMG_3739.JPG](/proxy/?url=https://content.instructables.com/F2D/G2KR/KDRDZBGS/F2DG2KRKDRDZBGS.jpg&filename=IMG_3739.JPG)

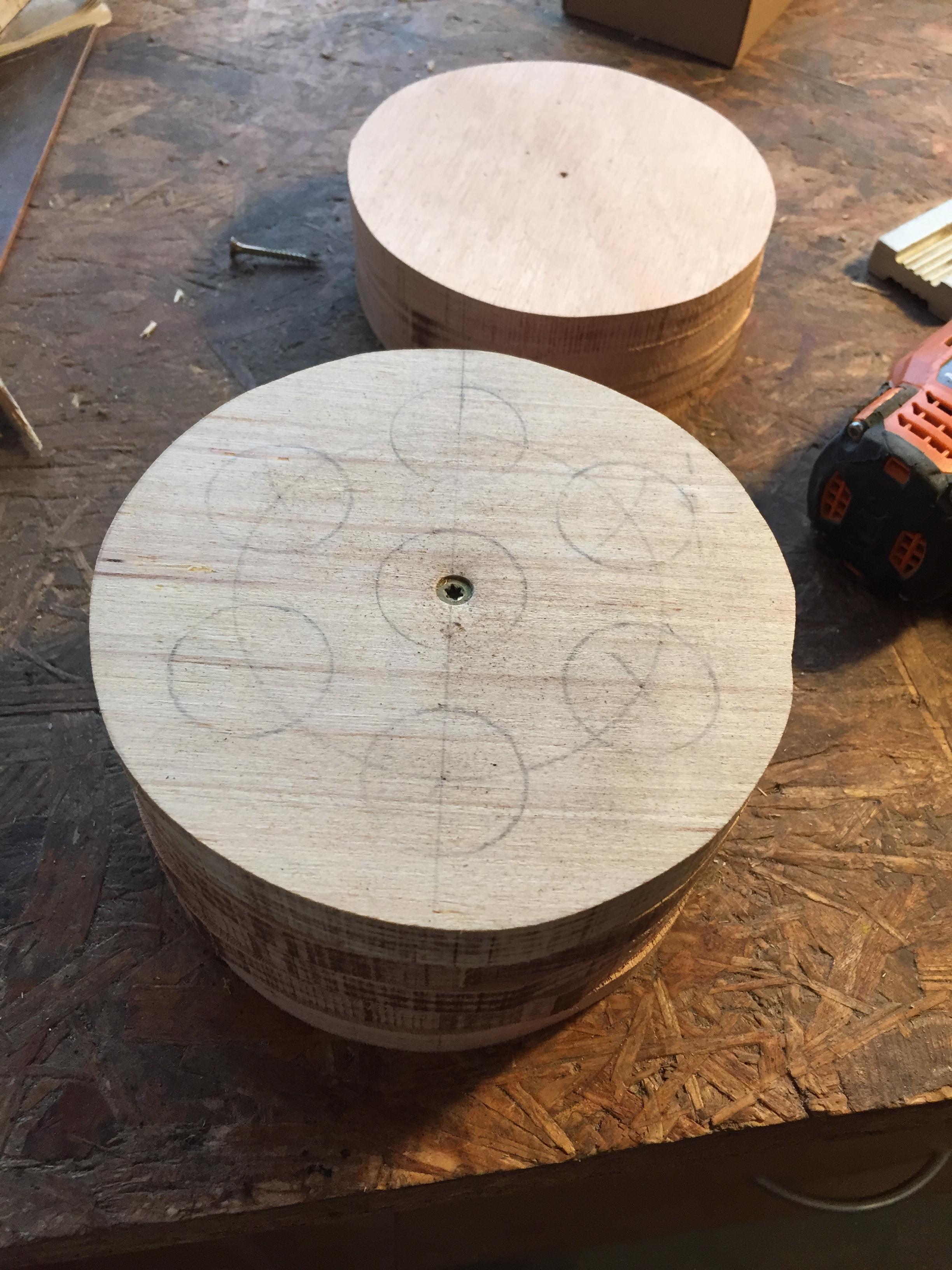

I long hesitated on the number of rods, and I ended up with 6 around and 1 in the center. It is easy to trace with a compas, and the size is reasonable. I cut a first disk in thick plywood with the scroll saw and I used this first disk as a template for the next ones made out of thinner plywood. Everything went quite well until I made a knotch in the first disk (and the other one of course).
Sand the Edges Together
![IMG_3734.JPG](/proxy/?url=https://content.instructables.com/FK2/3NM3/KDRDZB1L/FK23NM3KDRDZB1L.jpg&filename=IMG_3734.JPG)
![IMG_3735.JPG](/proxy/?url=https://content.instructables.com/FMK/GFCA/KDRDZB8Z/FMKGFCAKDRDZB8Z.jpg&filename=IMG_3735.JPG)
![IMG_3737.JPG](/proxy/?url=https://content.instructables.com/FT1/HTJ1/KDRDZB91/FT1HTJ1KDRDZB91.jpg&filename=IMG_3737.JPG)
![IMG_3738 (1).JPG](/proxy/?url=https://content.instructables.com/FK7/JUD2/KDRDZBCR/FK7JUD2KDRDZBCR.jpg&filename=IMG_3738 (1).JPG)

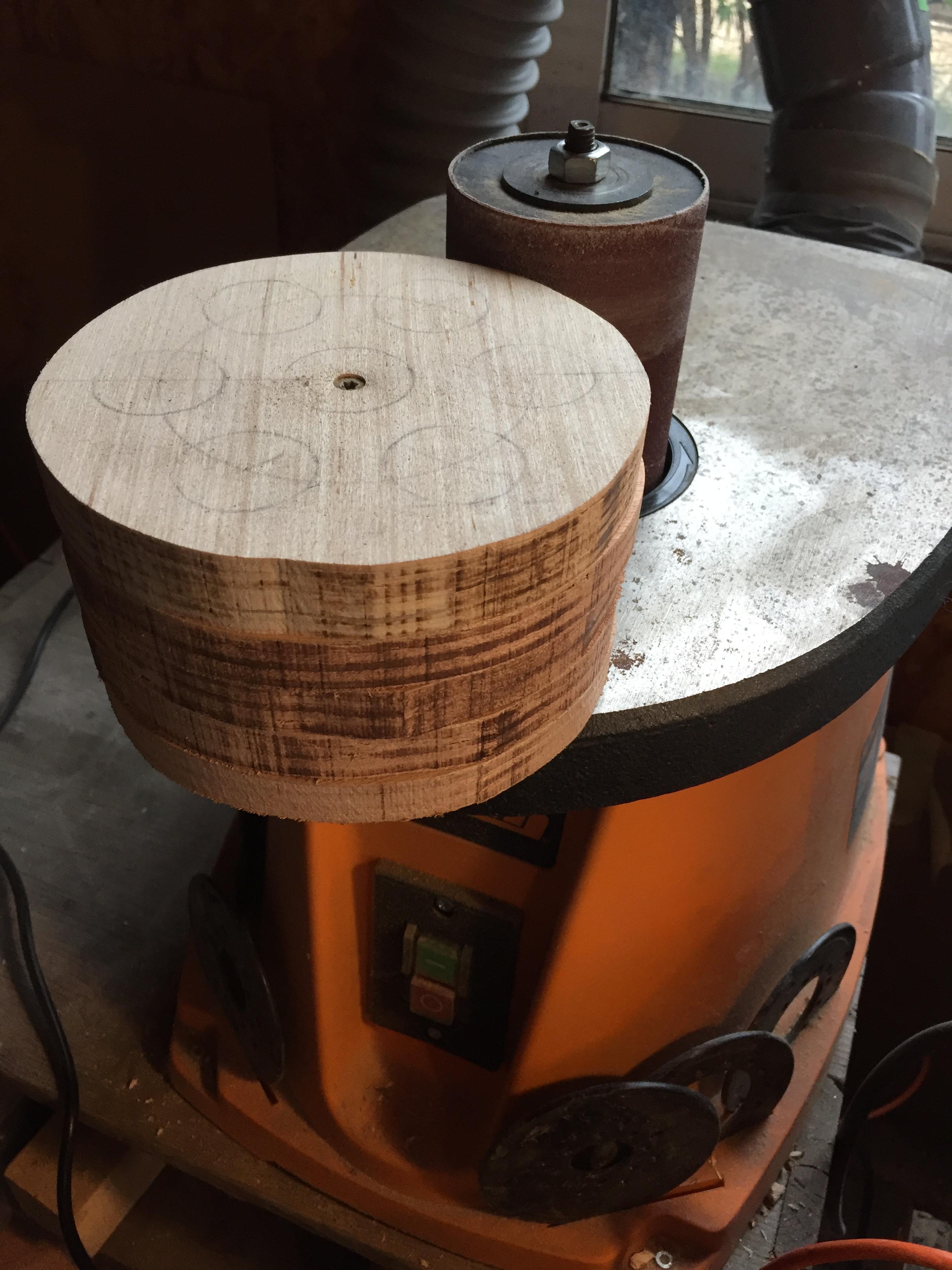

I attached some disks together and sanded the edges on the drum sander to smooth the edges and get a quite circular shape. I repeated with the rest of the disks.
Drill the Holes
![IMG_3741.JPG](/proxy/?url=https://content.instructables.com/F4K/WKZV/KDRDZBOK/F4KWKZVKDRDZBOK.jpg&filename=IMG_3741.JPG)
![IMG_3742.JPG](/proxy/?url=https://content.instructables.com/F74/SKIC/KDRDZC7H/F74SKICKDRDZC7H.jpg&filename=IMG_3742.JPG)
![IMG_3743.JPG](/proxy/?url=https://content.instructables.com/FSE/CXQP/KDRDZCFC/FSECXQPKDRDZCFC.jpg&filename=IMG_3743.JPG)
![IMG_3744.JPG](/proxy/?url=https://content.instructables.com/F9I/NHJZ/KDRDZCFH/F9INHJZKDRDZCFH.jpg&filename=IMG_3744.JPG)
![IMG_3746.JPG](/proxy/?url=https://content.instructables.com/FN1/FU76/KDRDZCKO/FN1FU76KDRDZCKO.jpg&filename=IMG_3746.JPG)
![IMG_3773.JPG](/proxy/?url=https://content.instructables.com/F2B/8TIS/KDRDZG1U/F2B8TISKDRDZG1U.jpg&filename=IMG_3773.JPG)
![IMG_3774.JPG](/proxy/?url=https://content.instructables.com/FL8/L2JE/KDRDZG5T/FL8L2JEKDRDZG5T.jpg&filename=IMG_3774.JPG)

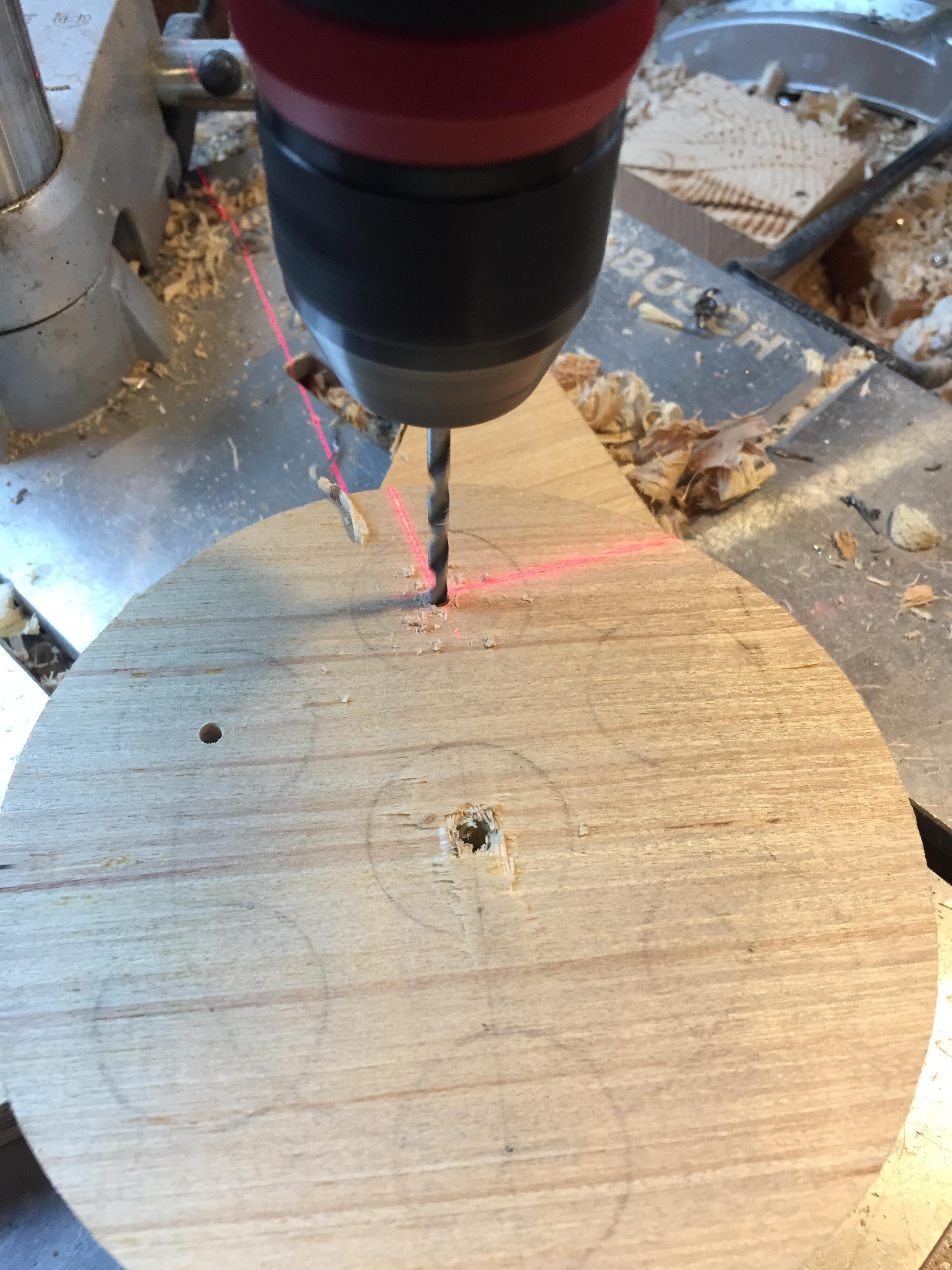

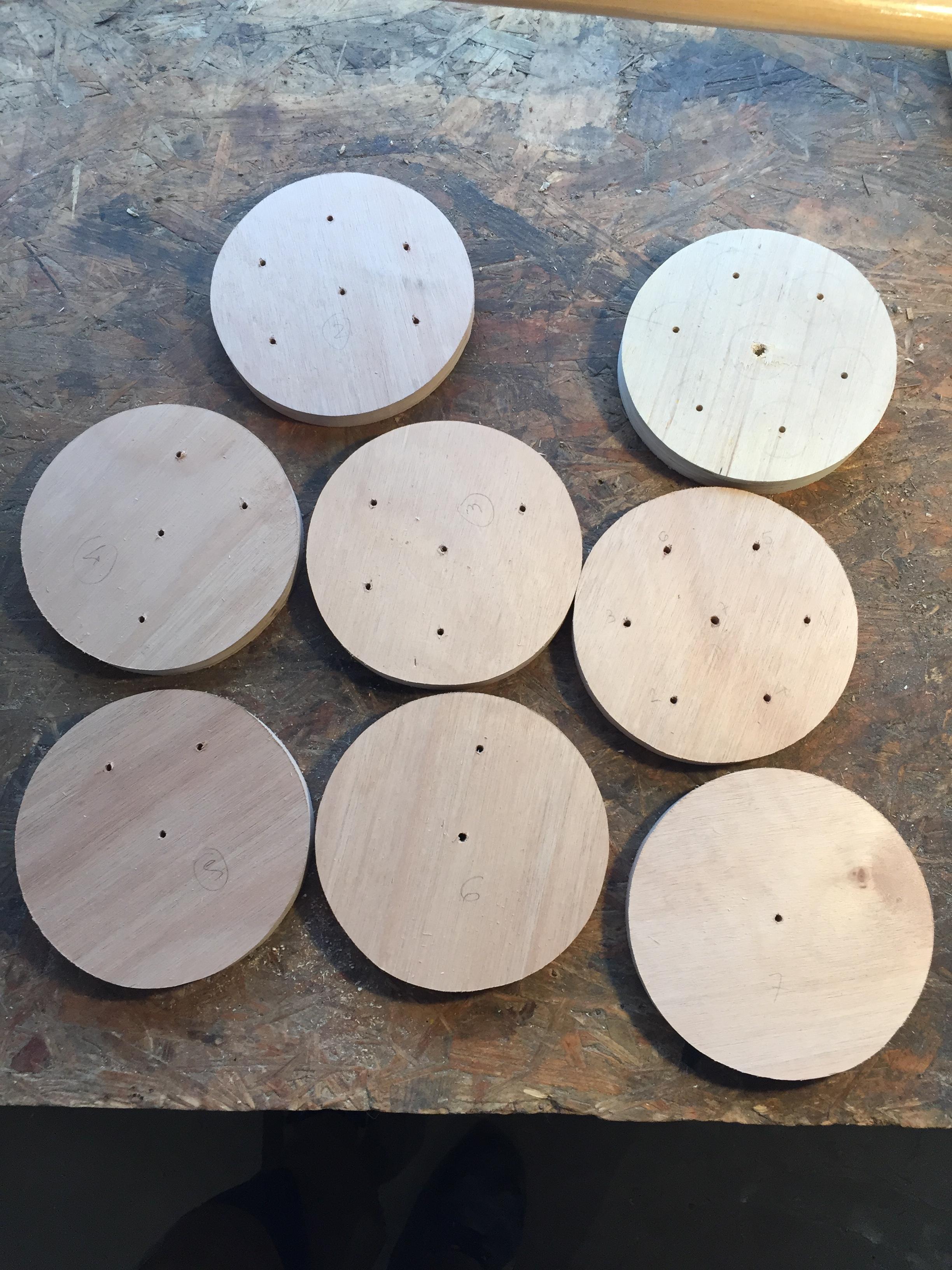

I then drilled pilot holes in the basis, and carefully drilled the right pilot holes on the other disks.

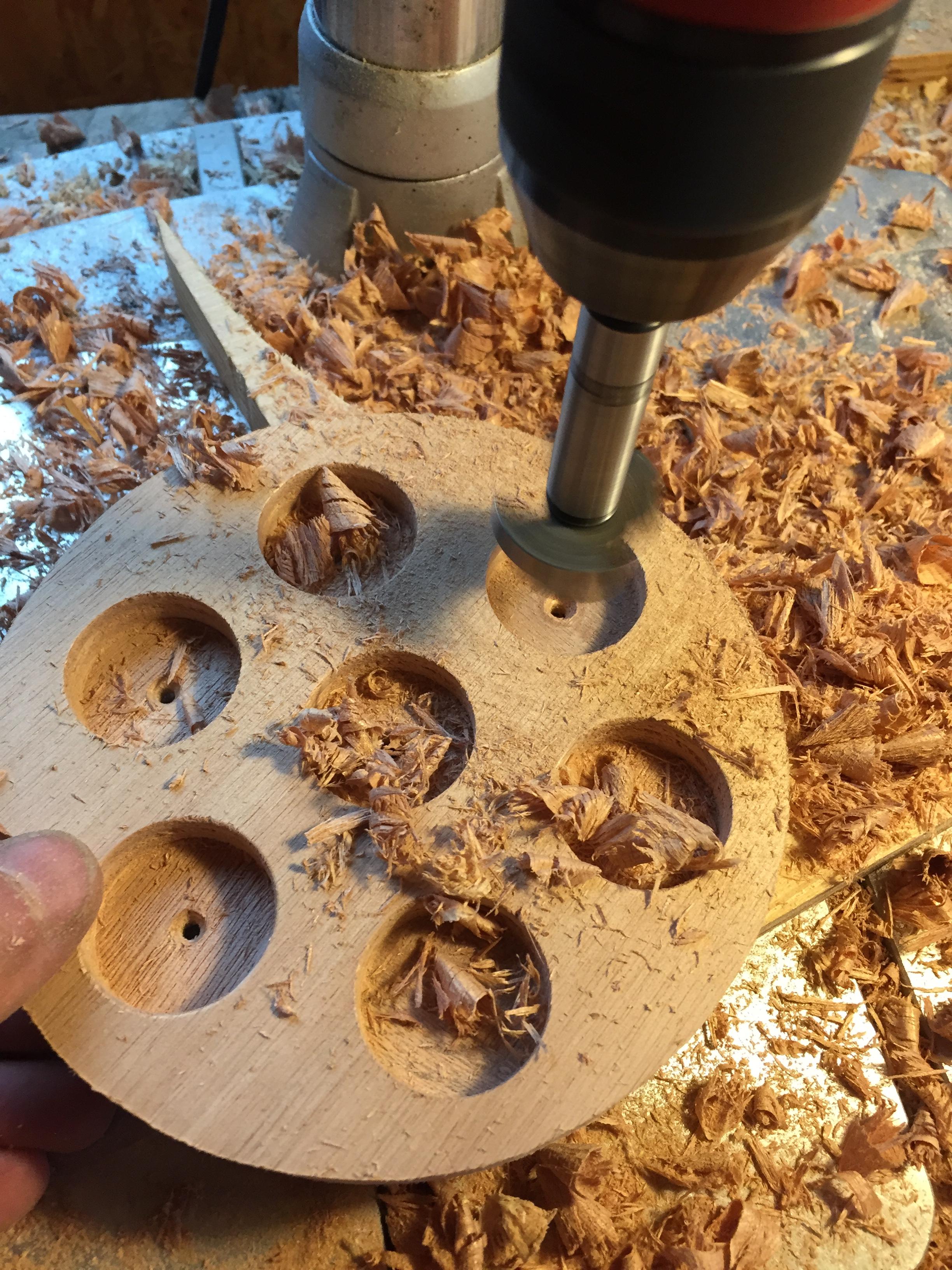

this pilot hole allows to center the big drill for the rod. I drilled from one side till half of the thickness and drilled the rest from the other side, this allows to avoid splinters in the wood and both faces are clean.

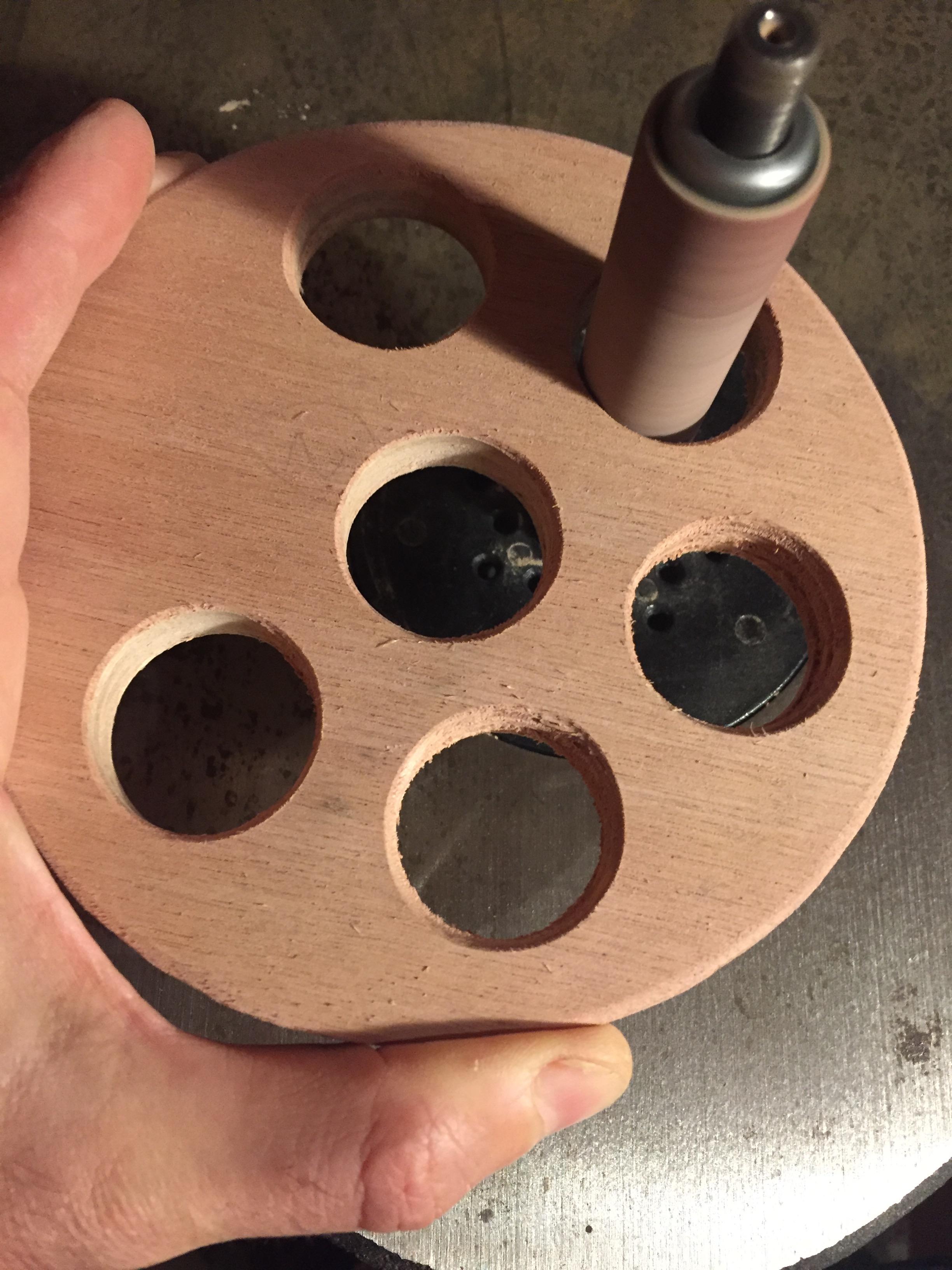

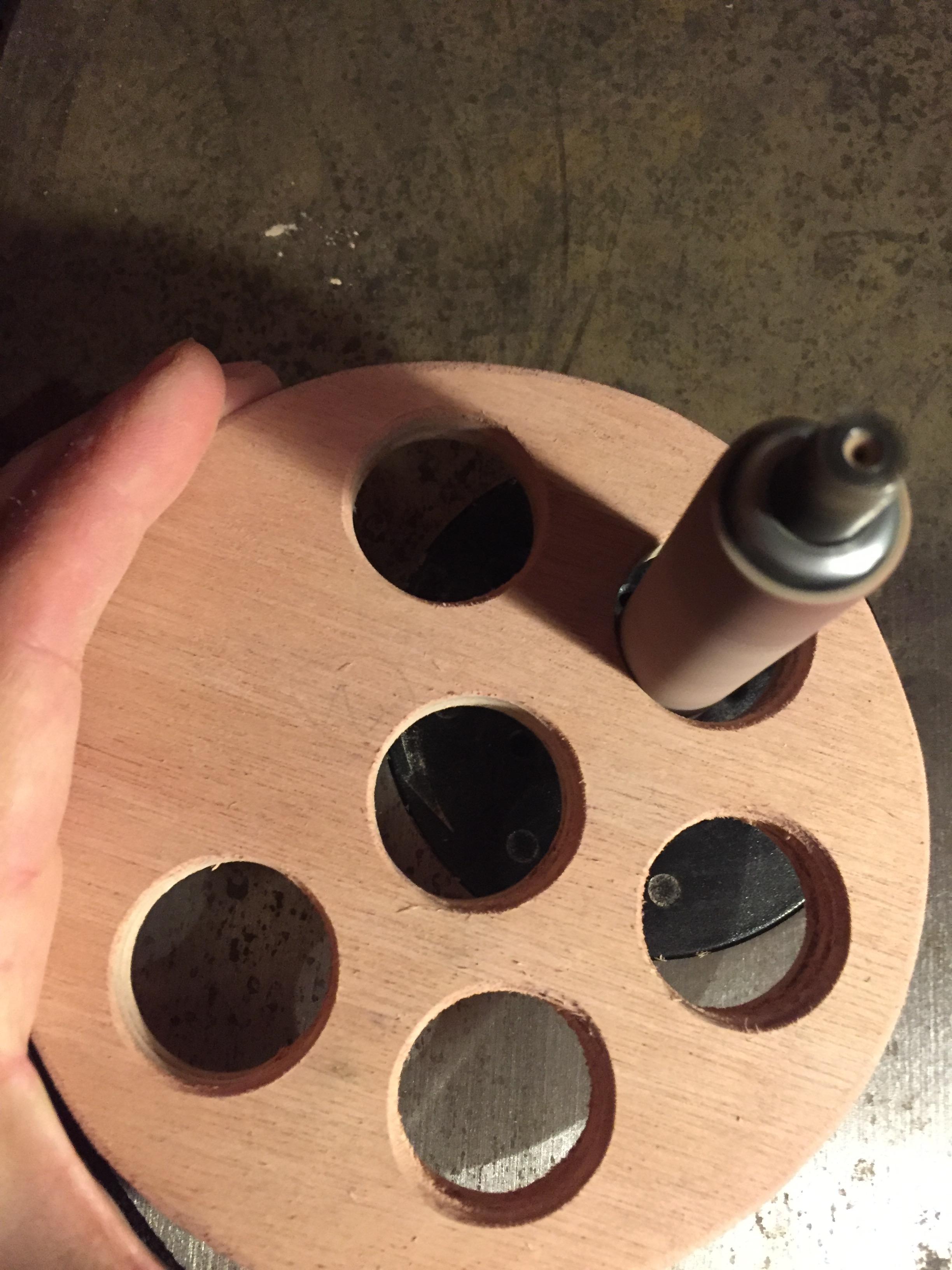

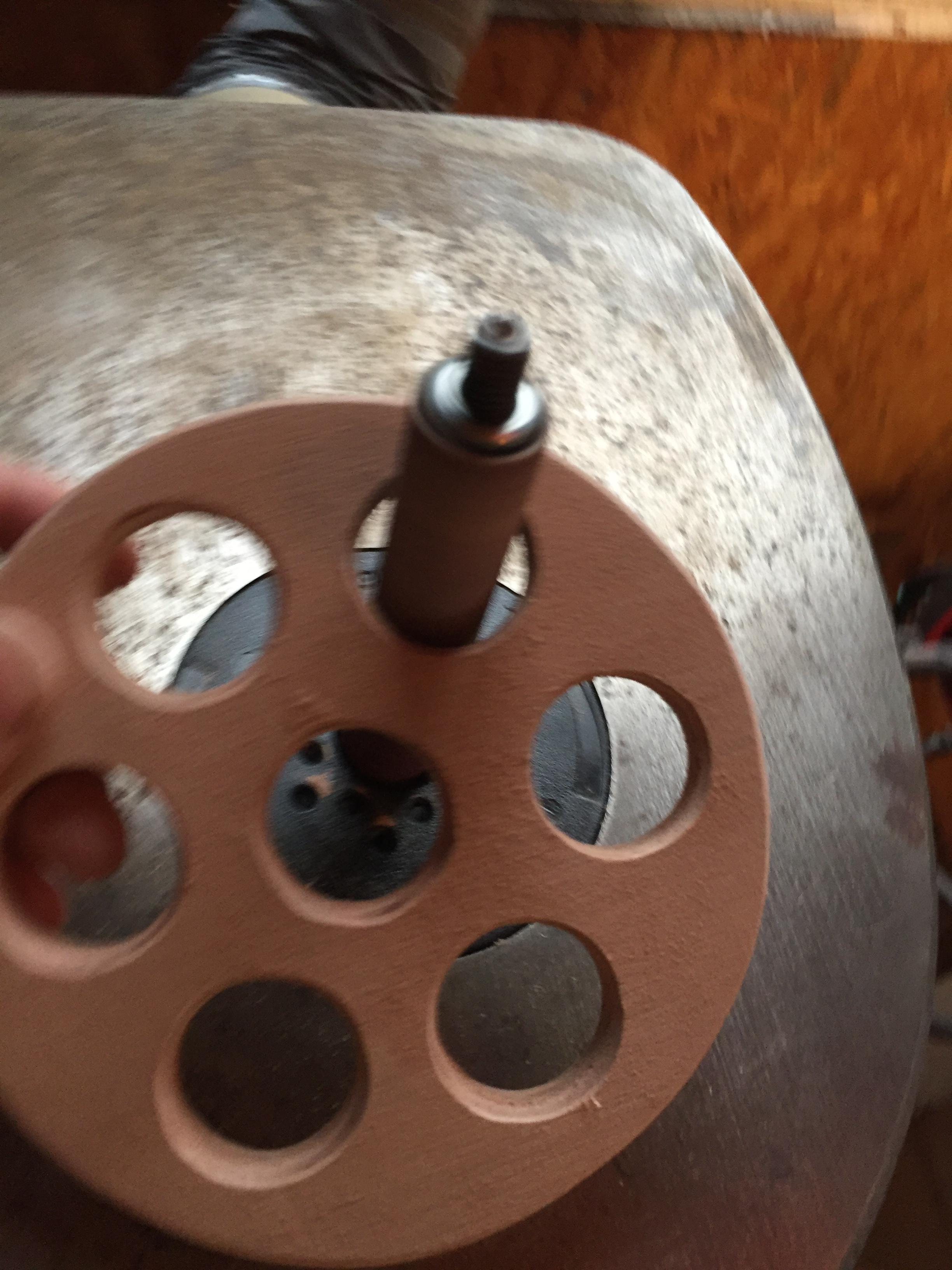

I sanded the holes with the drum sander.
Fix the Rods and Test
![IMG_3760.JPG](/proxy/?url=https://content.instructables.com/F02/EKX3/KDRDZD5U/F02EKX3KDRDZD5U.jpg&filename=IMG_3760.JPG)
![IMG_3758.JPG](/proxy/?url=https://content.instructables.com/F3E/BQA6/KDRDZCP5/F3EBQA6KDRDZCP5.jpg&filename=IMG_3758.JPG)
![IMG_3759.JPG](/proxy/?url=https://content.instructables.com/F25/D768/KDRDZCXD/F25D768KDRDZCXD.jpg&filename=IMG_3759.JPG)
![IMG_3761.JPG](/proxy/?url=https://content.instructables.com/FVV/99TL/KDRDZD5W/FVV99TLKDRDZD5W.jpg&filename=IMG_3761.JPG)
![IMG_3762.JPG](/proxy/?url=https://content.instructables.com/FLW/LRX2/KDRDZD60/FLWLRX2KDRDZD60.jpg&filename=IMG_3762.JPG)
![IMG_3763.JPG](/proxy/?url=https://content.instructables.com/FOT/12AZ/KDRDZDDY/FOT12AZKDRDZDDY.jpg&filename=IMG_3763.JPG)
![IMG_3764.JPG](/proxy/?url=https://content.instructables.com/FSD/JE50/KDRDZDHY/FSDJE50KDRDZDHY.jpg&filename=IMG_3764.JPG)
![IMG_3765.JPG](/proxy/?url=https://content.instructables.com/FZZ/F52N/KDRDZDQ4/FZZF52NKDRDZDQ4.jpg&filename=IMG_3765.JPG)
![IMG_3767.JPG](/proxy/?url=https://content.instructables.com/FEE/V1CL/KDRDZE5N/FEEV1CLKDRDZE5N.jpg&filename=IMG_3767.JPG)
![IMG_3770.JPG](/proxy/?url=https://content.instructables.com/FH5/MWNH/KDRDZFM3/FH5MWNHKDRDZFM3.jpg&filename=IMG_3770.JPG)
![IMG_3768.JPG](/proxy/?url=https://content.instructables.com/FYZ/7SGK/KDRDZED0/FYZ7SGKKDRDZED0.jpg&filename=IMG_3768.JPG)
![IMG_3769.JPG](/proxy/?url=https://content.instructables.com/FZ0/LOS8/KDRDZES7/FZ0LOS8KDRDZES7.jpg&filename=IMG_3769.JPG)

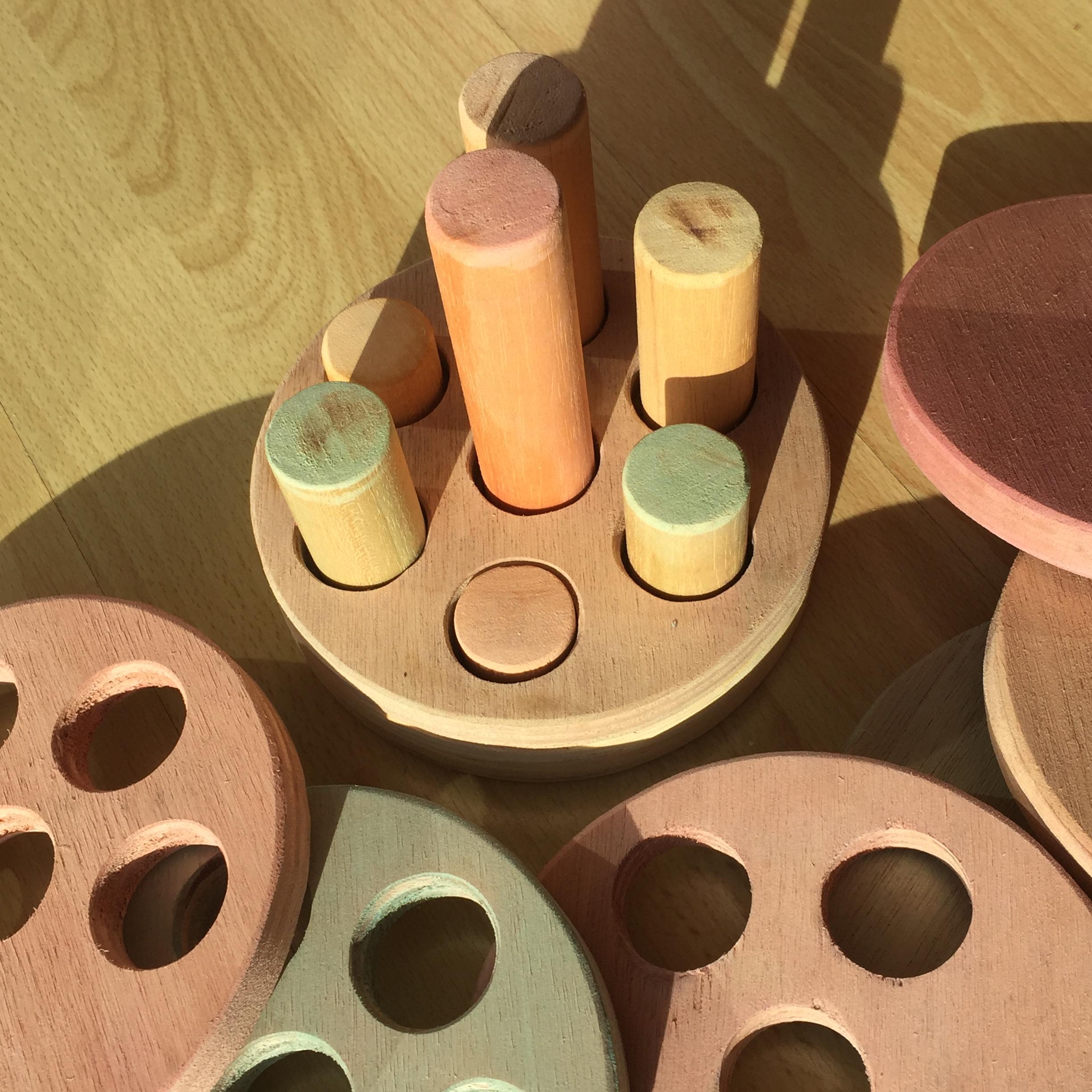

For the rods, I used a curtain wooden rod. The rods are cut with different lengths so that they are flush with the disk.

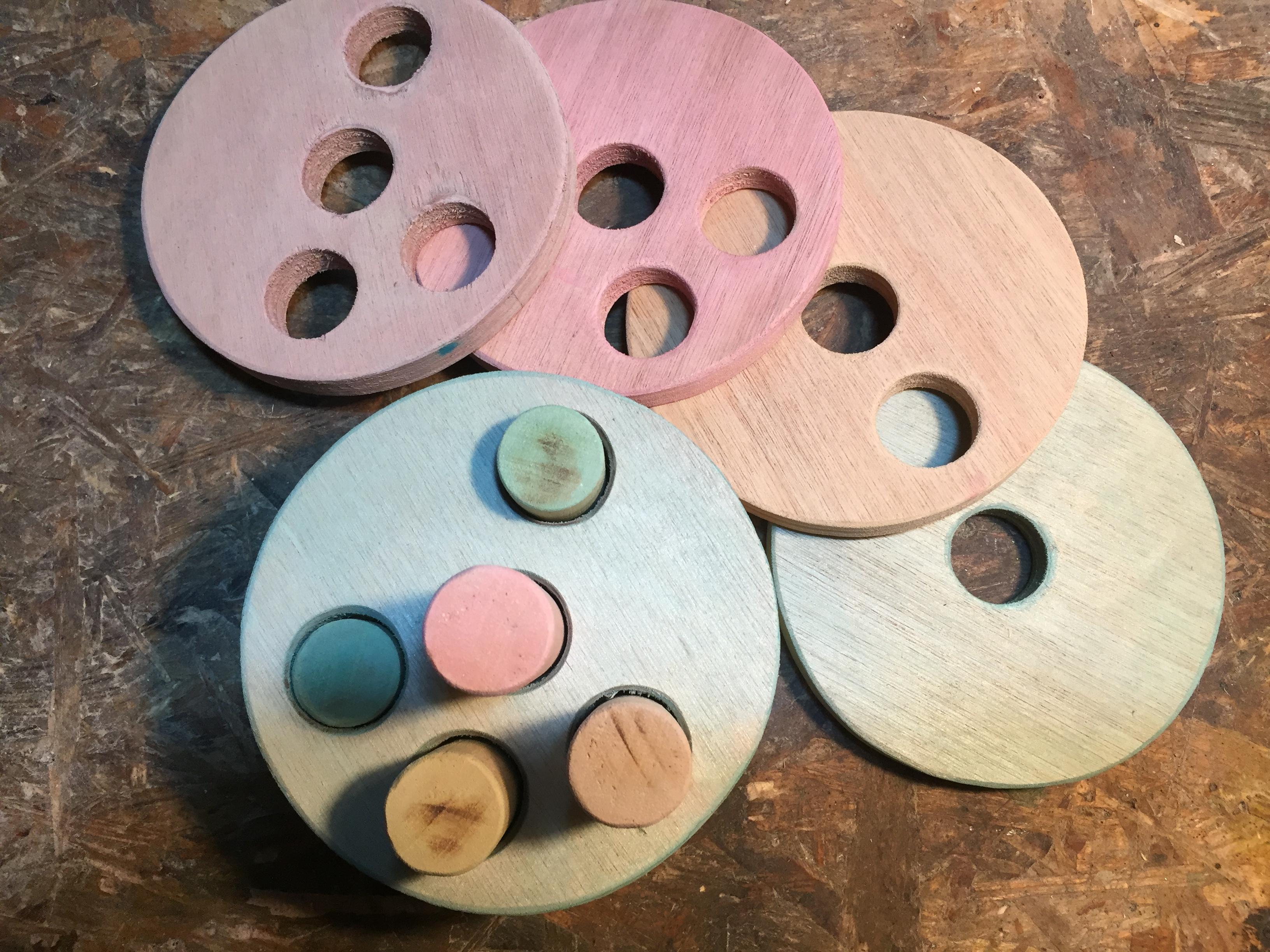

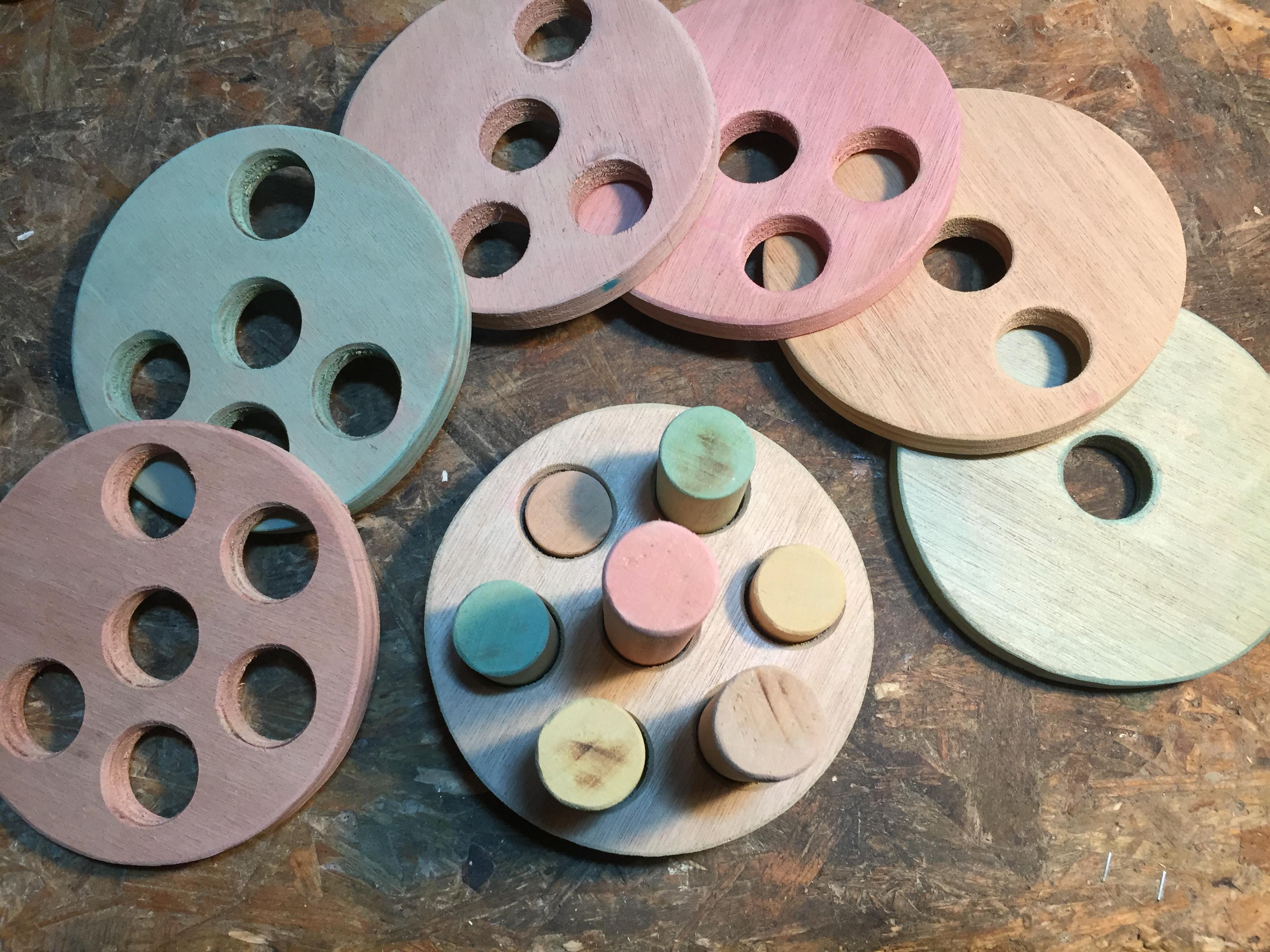

Rods and disks are colored with tinted alcool (I already explained how I made this stain in other instructables).

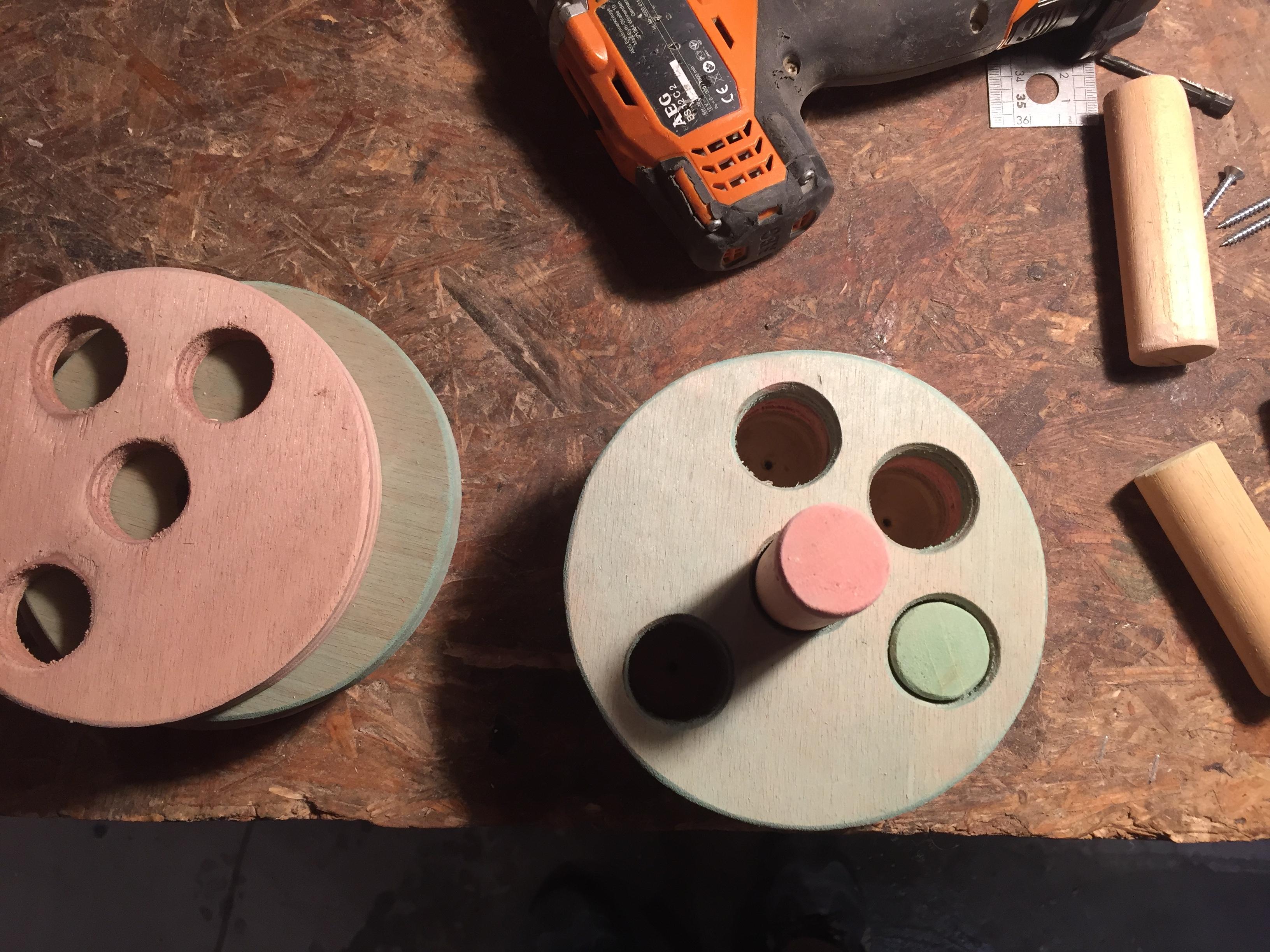

Rods are screwed on the basis from the bottom, starting with the center one and then the shorter to the taller. I used the disks as templates to fix the rods in the right place.
It works, but I had to enlarge the holes a little bit to make easier to insert the disks. I also used some wax to make the surfaces as sliding as possible.
