3D Printed Yahtzee

Screen Shot 2022-05-03 at 11.47.39 AM.png

Screen Shot 2022-05-03 at 11.46.56 AM.png

Screen Shot 2022-05-03 at 11.45.39 AM.png

What is Yahtzee:

Yahtzee is a simple and strategic dice game. Players role dice and try to end with the highest points (on the scorecard shown) after competing all the rounds. This game can be played individually or in a group

Supplies:

- 3D printed dice (x5) made with filament

- A 3D printed cup, made with filament

- Score card (can be bought at stores, printed or an online version)

How to Play:

A full overview on the rules and how to play the game can be found at this link: https://www.ultraboardgames.com/yahtzee/game-rules.php

Design the Dice on Tinkercad

Screen Shot 2022-05-03 at 11.17.44 AM.png

1.Open Tinkercad (https://www.tinkercad.com/dashboard?type=tinkercad&collection=designs)

2. pick the dice shape

3. change the dimensions to desired dimensions

4. Pick a cylinder

5. make the cylinder small and thin

6. once at desired size duplicate it 20 more times

7. pick a side of the dice and create the dice pattern with the cylinder for the number of dice on that side (the 4 side would be a 2 x 2 pattern)

8. group the cylinders together and make them a hole

9. use the align feature to put the design onto the dice, centered and on the right side (you might need to change the angle)

10. repeat steps 7-9 until all the sides are done

Duplicate the Dice 6 Times

Screen Shot 2022-05-03 at 11.24.02 AM.png

1. make sure your original dice is fully finished

2. copy the dice

3. paste it until you have 6 dice

Note: Yahtzee only required 5 dice to play but it could be helpful to make 6 incase one gets lost

Make the Cup

Screen Shot 2022-05-03 at 11.27.55 AM.png

1. insert a cylinder and size it (57.15mm wide, 57.15mm long and 85.0 mm tall)

2. create another cylinder, and make it slightly smaller (55mm wide, 55mm wide, 80mm tall)

3. make the second cylinder a hole

4. align the cylinders together

5. finish by grouping it

Finalize Your Work Plane

Screen Shot 2022-05-03 at 11.30.15 AM.png

1. to keep things efficient place the dice next to the cup, so that everything is on one document

2. Export the document as a STL

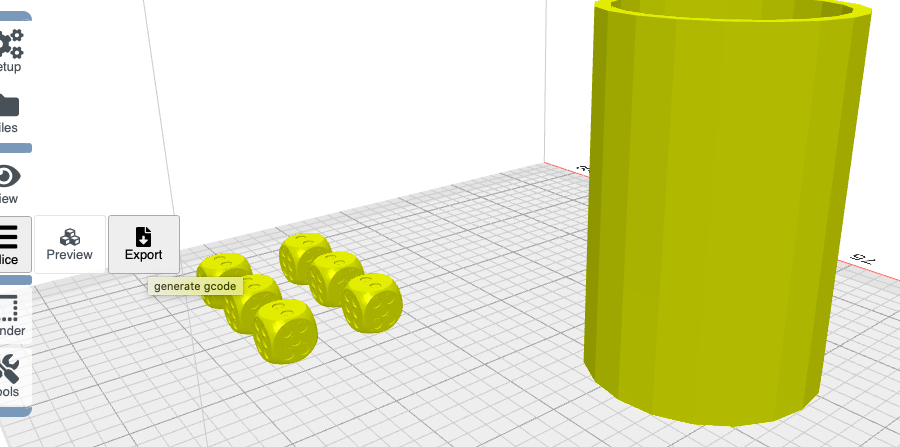

Slice the Model

Screen Shot 2022-05-03 at 11.34.10 AM.png

1. Open Kiri Moto (https://grid.space/kiri/)

2. Insert the STL onto the website

3. Select Slice for export

4. downland the slice as a Gcode

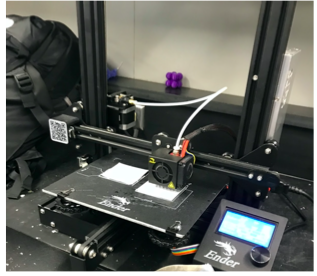

3-d Print the Design

Screen Shot 2022-05-03 at 11.38.07 AM.png

1. transfer the Gcode onto a SD card

2. put the SD card into the 3D printer

3. Find the design on the 3D printer manual

4. Select print and wait
