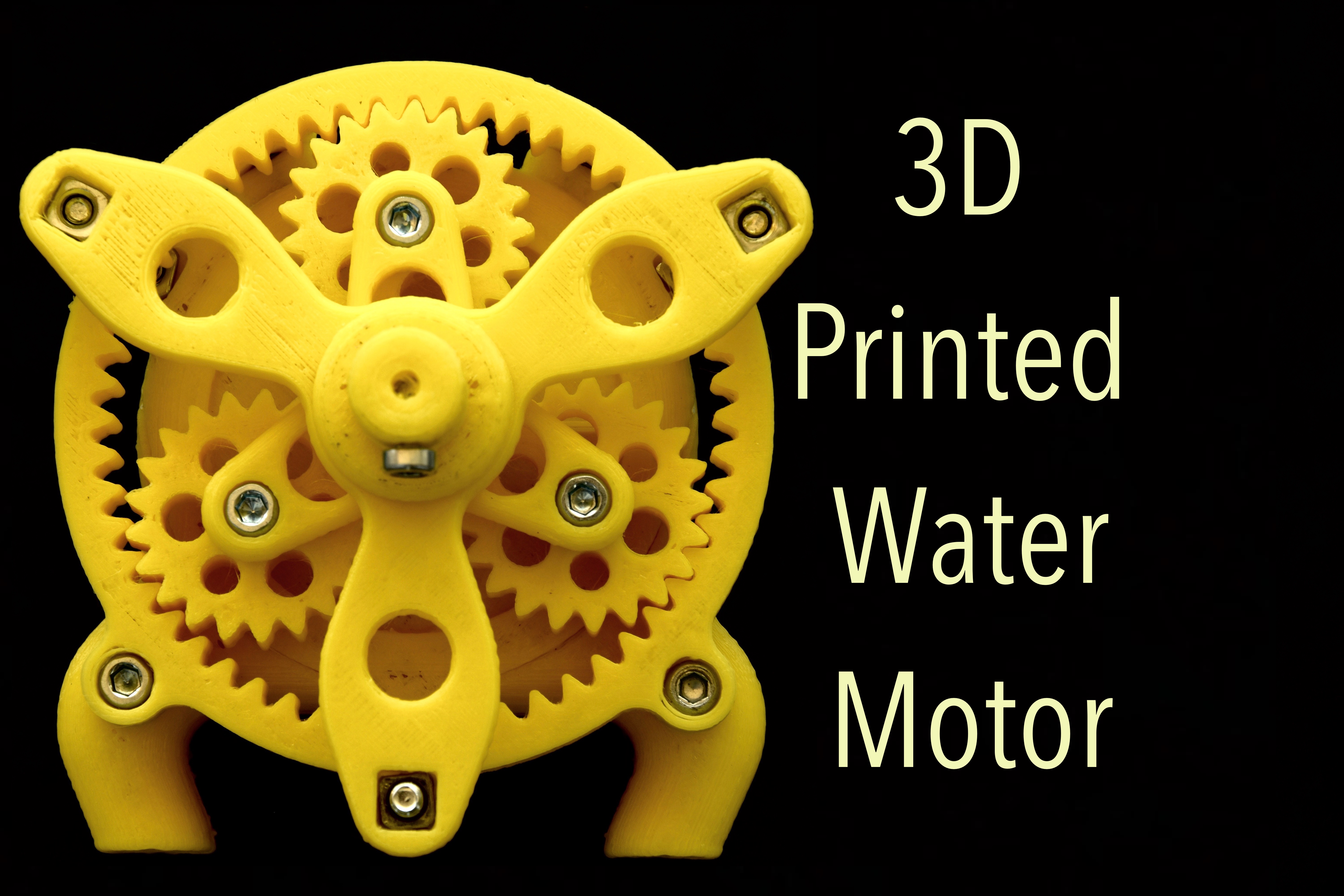

3D Printed Water Motor






This is a water motor, connect a water pipe to the motor and then it works. It's very simple. I made this, because I wanted to make a mecanical project with fusion 360.
If you like my Instructable, don't forget to vote for me in the contests. :) Thanks!
Thanks UTSOURCE.net to offer electronic components for my projects
How I Made It?

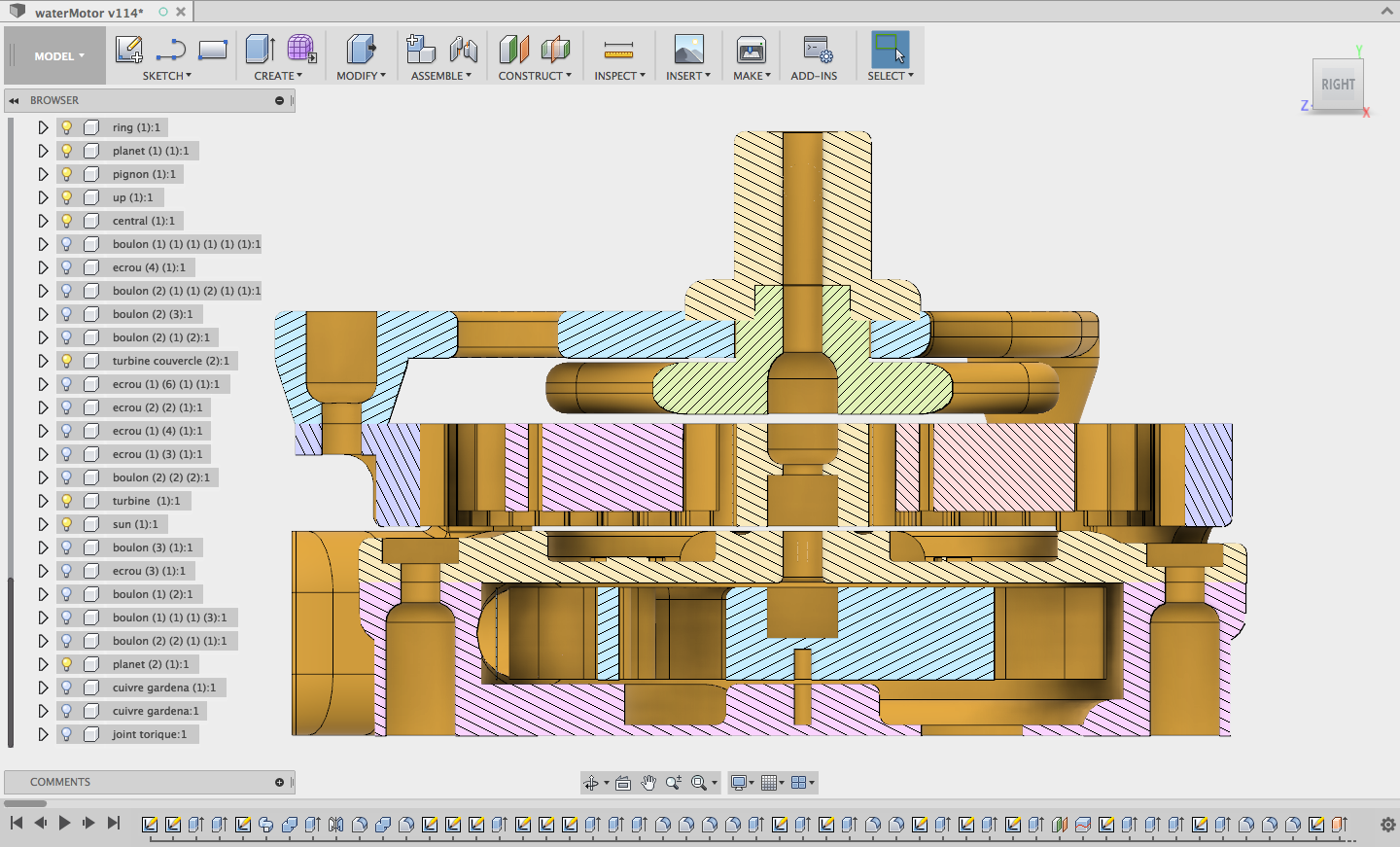

I am a beginner with Fusion 360, I wanted to make a difficult project to train myself at Fusion 360. It tooks me 3 days to draw this object.
Downloads
How It Works?

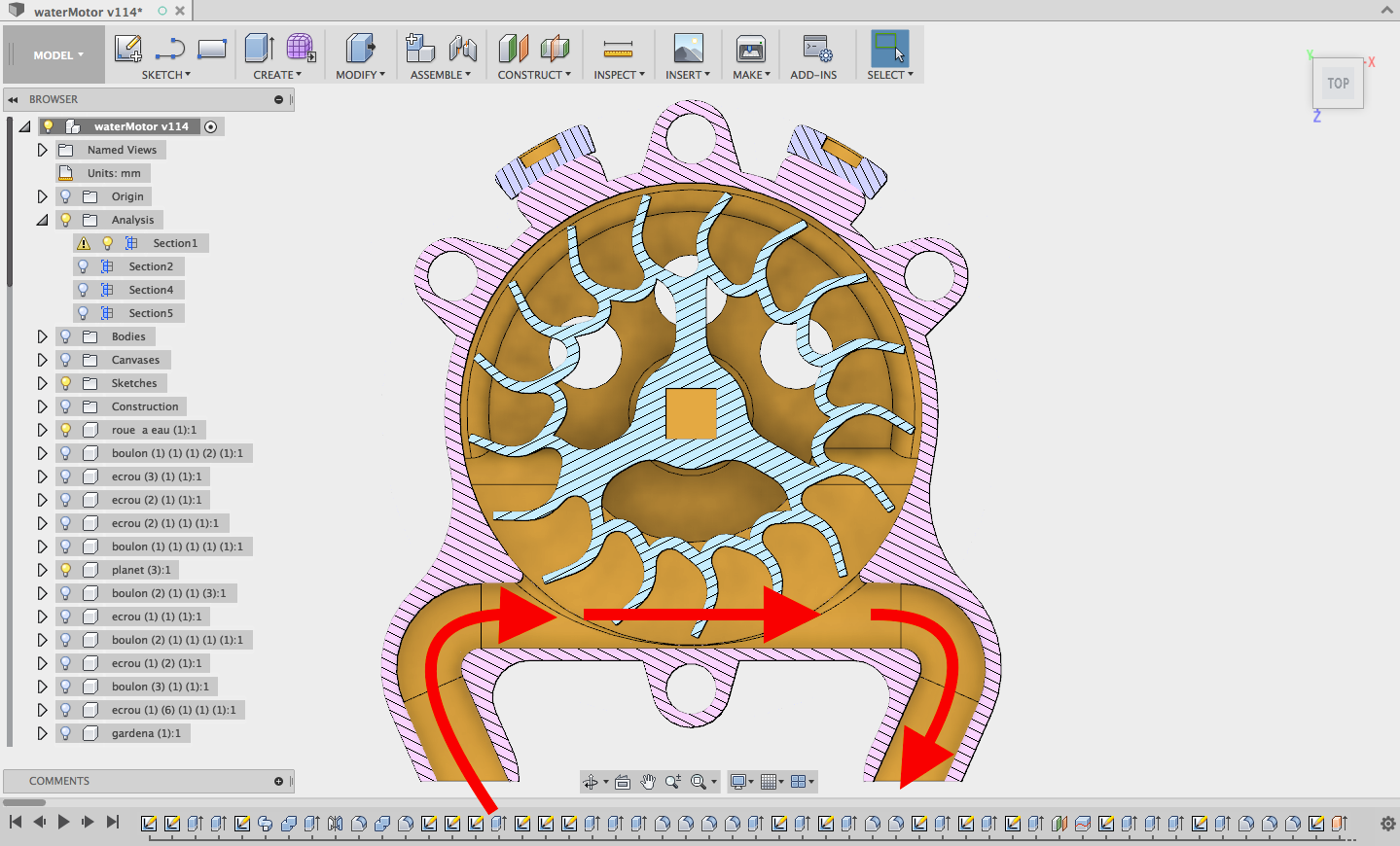

It 's a simple concept, there is a gear inside the motor, when the water flows the gear turns and a gear system lowers motor speed and increases torque.
How to Make It?




)

If you want to make it, you can download the stl files, and you can print it.

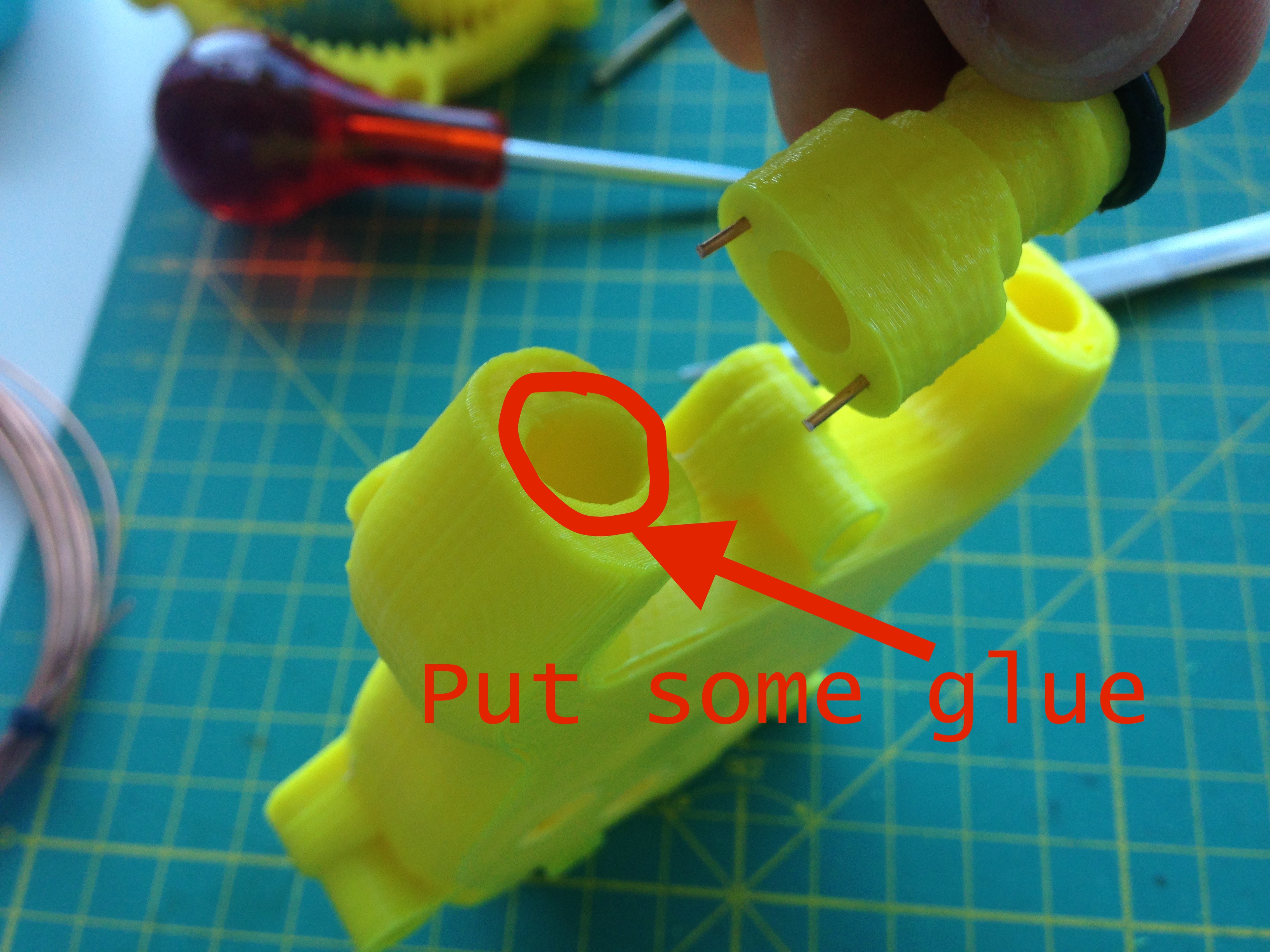

Use Nut with seal, it's important. All the bolts have a diameter of 4 mm.
I print this with the K8200 printer, and I use Cura to generate the G-code.
My Print settings:
- Bottom/Top thickness 0.6mm
- Fill Density 20%
- Platform adhesion type: none
- Support type: Don't use support!
- Use PLA or ABS.
If you want to modify this design you can download the Fusion files with this link: http://a360.co/2sOvVtE
hope you enjoyed reading this instructable. :)
I am 16 years old and I speak french, excuse me if I made errors of English in this instructable.
