3D Printed Snowflake Medal

I created a snowflake medal, because I wanted to make a medal that was Christmas related.

https://www.onshape.com/en/

Create an offset plane that is 0.75 inches away from the back plane.

Next, use the sketch feature on the offset plane and create a center circle with a diameter of 3.893 inches.

After that, use the extrude feature with a depth of 0.5 inches.

When you finish extruding the first circle, create another sketch onto the circle on its front plane and a center circle that has a diameter of 3.453 inches. You also create another center circle but for one that stays along the edges.

Begin to extrude the circles you have just drawn, with a depth of 0.15 inches.

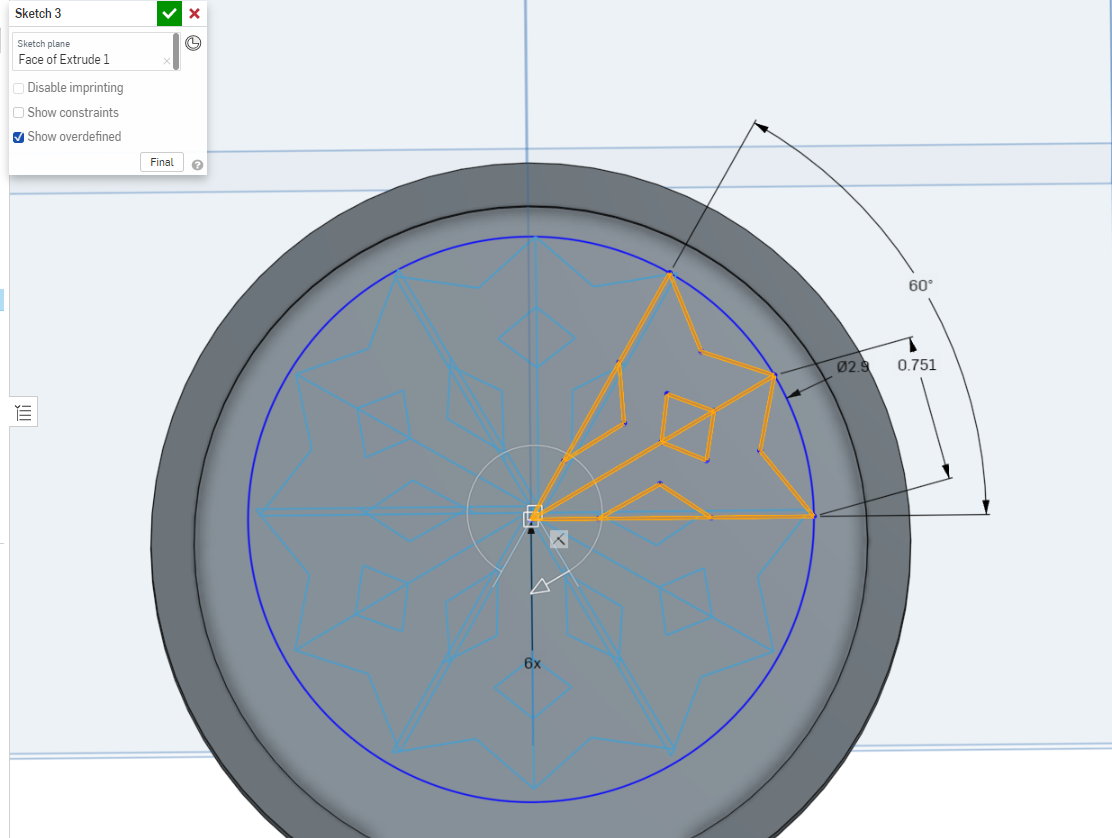

Draw a center circle with a new sketch on the inner circle with a diameter of 2.9 inches. Create lines in a 60 degree angle of space from the center point with a line that goes between it that is 0.751 inches away from each of the surrounding lines. Then, create your own lines to next for how your snowflake looks (each design may have different designs).

Use the mirror line tool on the line in between both lines of the 60 degree angle. Select it as a mirror line and mirror the lines to use them for your snowflake design.

Use the circular pattern and drag the circular pattern towards the center point. Change the 3x to 6x to multiply the design to have that circular pattern along the circle 6 times.

Use the extrude tool to extrude the snowflake with a depth of 0.25 inches with the extrude remove.

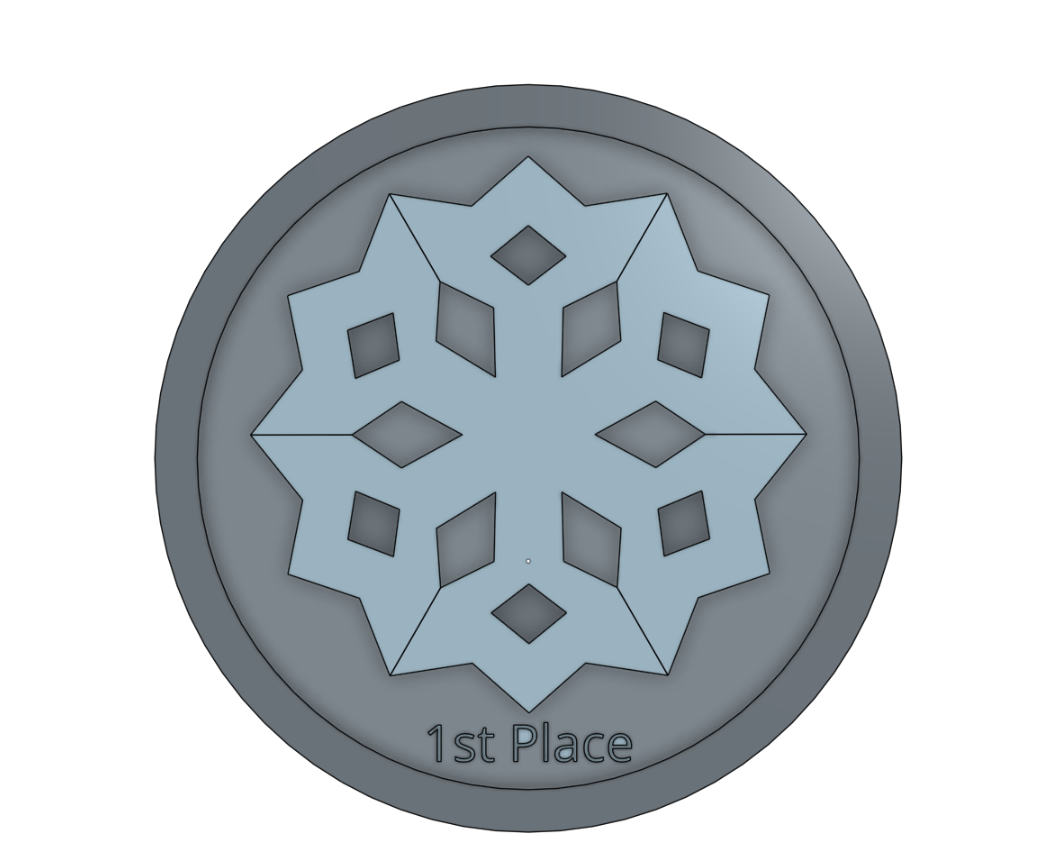

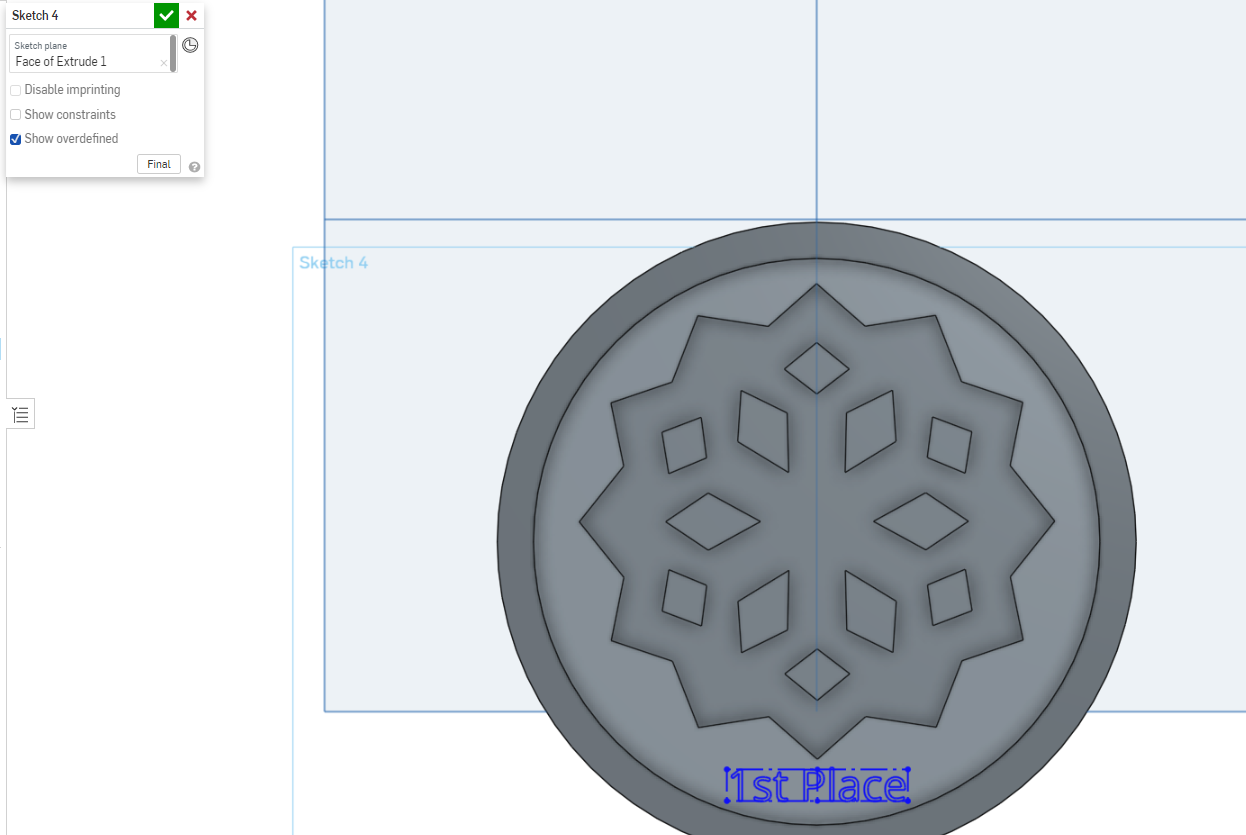

Create a new sketch on the circle's face with a text box saying "1st Place" and center it to the bottom center with the coincident tool.

Use the extrude remove feature on the text box with a depth of 0.15 inches.

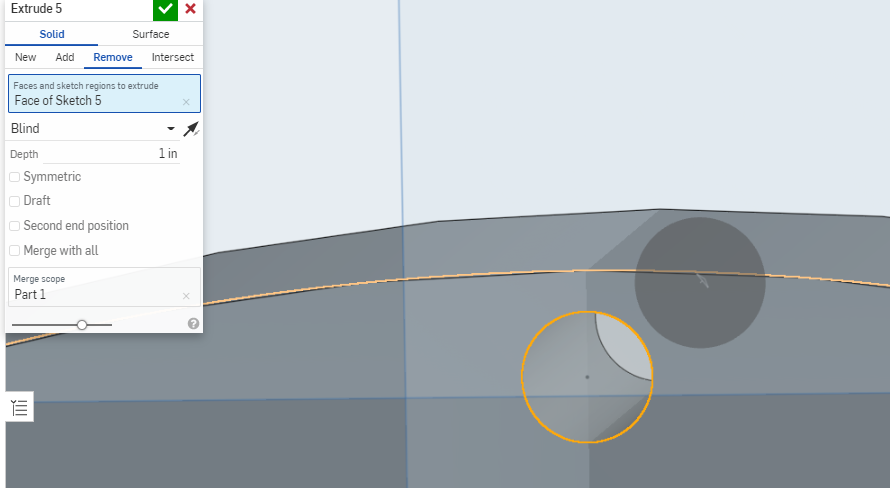

Draw a new sketch on the outer layer. Then, draw a center circle with a diameter of 0.1 inches.

Extrude the hole by 1 inch.
