3D Printed Rotating Display Table
by 3D Printer Art in Circuits > Arduino
2171 Views, 8 Favorites, 0 Comments

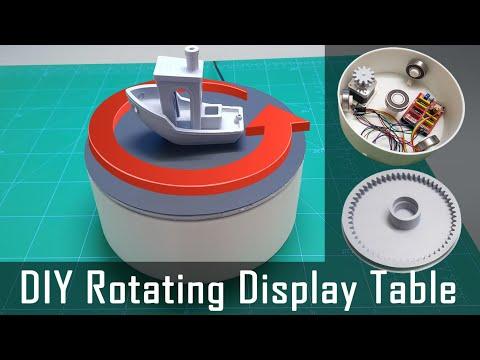

3D Printed Rotating Display Table








Hello everyone this is rotary display table, You can use it to rotate your 3d parts for enhanced viewing, or whatever object you may want to turn
Supplies
The design is simple and for this project you need this things :
Hardware parts:
1-All .STL file need to be printed
2-Nema motor 17
3-CNC shield v3 Board
4- Arduino Uno
5- One DRV8825 Driver
6- 12V power supply
7- four ball bearing (I mentioned the size of ball bearing in the photos)
Software :
Arduino IDE
Find the Code in the attached file

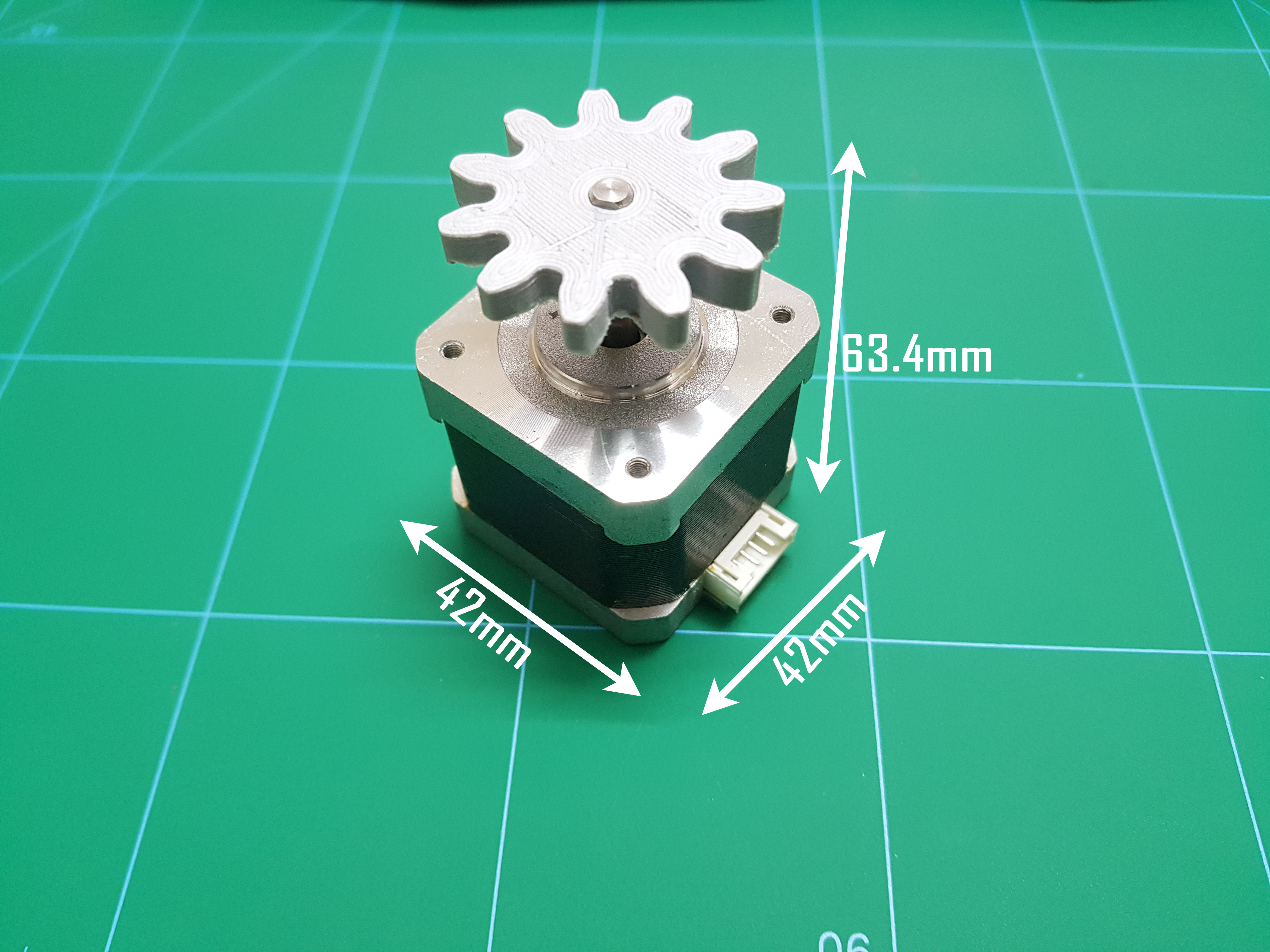

first of all measure your motor and ball Bering I attached the fusion 360 cad file so you can change the design base of your motor size

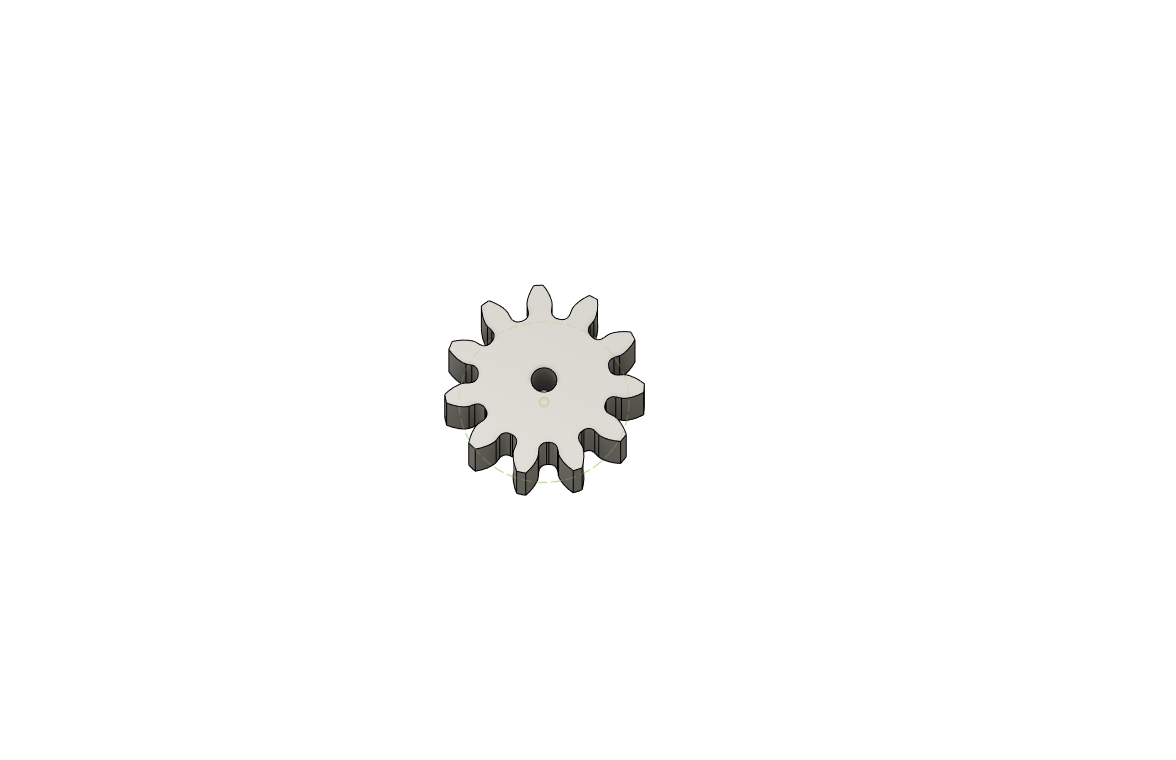

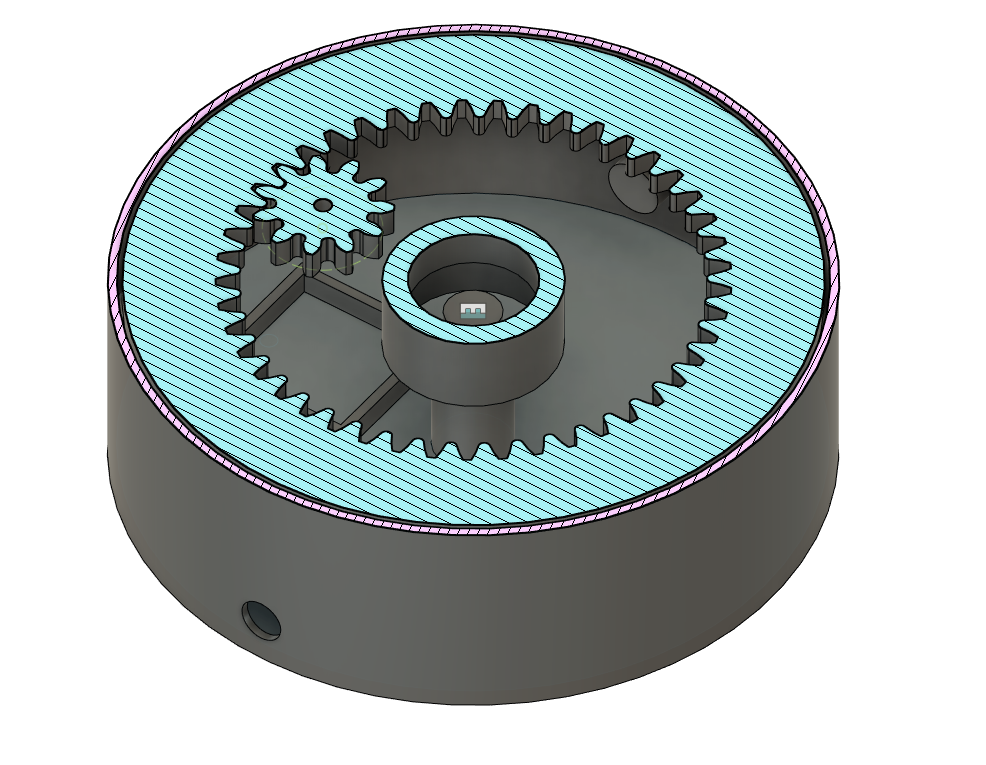

making 3d design for our project, you can download my design

Print all three parts and assemble together , if you using 0.8mm nozzle I think it take about 18h to complete.

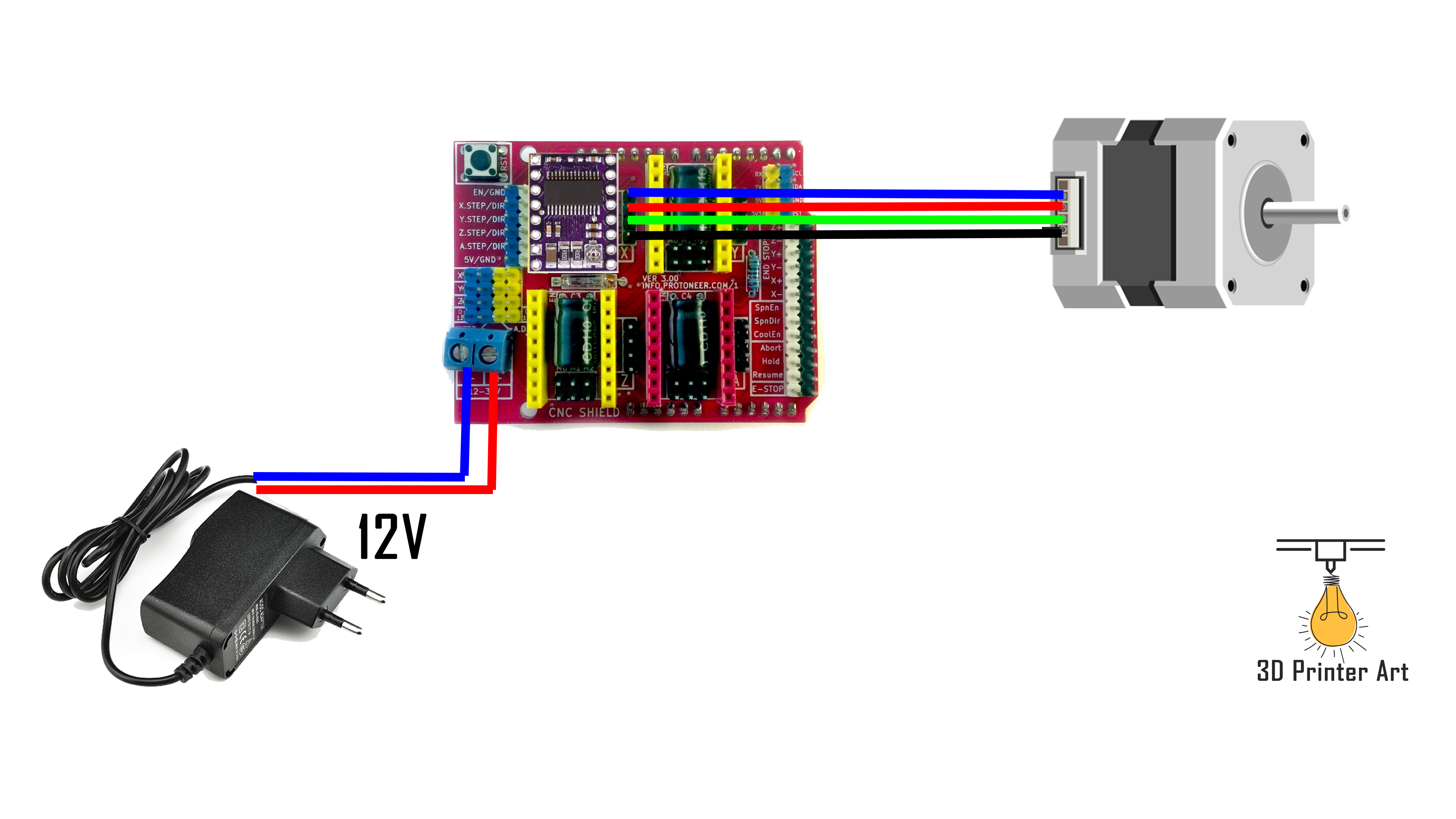

See the diagram to know how to wire all electronic components, and then upload the code by using Arduino IDE software
