3D Printed RC FPV Quadrocopter
by theboygenius in Circuits > Remote Control
202 Views, 1 Favorites, 0 Comments

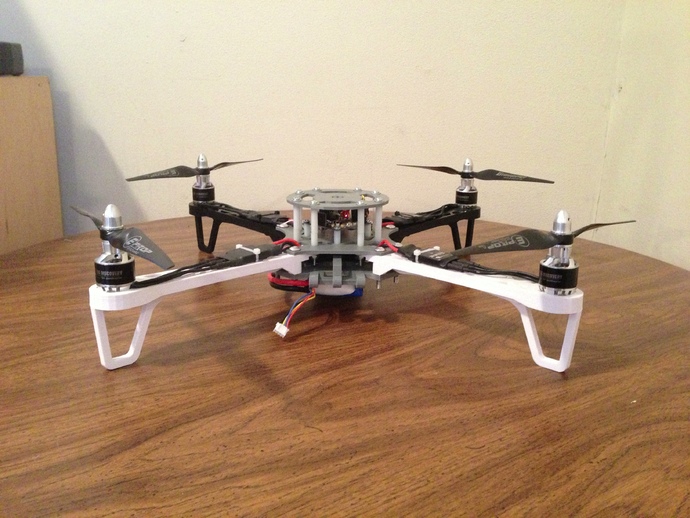

3D Printed RC FPV Quadrocopter
This is a 3D printed Quadrocopter that is designed for fpv usage.
You might need to tweek your final result.
Credits:
MikeyB of thingiverse.com
You might need to tweek your final result.
Credits:
MikeyB of thingiverse.com
Downloads
Parts Needed
Electronics List:
Motors - RCTimer 750 Kv
http://rctimer.com/index.php?gOo=goods_details.dwt&goodsid=573&productname=
ESCs - Turnigy Plush 30A
http://hobbyking.com/hobbyking/store/_2164_TURNIGY_Plush_30amp_Speed_Controller.html
Battery - Turnigy Nanotech 3S or 4S 4000mah
http://hobbyking.com/hobbyking/store/_11927_Turnigy_nano_tech_4000mah_3S_25_50C_Lipo_Pack.html
Flight Controller - KK 2.0
http://www.hobbyking.com/hobbyking/store/__24723__hobbyking_kk2_0_multi_rotor_lcd_flight_control_board.html
Camera Mount Servo - 9g
where ever you would like to buy it I don't like to recommend radio transmitters and receivers because people have their own opinion, so you should decide your tx/rx
Hardware
8-32 nylon machine screws
Some small household supplies
Motors - RCTimer 750 Kv
http://rctimer.com/index.php?gOo=goods_details.dwt&goodsid=573&productname=
ESCs - Turnigy Plush 30A
http://hobbyking.com/hobbyking/store/_2164_TURNIGY_Plush_30amp_Speed_Controller.html
Battery - Turnigy Nanotech 3S or 4S 4000mah
http://hobbyking.com/hobbyking/store/_11927_Turnigy_nano_tech_4000mah_3S_25_50C_Lipo_Pack.html
Flight Controller - KK 2.0
http://www.hobbyking.com/hobbyking/store/__24723__hobbyking_kk2_0_multi_rotor_lcd_flight_control_board.html
Camera Mount Servo - 9g
where ever you would like to buy it I don't like to recommend radio transmitters and receivers because people have their own opinion, so you should decide your tx/rx
Hardware
8-32 nylon machine screws
Some small household supplies
Putting Together the Quadrocopter
1.) Print the main body parts top plate and the leg, pad and GoPro case at 20% infill.
2.) Print the Arms at 50% infill. Depending on material used you may be able to get away with less infil. Using ABS and 50% will give a good starting point for a very strong, light arm.
3.) The arm, leg and pad can just be press fit together. They should fit snugly, some sanding or shaving may be required to get desired fit. Super glue can also be used if parts do not fit snugly. I have printed mine on a replicator and tolerances work well.
4.) Assemble frame and arms using 8-32 nylon machine screws or like.
5.) The bottom plate is designed to accept a 9g servo for articulating the GoPro tilt mount. Us a push rod to connect the servo arm to the hinge arm on the GoPro case.
6.) Using ear plugs or other vibration dampening material in between the GoPro case and the hinge. This will dampen out any vibrations that get to the GoPro and reduce or eliminate the rolling shutter problems that GoPros have with multi-rotors.
7.) Add electronics.
8.) Dynamically balance props on the motors. THIS IS VERY IMPORTANT FOR A STABLE FLYING PLATFORM AND TO ELIMINATE VIBRATIONS.
9.) Fly!
2.) Print the Arms at 50% infill. Depending on material used you may be able to get away with less infil. Using ABS and 50% will give a good starting point for a very strong, light arm.
3.) The arm, leg and pad can just be press fit together. They should fit snugly, some sanding or shaving may be required to get desired fit. Super glue can also be used if parts do not fit snugly. I have printed mine on a replicator and tolerances work well.
4.) Assemble frame and arms using 8-32 nylon machine screws or like.
5.) The bottom plate is designed to accept a 9g servo for articulating the GoPro tilt mount. Us a push rod to connect the servo arm to the hinge arm on the GoPro case.
6.) Using ear plugs or other vibration dampening material in between the GoPro case and the hinge. This will dampen out any vibrations that get to the GoPro and reduce or eliminate the rolling shutter problems that GoPros have with multi-rotors.
7.) Add electronics.
8.) Dynamically balance props on the motors. THIS IS VERY IMPORTANT FOR A STABLE FLYING PLATFORM AND TO ELIMINATE VIBRATIONS.
9.) Fly!
