3D Printed Perfboard Holder
![20220911_202515.jpg](/proxy/?url=https://content.instructables.com/FD3/TGSM/L7XCJU5M/FD3TGSML7XCJU5M.jpg&filename=20220911_202515.jpg)
![20220911_202158.jpg](/proxy/?url=https://content.instructables.com/FWN/NFNJ/L7XCJU5F/FWNNFNJL7XCJU5F.jpg&filename=20220911_202158.jpg)

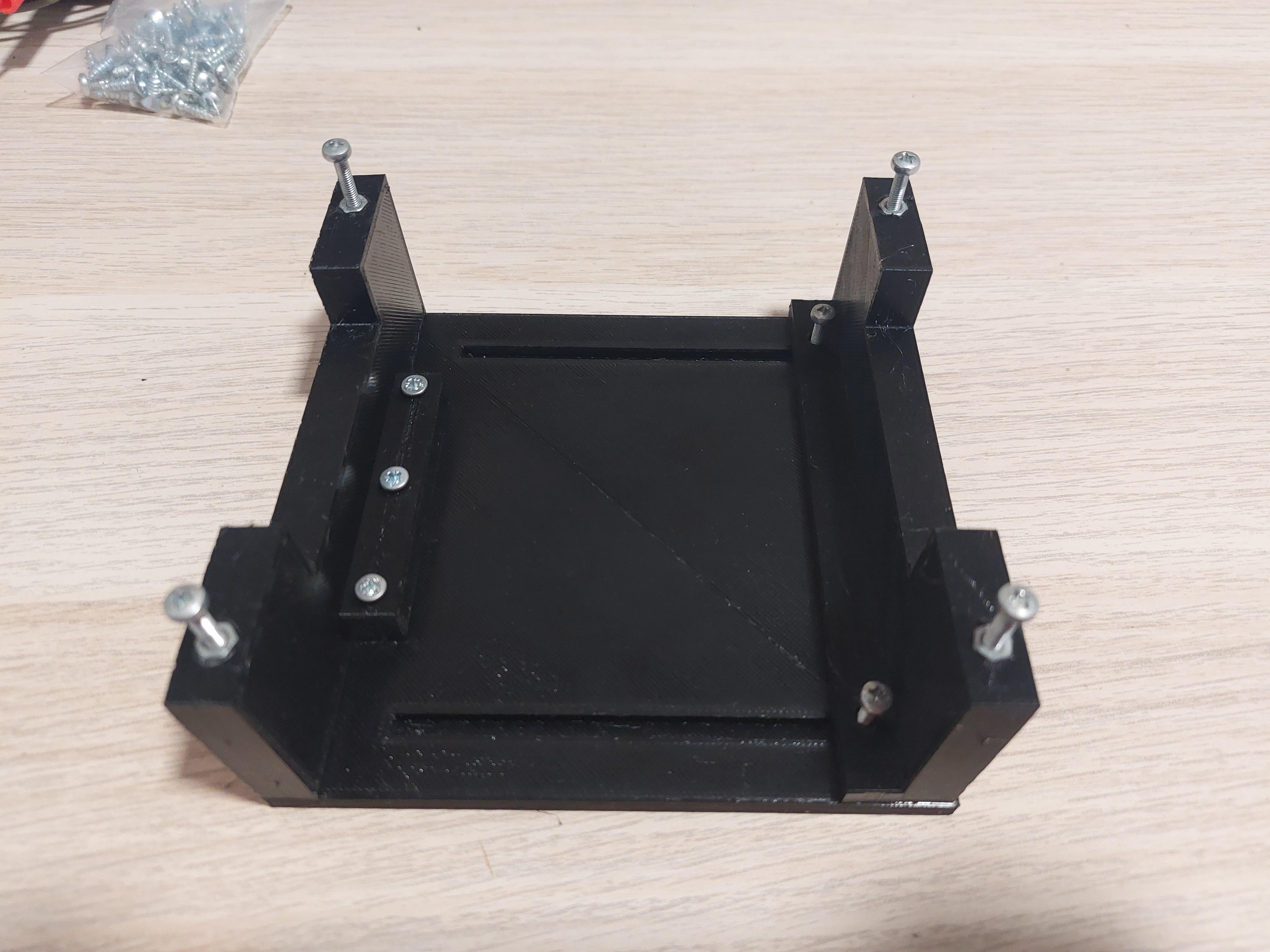

Before I made this holder I was using wooden blocks to help me with soldering. That is why I designed my own 3D printed perfboard holder. It's a simple project where I learned a lot of new skills. I learned 3D design with open source CAD program called FreeCAD.
For every part I printed, I attached .gcode file with PLA settings for Ender 3 pro. But you should improve my design.
Supplies
- Any CAD software - I used FreeCAD
- Slicer - Cura
- 3D printer - Ender 3 pro
- M3 screws and nuts
Bottom Plate
![Screenshot from 2022-09-11 20-44-02.png](/proxy/?url=https://content.instructables.com/F7W/S4EJ/L7XCJUL6/F7WS4EJL7XCJUL6.png&filename=Screenshot from 2022-09-11 20-44-02.png)
![Screenshot from 2022-09-11 20-44-54.png](/proxy/?url=https://content.instructables.com/FX3/IFJB/L7XCJULN/FX3IFJBL7XCJULN.png&filename=Screenshot from 2022-09-11 20-44-54.png)
This bottom plate has two slots for screw nuts.
It has dimensions of 120mmx120mmx5mm.
Downloads
Fixed Support Wall
![Screenshot from 2022-09-11 20-50-17.png](/proxy/?url=https://content.instructables.com/FUI/2KLY/L7XCJUTO/FUI2KLYL7XCJUTO.png&filename=Screenshot from 2022-09-11 20-50-17.png)
![20220828_191711.jpg](/proxy/?url=https://content.instructables.com/FE3/CN1N/L7XCJUU2/FE3CN1NL7XCJUU2.jpg&filename=20220828_191711.jpg)
This support wall has holes for 3 screws that hold it in place. It also has 2 holes for screw. Screw nut is placed in hole above screw hole. I used M3 screws.
Downloads
Sliding Support Wall
![Screenshot from 2022-09-11 20-53-57.png](/proxy/?url=https://content.instructables.com/F1O/ZGVT/L7XCJV7D/F1OZGVTL7XCJV7D.png&filename=Screenshot from 2022-09-11 20-53-57.png)
![20220828_191834.jpg](/proxy/?url=https://content.instructables.com/FB2/EILX/L7XCJVB1/FB2EILXL7XCJVB1.jpg&filename=20220828_191834.jpg)
This support wall has 2 holes for M3 screws. Screw nuts are inserted into slot on bottom plate.
Downloads
Holding Plates
![Screenshot from 2022-09-11 20-57-18.png](/proxy/?url=https://content.instructables.com/FJZ/FK5A/L7XCJW73/FJZFK5AL7XCJW73.png&filename=Screenshot from 2022-09-11 20-57-18.png)
![20220911_202058.jpg](/proxy/?url=https://content.instructables.com/F80/PNLS/L7XCJW7P/F80PNLSL7XCJW7P.jpg&filename=20220911_202058.jpg)
The last parts are 2 holding plates which will tighten the perfboard.
