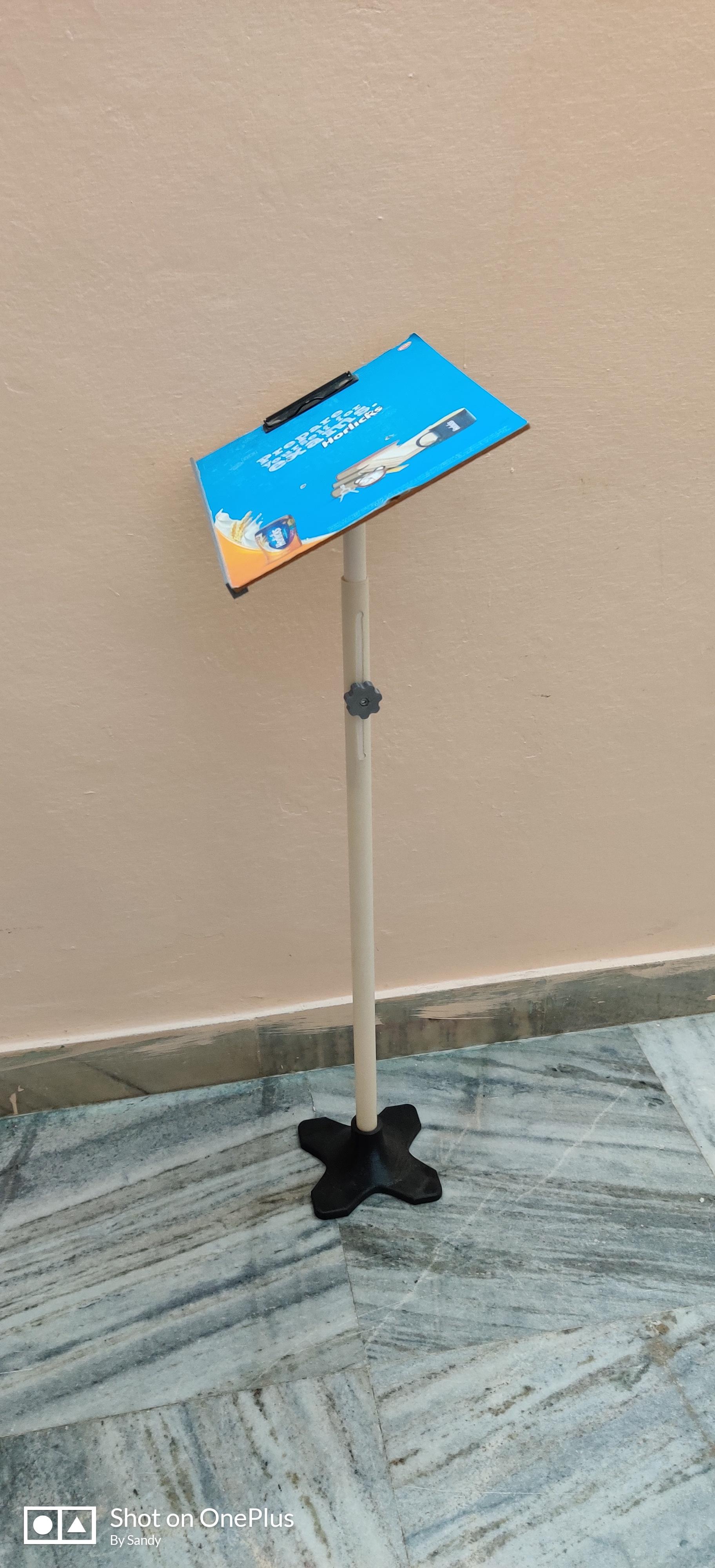

3D Printed Music Stand

3D printed music stand with adjustable height and angle.

• PLA Filament
• PVC - 1(Outer diameter: 20mm, Inner diameter: 18mm)
• PVC - 2(Outer diameter: 25mm, Inner diameter: 21mm)

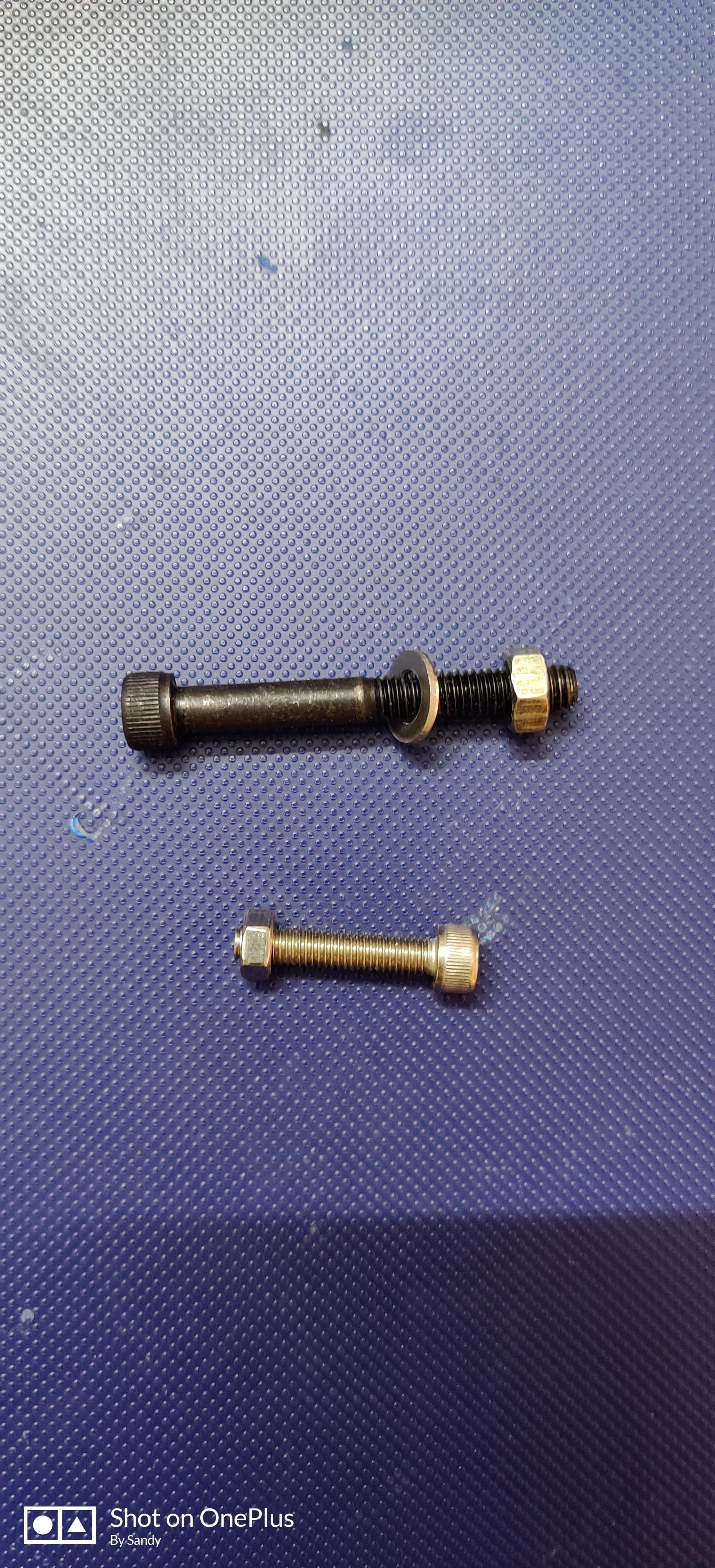

• M6 Nut and Bolt with Washer * 1
• M5 Nut and Bolt * 1
• M3 Nut and bolt * 4
• Exam pad or 5mm MDF
• 2 Compound adhesive

Download stl files from the below provided link. Print all the files.

https://www.thingiverse.com/thing:4633755

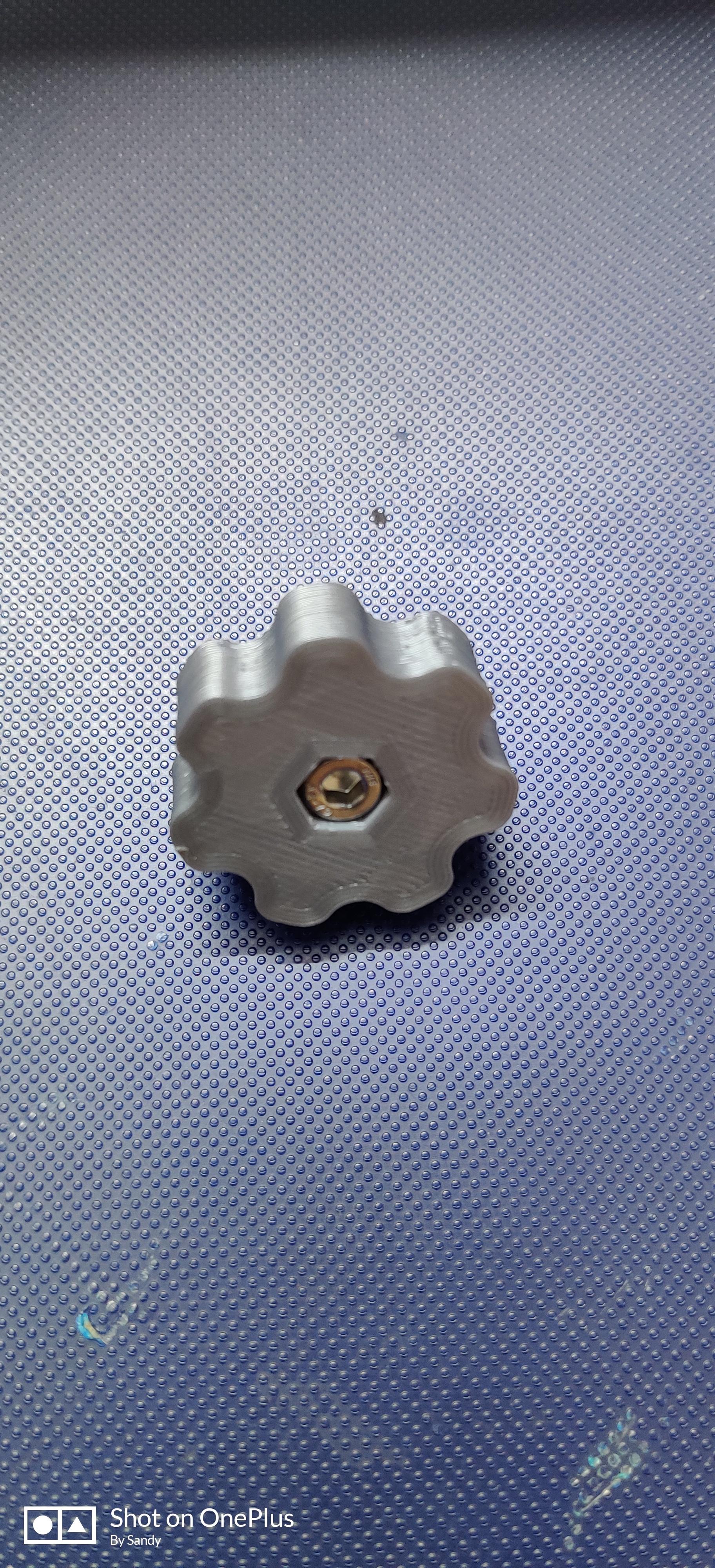

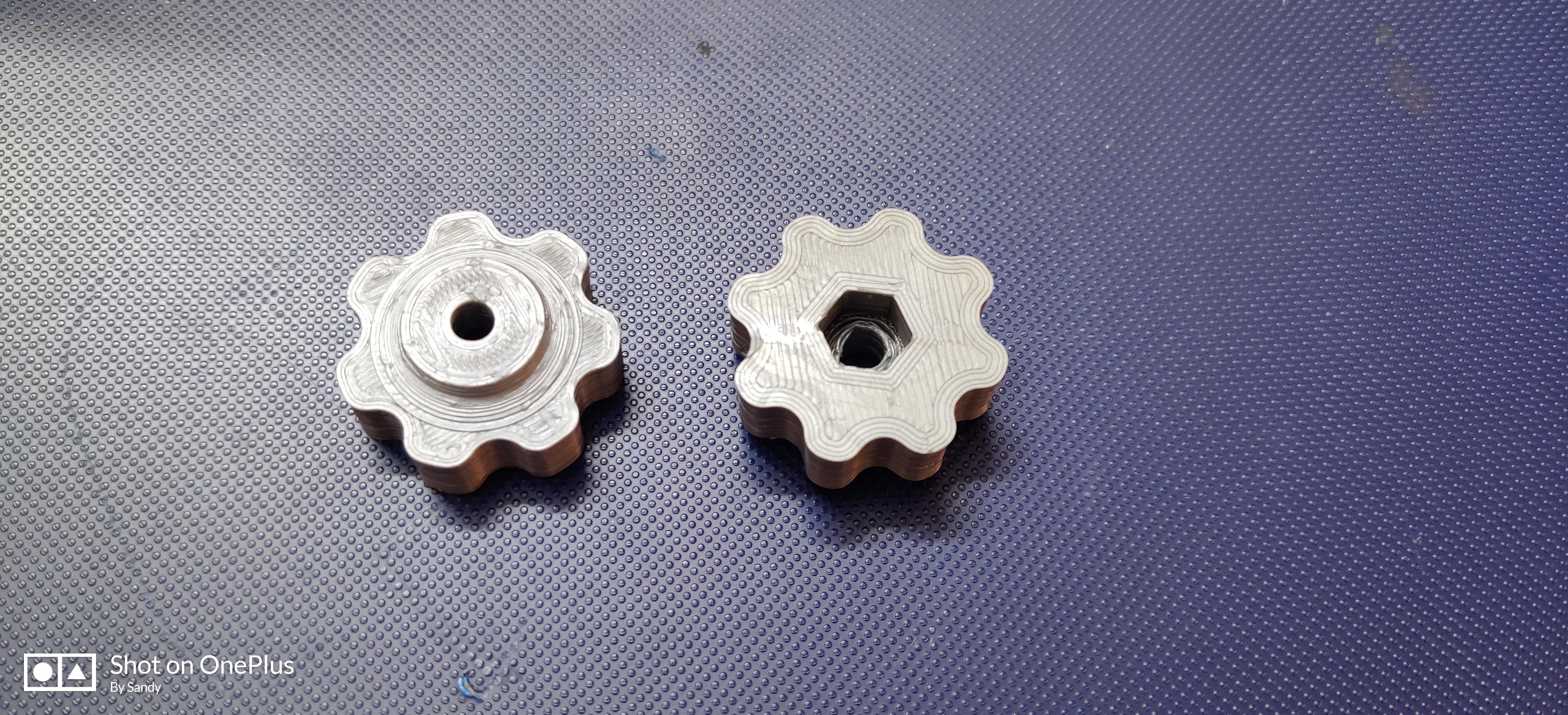

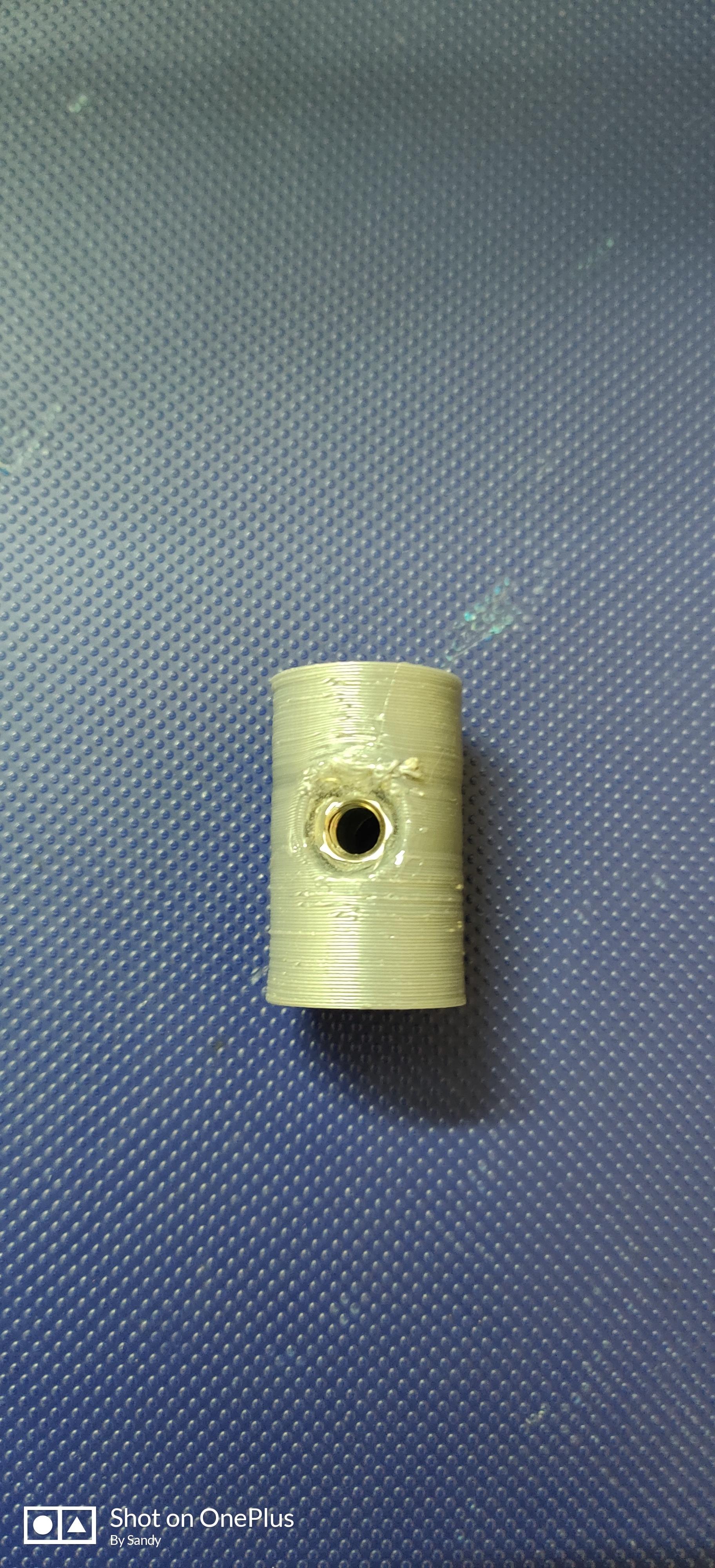

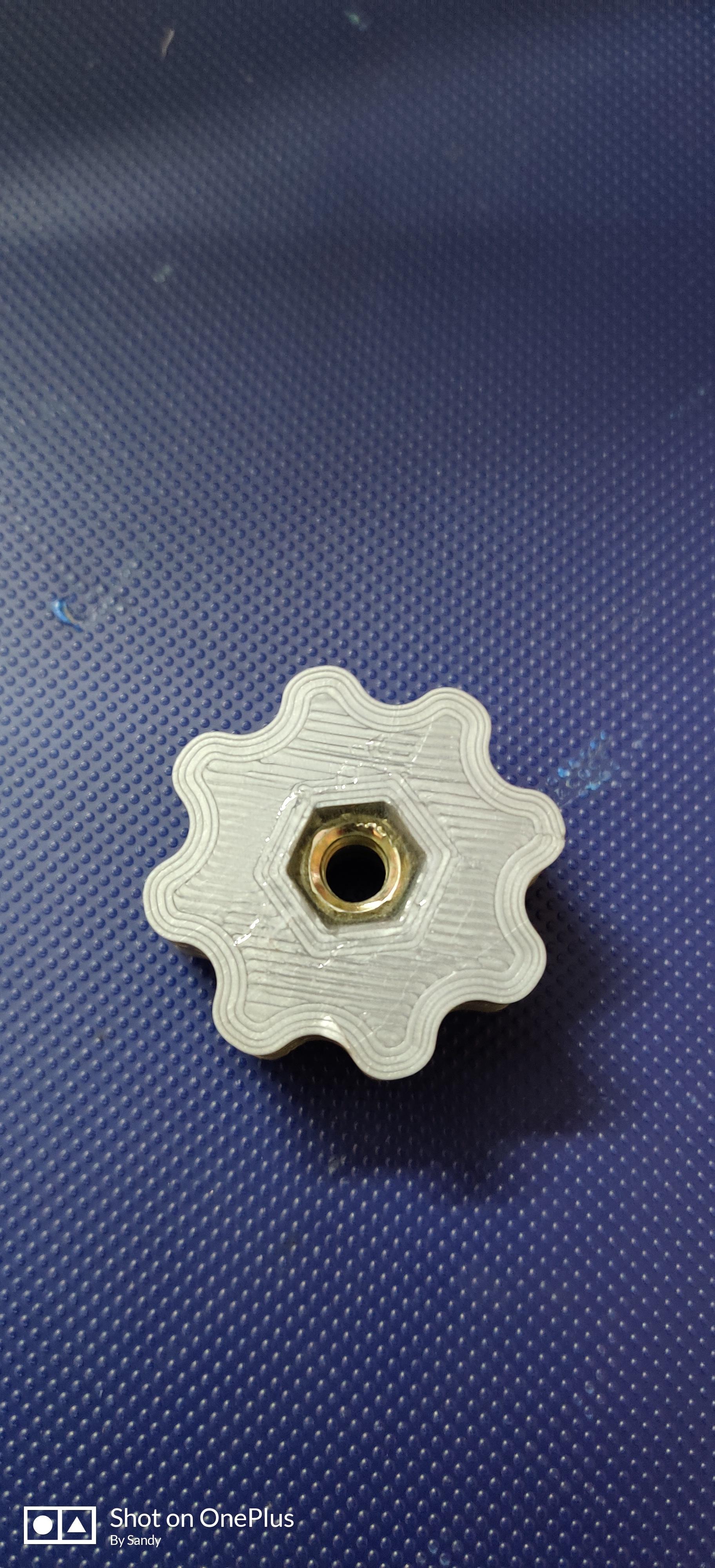

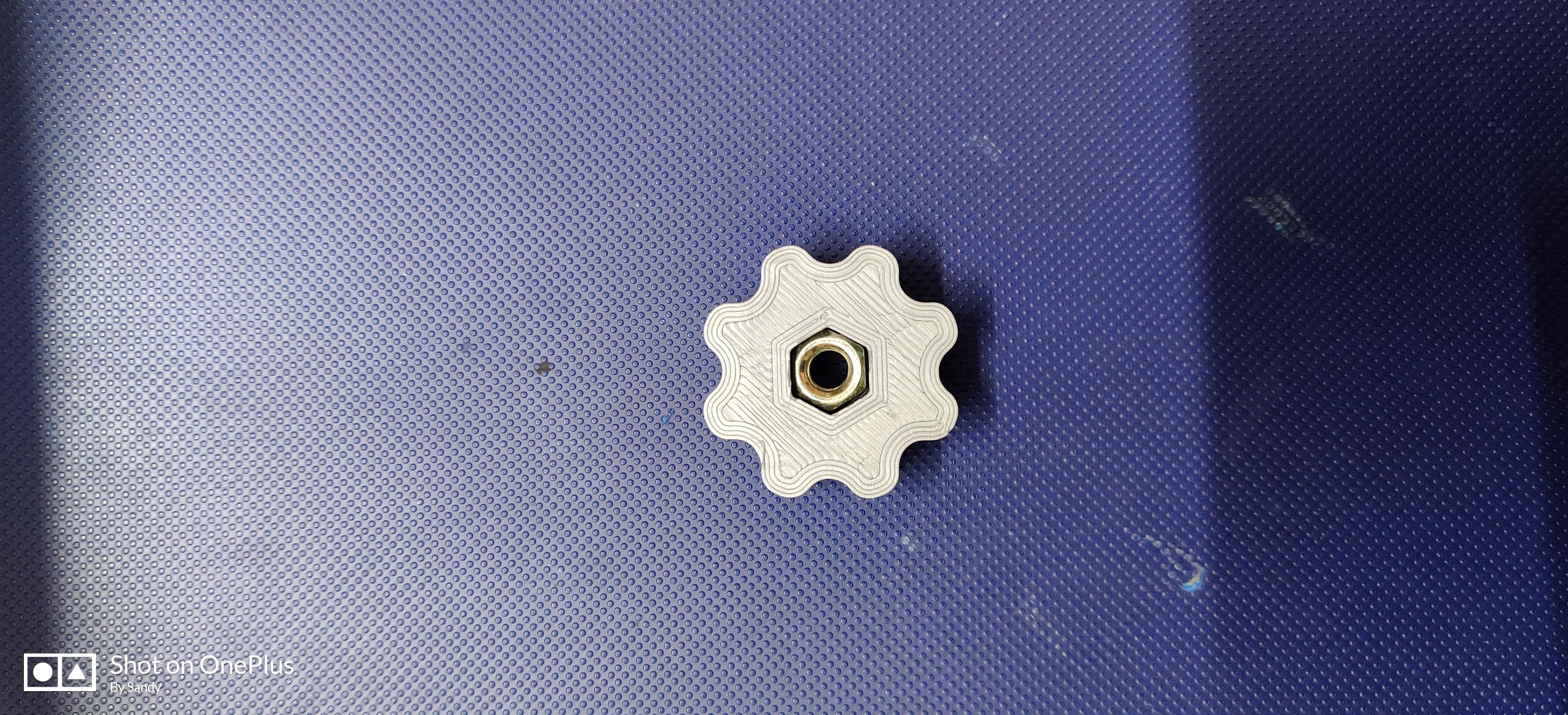

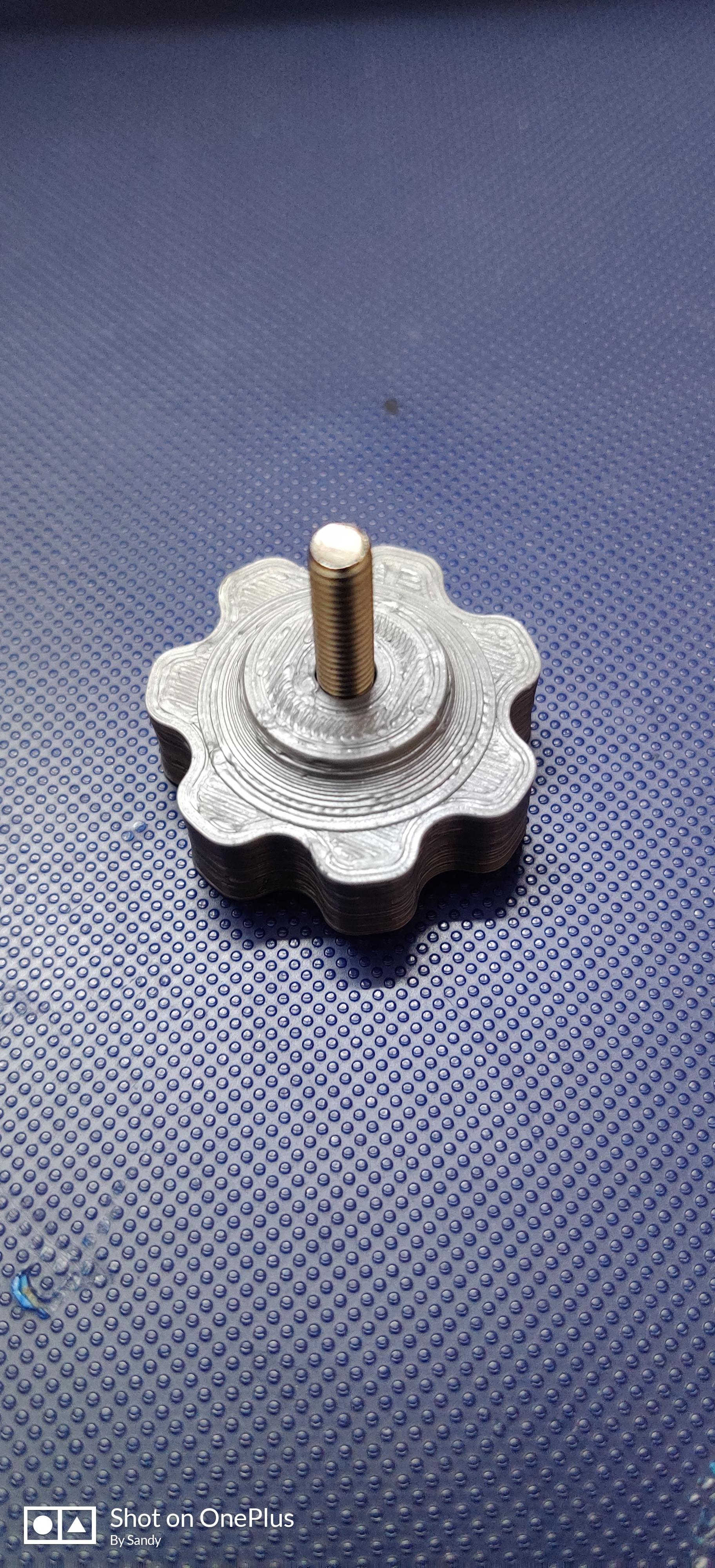

Insert Nut and Bolt according to the images and apply 2 compound epoxy adhesive.

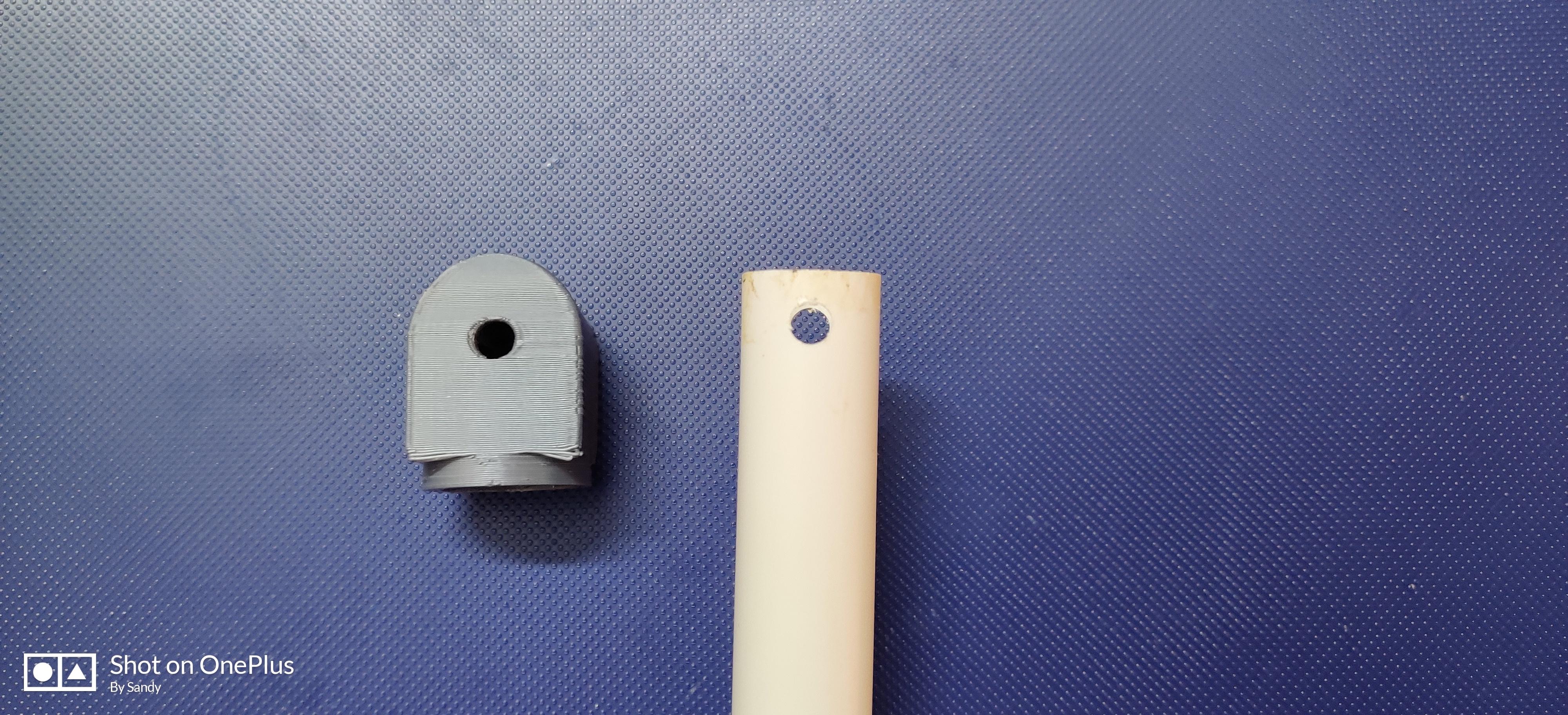

Drill holes according to the images.

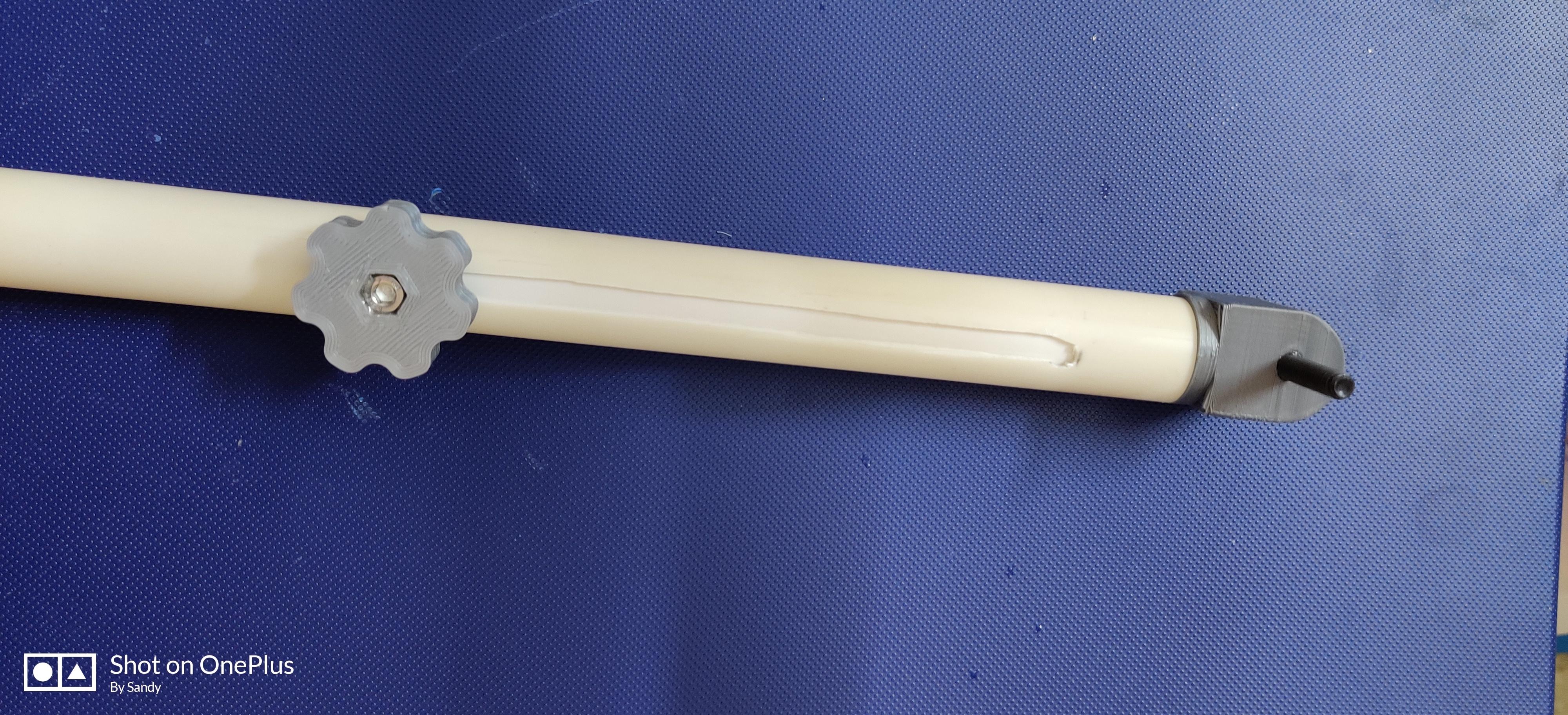

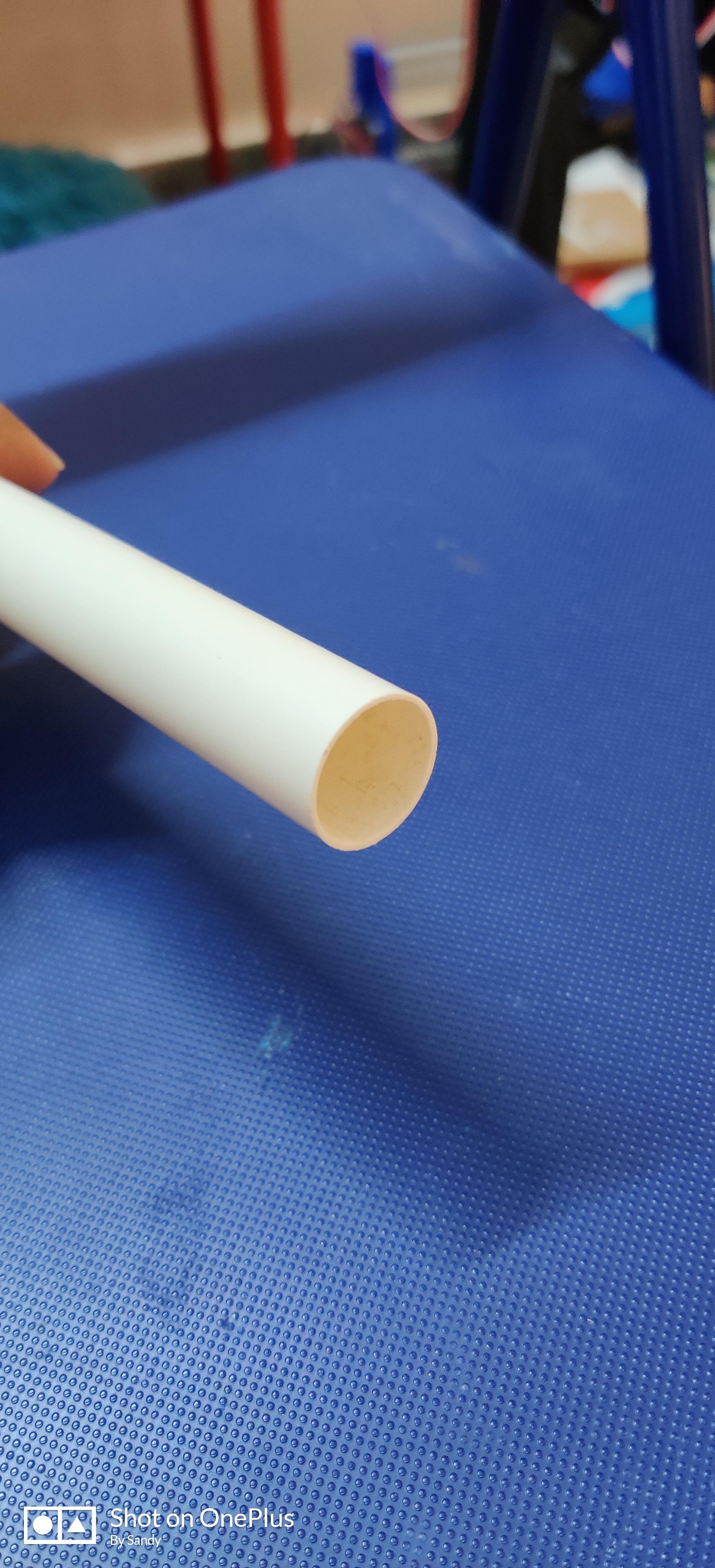

• Cut 5.5mm width slot of length of 150mm .

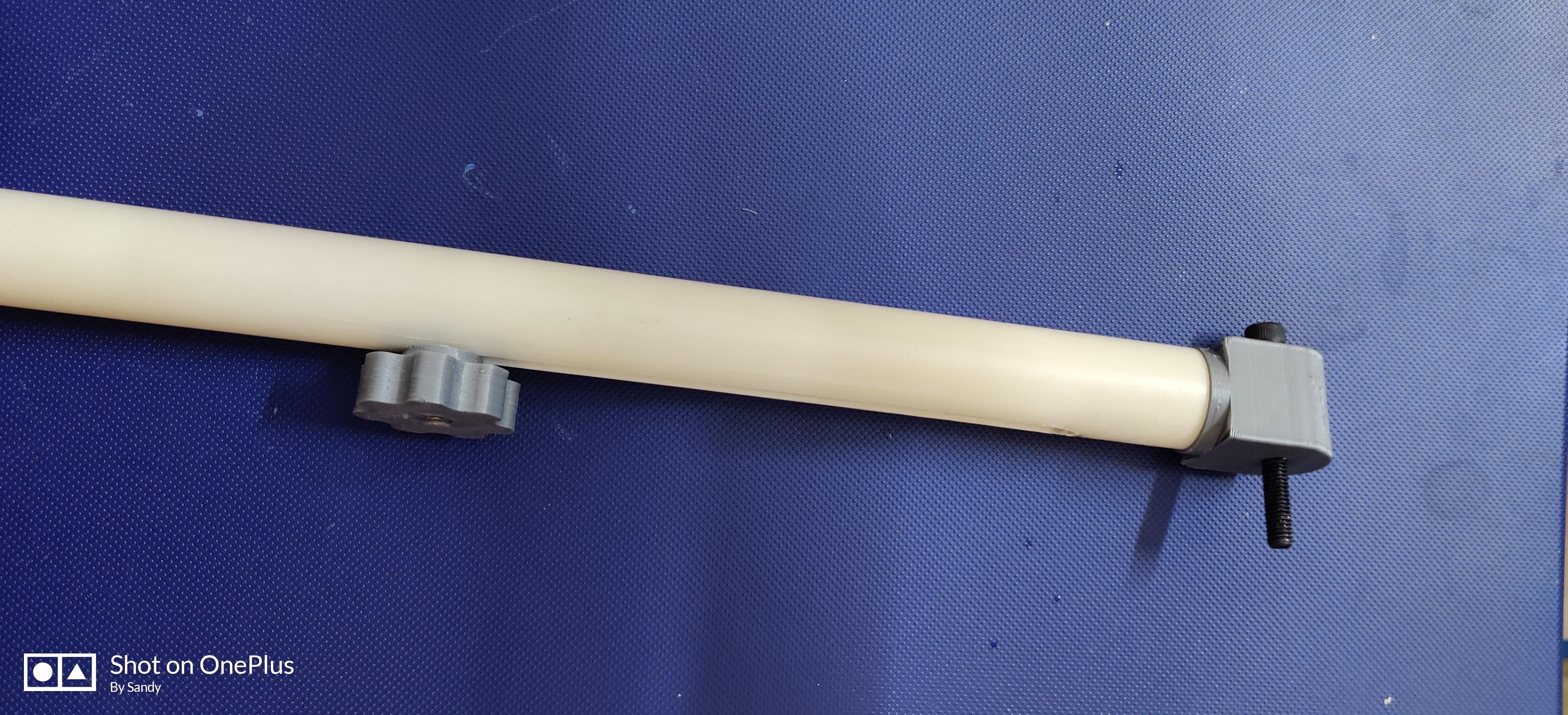

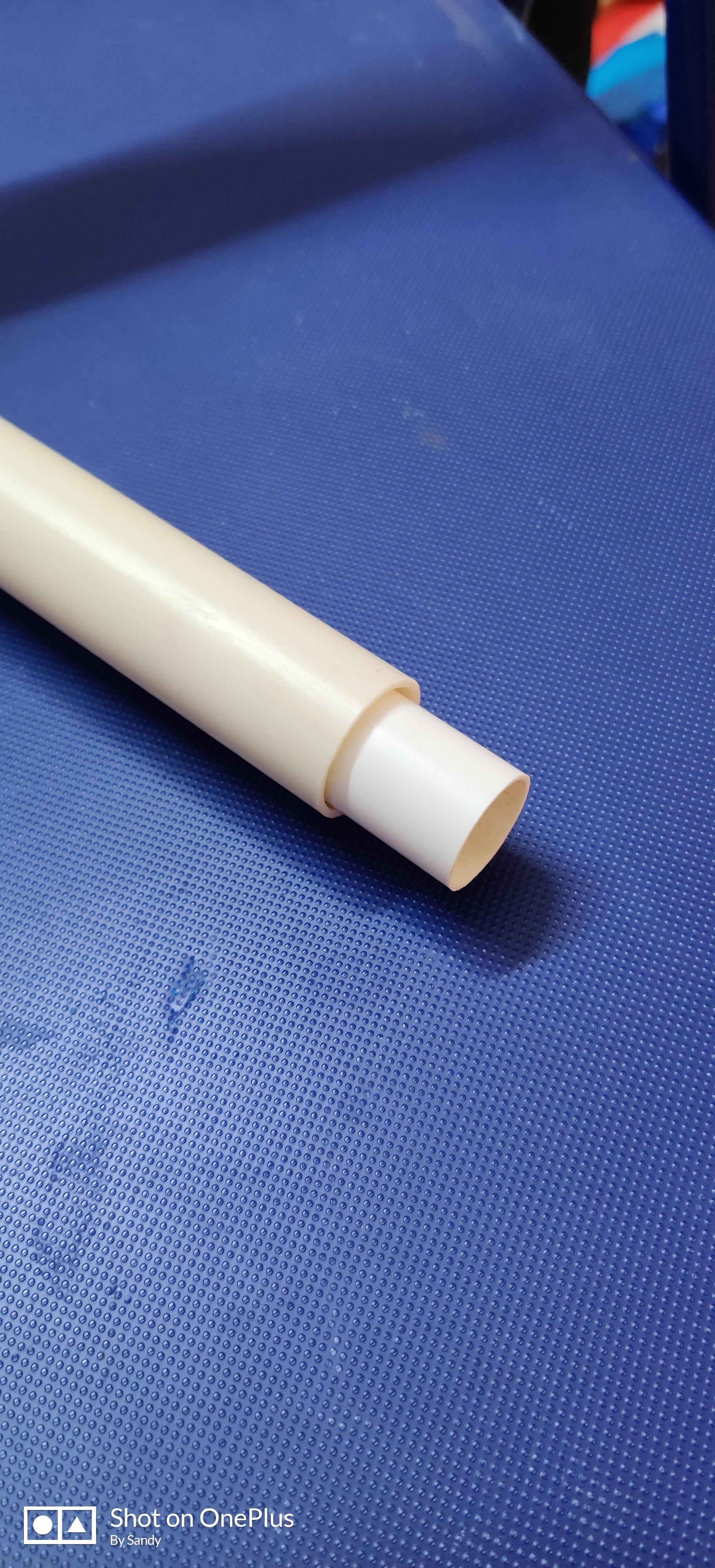

• Insert inner pvc into outer pvc.
• Insert PVC-2 to the 3d printed base and apply 2 Compound adhesive.

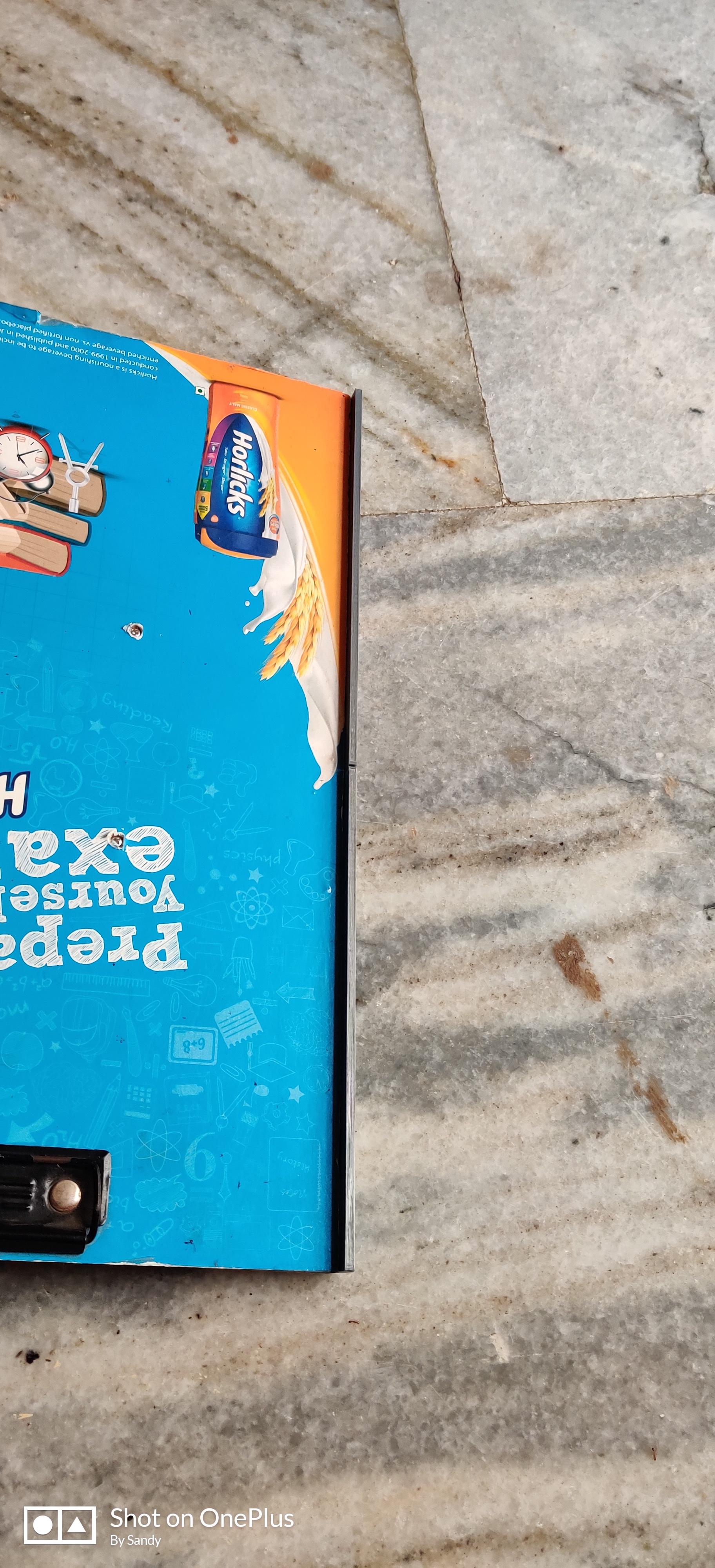

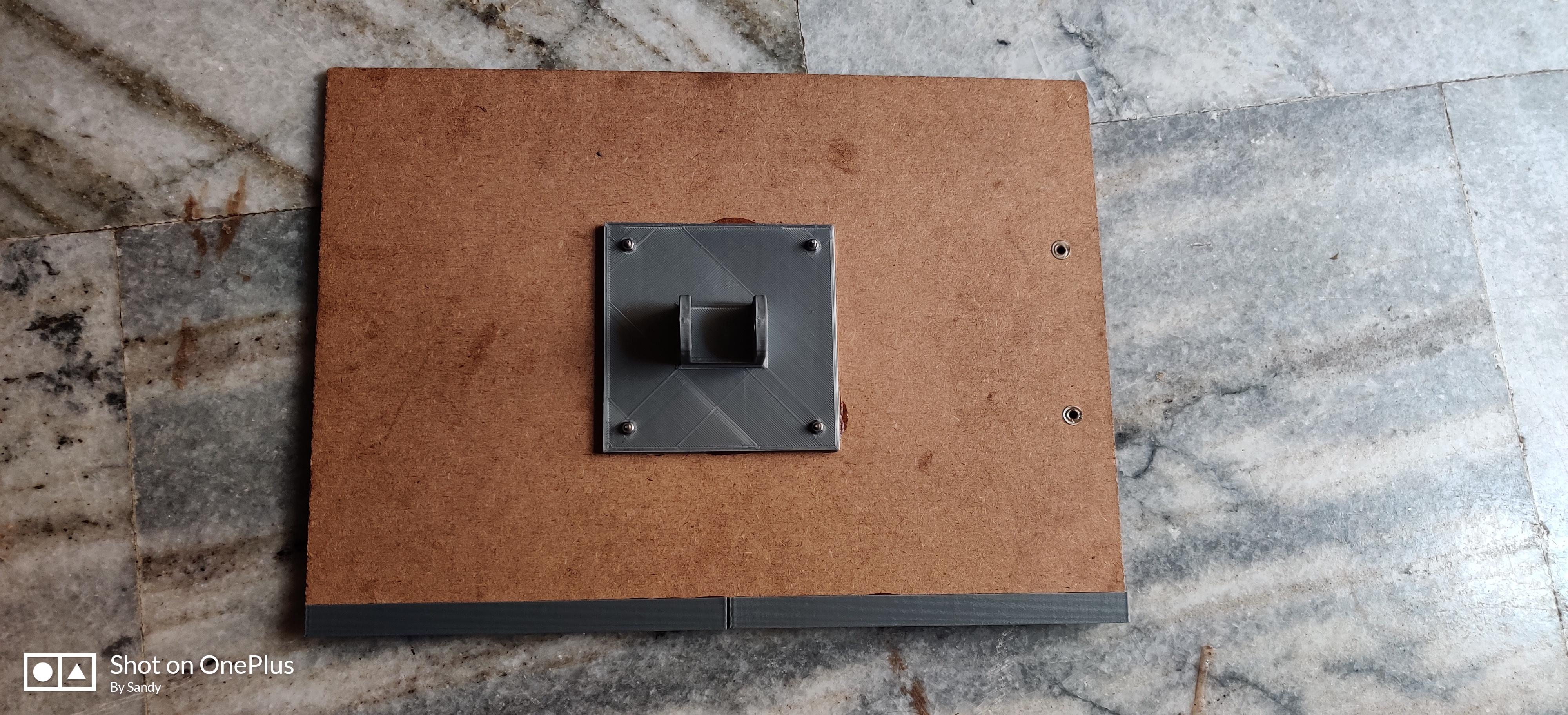

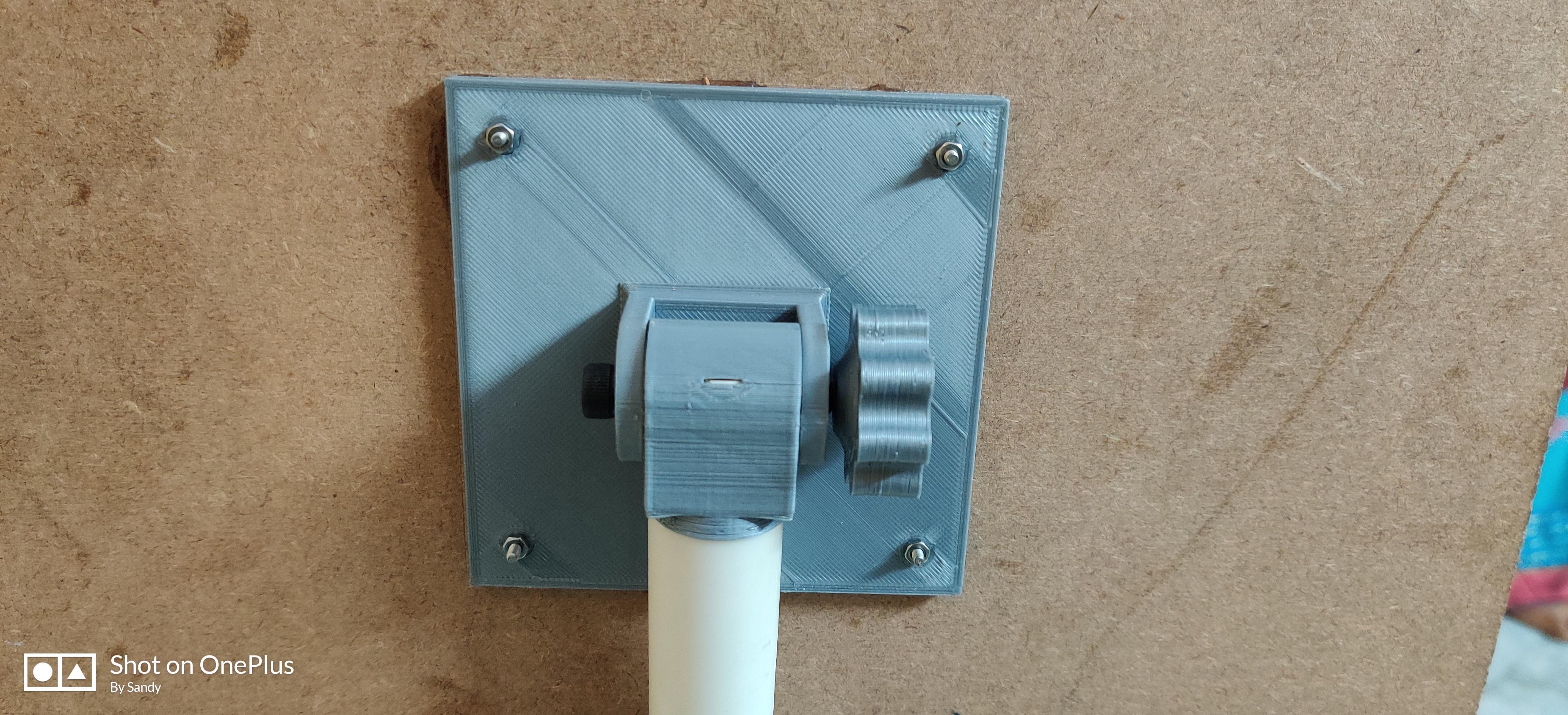

Drill holes and screw 3d printed files accordingly. Apply 2 Compound adhesive.

Done.
