3D Printed DSLR Shoulder Rig [for 10$]
by focamonca in Workshop > 3D Printing
8642 Views, 97 Favorites, 0 Comments
3D Printed DSLR Shoulder Rig [for 10$]
In this DIY I'm gonna teach you how I Built my 3D Printed DSLR Shoulder Rig
What You Need?
- 3D printer
- 2x 1m long, 16mm diameter, aluminium rod
- M6 bolts and nuts
- 4x M5 bolts and nuts
- Tripod like (1/4") screw
- Ikea CHEAP chopping board http://www.ikea.com/gb/en/catalog/products/90202268/
GET the STLs
get the STLs files from my thingiverse: http://www.thingiverse.com/thing:816039
3D PRINTING TIME!
Print every part and compose your DSLR rig as you want
If you need that I print the parts for you just ask me in 3D HUBS: https://www.3dhubs.com/venice/hubs/focamonca3d
Cut the Rods
2x 30 cm long (16mm Diameter)
2x 40 cm long (16mm Diameter)
2x 20 cm long (20mm Diameter)
The structure is for 16mm diameter rods an 20 mm Handles
Mount It!
just put everything together!

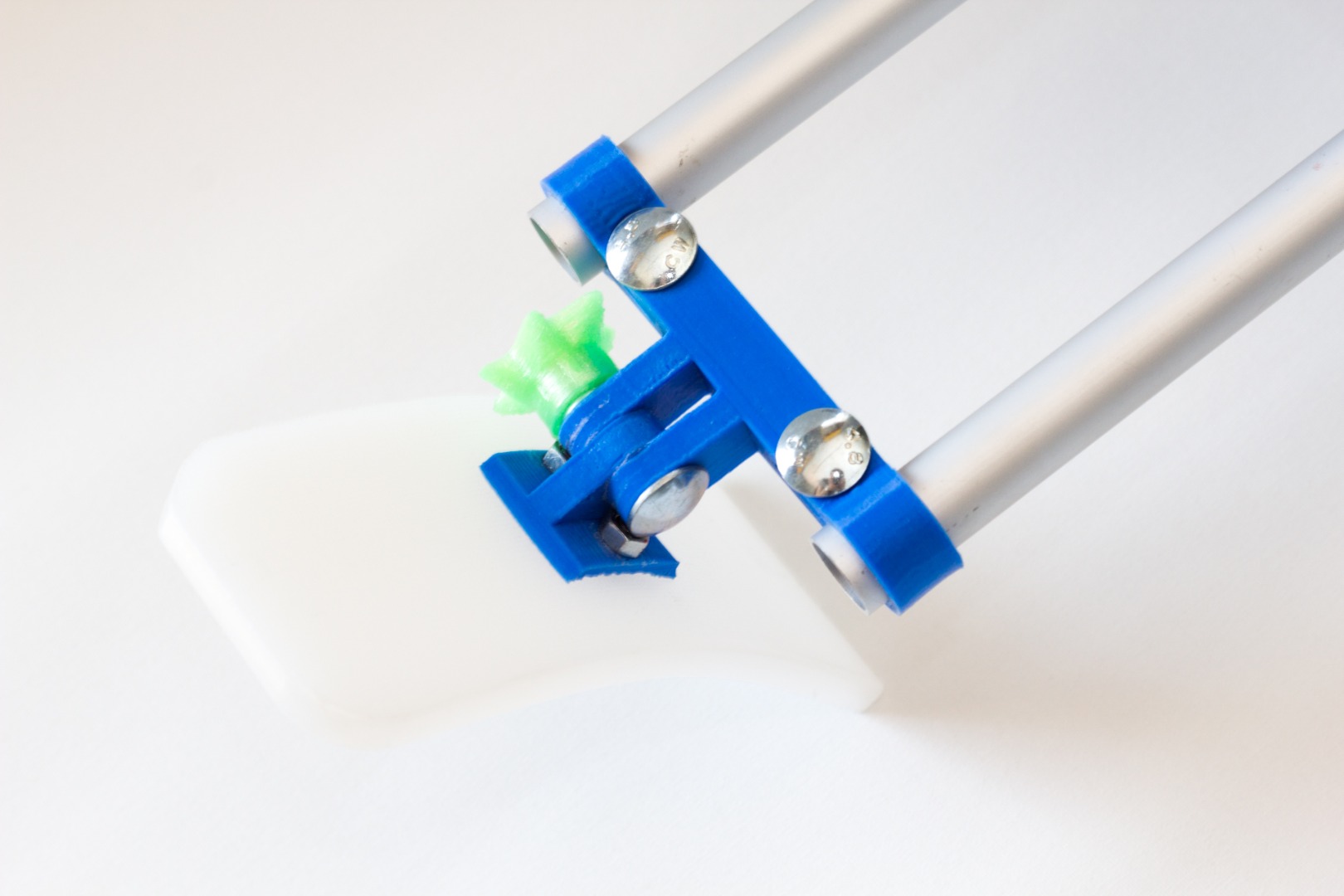

Cut and Bend the IKEA Chopping Board
cut and bend the IKEA chopping board to fit your shoulder!
when heated It's extremely ductile, so I used an Hair dryer to heat it !
Top Feratures!
Remember is extremely lightweight! :D
Customizable With a Lot of Accessories!

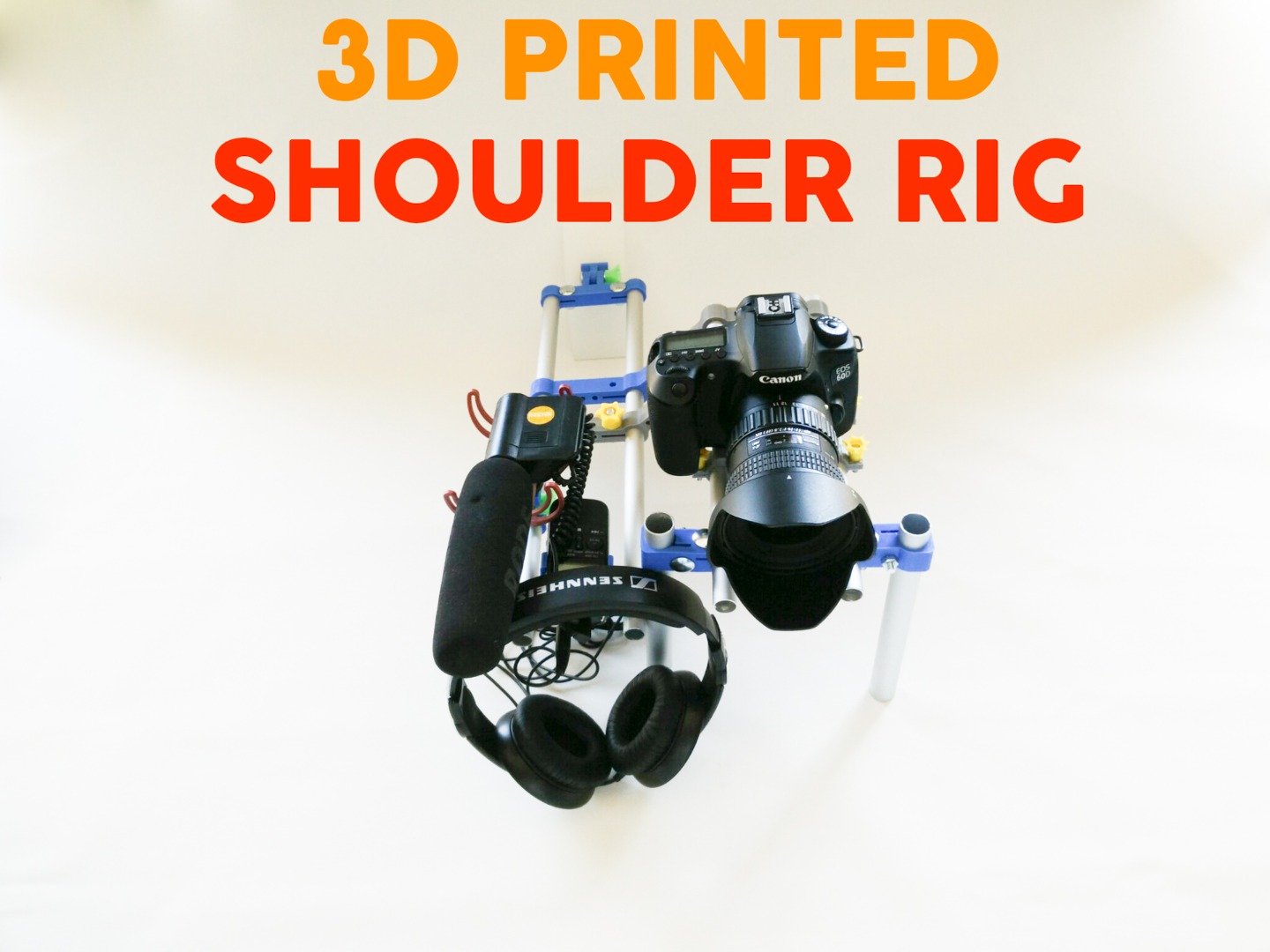

Here It Is!
here it is 3D Printed DSLR Shoulder Rig!
