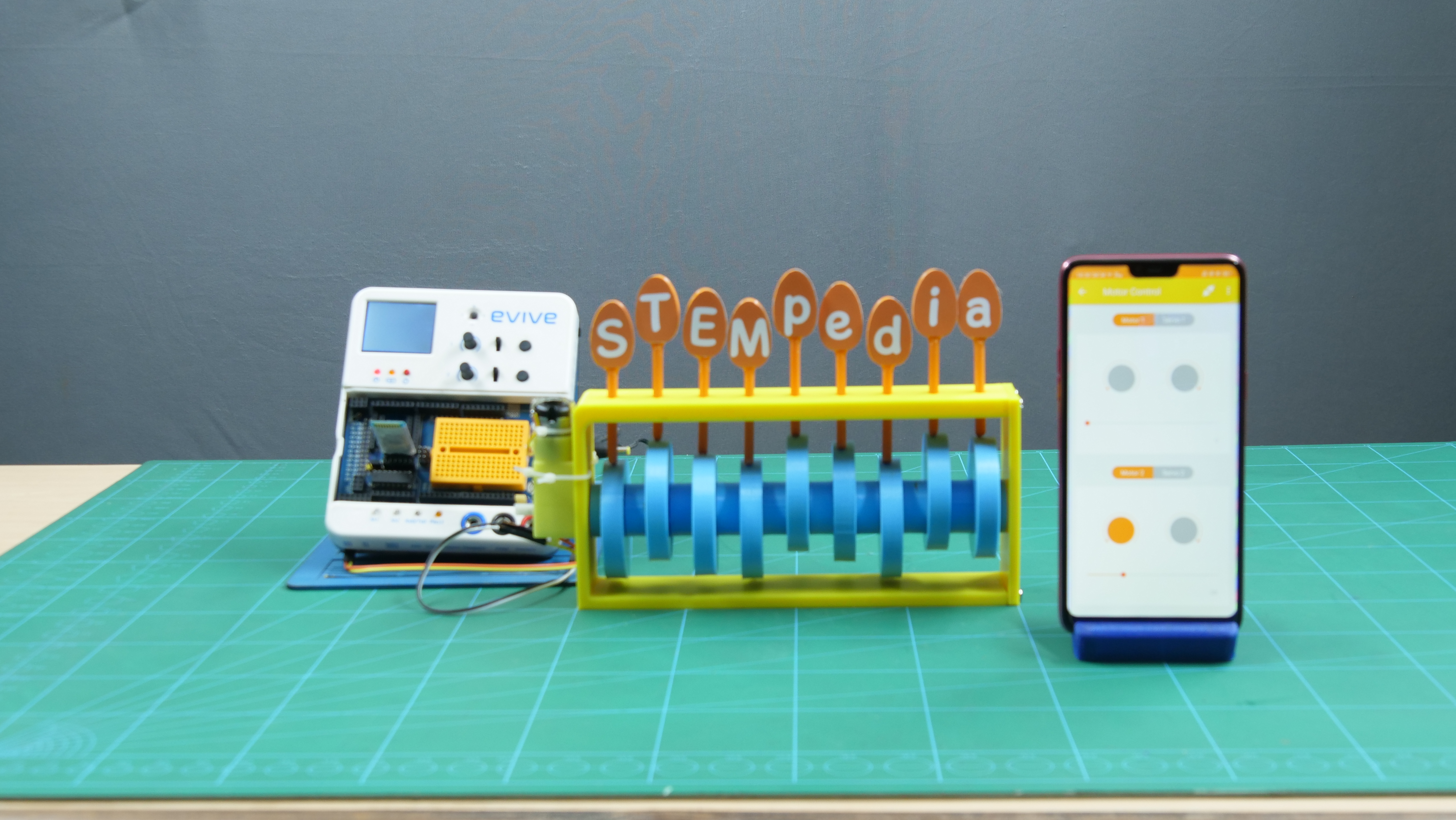

3D Printed Camshaft Text Display Using Evive(Arduino Embedded Platform)

DIY gifts are the perfect way to show someone how much you love them and how much special they are for you. And today, we have the perfect thing for you: the DIY camshaft home decor with animated text display. Why? First off, it's DIY from start till end, it's fun to make, it's animated, and you can personalize the text; maybe even pop the question! For making it, you'll be needing evive, some 3D printed parts, a message you want to give, a Smartphone with Dabble installed in it, and a lot of DIYing. You can download Dabble from Google Play.

Hop on board and make this project with us!

PS. We’ve written the code in PictoBlox, our Scratch 3.0-based programming platform with enhanced capabilities. You can download it from HERE.

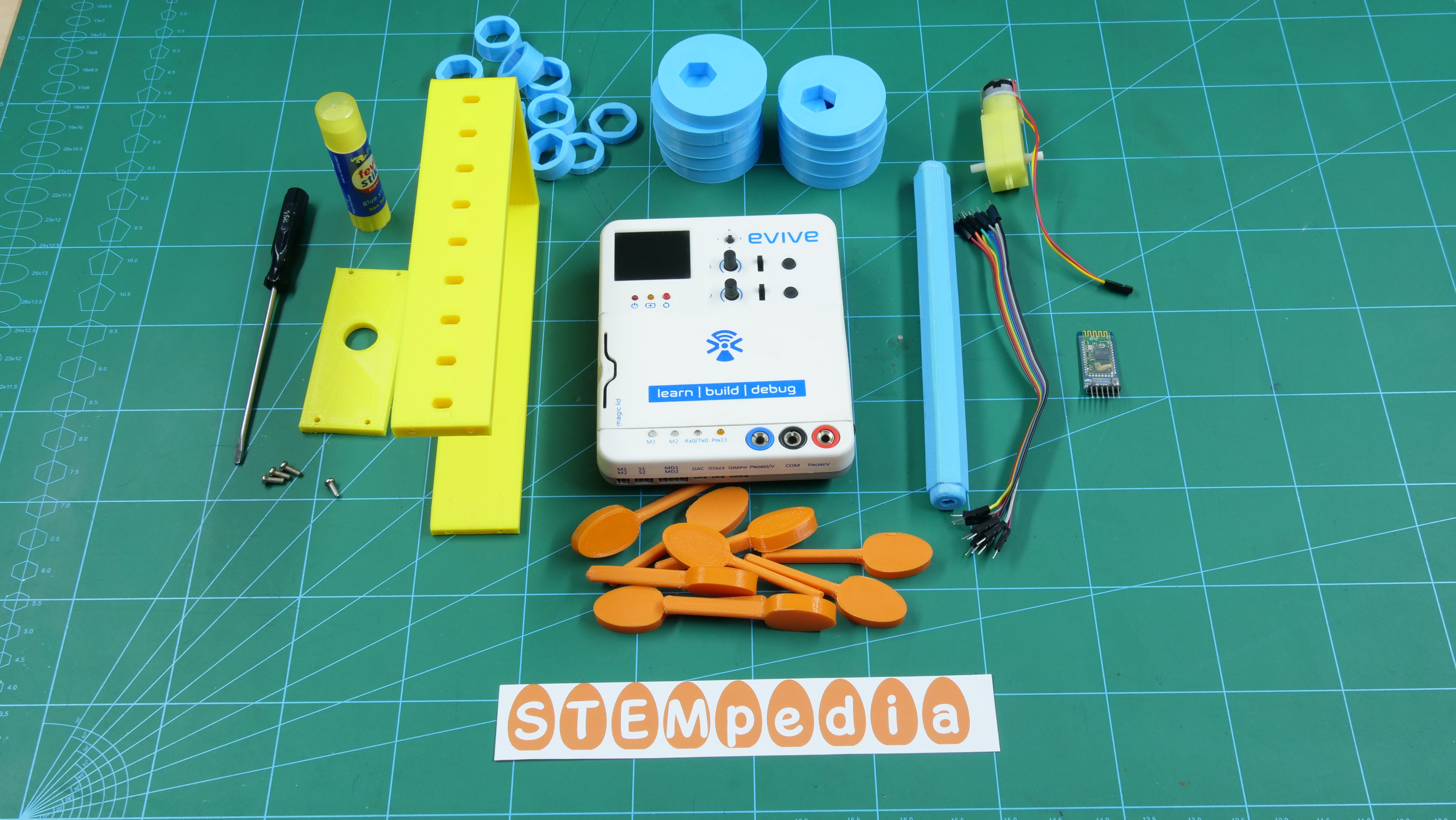

Hardware

• evive
• HC05 Bluetooth Module
• Dual Shaft DC Motor
• M3 Bolts
• Jumper Cables
• Some 3D Printed Parts

Software

• PictoBlox
• Dabble

The assembly consists of the following parts:

• Rotating shaft
• Cams
• Two types of spacers
• Holder
• Followers

The STL Files of all the above components is given here.

I will attach the two thin spacers at the ends of the shaft. Take one of the two thin spacers and pass the hexagonal shaft through it.

I have pushed a cam next to the spacer. Next, I have inserted a spacer again, but this time a thick one.

Insert another cam next to the spacer but this time I have to make sure that the direction of the cam is slightly changed as compared to the other cams.

Cover the entire shaft in a similar manner and insert the other thin spacer at the end.

Now, take the holder and fix the prepared shaft in the given space. Close the other end of the holder with the help of the given 3D printed part using M3 bolts of 8mm length.

To rotate the shaft I have used a DC motor.

On one side of the shaft, you will notice a small hole. Fix one of the two shafts of the DC Motor here. Fasten the DC motor using cable ties.

I have 3D printed the followers on which the letters can be glued to.

Take the cutouts of the letters and glue them one by one on each follower.
Note: You can print any message you want to.

Insert the followers in the space given on top of the holder.

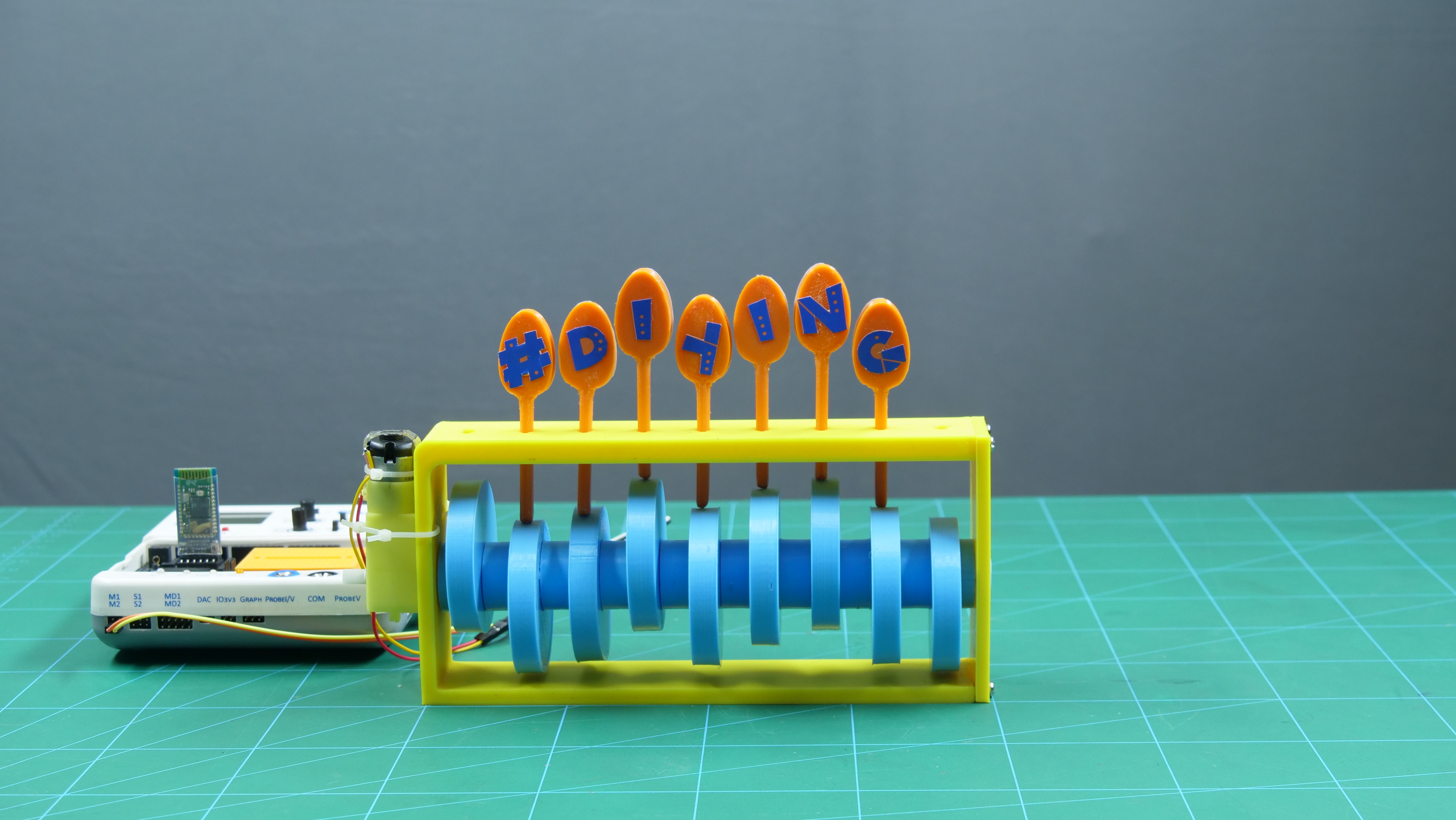

Yay! The assembly is now complete.

Make the connections as given:

• Take the DC motor and connect it to the motor channel 1.
• Then, insert the Bluetooth module in its holder.

Note: If you need to add another assembly of the servo, as we can control both motor and servo at a time using the Motor Module of Dabble, you need to attach it at Servo Channel 2. Or visa-versa.

I am going to use my Smartphone to control the DC motor. How? With the help of Dabble.

Open Dabble on the Smartphone.
Pair it with evive.
Open the Motor Control module. You can turn the motor ON or OFF, change its, direction as well as its speed.

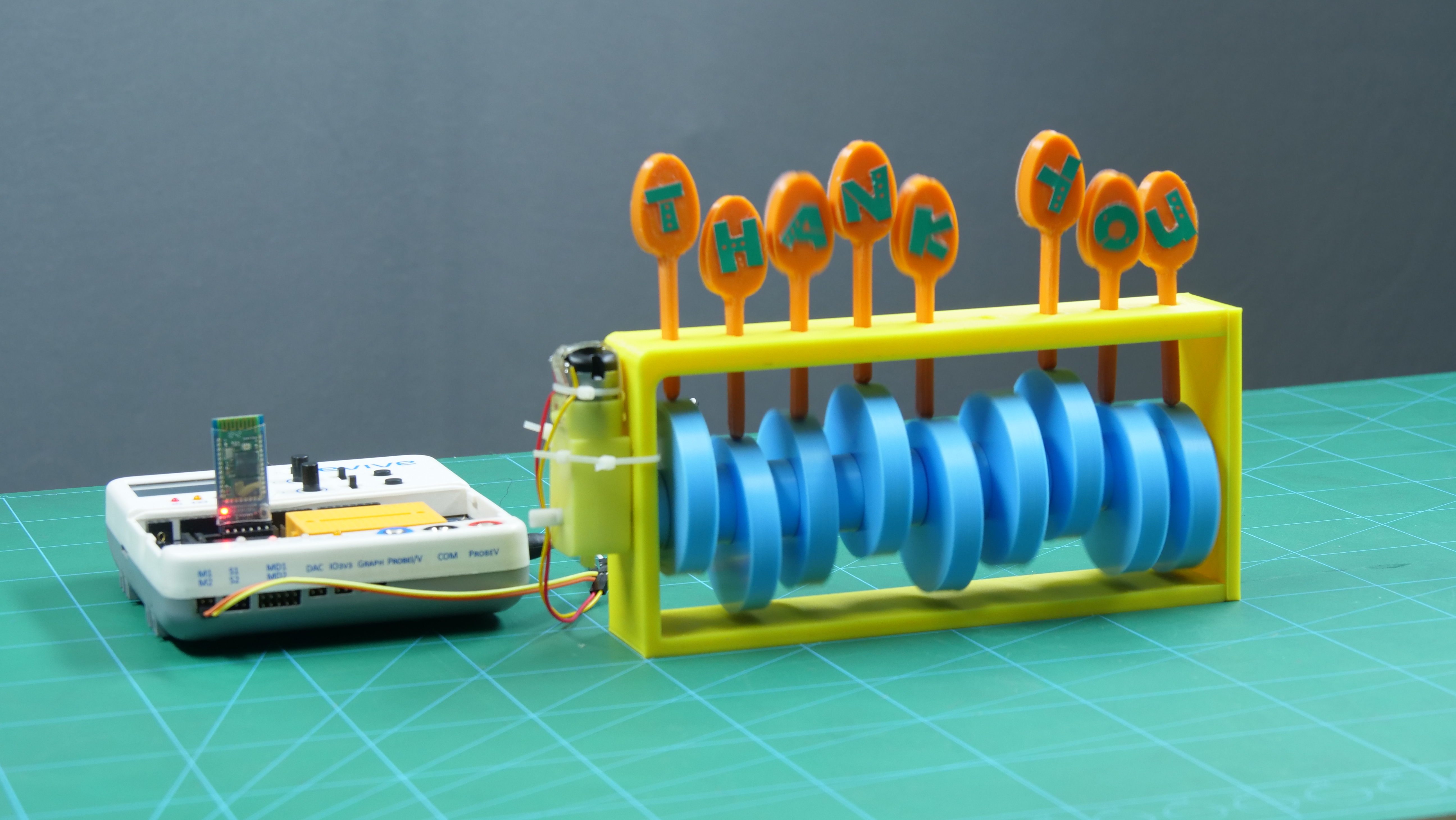

As the motor rotates, the shaft rotates, which in turn moves the follower away or closer to it, thus making them dance at different heights.

Upload the following PictoBlox code to evive:

Note: You need to add the servo channel block into the code, if you are using one.

With this, your DIY Camshaft home decor with animated text is ready to put a smile on your special someone’s face!
