3D Print a Shop Vac Hose Adapter
by TheCarmichaelWorkshop in Workshop > 3D Printing
4831 Views, 7 Favorites, 0 Comments
3D Print a Shop Vac Hose Adapter
![Make a Shop Vac Hose Adapter with Fusion 360 and a 3D Printer](/proxy/?url=https://content.instructables.com/F48/YNGA/JKN8R82E/F48YNGAJKN8R82E.jpg&filename=Make a Shop Vac Hose Adapter with Fusion 360 and a 3D Printer)
![i01.jpg](/proxy/?url=https://content.instructables.com/FIJ/O4OH/JKN8R7Q1/FIJO4OHJKN8R7Q1.jpg&filename=i01.jpg)
I used Fusion 360 for the first time to design this custom Shop Vac Hose Adapter. One side inserts into a 2" hose and the other side accepts 2-1/4" vac attachments. I could not find this part anywhere in the size I needed. This was a great project for learning the basics of Fusion 360 and 3D Printing. Check out my video of this project and click here for my website article.
Fusion 360 Design
![i03.jpg](/proxy/?url=https://content.instructables.com/FDQ/TVIH/JKN8R7TJ/FDQTVIHJKN8R7TJ.jpg&filename=i03.jpg)
I found it really easy to get started in Fusion 360 for this project. I drew a 2.2" circle, then drew a 2.4" circle and moved it up 1.5". I connected the two using the Loft tool. Then, I drew a 2" circle and moved it up .25" above that section and used the Loft tool to connect it to the main part. Next I selected the 2" face and extruded it 1/5". I used the Shell and Hole tools to hollow out the solid object then exported the STL file.
Cura 3D Slicing
![i04.jpg](/proxy/?url=https://content.instructables.com/F3A/I1VW/JKN8R7TW/F3AI1VWJKN8R7TW.jpg&filename=i04.jpg)

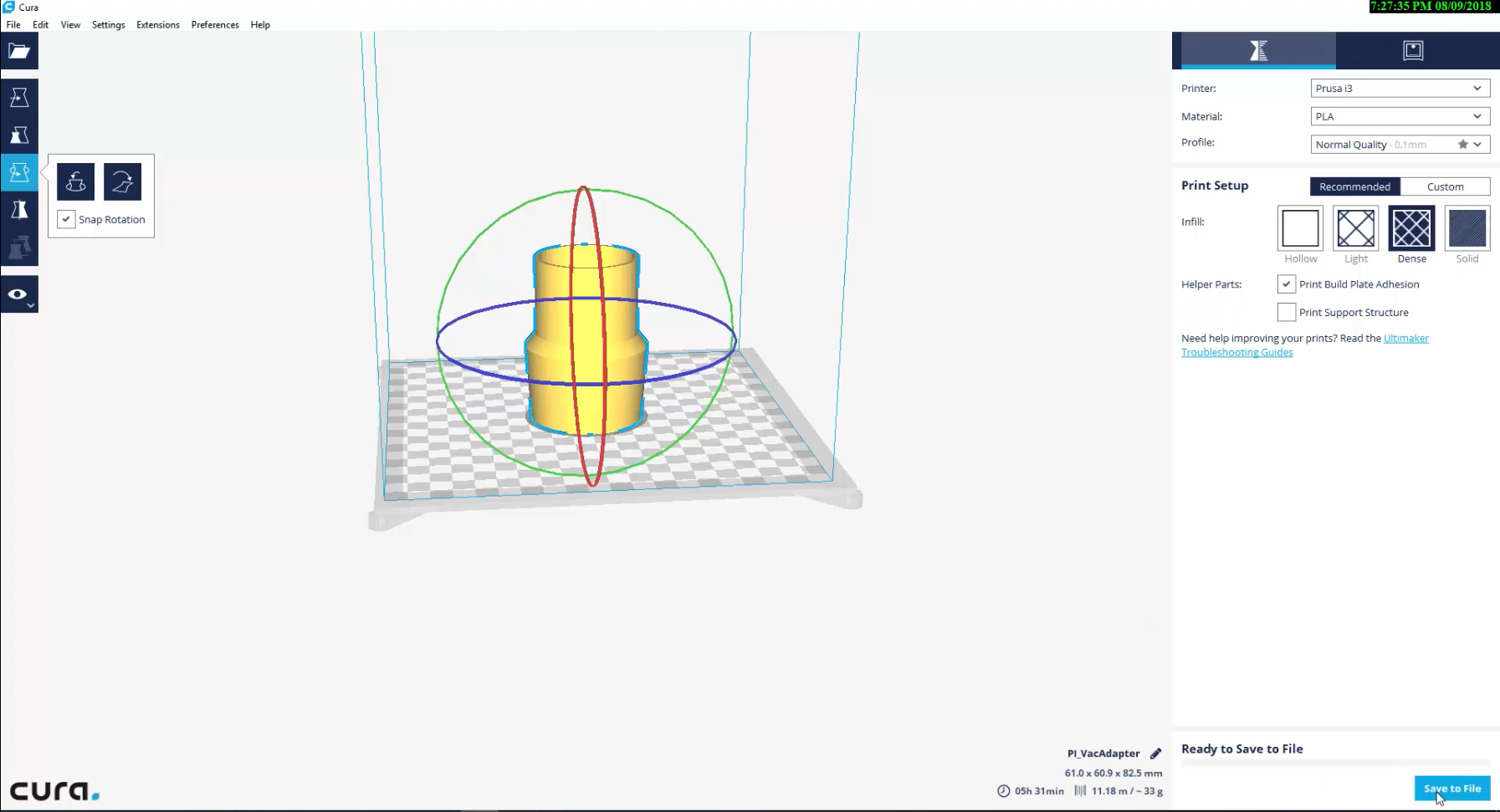

I imported the STL file into Cura. It imported as mm, so I had to change the size to 82.55mm long (3.25"). I rotated the object so it was standing vertically. I selected the Dense option to make sure it would be strong, then saved the GCODE file to an SD card.
Print It!
![i05.jpg](/proxy/?url=https://content.instructables.com/FBU/IGLZ/JKN8R7VF/FBUIGLZJKN8R7VF.jpg&filename=i05.jpg)
![i02.jpg](/proxy/?url=https://content.instructables.com/FU6/WECZ/JKN8R7RG/FU6WECZJKN8R7RG.jpg&filename=i02.jpg)

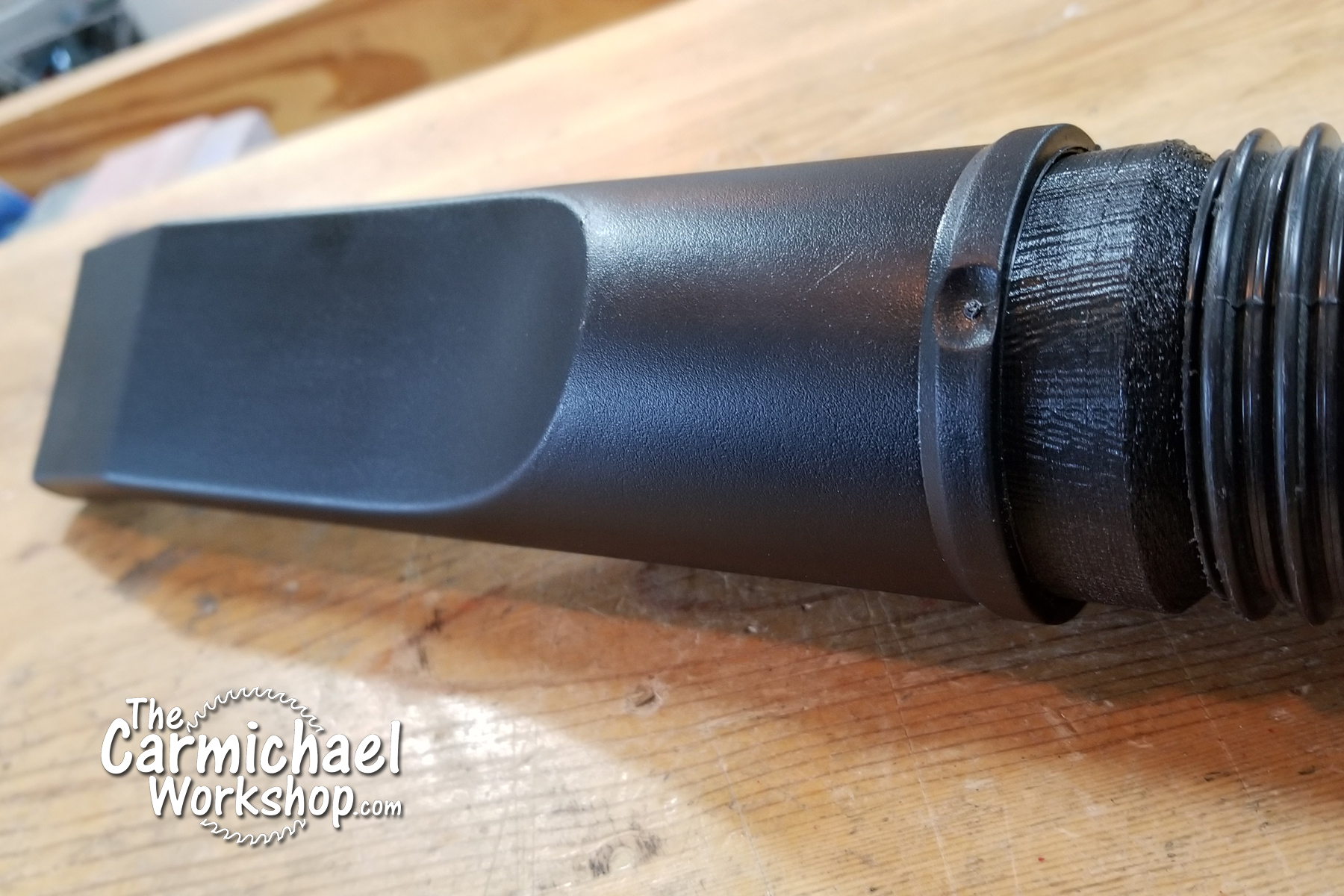

I have an older Folger Tech Prusa i3 3D Printer. It was a kit and you can still get them today with the same core components pretty inexpensively. I inserted the SD card, then printed it and it worked! The fitting slides securely into the hose and the vac attachments slide onto the tapered end with a nice friction fit. Thanks for checking out my very first 3D Printer project that I designed myself!
