3D Practical Earphone Bracelet
by dslrdiy in Workshop > 3D Printing
551 Views, 7 Favorites, 0 Comments
3D Practical Earphone Bracelet
![3D Printed Earphones Bracelet - Avoid tangled earphones](/proxy/?url=https://content.instructables.com/F5E/RDUY/LM3GQGL4/F5ERDUYLM3GQGL4.jpg&filename=3D Printed Earphones Bracelet - Avoid tangled earphones)
![11.png](/proxy/?url=https://content.instructables.com/FZI/9DN2/LM21B8DI/FZI9DN2LM21B8DI.png&filename=11.png)
![Untitled.png10.png](/proxy/?url=https://content.instructables.com/F49/E5Z1/LM21B8D0/F49E5Z1LM21B8D0.png&filename=Untitled.png10.png)
![12.png](/proxy/?url=https://content.instructables.com/FH2/7I5S/LM21B8DJ/FH27I5SLM21B8DJ.png&filename=12.png)
![13.png](/proxy/?url=https://content.instructables.com/FLM/TJ2O/LM21B8DK/FLMTJ2OLM21B8DK.png&filename=13.png)
![14.png](/proxy/?url=https://content.instructables.com/FNB/K7ZO/LM21B8DL/FNBK7ZOLM21B8DL.png&filename=14.png)
I know there are many new earbuds around the world, but I am a forgetful person, and I lost more than 3 pairs of earbuds, leaving me with lonely(useless) buds of each type. And I still love my old wired earphones. But I hate to store them in my pockets and get tangled wires. So I designed a bracelet that can hold my wired earphones, that it is easy to put and take out.
Supplies
![16.png](/proxy/?url=https://content.instructables.com/FX7/YUZ7/LM21B90Y/FX7YUZ7LM21B90Y.png&filename=16.png)
- The spring of an old hair clip.
- 3D printer.
- M2x25 screw.
- Screwdriver.
3D Printing
![15.png](/proxy/?url=https://content.instructables.com/FJ0/CRGC/LM21B908/FJ0CRGCLM21B908.png&filename=15.png)

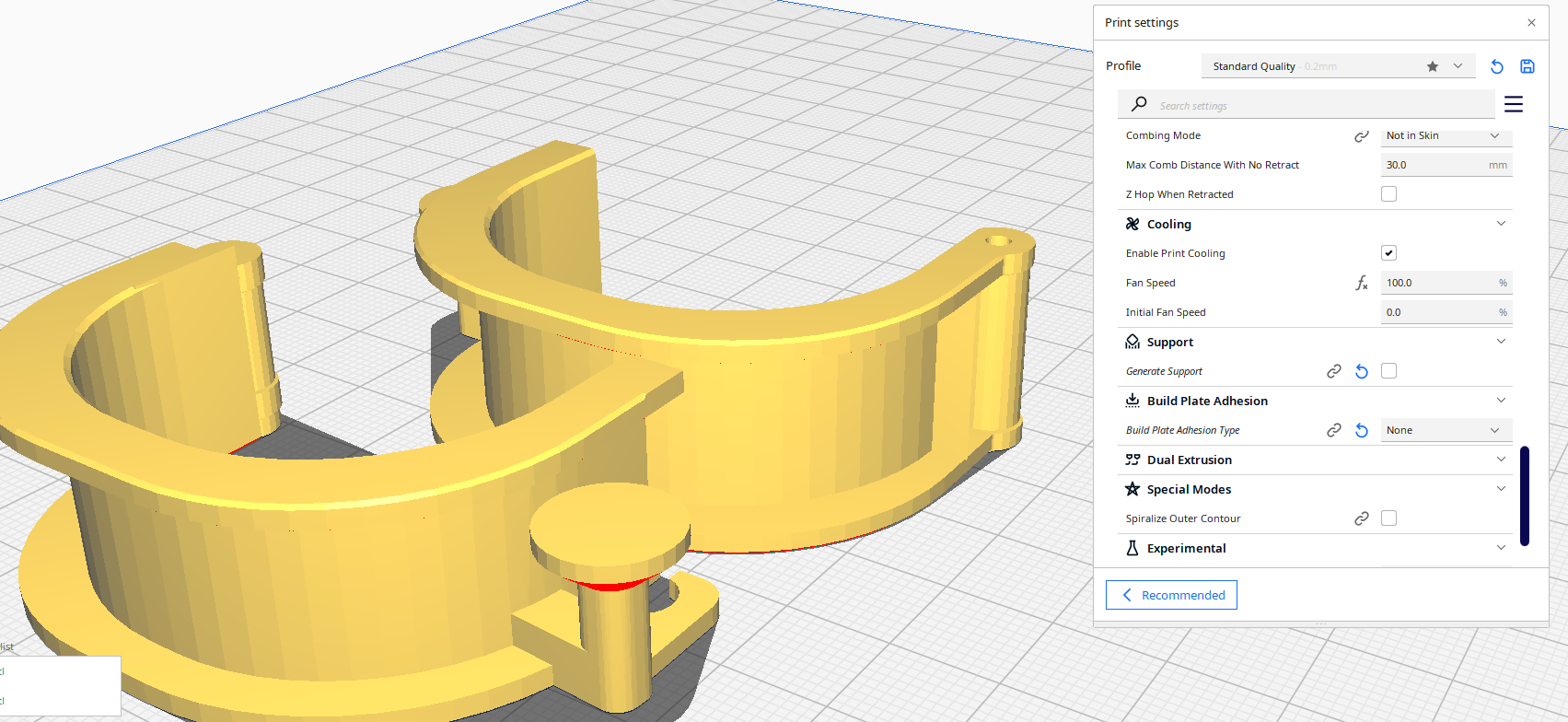

The design of the bracelet is pretty simple and includes the supports, so no supports needed. (Files in this step)
The height for a good quality and strength should it be 0.2mm for a 0.4mm nozzle.
And that's it! the two parts for PLA will take around 2 and a half hours.
Assembly
![1.png](/proxy/?url=https://content.instructables.com/FBI/S4TC/LM21B8D1/FBIS4TCLM21B8D1.png&filename=1.png)
![2.png](/proxy/?url=https://content.instructables.com/FBK/6O6M/LM21B8D2/FBK6O6MLM21B8D2.png&filename=2.png)
![3.png](/proxy/?url=https://content.instructables.com/FO7/AOYU/LM21B8D3/FO7AOYULM21B8D3.png&filename=3.png)

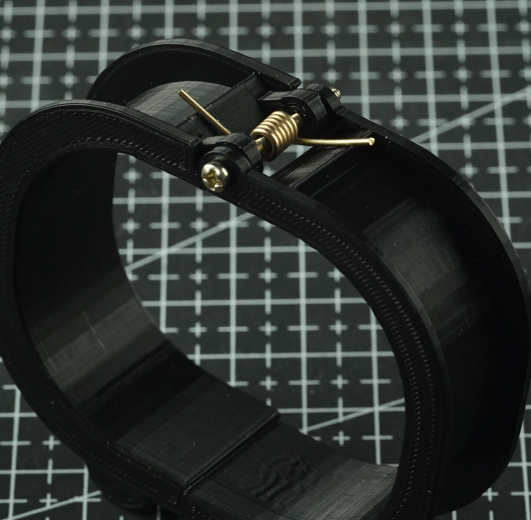

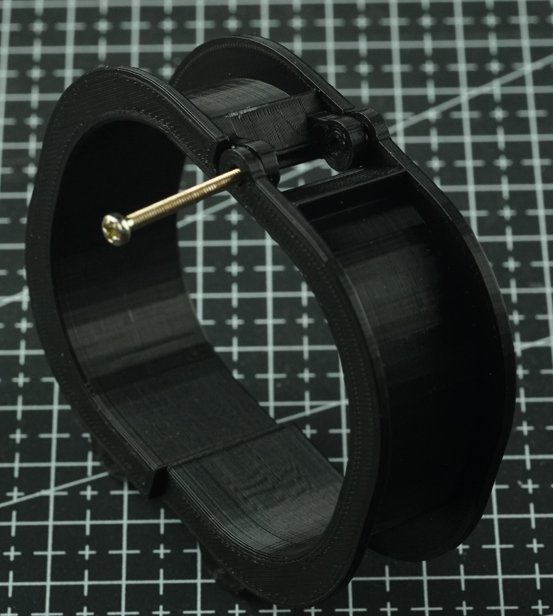

Place the M2x25 screw in the hole of the bracelet and insert the spring of the old hair clip in the middle. Use a screwdriver to insert the M2 screw.
Note: If your spring wires are too long for the bracelet use cutting pliers to remove the excess and a small amount sanding paper or a file to avoid the sharpness after cutting the excess.
Use It and Forget About Tangled Wires.
![4.png](/proxy/?url=https://content.instructables.com/FRP/WFOF/LM21B8D4/FRPWFOFLM21B8D4.png&filename=4.png)
![5.png](/proxy/?url=https://content.instructables.com/FXU/LUYV/LM21B8D5/FXULUYVLM21B8D5.png&filename=5.png)
![6.png](/proxy/?url=https://content.instructables.com/FQE/RO7F/LM21B8D6/FQERO7FLM21B8D6.png&filename=6.png)

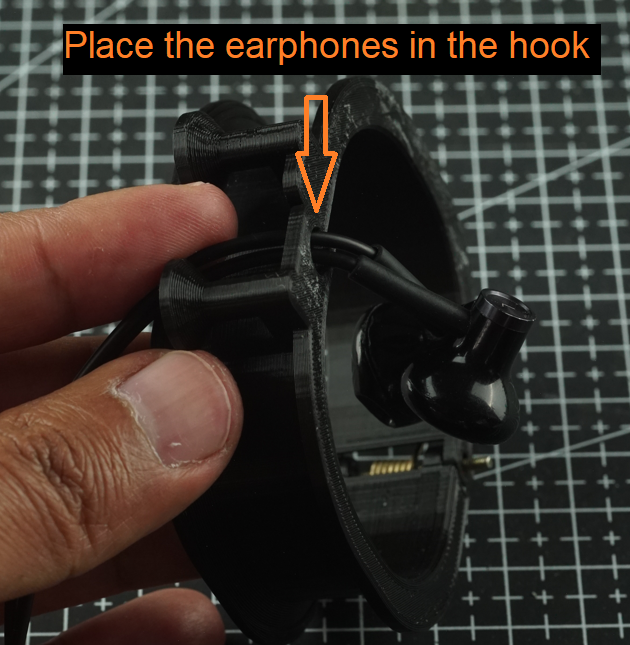

To store your earphones:
- First place the earphone in the hook to hold them and start placing the cable around the bracelet.

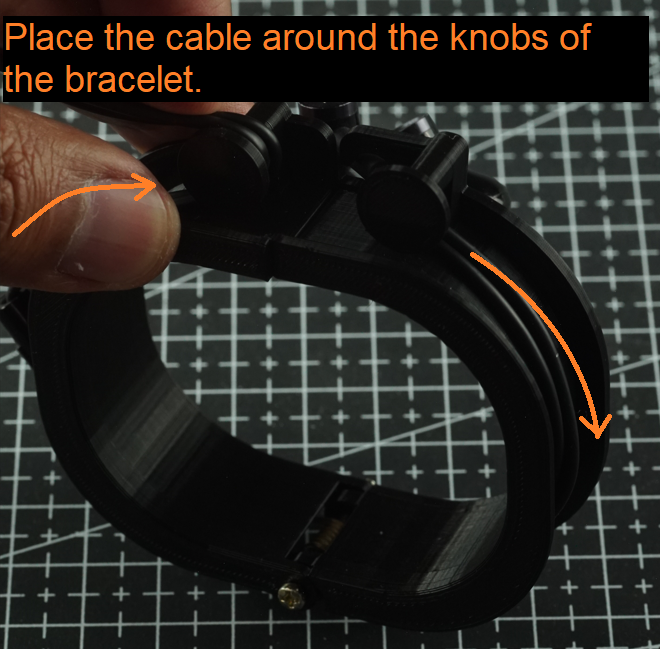

- Loop around the cable on each knob.
- and Place the plug in the hook.
Remove the Earphones
![7.png](/proxy/?url=https://content.instructables.com/FK2/MGZT/LM21B8D8/FK2MGZTLM21B8D8.png&filename=7.png)
![8.png](/proxy/?url=https://content.instructables.com/FTU/94H5/LM21B8D9/FTU94H5LM21B8D9.png&filename=8.png)
![8.png9.png](/proxy/?url=https://content.instructables.com/FQM/VJLN/LM21B8DH/FQMVJLNLM21B8DH.png&filename=8.png9.png)

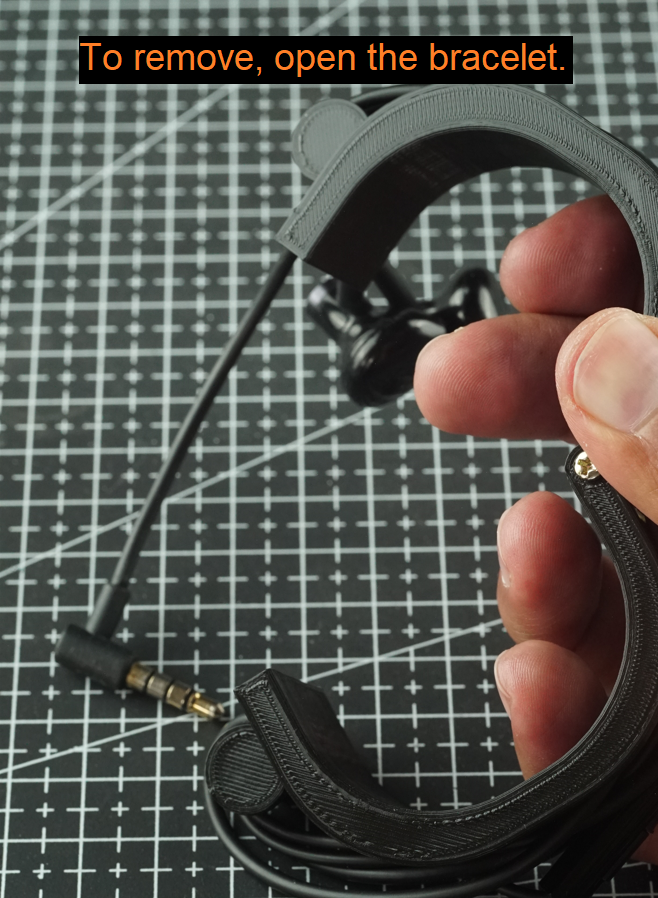

To remove the earphones:
- Open the bracelet to loose the cable.
- Remove the loops from one knob.
- Remove the remaining loops of the other knob and remove the earphones from the hook.
- Enjoy your untangled earphones.
