Easy 3D Holograms Using Phone

Live 3D Holograms are the things of the future. We all have seen people using 3D Holograms in Movies, but have you ever wished to see on for real in front of you. Well, now you can.

In this Instructable I will teach how to make Mod your smartphone to make a 3D projector out of it by keeping just a little device on the samrtphone screen, which can be made of materials available at home.

You can view this 3D Hologram without the help of any glass, all you need is a smartphone and the small device, which I will teach you to make.

PLEASE VOTE FOR MY INSTRUCTABLE, IF U LIKED IT!!

#ReThink Your Smartphone.

Materials Required

Graph paper
CD case
Marker
Pen
Pencil
Pair Of Scissors
Sellotape and/or Superglue
Craft Knife or Glass Cutter
A Smartphone

Extracting the Blank Plastic Side From CD Case

STEPS (Refer to images for further help):

Take out the Paper Cover from the CD Case
Cut the Plastic Cover on top of the CD Case

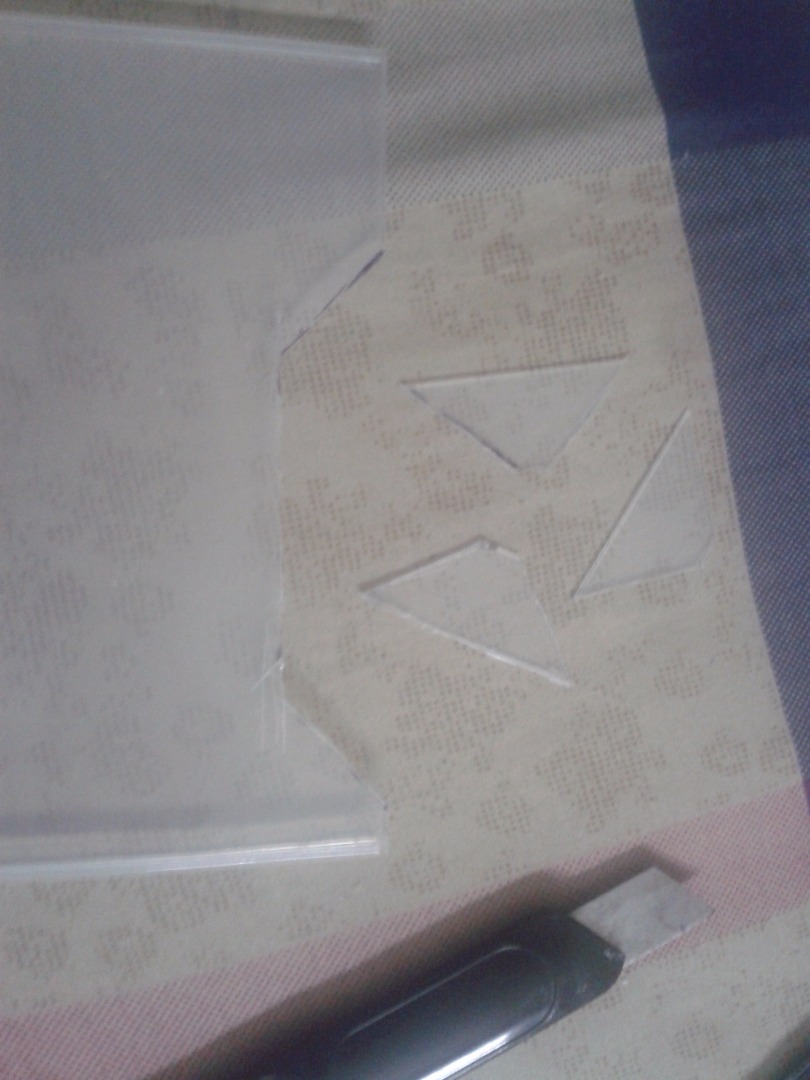

Cut the CD Case from between to get the blank side of the cover, i.e. the side opposite to the side where we keep CDs.
Now you have successfully retrieved a thick plastic sheet from an old CD Case

Tracing the Trapezium

Using the Pencil, trace a Isosceles Trapezium (Trapezium with both non-parallel sides equal) on the Graph Paper.

NOTE: In the images above I drew the sides to be 3.5cm, but instead the height between the 1cm and 6cm parallel sides should be 3.5cm

Dimensions of Trapezium (Refer to Image too):

1cm- One parallel side

6cm- Other parallel side

3.5cm- Height between the parallel side

Using the Craft Knife or Scissors cut the Trapezium.

Cutting the Trapezium From the Plastic CD Case

Using the graph paper cut-out we got from the last step, trace the trapezium on to the Cd Case using the Marker. Refer images to get a more clear idea of what you're reading. Repeat this step 4 times

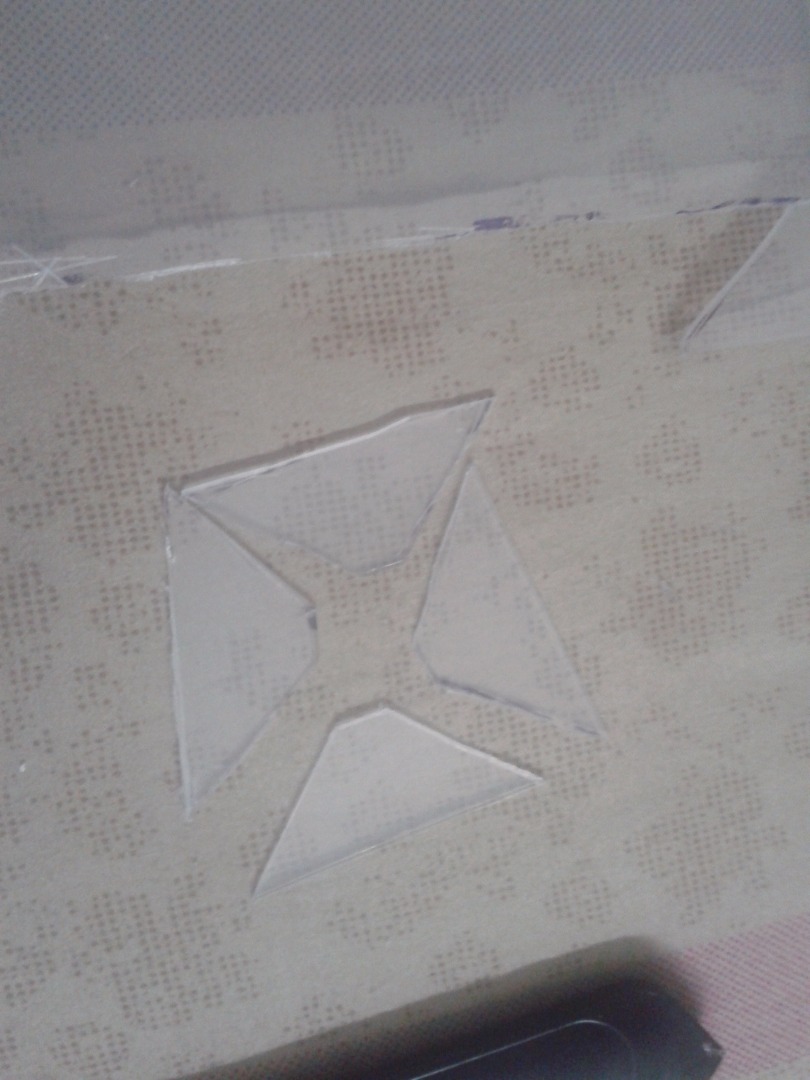

Using the Craft knife or Glass Cutter cut through the Marker lines and as a result you will get 4 trapeziums.

With the completion of this step you have completed 90% of the work.

Making a Plateau Prism

Imagine a prism (Pyramid) with the top chopped of, what you get is a plateau prism. We are trying to create something exactly like that.

STEPS:

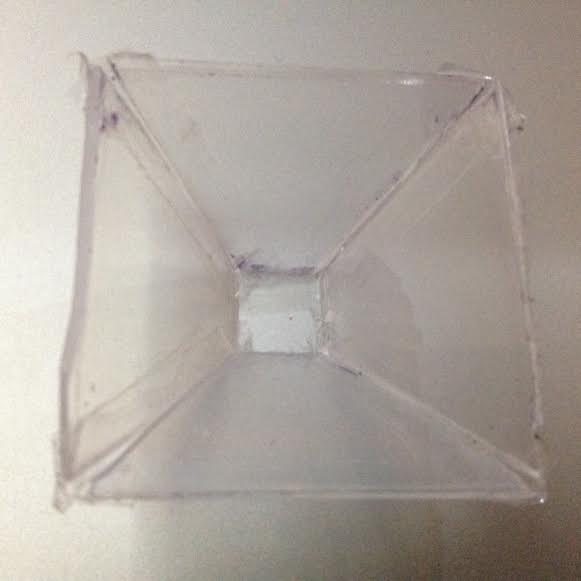

Tape these 4 trapeziums together and, what you get would be exactly what we need. But, if on taping what you get is nothing like a prism but just a flat shape, it means that you did not cut the shape(s) correctly in the last step and made some mistakes which led to formation of trapezium with wrong dimensions, recheck your measurements.
Apply glue/superglue, where the non-parallel sides meet (Place where you applied tape) and let it dry.
If you are happy with what you get, you may remove the tape. [I did not, as it makes no difference]

Making the Projector Work

There are many 4 sided Holographic video that you can find on YouTube.

Here are Channels that make 3D Holographic Videos:

Cloudy Tee

Holho Cospe

This Video I liked in Specific

U can even search on YouTube for Hologram 4 Faces to find more phone compatible Hologram videos.

STEPS:

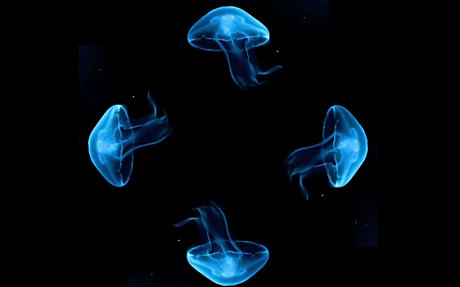

Just place the prism upside down (Broad side on top) on the centre of the screen at the point where you see 2 white lines intersect at the start of any video. (Refer to image for more clarity).

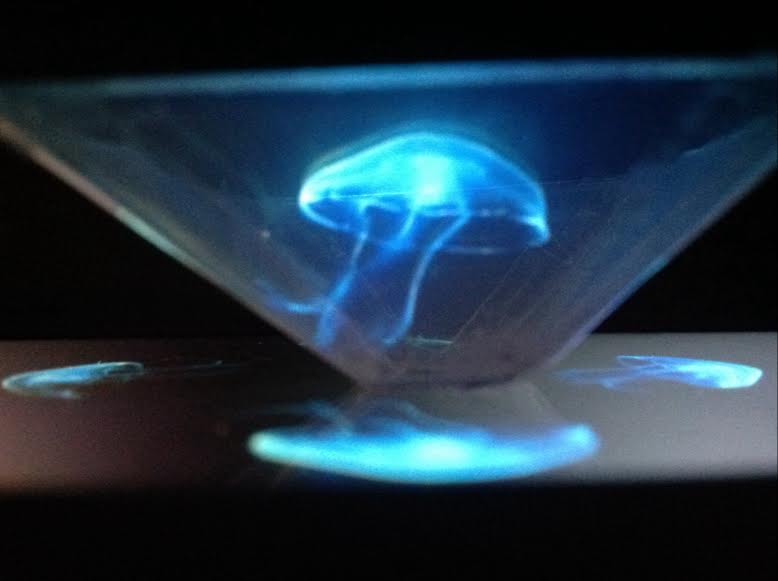

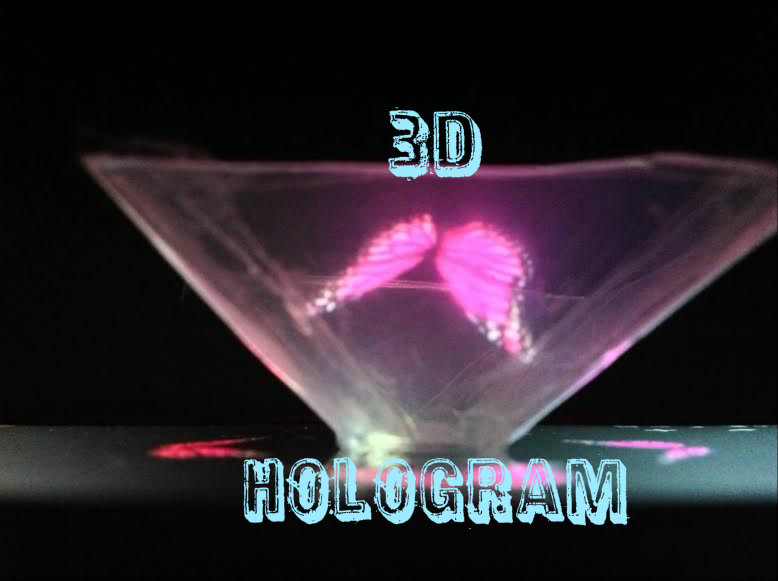

Play the video and watch he magnificent 3D Image formed.

Taking It on a Larger Scale

If u liked the hologram and want to take it to a larger level you could try the procedure again but this time try to double the dimensions of the Prism and place it on a TV or a Laptop Screen. I will surely try it and post results soon.
