3D First Place Trophy

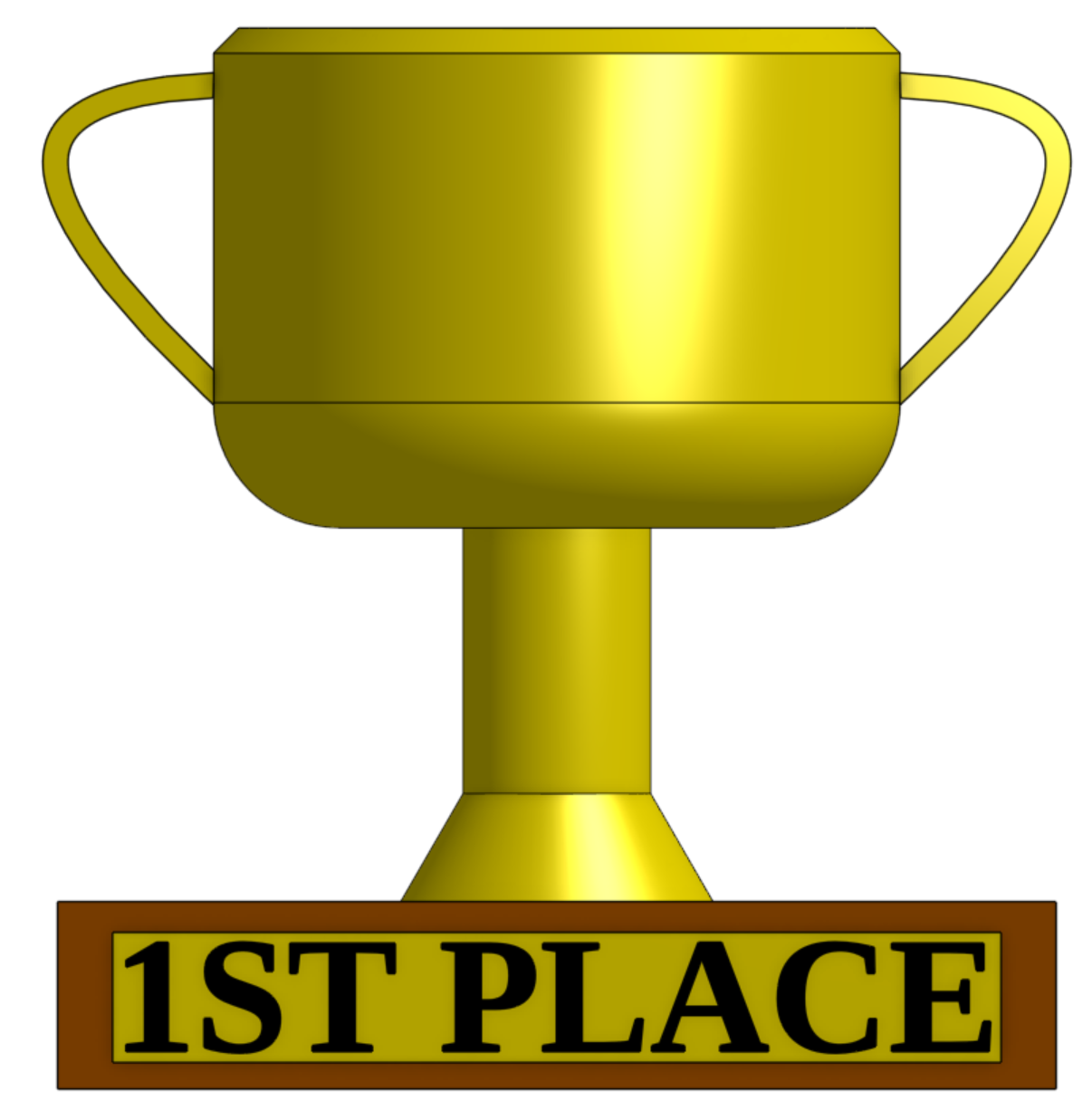

This is trophy that I created using Onshape. It was printed at half the scale. The text on the base is "1ST PLACE"

Included with this introduction is an STL file for the trophy if you want to print it yourself

Onshape CAD Software

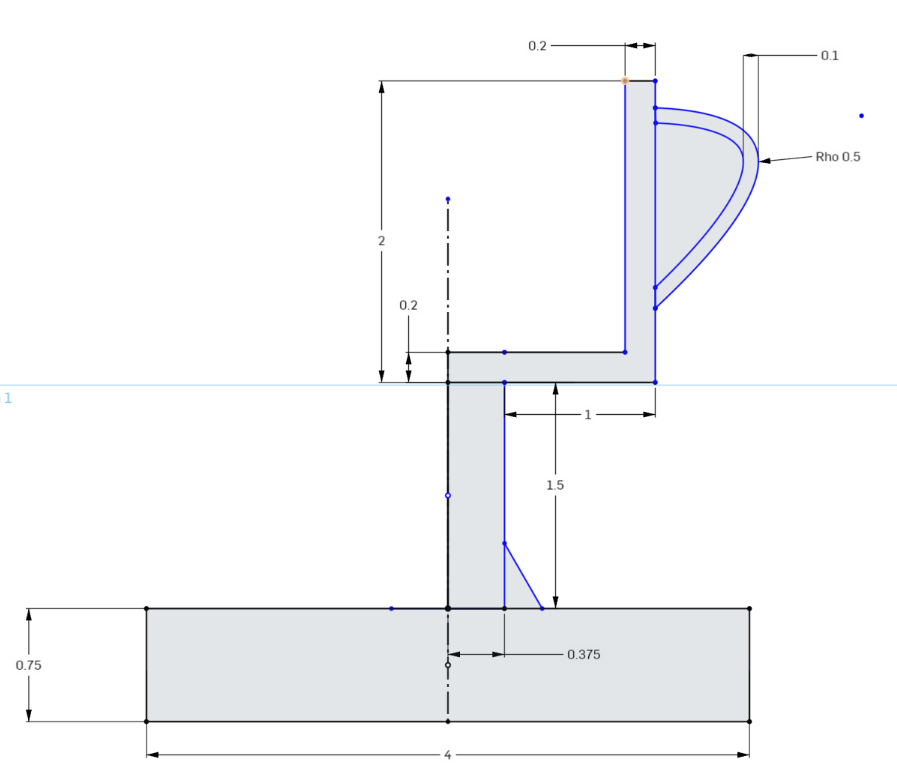

Create the sketch of the trophy on the front plane. The base of the trophy is fully drawn while only one half of the other part of the trophy is needed.

Extrude the base 3 inches symmetrically.

Revolve the bowl and the stem around the construction line. Do not revolve the handle.

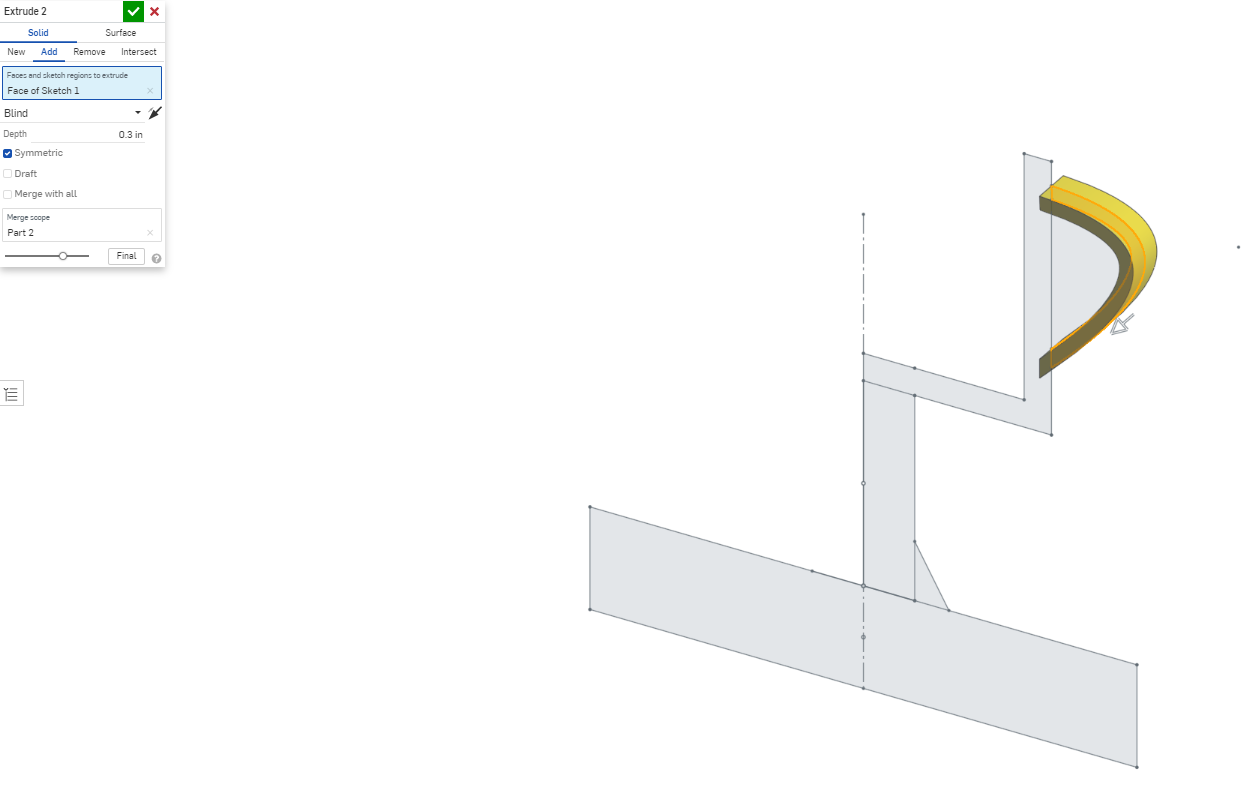

Extrude the handle 0.3 inches symmetrically.

Mirror the extruded handle part across the right plane.

Fillet the bottom of the bowl. The radius should be 0.5 inches

Add a chamfer to the top of the bowl. The inside and the outside edges should both be selected. Chamfer it to a distance of 0.1 inches

Create a new sketch on the front of the base. The text is in bold and the font is Tinos. A rectangle is created with the top part aligned with the top of the text while the bottom of the rectangle is 0.107 inches away from the bottom of the base.

Extrude the rectangle surrounding the text 0.02 inches. Be sure to include the hole in the "P" and the "A".

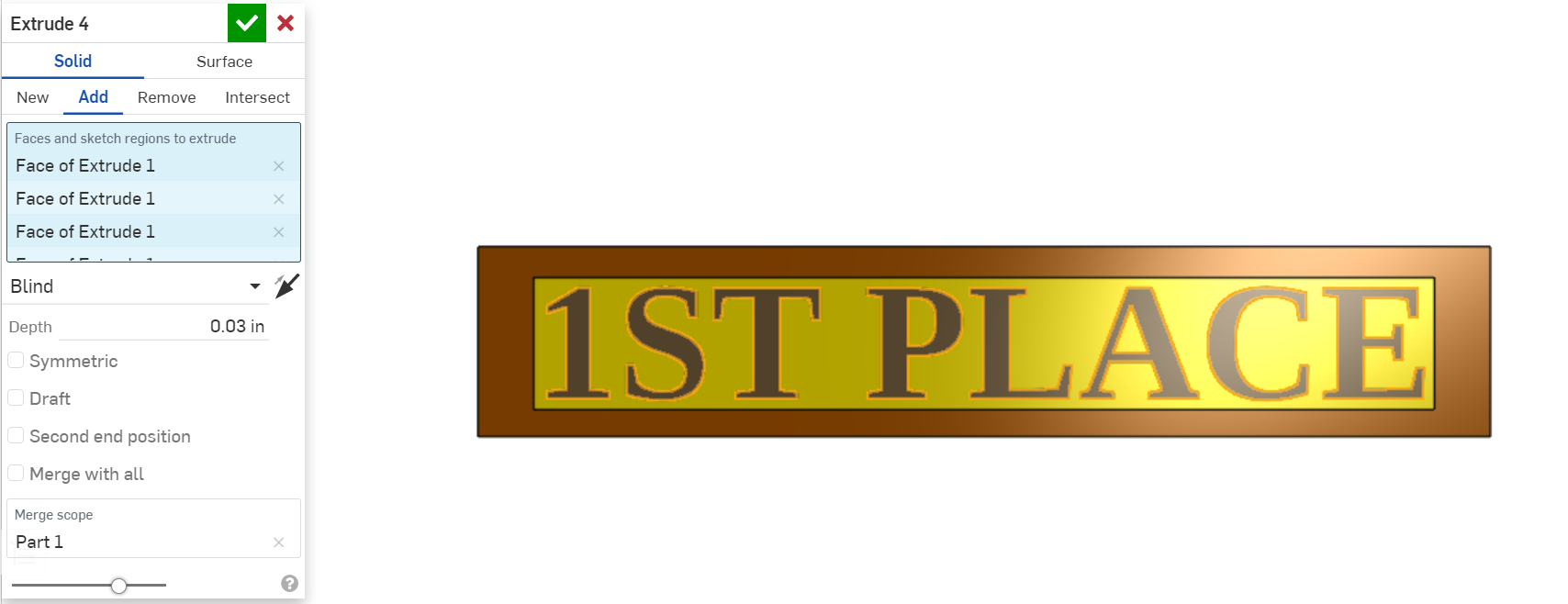

Extrude the text 0.03 inches.

The trophy is now done.
