32x16 LED Matrix Panel and Arduino

by Silvius in Circuits > Arduino

70499 Views, 82 Favorites, 0 Comments

32x16 LED Matrix Panel and Arduino


The Story of Project

In short, this project is the result of a challenge. One day, a friend who was visiting me, saw my experiments with some led matrix and ask me if I can control many of these. I answered "yes certainly", using auxiliary integrated circuits can be controlled a large number of LEDs.

I started doing research and after I saw many projects I have concluded I need a ready-made panel and start my experiments from there. Also I wanted to skip monochrome panels and try with multicolor LEDs.

I observed that RGB panels are a little more expensive than dual color panels (the price difference is noticed especially when you plan to buy many).

So I decided to start with this panel: http://www.gearbest.com/development-boards/pp_65373.html which I think would best fit my future plans.

Priced at $ 13.91 is the best price that I could find (at the time I made the order).

I must say that this panel is why I "landed" at this store in the first place. Meanwhile I made several orders (from "Development Board" section)... and I will return with other articles if I manage to do interesting things with them.

Components


The panel came as a kit. I guess that panel is used to make large displays available as finished product at some specialized vendors/manufacturers.

However, this panel assembly requires soldering of many SMD components. This requires careful planning of the sequence in which components will be soldered.

In the next steps I will show sequence that worked for me.

PCB

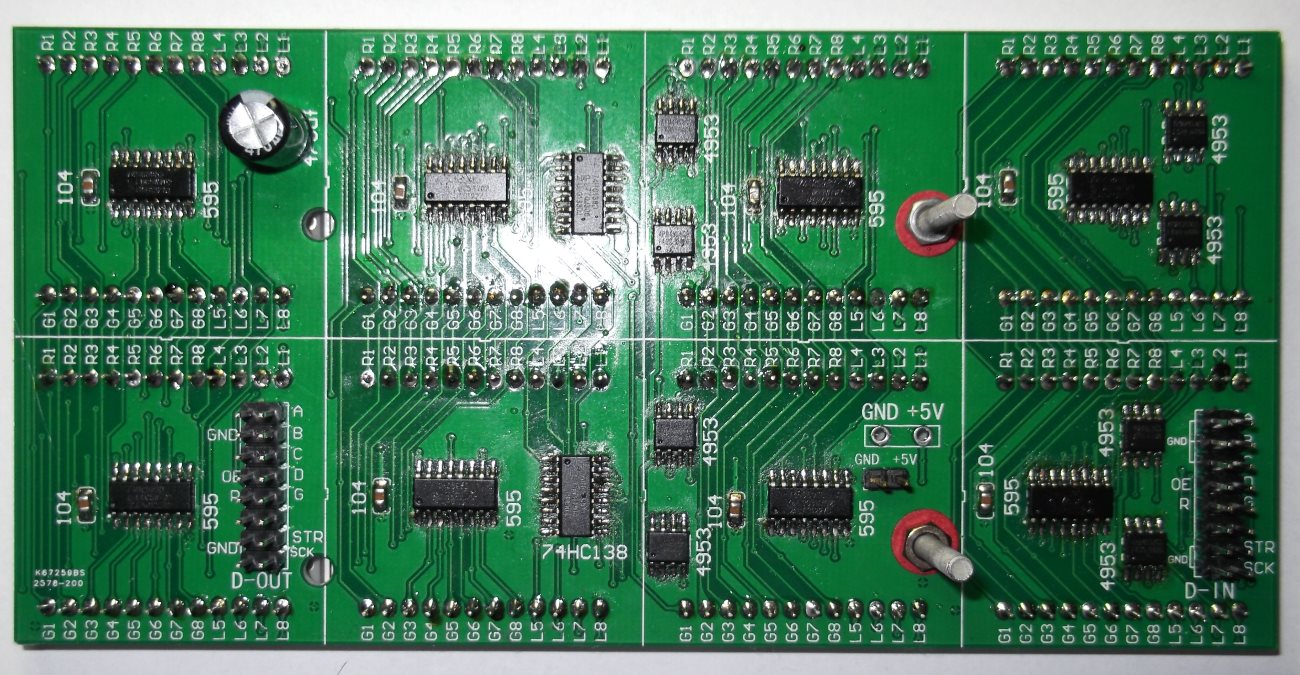

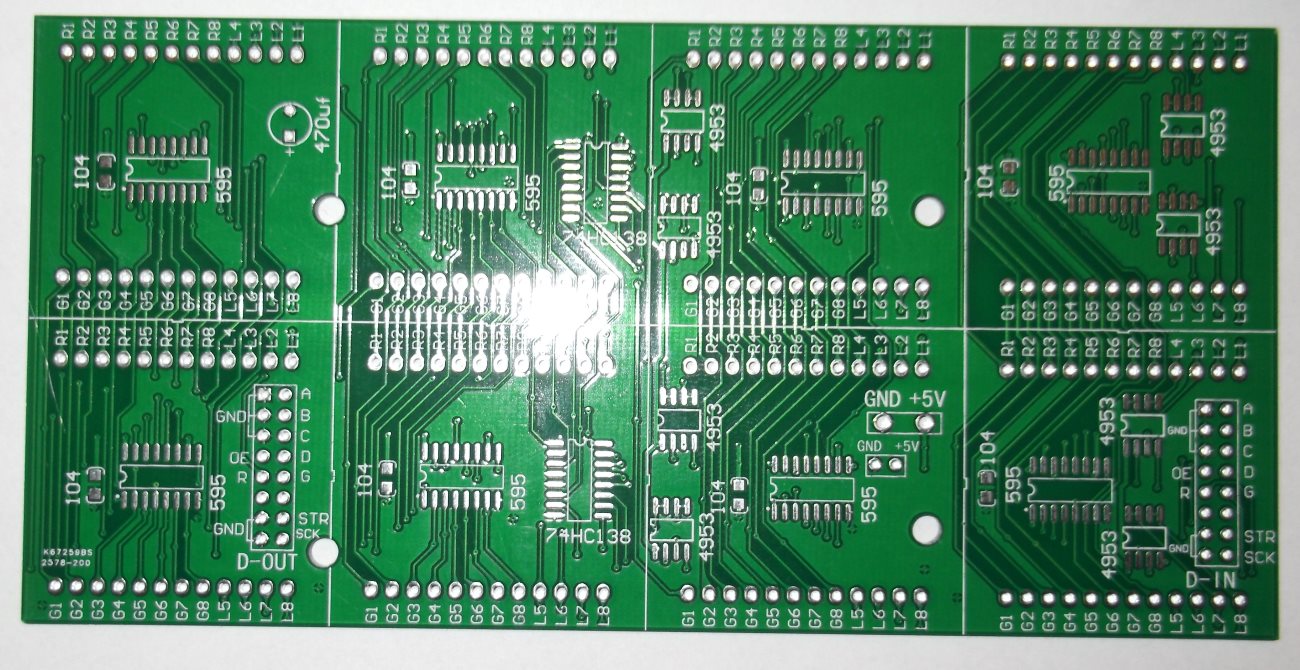

PCB is very well done, the markings are visible and useful. Identifying the place for each component is easy.

The most important thing is to finish with SMD components before proceeding with thru-hole components.
Also it is necessary to mount bolts and nuts before soldering LED matrix.

Soldering SMD Components

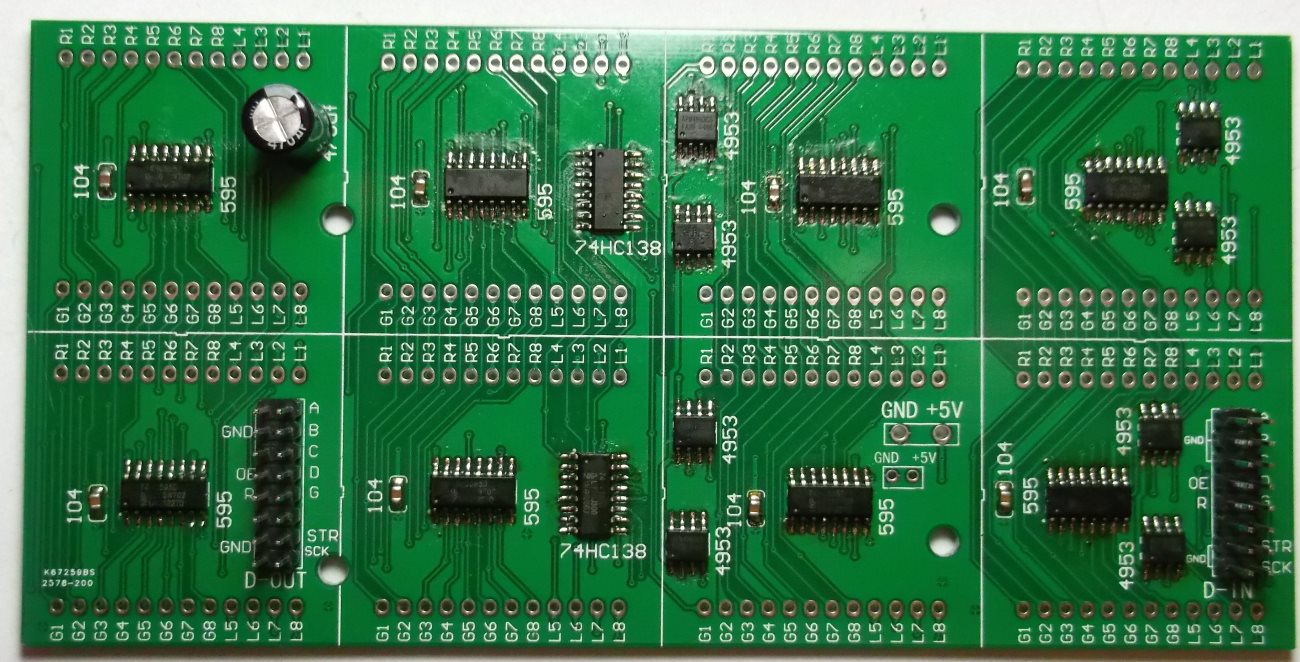

I soldered components in the following order:

  1. SMD Capacitors
  2. 74HC138
  3. 4953
  4. 74HC595

Soldering Thru-hole Components


Not much to say at this step

LED Matrix

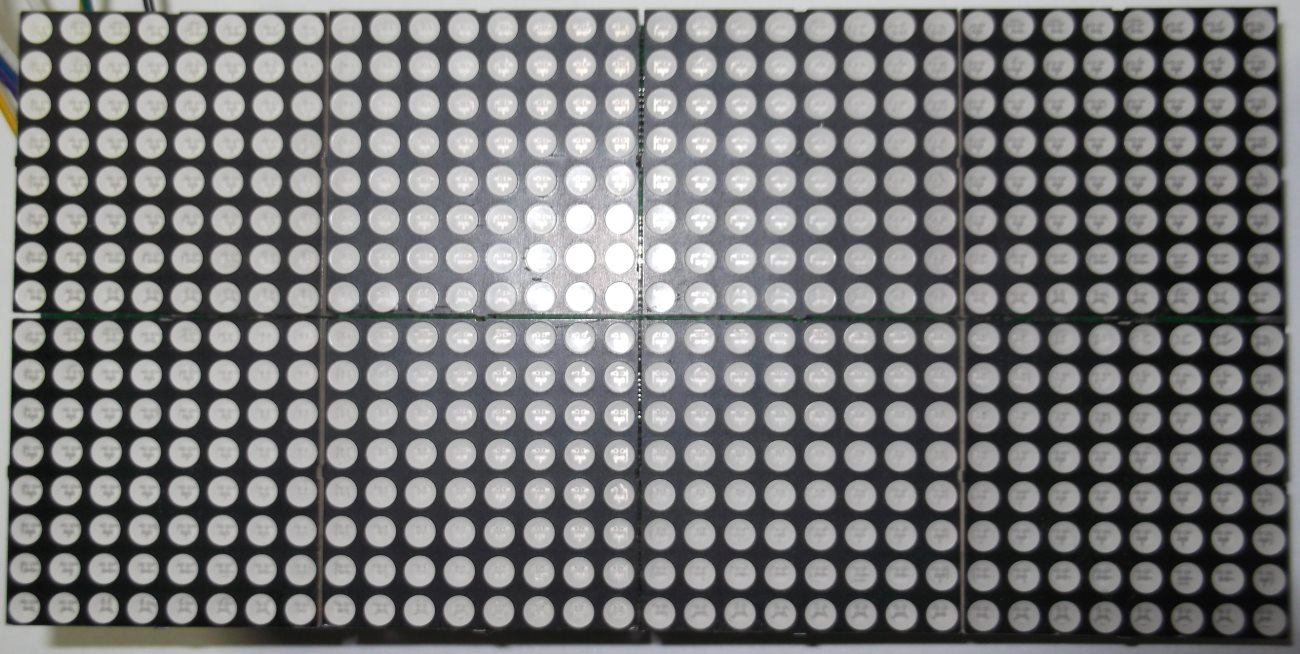

Do not forget to double check orientation of LED matrix before soldering. There are two positions posible and only one is correct.

Note: I change bolts with others longer and put spacers for safety.

Data Connector


A, B, C, D - row select with 74HC138

OE - 74HC595 Ouput Enable(Active Low)

STB - 74HC595 Strobe / Data Latch

CLK - 74HC595 Clock Input

R - data input for 74HC595 (RED section / 4*74HC595)

G - data input for 74HC595 (GREEN section / 4*74HC595)

Arduino Library and Demo Code


I had to write this Arduino library from scratch because I have not found anything compatible with this panel.

I found souces / libraries for monochrome panels and for RGB panels but nothing to fit exactly this type of panel.

So I give up searching and start coding :) I named the library myMATRIX (sorry for the lack of inspiration).

After installing the library you can run the example myMATRIX_Demo.

This library should work with any ATmega - based Arduino boards. I tested with: Arduino Mega 2560, ATmega32, ATmega1284, ATmega8. It does not depend on other libraries and use timer2 for refreshing purpose.

Here is an example of using the library:

#include "myMATRIX.h"
#define RowAPin 2
#define RowBPin 3
#define RowCPin 4
#define RowDPin 5
#define OE_Pin 6
#define RedPin 7
#define Green_pin 8
#define CLK_Pin 9
#define STB_Pin 10

void setup () {
myMatrix.Init(Red_Pin,Green_Pin,CLK_Pin,RowA_Pin,RowB_Pin,RowC_Pin,RowD_Pin,OE_Pin,STB_Pin);
myMatrix.fillRectangle(0,0,31,4,red);
myMatrix.fillRectangle(0,5,31,10,green);
myMatrix.fillRectangle(0,11,31,15,yellow);
}

void loop(){
}

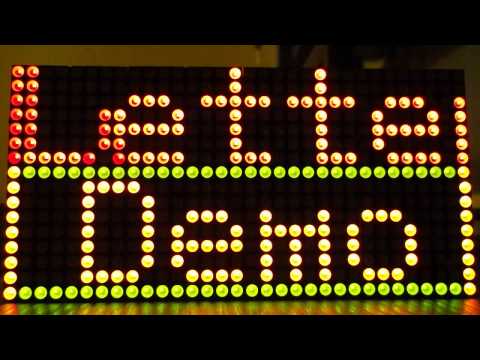

This example has the result from second image of this step.

Downloads

Another Example

LED Matrix Demo
#include "myMATRIX.h"
#define RowA_Pin 2
#define RowB_Pin 3
#define RowC_Pin 4
#define RowD_Pin 5
#define OE_Pin 6
#define Red_Pin 7
#define Green_Pin 8
#define CLK_Pin 9
#define STB_Pin 10

void setup (){
myMatrix.Init(Red_Pin,Green_Pin,CLK_Pin,RowA_Pin,RowB_Pin,RowC_Pin,RowD_Pin,OE_Pin,STB_Pin);
}

void loop(){
 myMatrix.clearScreen();
 char scrolltext_1[]="     * <a href="http://www.OpenHardware.Ro" rel="nofollow"> www.OpenHardware.Ro </a> *      ";
 char scrolltext_2[]="     * Numbers * 1234567890      ";
 char scrolltext_3[]="     * Capital Letters * ABCDEFGHIJKLMNOPQRSTUVXYZ      ";
 char scrolltext_4[]="     * Small Letters * abcdefghijklmnopqrstuvxyz      ";
 myMatrix.fillRectangle(0,0,31,15,red); delay(1000);
 myMatrix.fillRectangle(0,0,31,15,green); delay(1000);
 myMatrix.fillRectangle(0,0,31,15,yellow); delay(1000);
 myMatrix.drawRectangle(0,0,31,15,red); delay(1000);
 myMatrix.fillRectangle(10,3,21,12,green); delay(1000);
 myMatrix.clearScreen();
 myMatrix.drawHLine(0,31,7,green);
 myMatrix.drawHLine(0,31,15,green);
 myMatrix.drawVLine(0,0,15,yellow);
 myMatrix.drawVLine(31,0,15,yellow);
 myMatrix.printString(5,8,yellow,black,"Demo");
 myMatrix.hScroll(0,red,black,scrolltext_1);
 myMatrix.hScroll(0,black,green,scrolltext_1);
 myMatrix.hScroll(0,red,black,scrolltext_2);
 myMatrix.hScroll(0,red,black,scrolltext_3);
 myMatrix.hScroll(0,red,black,scrolltext_4);
}

More About MyMatrix Library


myMatrix library is very simple but has the advantage of being lightweight and easy to use.

All pins can be configured by the user.

Were implemented only basic functions :

void Init(uint8_t pinRed, uint8_t pinGreen, uint8_t pinClock,
                 uint8_t pinRowA, uint8_t pinRowB, uint8_t pinRowC, uint8_t pinRowD,
                 uint8_t pinOE, uint8_t pinSTB);
void setPixel(uint8_t x ,uint8_t y, uint8_t color);
void fillRectangle(uint16_t x1, uint16_t y1, uint16_t x2, uint16_t y2, uint8_t color);
void drawRectangle(uint16_t x1, uint16_t y1, uint16_t x2, uint16_t y2, uint8_t color);
void clearScreen();
void printChar(uint8_t x,uint8_t y, uint8_t For_color, uint8_t Bk_color, char ch);
void printString(uint8_t x, uint8_t y, uint8_t For_color, uint8_t Bk_color,char *p);
void drawVLine(uint16_t x, uint16_t y1, uint16_t y2, uint8_t color);
void drawHLine(uint16_t x1, uint16_t x2, uint16_t y, uint8_t color);
void hScroll(uint8_t y, uint8_t For_color, uint8_t Bk_color,char *p);

This library is still in early stage. It will be maintained here: http://openhardware.ro/mymatrix

No need to check there to see if any updates. I'll post here by a comment any major change.

myMatrix library is released under the MIT license http://opensource.org/licenses/MIT nice explained here http://choosealicense.com/

There are plans in the future to update the library to support multiple panels (as I will have those panels).

I will also try other types of panels available on the market (same as above).

Thanks for reading!

UPDATE:

I attached here (at this step) version 1.1. Solve the compiling (in fact linking) problem in newer version of Arduino.

Downloads
