$3.00 Altoids Charger (EASY BUILD) (CHEAP)

by GladiatorShisha in Circuits > Gadgets

125049 Views, 809 Favorites, 0 Comments

$3.00 Altoids Charger (EASY BUILD) (CHEAP)

I know your thinking i have seen hundreds of these but have you ever seen one so easy to build?

LETS GET STARTED

Things you will need :
  1. L78MO5CV Voltage Regulator http://www.taydaelectronics.com/ic-integrated-circuits/voltage-regulators/lm7805-l7805-7805-voltage-regulator-ic-5v-1-5a.html
  2. Toggle Switch http://www.taydaelectronics.com/mini-toggle-switch-spdt-on-on.html
  3. LED [ any color :) ] http://www.taydaelectronics.com/leds/led-3mm-green-water-clear-super-bright.html
  4. Female USB port http://www.taydaelectronics.com/usb-type-a-female-connector.html
  5. Resistor (sorry forgot what ohm it is you can use a decoder on it and i will post a pic of the resistors)
  6. Resistor (sorry forgot what ohm it is you can use a decoder on it and i will post a pic of the resistors)
  7. Some type of board to solder connections on to
  8. 9V battery Clip http://www.taydaelectronics.com/9v-9-volt-battery-clip-connector.html
  9. Some type of Board http://www.taydaelectronics.com/hardware/prototyping-boards/small-stripboard-94x53mm-copper.html
  10. And ALTOIDS TIN (DUH HAHA) http://www.ebay.com/itm/Blank-Altoids-Type-Metal-Tin-Survival-Kit-Containers-/281113404892
COST : ABOUT 3:00

STEP 1: Soldering L78M05CV Voltage Regulator to Board

Soldering L78M05CV Voltage Regulator To Board\
Follow Picture Diagram

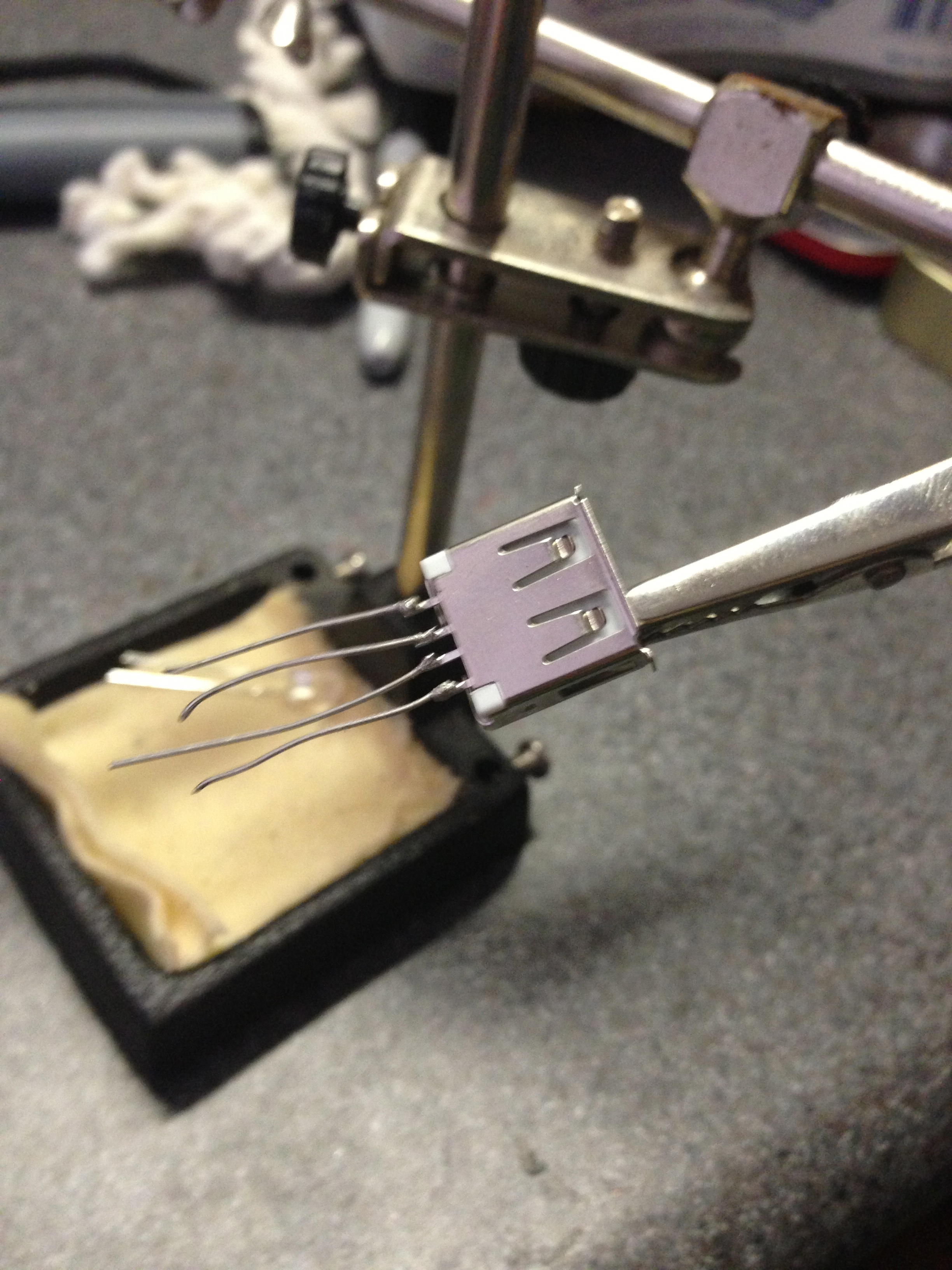

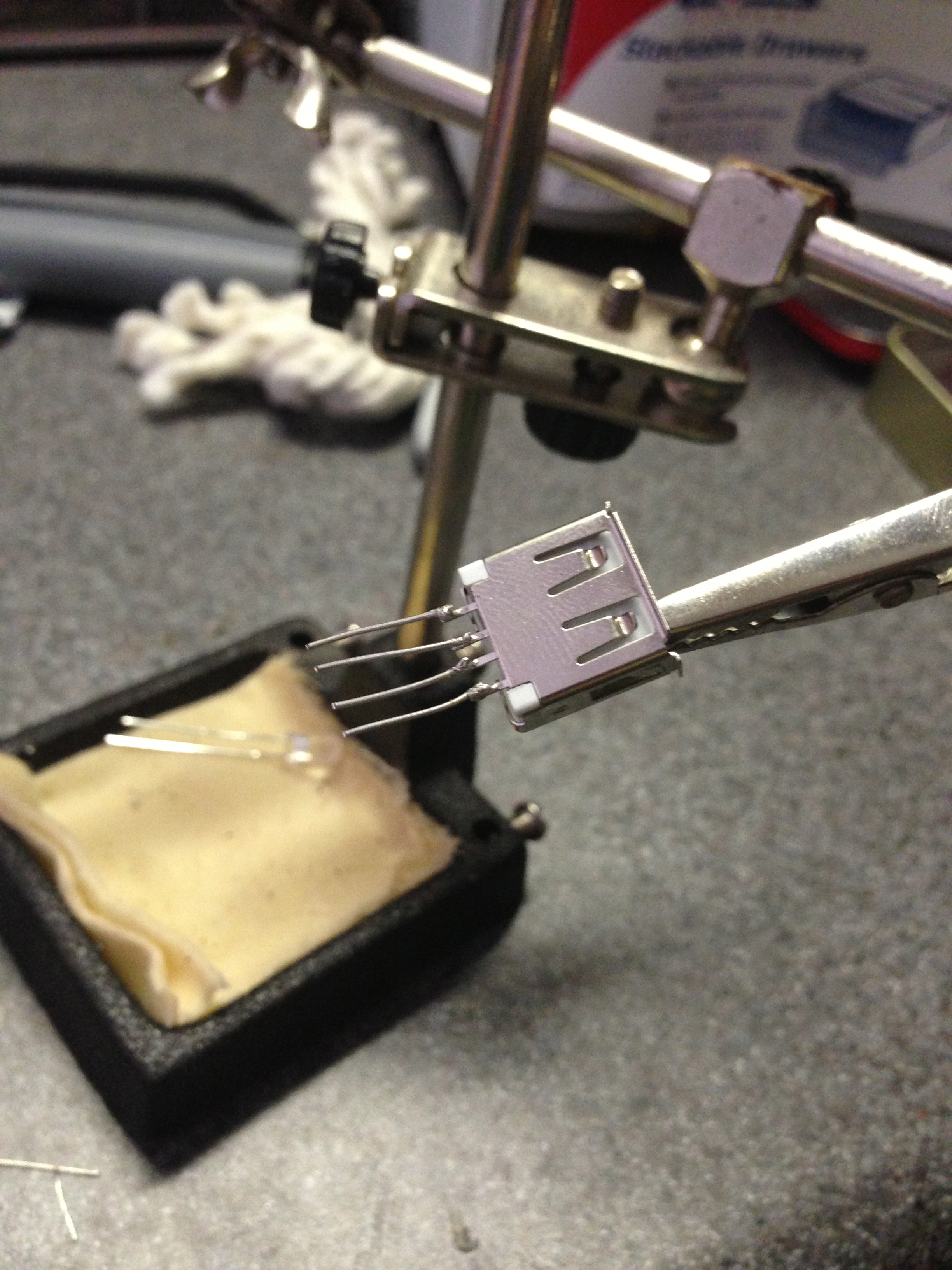

STEP 2: SOLDER SCRAP METTEL PINS TO FEMALE USB

SOLDER SCRAP METEL PINS TO FEMALE USB
THEN TRIM PINS TO MAKE IT LOOK NEAT

(THIS IS TO MAKE IT EASIER TO SOLDER TO BOARD IN THE NEXT STEP)

Ideas for scrap mettle
  1. LED Legs
  2. pins from old components
  3. Metel Wire

STEP 3: Solder Female USB to Board

Solder Female USB To Board
Follow Diagram

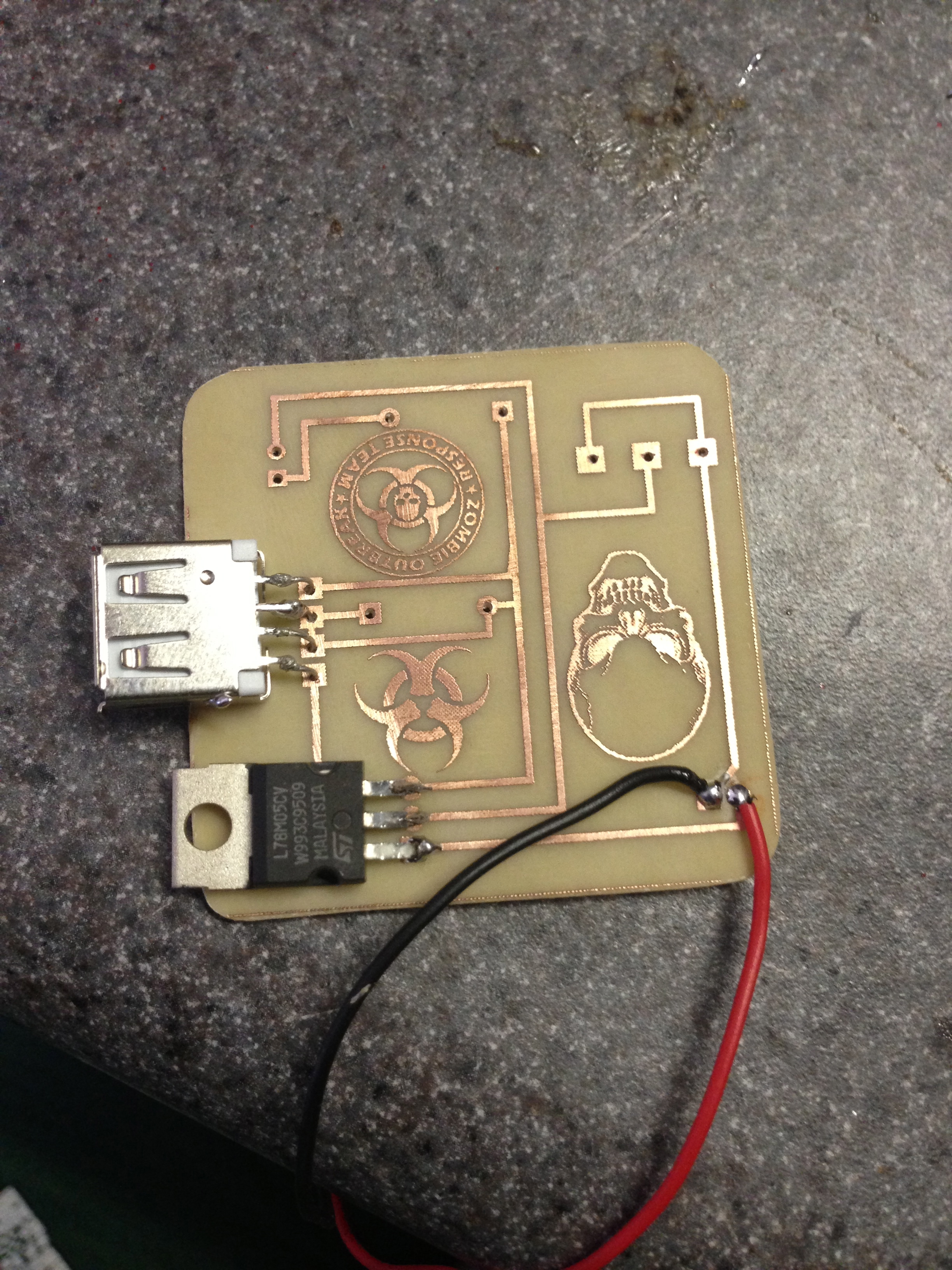

STEP 4: Adding the Power

Solder The Positive (+) And Negative (-) 9V Battery Clip Wires To Board
Follow Diagram

STEP 5: SOLDER SCRAP METTEL PINS TO Toggle Switch

SOLDER SCRAP METTEL PINS TO Toggle Switch (Same thing as step 2)
(Click on step 2 for merle pin ideas to use)
Follow Diagram

STEP 6: Solder Toggle Switch to Board & LED

Solder Toggle Switch To Board & LED
Follow Diagram

STEP 7: Solder Resistor 1

Follow Diagram

STEP 8: Solder 2nd Resistor

Solder 2nd Resistor

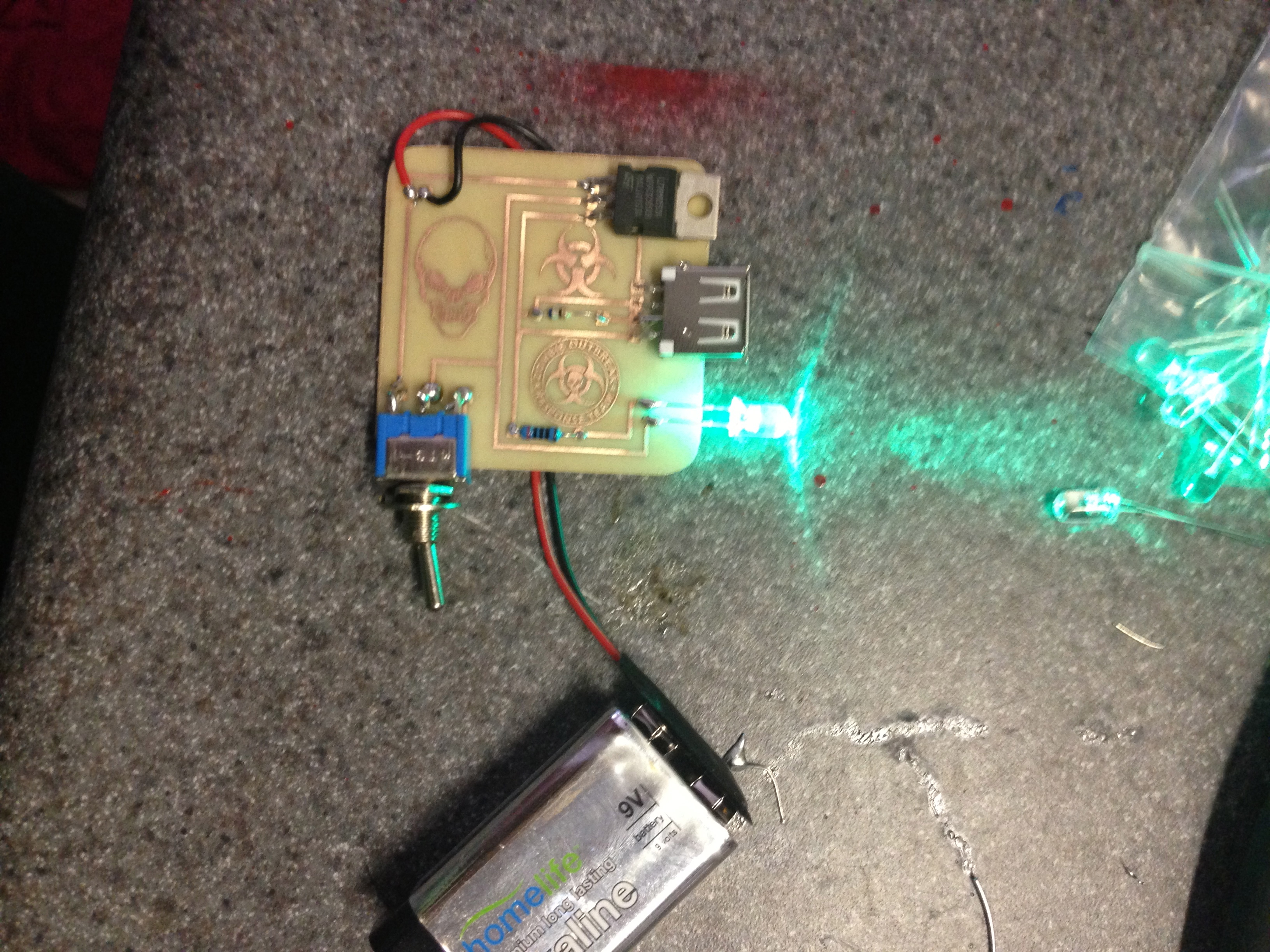

TEST TIME

Test to see if it works!

STEP 9: Line Tin With Electrical Tape

Line Tin With Electrical Tape To Prevent Shorting Out
Or Put HeatShrink Tubbing On All Wires

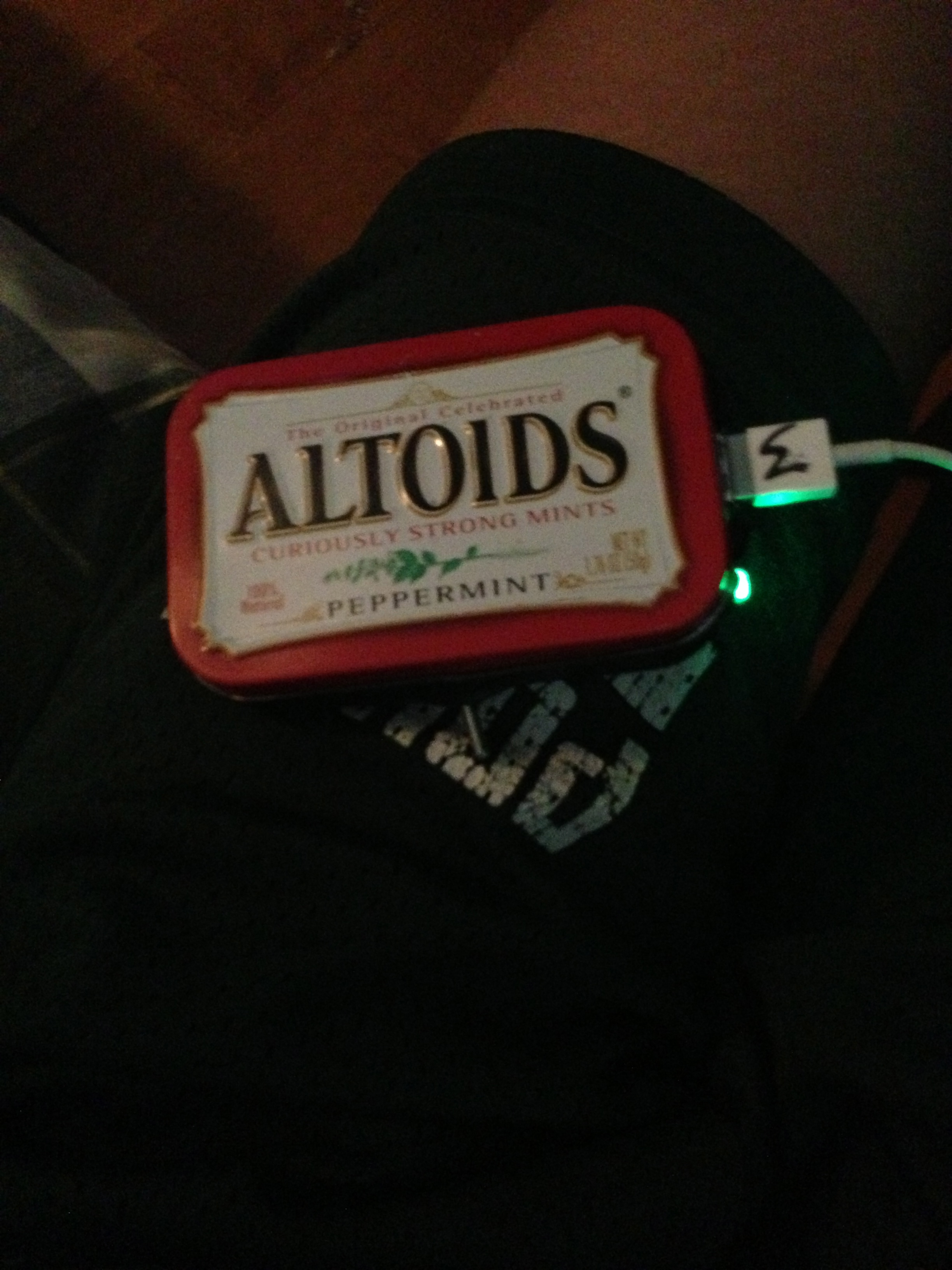

ENJOY =]
