3-D Printed Bike Grip

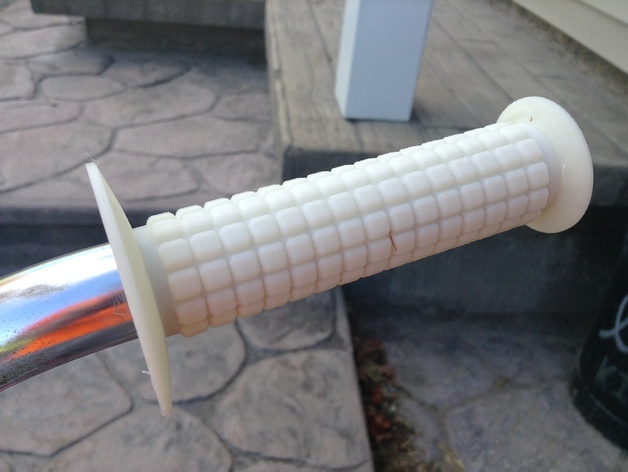

bike handle.JPG

I designed this bike Grip in tinkercad. It is designed for smaller bikes with a handlebar size of 7/8 in. in diameter. It has been tested in ABS and Ninjaflex TPU

Supplies I Used

  • 3-D printed bike handle

Downloads

bike_handle.stl

Tools I Used

  • TInkercad
  • 3-D printer

Design


I started with a cylinder. Then cut another into it from bottom. Next I added cylinder with a squished paraboloid on top at bottom. Cut wider cylinder into that. Then I added rounded squares to decorate it.

Assembly

bike handle.JPG

Push into handle bar. I soaked mine in hot water first what seemed to work well for getting it on.
