3-Axis Scale Ruler - DIY Papercraft
![img-01.jpg](/proxy/?url=https://content.instructables.com/FKF/QS7M/IZT6JHPF/FKFQS7MIZT6JHPF.jpg&filename=img-01.jpg)
![img-04.png](/proxy/?url=https://content.instructables.com/FN0/19U6/IZT6JHPS/FN019U6IZT6JHPS.png&filename=img-04.png)

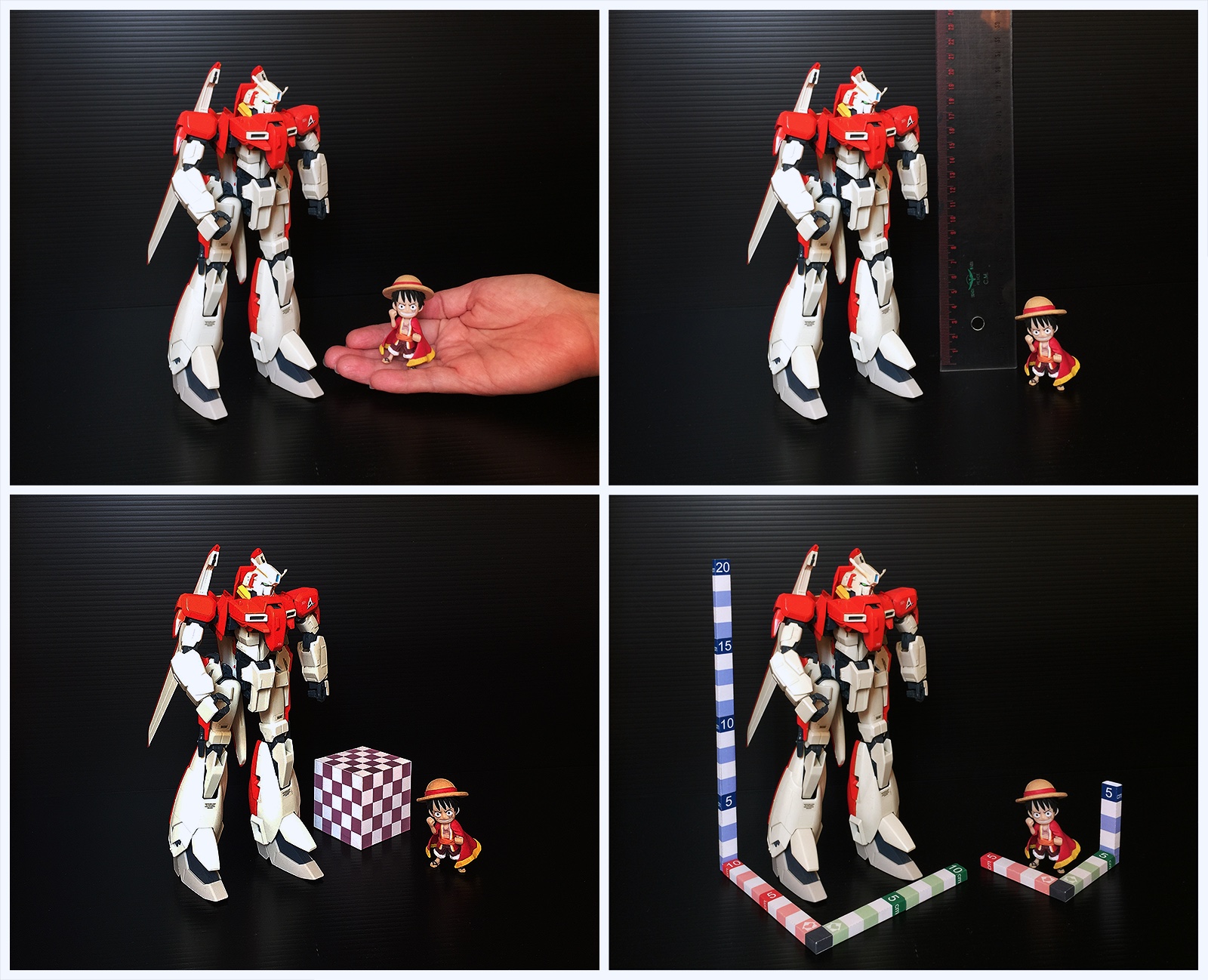

This is a good tool to show the size of an object when you taking a picture for it.
Features :
- Combined with a square tubular structure, and can be extended according to the size of the subject.
- Can stand on their own, do not need to hand support, it is convenient for shooting
- It‘s small size after separation, and easy to store. -
- There are red, blue and green colors on three axes, and can be used to correct the color when modifying the picture.
Good Point
![img-02.jpg](/proxy/?url=https://content.instructables.com/FKM/NUCO/IZT6JP5U/FKMNUCOIZT6JP5U.jpg&filename=img-02.jpg)
![img-03.jpg](/proxy/?url=https://content.instructables.com/FGF/2ZZ9/IZT6JP5W/FGF2ZZ9IZT6JP5W.jpg&filename=img-03.jpg)

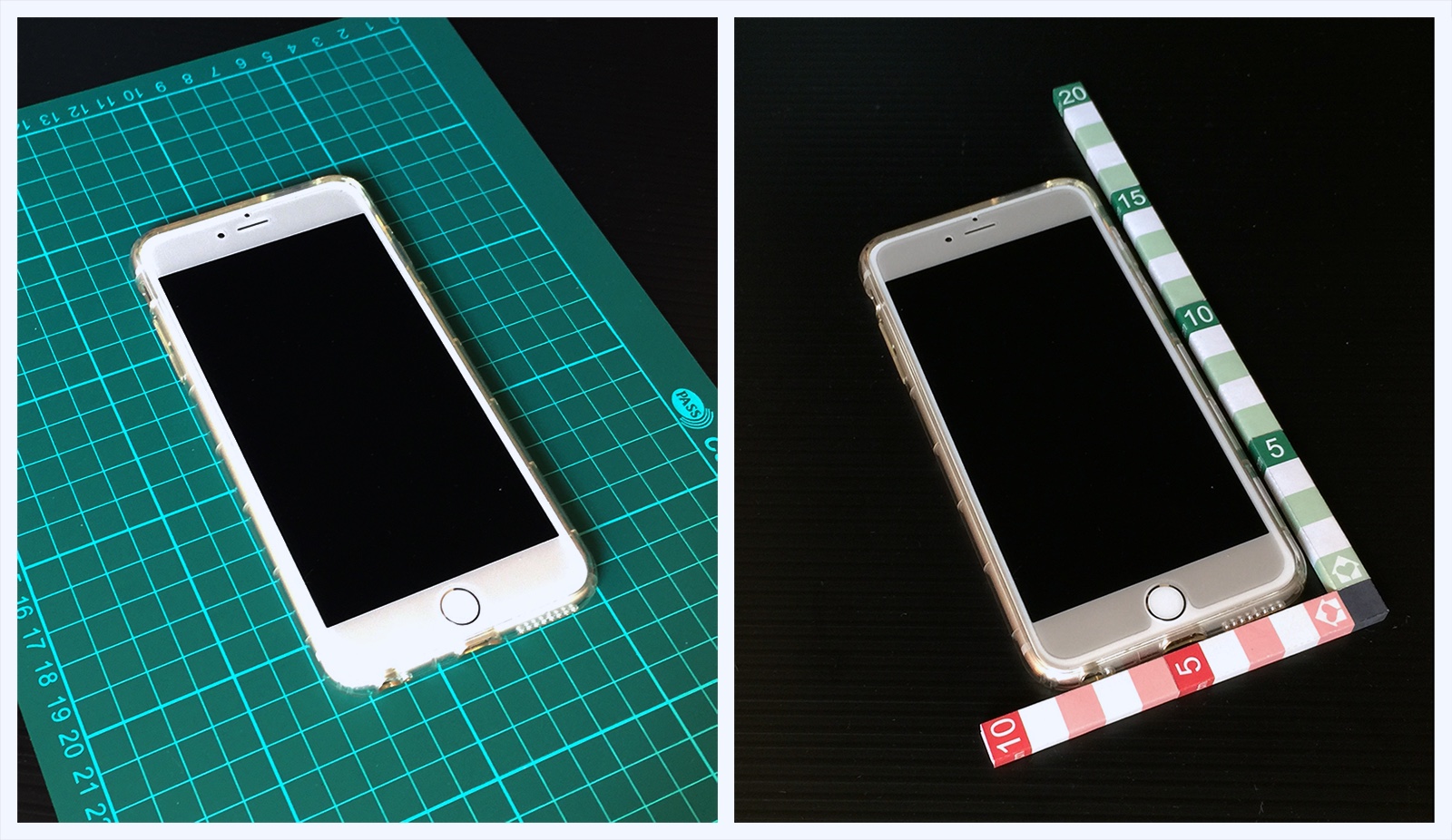

- The three axes are dimensioned, and the length / width / height dimensions are immediately recognizable.
- You can take pictures by yourself. Do not need someone give you a hand
- Background simple and clean, the subject is more obvious.
- low cost & eco-friendly
Tools & Materials
![img-05.jpg](/proxy/?url=https://content.instructables.com/FR3/QZSJ/IZT6JHPT/FR3QZSJIZT6JHPT.jpg&filename=img-05.jpg)
![img-06.jpg](/proxy/?url=https://content.instructables.com/FED/KNLZ/IZT6JHPU/FEDKNLZIZT6JHPU.jpg&filename=img-06.jpg)
Tools:
- Cutting Mat : used to protect the desktop, also extending life of blade.
- Ruler : used to scribing a long straight fold line.
- Scoring tool : a small round tip tool is used to scribing fold line. Such as inkless ballpoint pen.
- Knife : for cutting small or complex parts pieces.
- Glue : white glue (PVAc).
Materials :
- Paper Size : A4 (210mm x 297mm)
- Paper Weight : 150 gsm is recommended.
Workflow
![img-07.png](/proxy/?url=https://content.instructables.com/F7X/ESAJ/IZT6JHPY/F7XESAJIZT6JHPY.png&filename=img-07.png)
![img-08.jpg](/proxy/?url=https://content.instructables.com/F77/666U/IZT6JI7H/F77666UIZT6JI7H.jpg&filename=img-08.jpg)
Scoring
- Scoring the fold line to dent the paper.
Cutting
- Cutting pieces align black outline line.
Fold & Glue Glue
- the folded pieces together by instruction.
Assemble
- Assemble parts by part numbers and stick by instruction
Resource
![img-09.jpg](/proxy/?url=https://content.instructables.com/FTW/7MD1/IZT6JIZI/FTW7MD1IZT6JIZI.jpg&filename=img-09.jpg)
![img-10.gif](/proxy/?url=https://content.instructables.com/FKK/1FPJ/IZT6JJ35/FKK1FPJIZT6JJ35.gif&filename=img-10.gif)
