2x4 Oars

Yes that's right, here's another DIY on how to make boat oars from 2x4s. The difference here is my approach and end result. I'm not knocking any other DIY dude out there but I believe I found a better, cheaper method. The best part about these particular two by four oars is that they were made with prime studs from HD.

Here's a video that says the same stuff.

Tools

• Draw Knife (By far the most useful tool to shape the handles)
• Spoke shave (optional but also helps)
• Orbital Sander
• Circular Saw
• Tape Measure
• Putty Knife or Razor Blade
• Pencil
• Saw Horse or Workbench
• Clamps (C or Irwin)
• Hand Planer
• Hand Saw

Finish

• Gorilla Polyurethane based glue
• Spar Urethane (has to be UV resistant coating)
• Paint Thinner
• Clean Cloth Rags (I used old white t-shirts cut into strips)
• Good quality brush (Should cost more than 5 bucks

Wood(Depends on length and blades)

• 2-2x4x96in

There are a million places to go in order to find the best oar type for you. Here are some quick tips.

If oars are...

• Too thick- You'll be exhausted after a short distance but you'll push more water while rowing.
• Too thin- You'll be rowing your heart out but going nowhere.

The Vikings had long thin blades for extended rowing (in order to pillage France) and kayaks have shorter fatter oars for lake touring so you be the judge.

My oars were 8ft long and they were pushing an 80 pound Alumacraft built in the late 80's. The blades were 15x4 inches. A picture above will show exact dimensions.

Note: For oar lock placement, look up the 7-11 rule.

Rip (cut in half) both 2x4s right down the middle and cut additional pieces. I could go into great detail but the picture says it all.

I'm a novice woodworker at best so I found a way that minimizes the work. The first oar and second oar a little different because I used two different ways to prepare the surfaces to be glued. I will share the efficient way.

Arrange the boards to be glued like the picture above. In later steps there will be a lot of sanding to remove the rough edges so no need to worry about it. This also saves you some time prepping and strengthens the area to be glued since the factor surfaces are already flat.

Dampen, not soak, the surfaces to be mated. If you are unsure what this means, go to the gorilla glue website and they have a video that explains it. If you screw up this part, the glue will not form a strong bond.

Clamp it and wait overnight. You can wait 2 hours like the instructions say but I recommend waiting overnight because humidity, temperature, and many other factors can play a role. Trust me, overnight is best.

Quick Tip: Precutting the pieces prior to gluing is more efficient. I realized that later.

Sand all rough edges until they are decently smooth. Don't worry if they aren't perfect, there will be much sanding in the coming steps.

Using a pencil, draw a centerline on all boards as a reference point. This line will help you keep them balanced as you shave wood away with your hand plane, sander, and draw knife.

So many of you will probably want to round the oar shafts but I think that would be ill advised for two reasons.

For one, squared wood is stronger and less prone to bend than rounded wood. I used studs that costed about 3 bucks apiece so I was worried that they might break.

Secondly, rounding the handles with the tools mentioned was very time consuming and they were only about 6 inches or so.

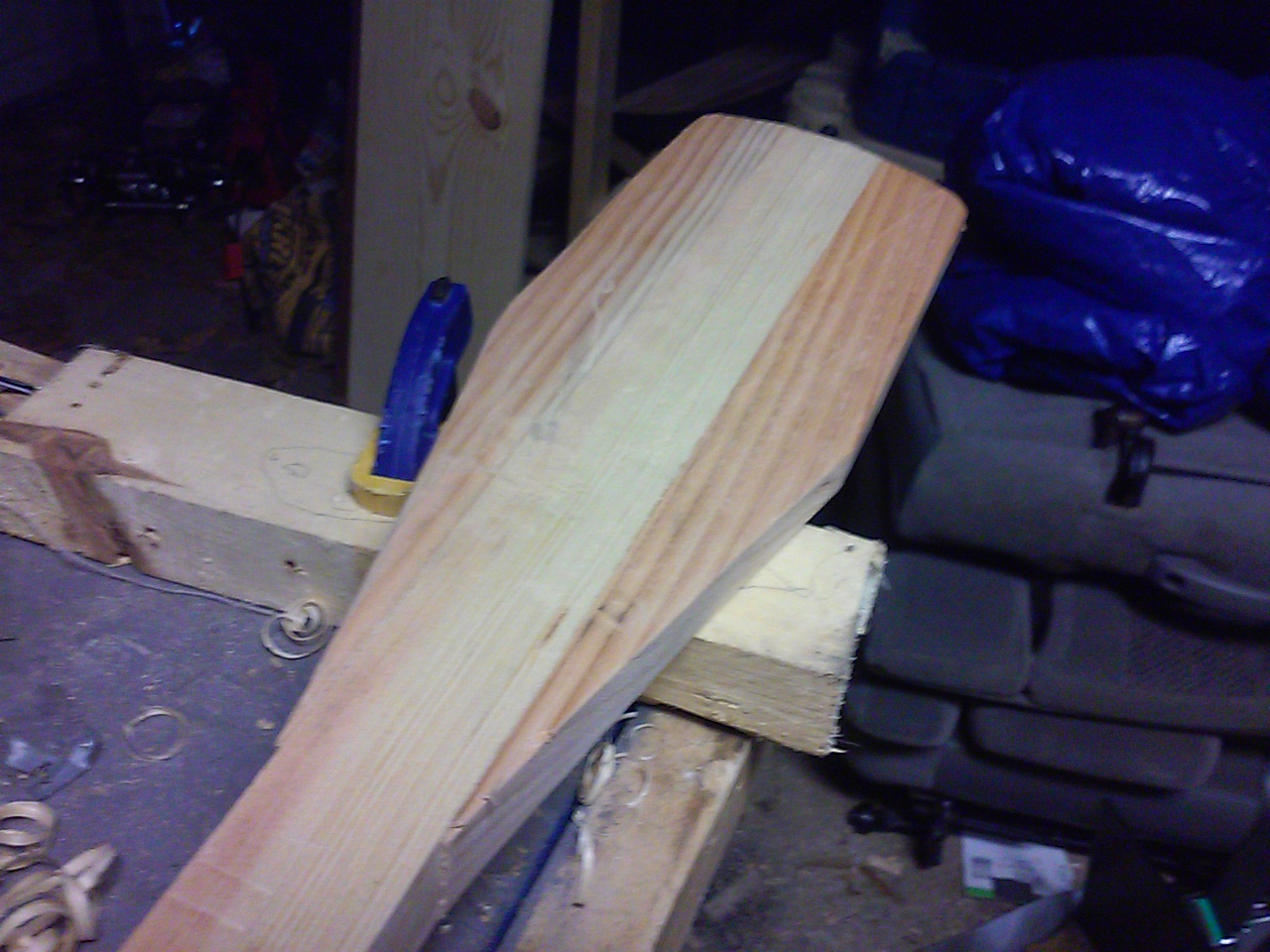

Using your pencil draw a guideline and begin to remove with the draw knife. First make an X to find the middle and then draw a circle.

Next, using a saw, make a shallow cut to prevent the draw knife, chisel, or plane from take away from the shaft. I made mine at I went and I cut into the shaft about 6 inches.

This part will take the most time. Using an orbital sander with rough grit, sand all surfaces until they are uniform and then sand them over again with a softer higher grit sandpaper to make them smooth. Using your hands, feel over the wood for rough spots until the whole oar is smooth.

This step determines how easy it is to achieve a glossy finish in the next step.

Tip: A wet rag with a soldering iron can help remove gouges.

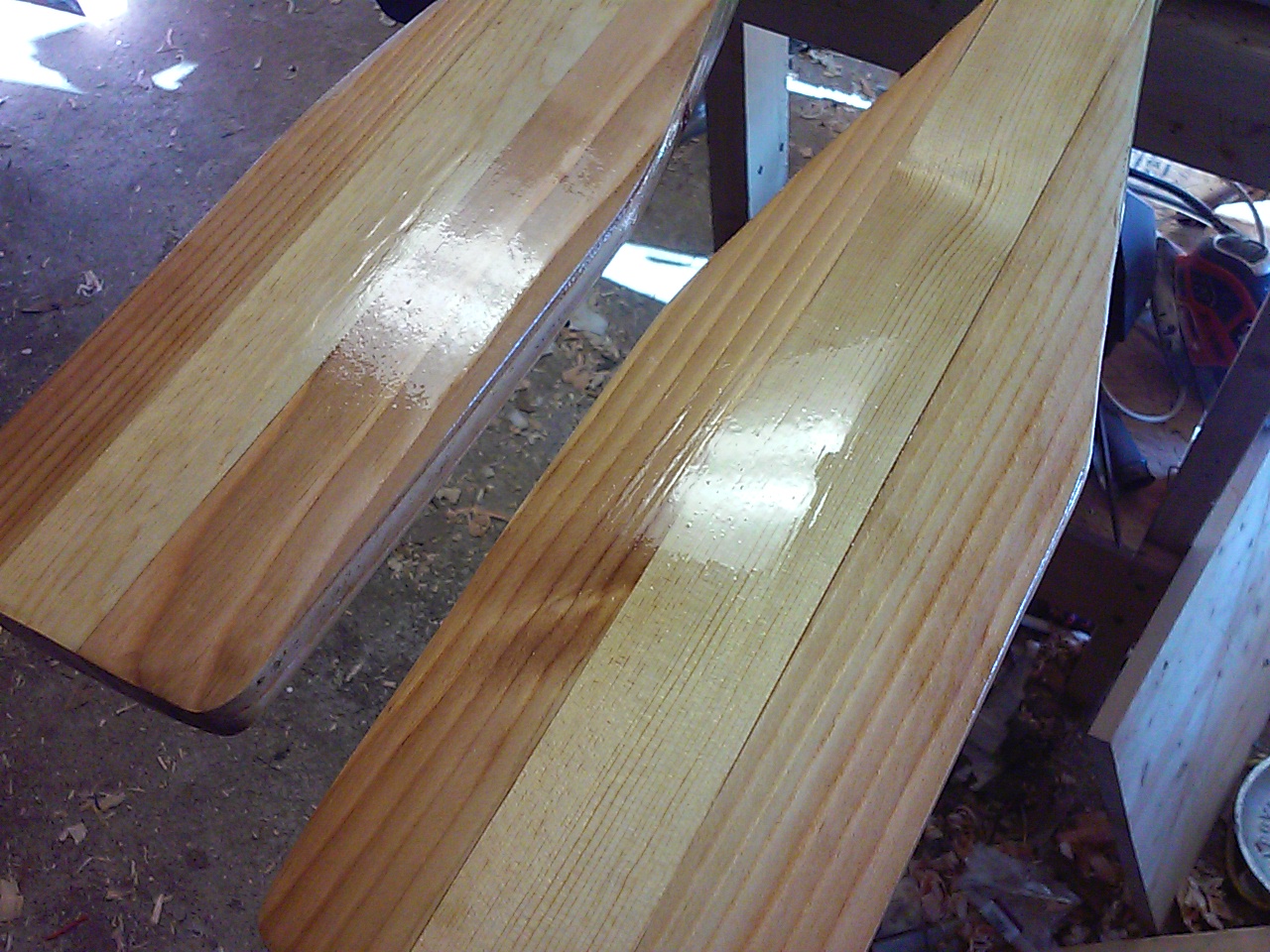

For this step I used Minwax Spar Urethane. I won't say it's the best on the market but I'm happy with the results. Since these will be around the water, they need to be completely sealed in something that is both UV and water resistant.

At around 15 dollars, you can't beat Minwax Spar Urethane. HD sells it.

1. Using a dry clean brush apply the SU in clean dust free place. Brush the SU in light even strokes until the oar is covered. Go back over the oar several times and use the brush to clean up any runs, drips, or pools of SU.
2. *Use a heat gun to go over the finish. Do not let the great stay in one place. This will eliminate all the bubbles and give you a perfect glass finish every time without sanding in between coats.
3. Once completely cured, lightly WETsand all surfaces with high numbered soft-grit sandpaper. Wet sanding is achieved by dipping regular sandpaper in water.
   • The surface should look cloudy, not shiny.
4. Repeat Steps 1 and 2 until there are 3 coats.

Brush Cleaning Tip: Gather 3 small containers. Fill one with Thinner, another with Soapy water, and the last with regular water. Alternate dipping the brush into the thinner and soapy water. Lastly, dip the brush into the regular water. This will ensure your brush lasts a long time.

After the previous step, I discovered this way to make the final coat perfect. SU tends to form puddles and is very difficult to work with but this step brings it all home.

Mix Spar Urethane and Paint Thinner at a 1:1 ratio or 50% and 50%.

HEAVILY COAT ALL SURFACES once with 50-50 mixture. With a clean dust free rag, wipe off the brush and go back over the entire oar drying the brush with the clean rag in between brush strokes. The goal here is to remove as much excess SU as possible and to smooth out all edges.

Not including the time and tools I already had, this project costed me about 20 bucks. I put them on my boat with some oarlocks that I purchased for a homemade boat I'm making. I used PVC, a hose clamp, and poly tubing to protect my oars from abuse since they take the biggest abuse here. I hope you've enjoyed my instructuable.

If you notice I've missed something or have a question comment below and I will add it.
