#24 Drill HSS | Fusion Wednesday | Pistacchio Graphic

Look how easy is to make a Corner Profile 20mm on Fusion 360.

Follow the tutorial video:

https://youtu.be/i-EHMunXjFs

Follow my youtube channel tutorial:

www.youtube.com/@pistacchiographic

Software that was used in this project:

OBS Studio: Record the screen

Fusion 360: CAD design and PDF drawing instructions

Affinity Designer: Make the thumbnail

Affinity Publisher: Make the Technical Drawing E-Book

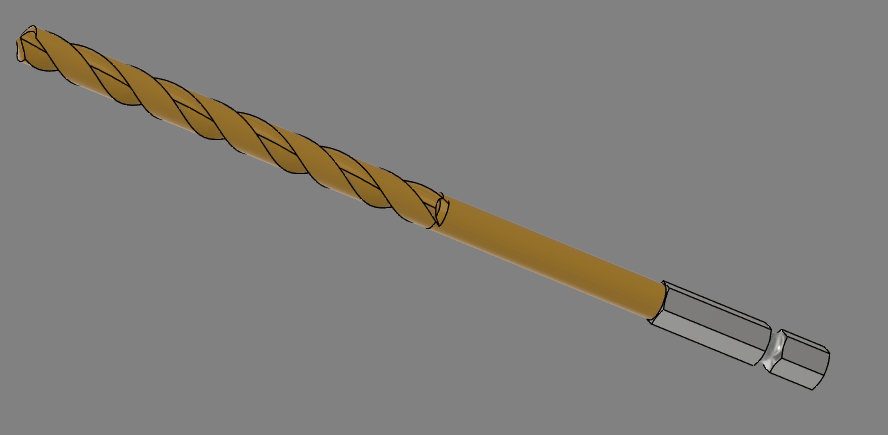

Use the drawing to design this project.

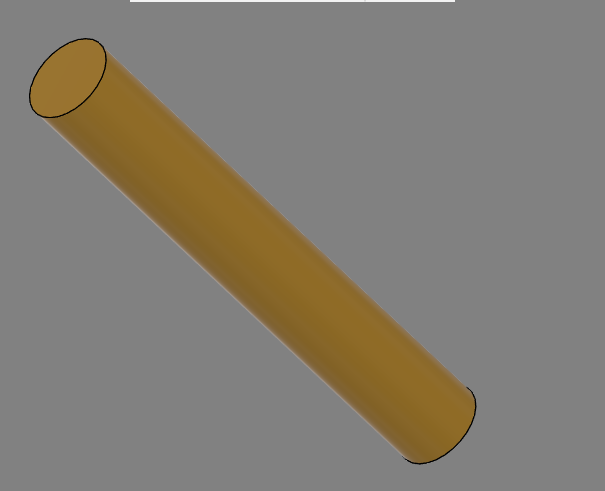

Make a circle with 6mm and extrude 40mm.

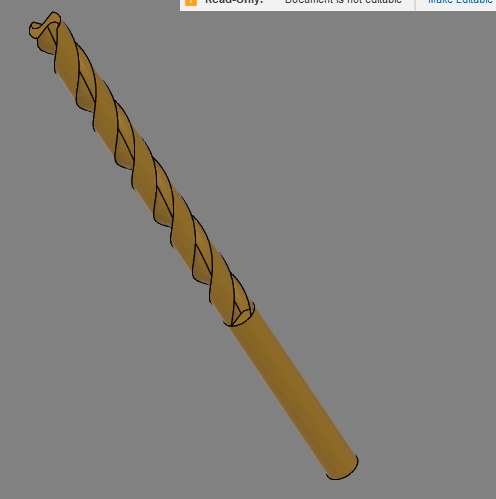

Make a profile and use the Sweep Tool to twist 900°

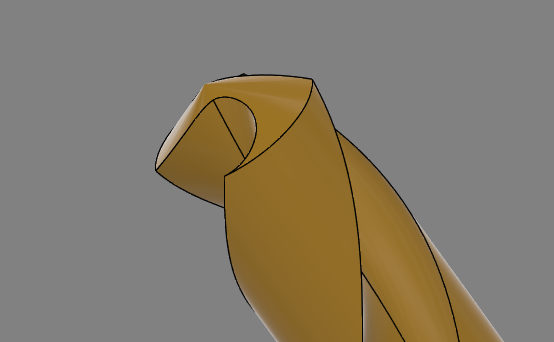

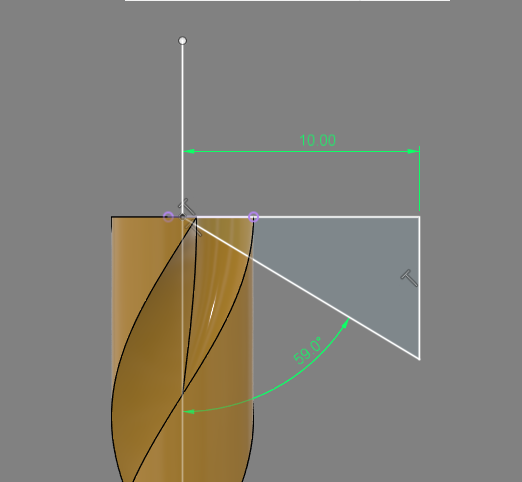

Make a sketch to cut a 59° on the edge of the drill.

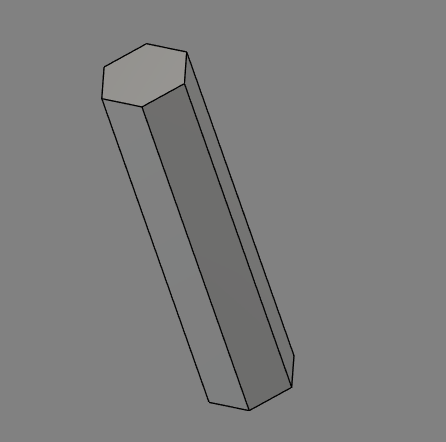

Use the Extrude Tool to make a hexagon with 6,35mm of diameter and 30mm of length.

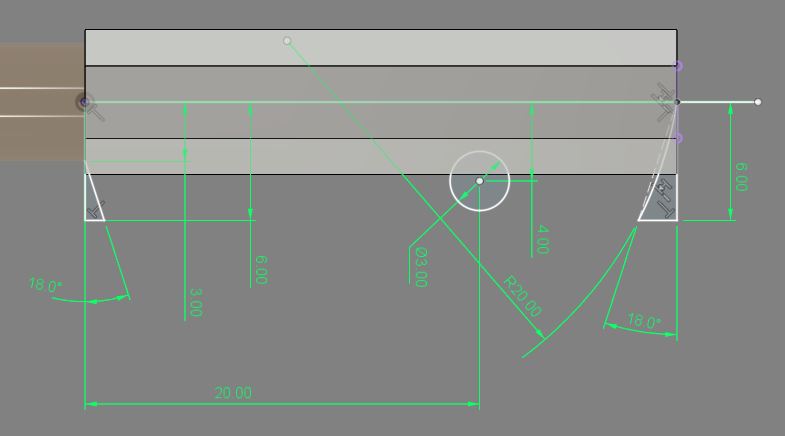

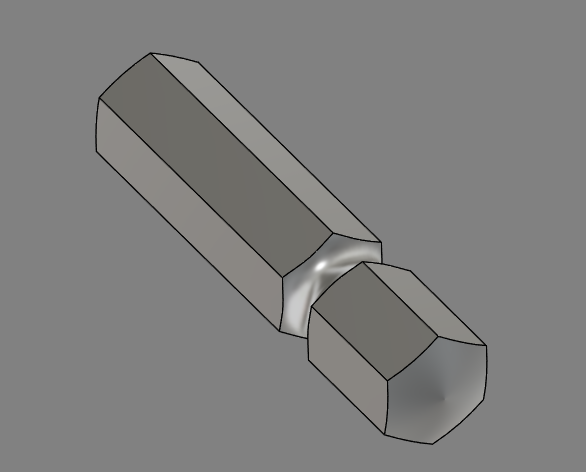

Make a sketch using the dimension and the Resolve Tool to remove the material.

Use the Scale Tool to change the dimension of the drill.

Ex: 5mm, 4mm, 1.5mm.
