20 Dollar Gold Mine
The aim is not to simply throw a very useful equipment which we think is obsolete and useless; but to re-use it is worth allot of time and money...
Meet Clarion ADX 5255. This is a car stereo from year 1999. It is a Hi fi stereo FM; cassette and CD player. It is no longer needed because new car stereo has a LED video screen, and no moving parts all from SD card media.
Please do not throw the Clarion, if you do not have one, buy one from car junk for only 10 - 30 US$. it is a gold mine for making robots and animatronics.
Lets dismantle, and mine in...
Meet Clarion ADX 5255. This is a car stereo from year 1999. It is a Hi fi stereo FM; cassette and CD player. It is no longer needed because new car stereo has a LED video screen, and no moving parts all from SD card media.
Please do not throw the Clarion, if you do not have one, buy one from car junk for only 10 - 30 US$. it is a gold mine for making robots and animatronics.
Lets dismantle, and mine in...
First Layer CD Player
opening the to cover shows that there are 2 mechanisms sitting op top of each other
1- On top CD player and autoloader.
2- Cassette player and autoloader.
Opened the CD player mechanism, removed it, and then unscrewed its parts; the harvest was:
1- CD loader mechanism with hi quality motor. good as a linear actuator.
2- CD spinning motor, very high speed and very quiet motor.
3- Laser positioning motor a perfect linear actuator.
4- Hi quality Laser with lens.
1- On top CD player and autoloader.
2- Cassette player and autoloader.
Opened the CD player mechanism, removed it, and then unscrewed its parts; the harvest was:
1- CD loader mechanism with hi quality motor. good as a linear actuator.
2- CD spinning motor, very high speed and very quiet motor.
3- Laser positioning motor a perfect linear actuator.
4- Hi quality Laser with lens.
Second Treasure; the Cassette Player
located below the CD mechanism, cassette player dismatled, and here is the harvest:
1- Cassette pull-in-push-out mechanism with hi quality motor and gears.
2- player motor very quiet and high speed.
3- Optical position sensor + magnetic rotation sensor.
4- big bunch of springs, rollers, spindles, gears and levers.
1- Cassette pull-in-push-out mechanism with hi quality motor and gears.
2- player motor very quiet and high speed.
3- Optical position sensor + magnetic rotation sensor.
4- big bunch of springs, rollers, spindles, gears and levers.
More Harvest Parts
And there is more; last batch is

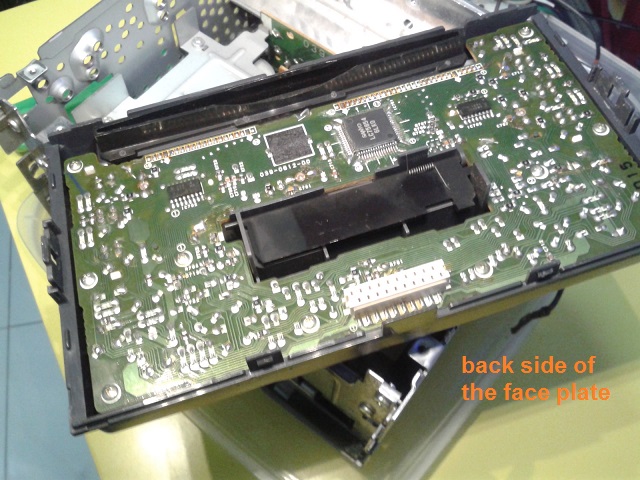

1- face plate contains color graphic analyzer..will try to interface it on any amplifier.
2-HiFi power amplifier inside the back of the stereo.
3- Tuner block for radio guru s.
4- lots of screws, springs, spacers..etc.
TOTAL Harvest was:
5 hi quality motors;(including 3 with linear gears)
1 Audio power amplifier w 4 speakers output.
lots of gears, springs, spindles, livers
1 graphic analyzer.
Hope you benefited from this humble instructable.
