Thank you JLCPCB for sponsoring this Airplane project.

Please get your 3D model printed at https://jlcpcb.com/cem

I will briefly teach you how to 3D model the plane using Fusion 360. Lets get started!

Downloads

Plane 20cm final.stl

Supplies

Plane cover.png

JLCPCB 3D printing service, Fusion 360 3D modelling tool

Downloads

Plane 20cm final.stl

Fuselage

Fuselage part 1.png

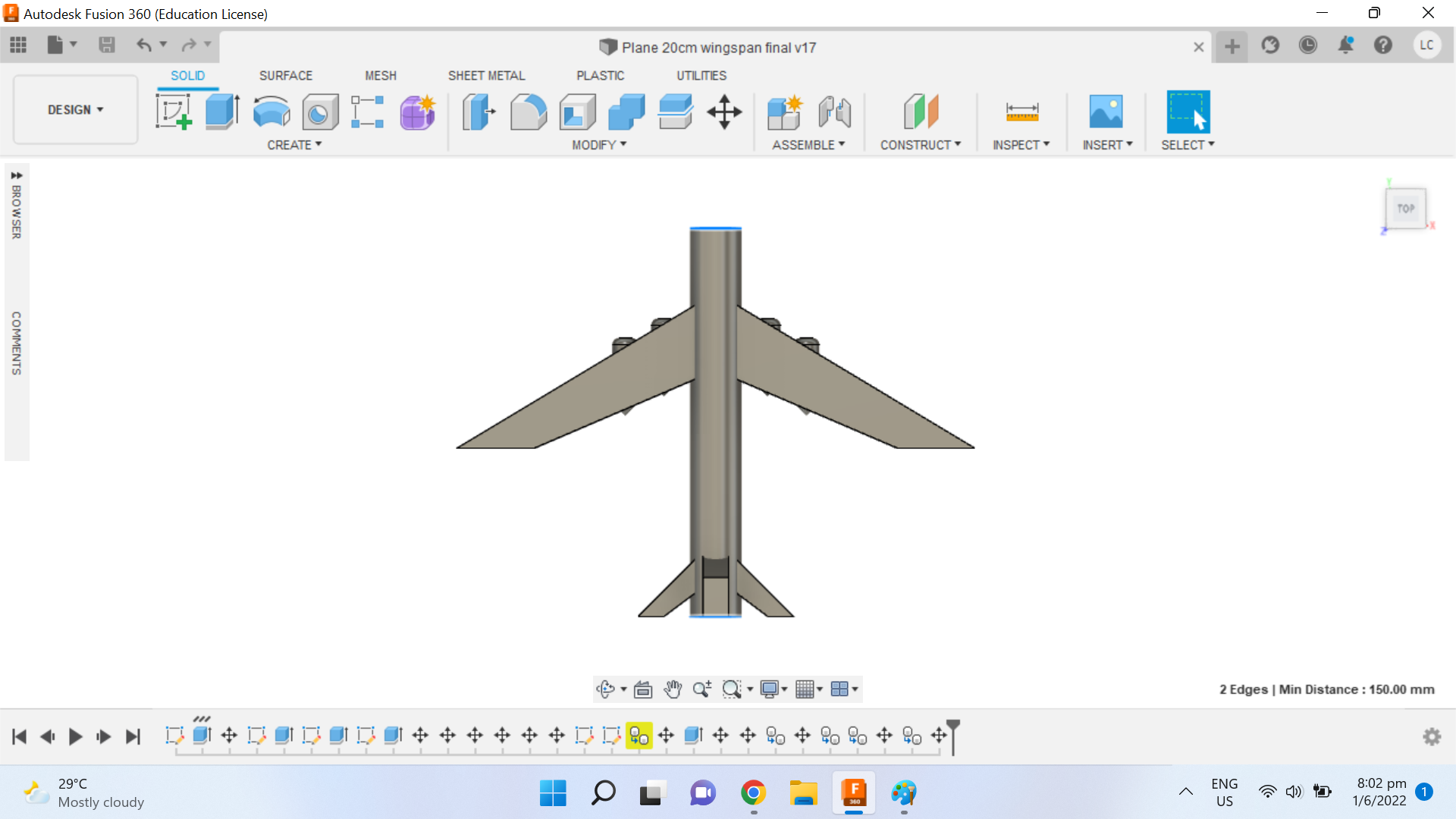

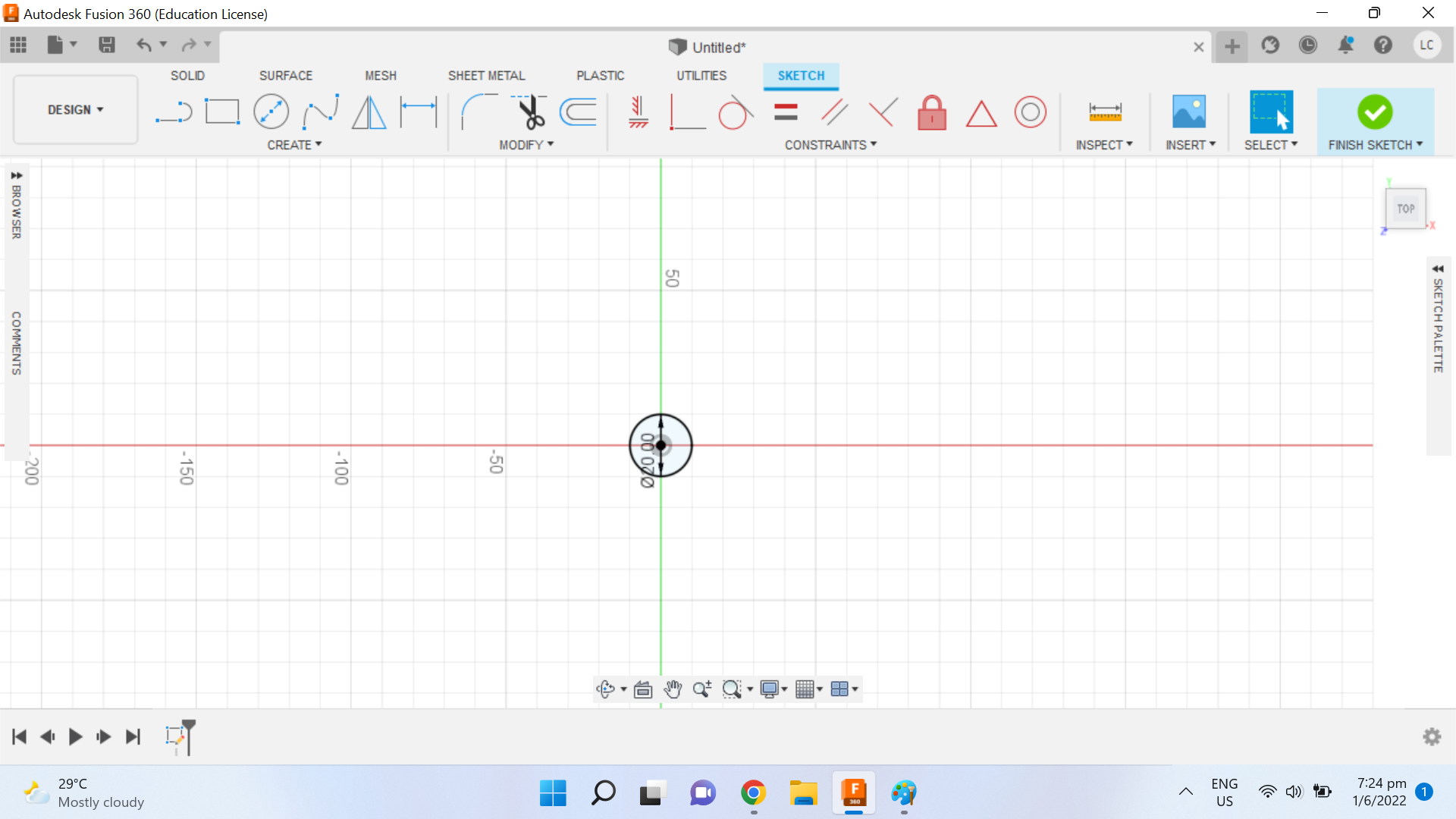

The fuselage has a 20mm diameter, and a length of 15cm.

Wing

Wing part 1.png

The wing has a wingspan of 200mm and a thickness of 10mm. The wing dimension is shown in the picture. Use sketch dimension tool to fix the dimensions.

Horizontal Stabilizer

Horizontal stabilizer part 1.png

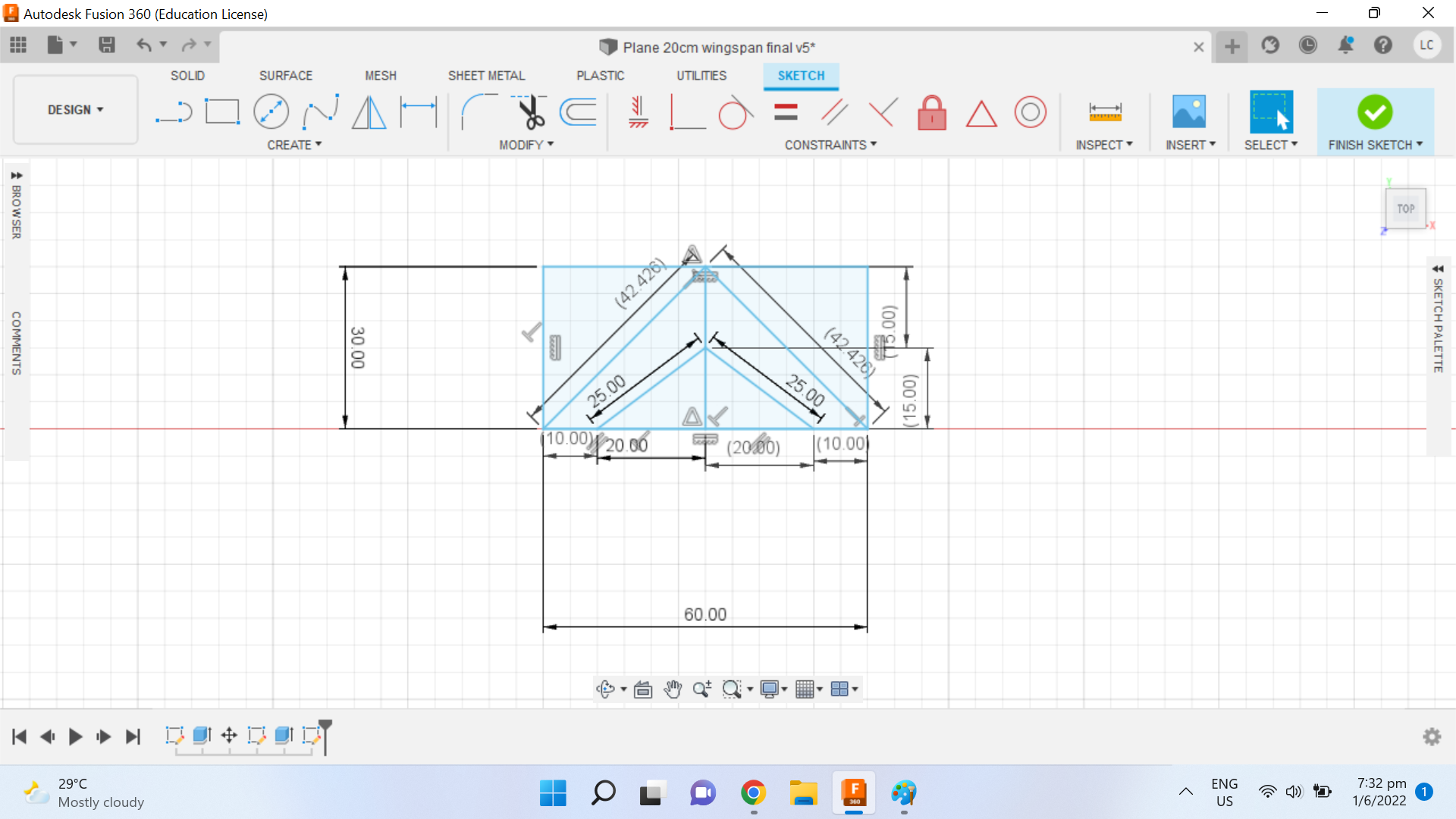

The horizontal stabilizer has a length of 30mm and a width of 60mm and a thickness of 10mm. The horizontal stabilizer dimension is shown in the picture. Use sketch dimension tool to fix the dimensions.

Vertical Stabilizer

Vertical stabilizer part 1.png

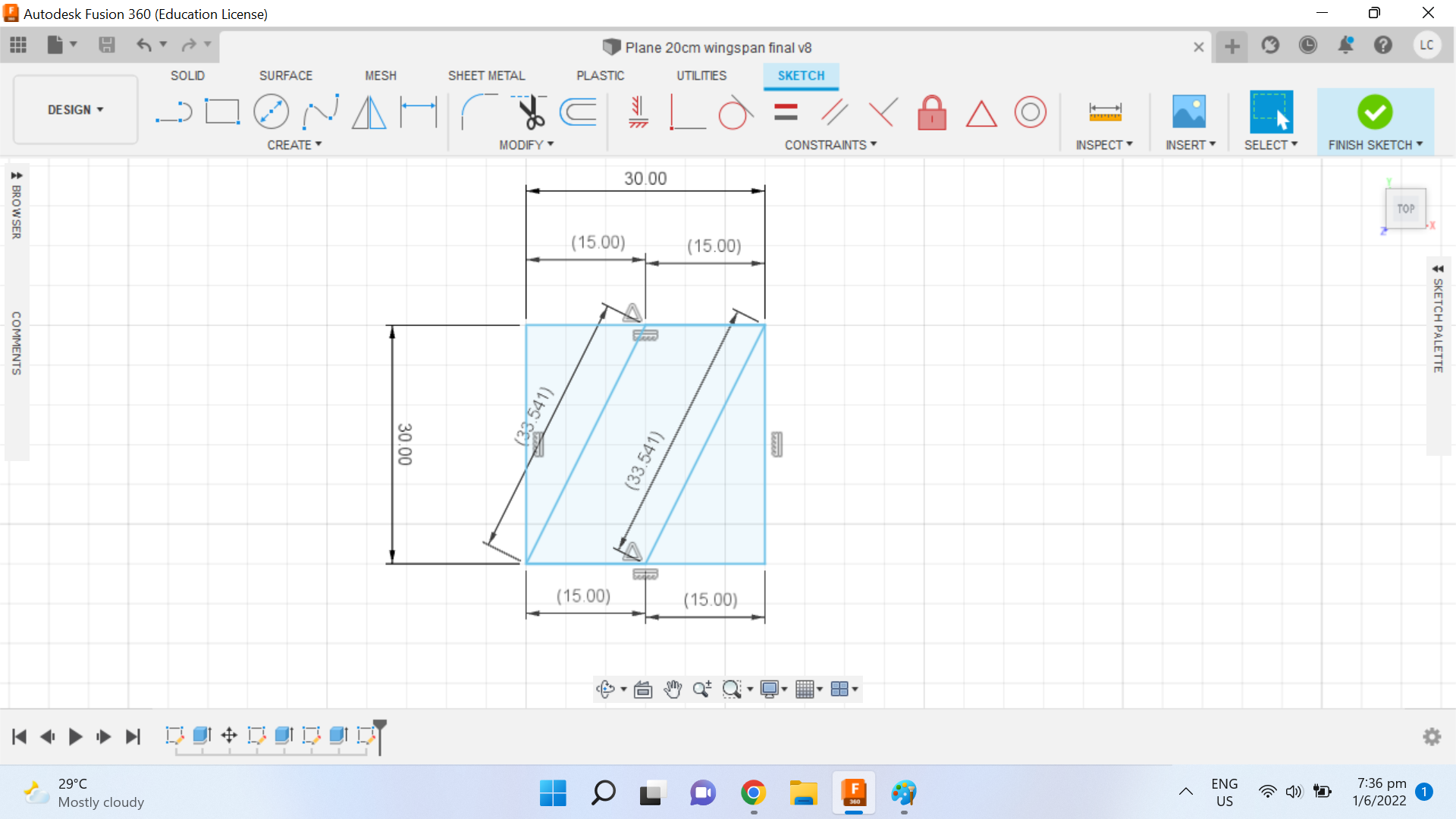

The vertical stabilizer is a Trapezoid of width 30mm and height 30mm and a thickness of 10mm. The vertical stabilizer dimension is shown in the picture. Use sketch dimension tool to fix the dimensions.

Engine

Engine and engine support part 1.png
Engine and engine support part 2.png

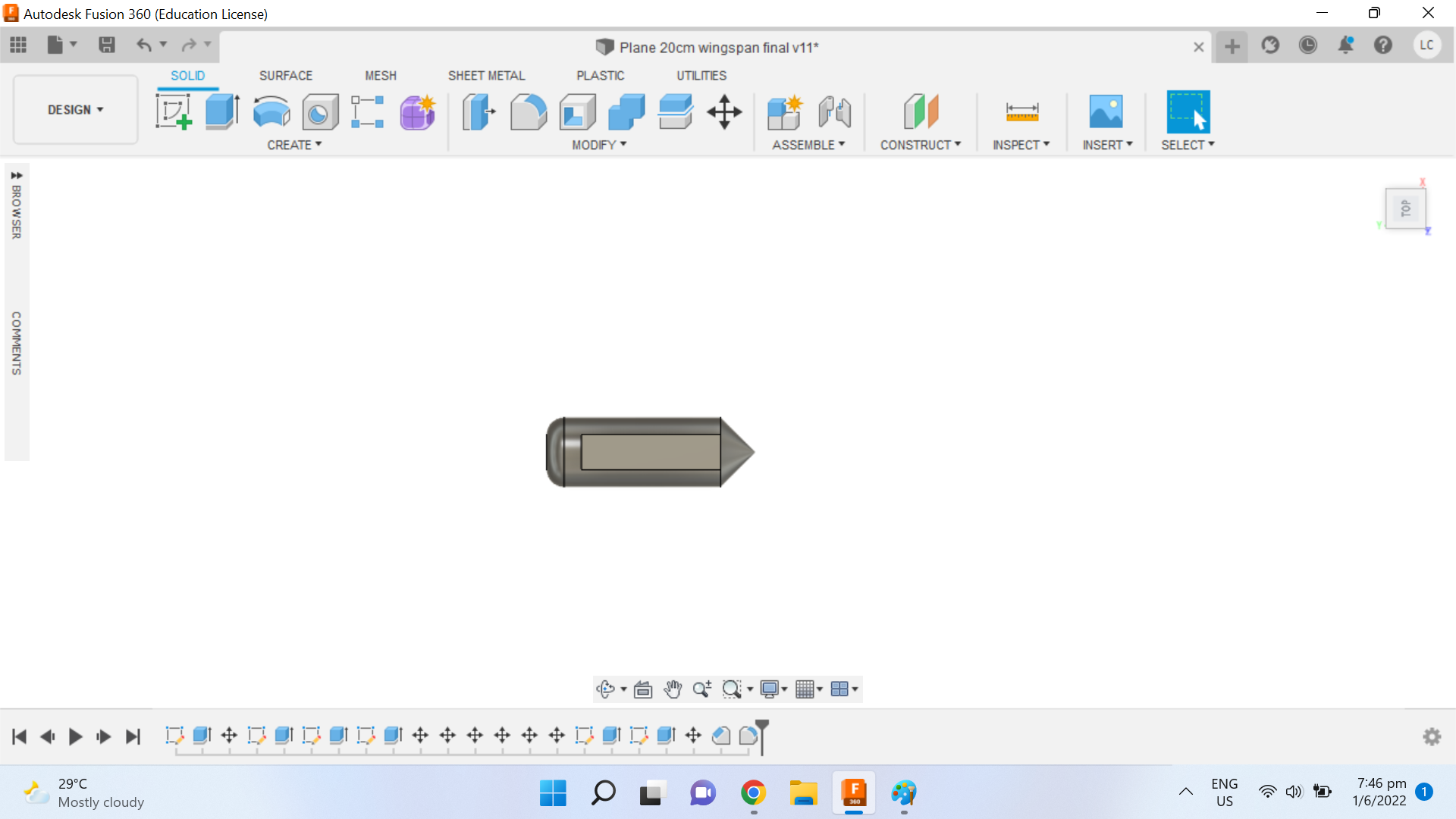

The engine consists of two parts the engine support and the engine. The engine support has a length of 20mm and width of 5mm and a height of 12.5mm. The engine has a diameter of 10mm and a length of 30mm. The engine support intercepts the engine at 5mm. Apply fillet of 2.5mm at the front part of the engine and chamfer of 5mm at the back part of the engine. Use sketch dimension tool to fix the dimensions.

Apply Fillet for the Front of the Wing, Horizontal and Vertical Stabilizers

Fillet front wing.png
Fillet front horizontal stabilizer.png
Fillet front vertical stabilizer.png

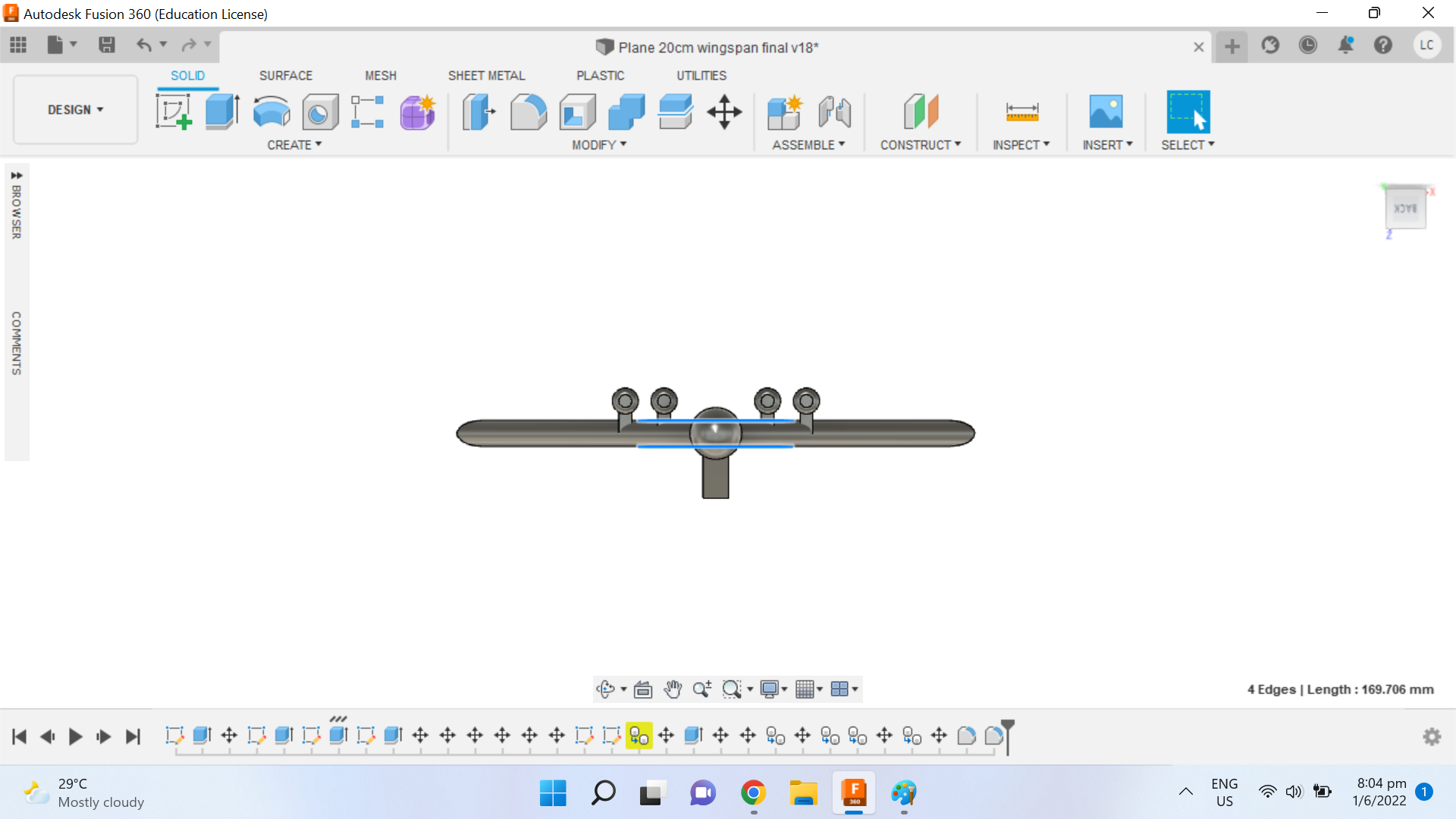

Apply 5mm fillet on the front of the wing, horizontal and vertical stabilizers for both top and bottom of the edges.

Apply Fillet on the Front of the Fuselage

Fillet front fuselage.png

Apply 10mm fillet on the front of the fuselage.

Apply Chamfer on the Back of the Wing, Horizontal and Vertical Stabilizers

Chamfer back wing.png
Chamfer back horizontal stabilizer.png
Chamfer back vertical stabilizer.png

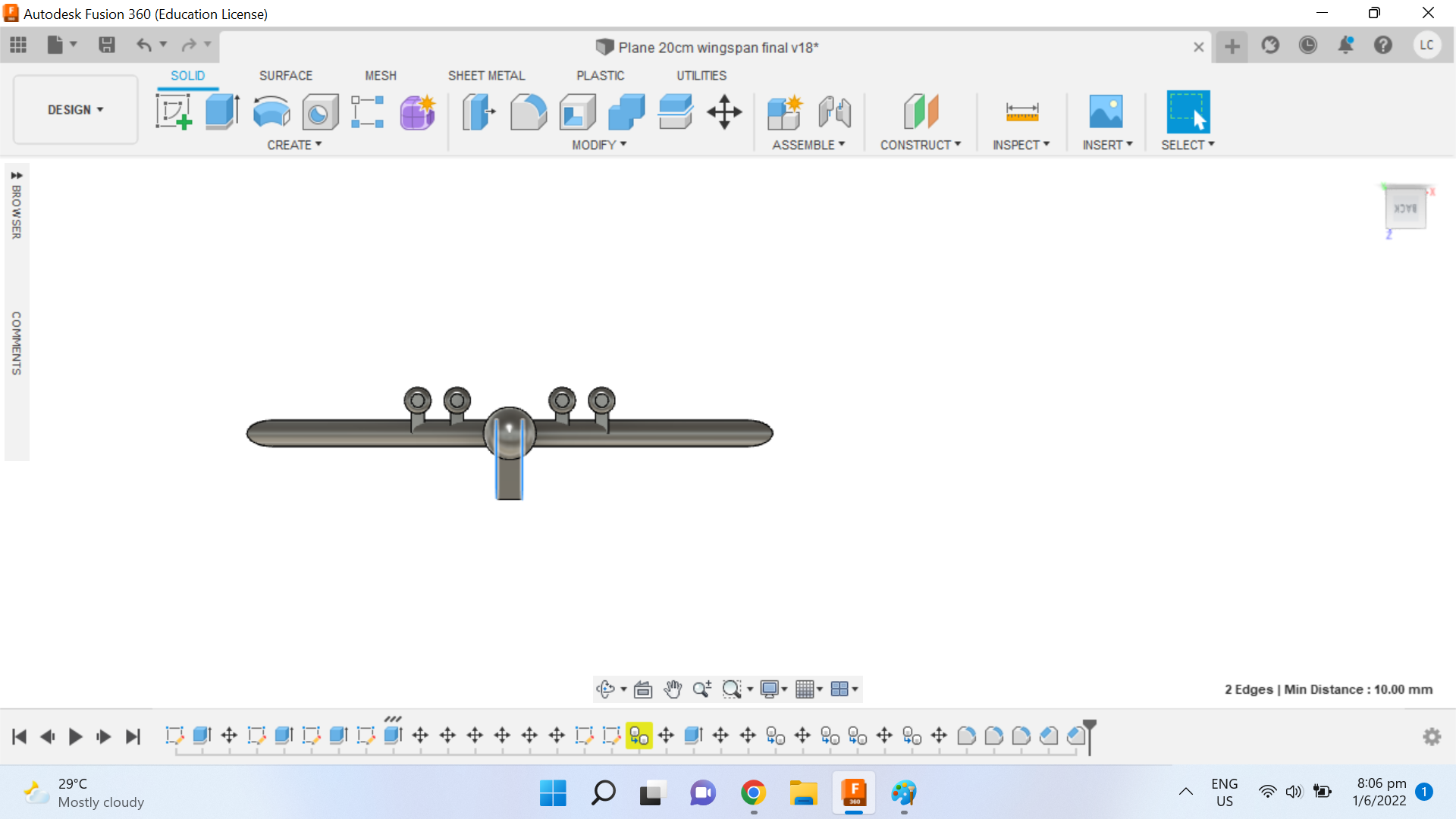

Apply 5mm chamfer on the front of the wing, horizontal stabilizer for both top and bottom of the edges. Apply 2.5mm chamfer on the back of the vertical stabilizer.

Apply Chamfer on the Back of the Fuselage

Chamfer back fuselage.png

Apply 10mm chamfer on the back of the fuselage.

Putting All the Parts Together

Plane cover.png

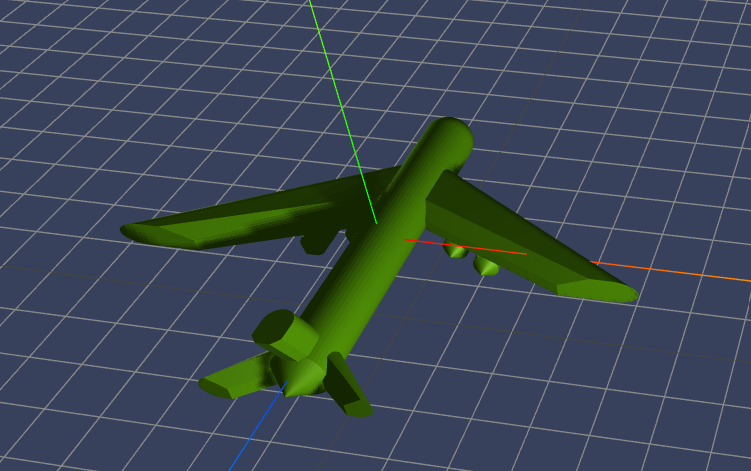

Use combine function to combine all the parts together after you have arrange the parts to their positions.

The 3D Model by JLCPCB

Plane front.jpg
Plane back.jpg

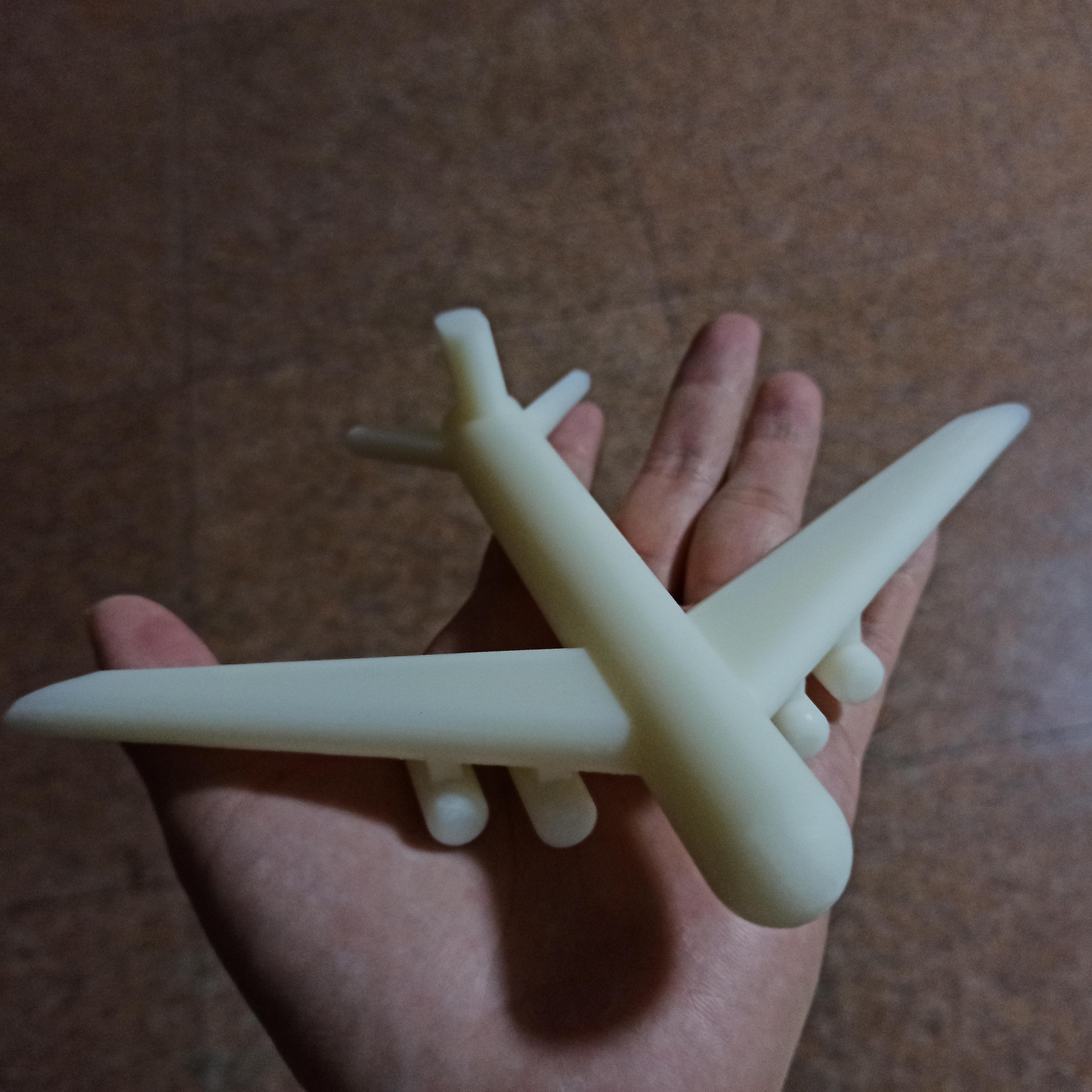

The 3D prints are great. It is very smooth and the colour is very even. It is very heavy in weight.
