2 Minute Ultrasonic Alarm


The ultrasonic sensor works by sending out sound waves and counting how long it takes for them to come back ( having been reflected from the nearest object.

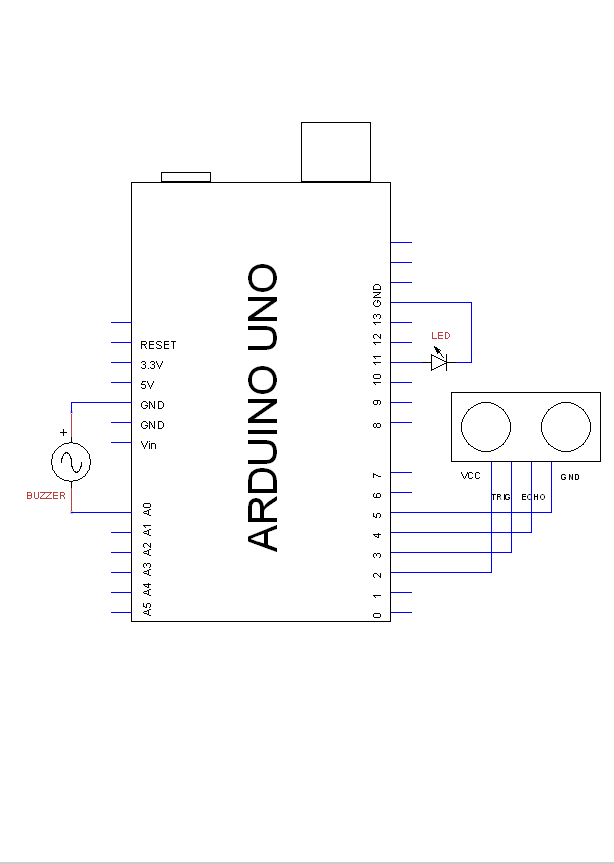

In this circuit the ultrasonic sensor HC-SR04 plugs straight in to the Arduin, with pins 7 and 4 being used and GND and Vcc. The distance is calculated and every time the distance is less than a given threshold an alarm is raised, thus turning on an LED and a buzzer
Componentsused:
•Arduino Uno
•5mm LED
•Piezo Buzzer
•Ultrasonic Sensor HC-SR04
