2-Axis JoyStick on a Basic Stamp

JoyStick

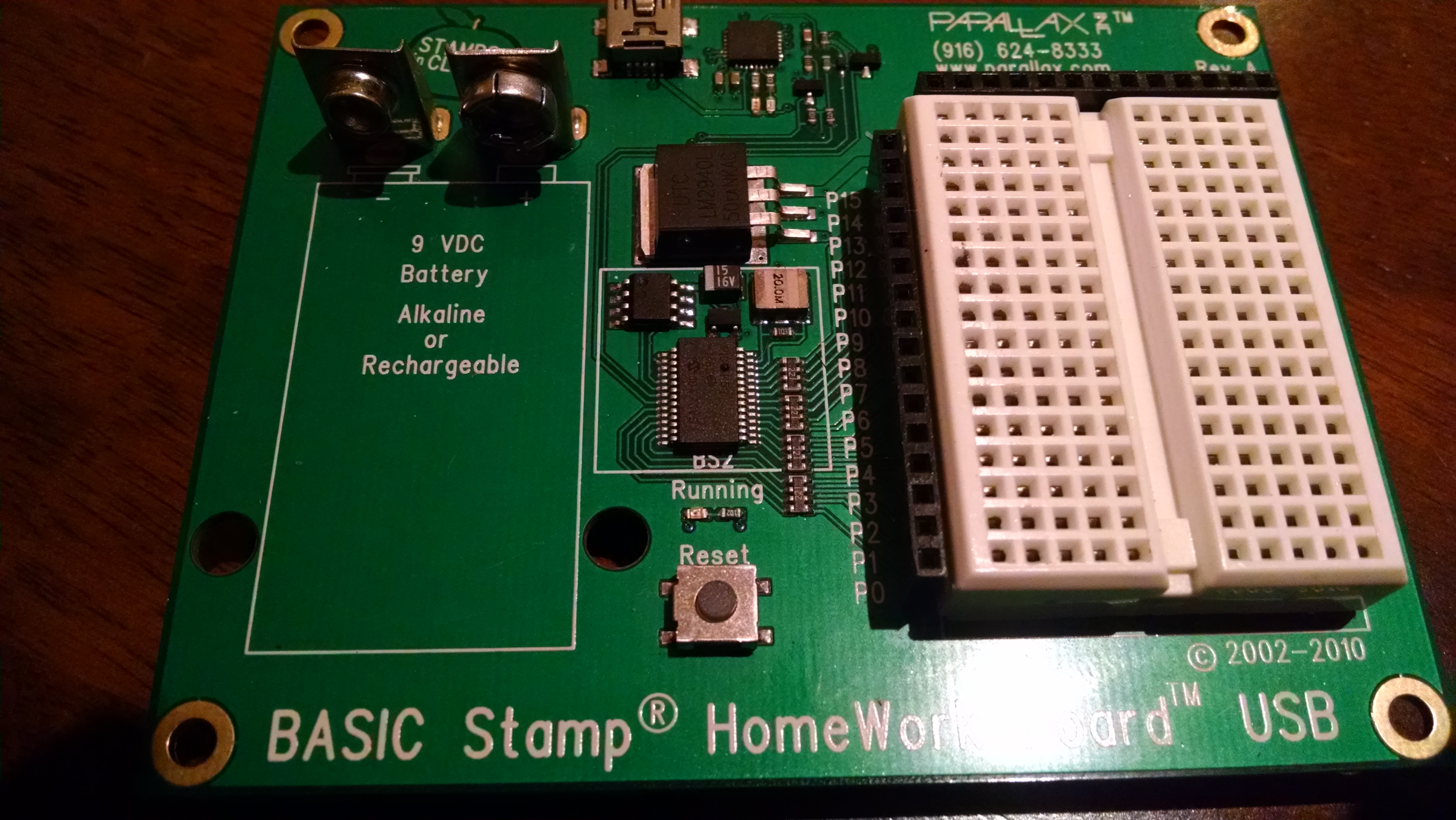

Step back and look over the basic stamp and get to know everything on it.

Put two wires on the -VSS at the top of the board. then run one wire to pin 11 on the breadboard. The second wire will go to pin 0 on the breadboard.

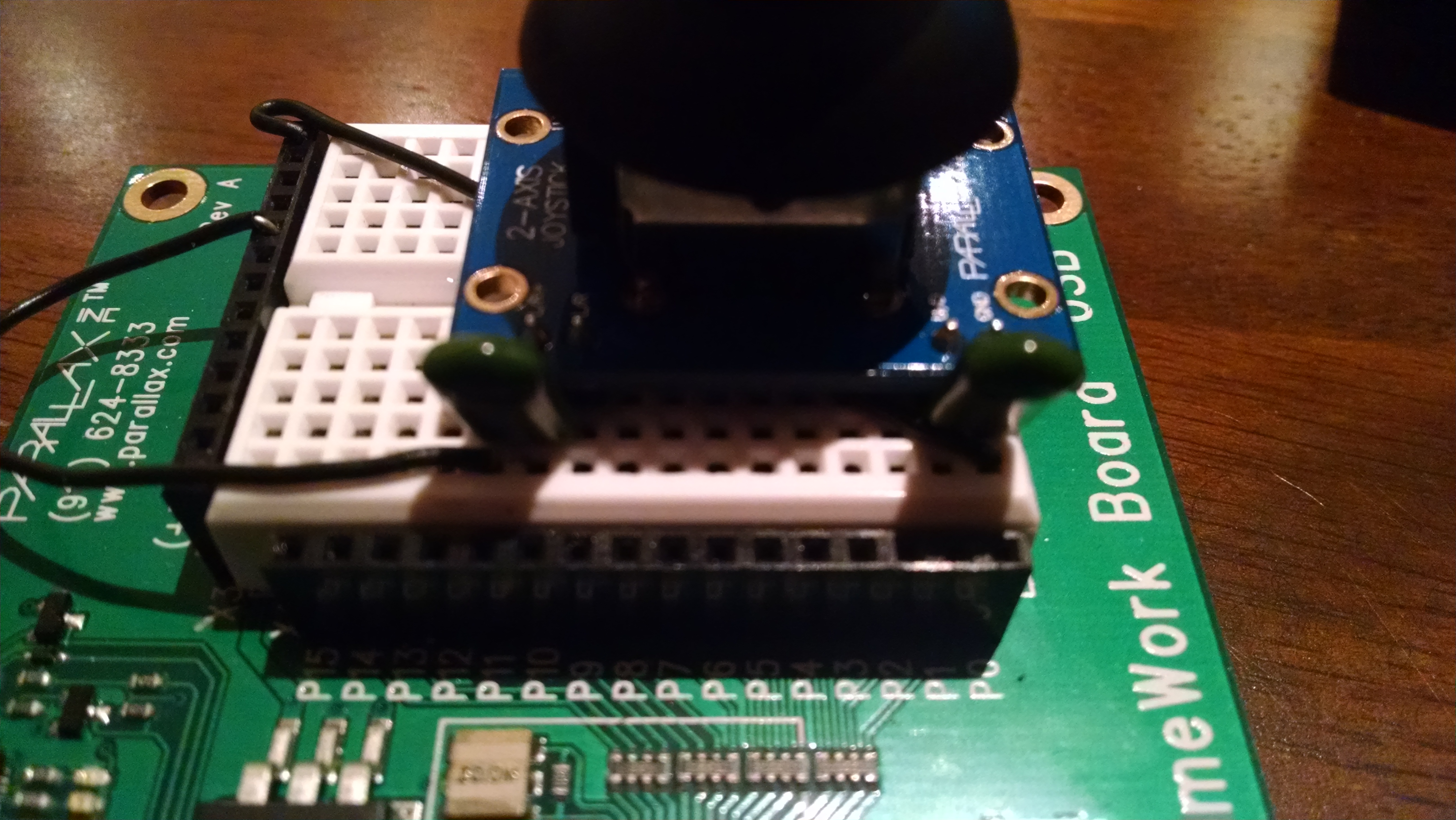

Now take the joystick and install it on the breadboard. it should be sitting all the way to the left at the very bottom. GND should be on pin 0 on breadboard.

You will need two 0.01uF capacitors. install them on the breadboard at pin 0,1 and then at 9,11.

Now take 2 220-Ohm resistors and put on the breadboard at pin 1,4 then the other at 7,9.

Now take 2 wires and put them on pin 0,1 then the other end on pin 4,7 on the breadboard.

Here is the PBasic code to make the joystick work.
