Look how easy is to make a Flexible Shaft Coupling for CNC on Fusion 360.
Follow the tutorial video:
Follow my youtube channel tutorial:
Supplies
Software that was used in this project:
OBS Studio: Record the screen
Fusion 360: CAD design and PDF drawing instructions
Affinity Designer: Make the thumbnail
Affinity Publisher: Make the Technical Drawing E-Book

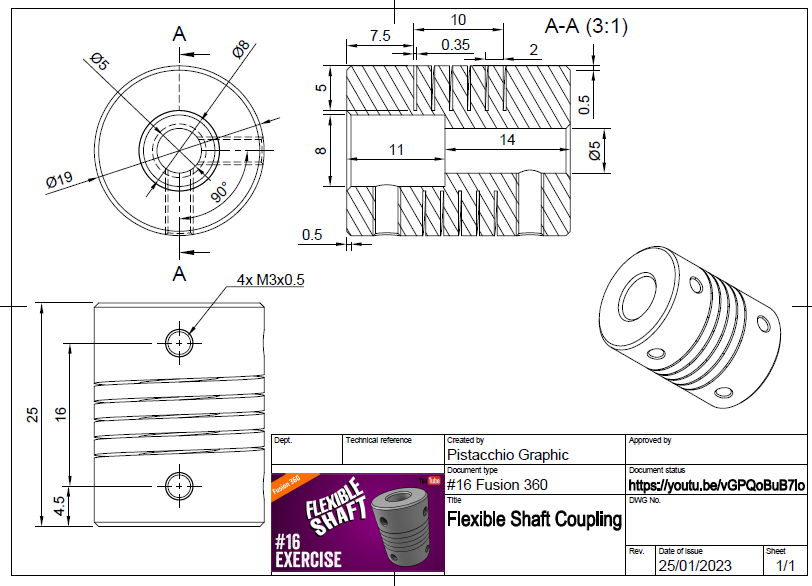

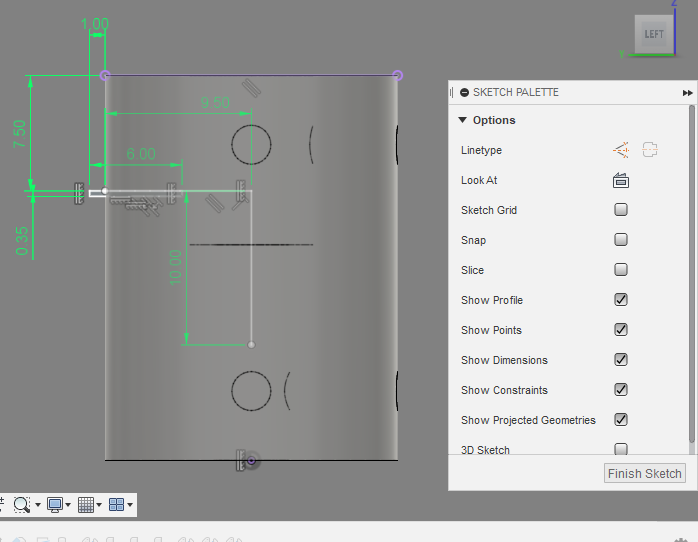

2D Sketch
![Capturar7.PNG](/proxy/?url=https://content.instructables.com/FYK/J7VU/LDHE71XA/FYKJ7VULDHE71XA.png&filename=Capturar7.PNG)
Start followwing the 2D sketch.
Downloads
Extrude
![Capturar.PNG](/proxy/?url=https://content.instructables.com/F0X/T0PN/LDHE70BA/F0XT0PNLDHE70BA.png&filename=Capturar.PNG)
![Capturar1.PNG](/proxy/?url=https://content.instructables.com/FS7/TRHO/LDHE70BB/FS7TRHOLDHE70BB.png&filename=Capturar1.PNG)

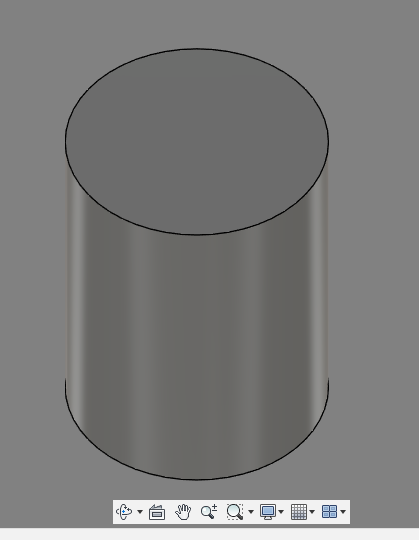

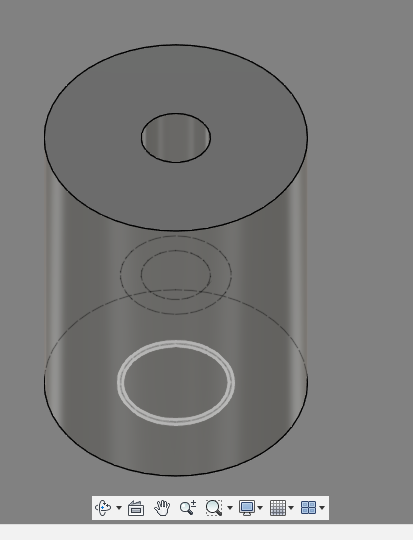

Make a cilinder with 19mm of diameter and a 25mm depth, after make a hole with 8mm of diameter and a 14mm depth. Another hole with 5mm and a 11mm depth.
Side Hole
![Capturar2.PNG](/proxy/?url=https://content.instructables.com/FT1/UZNS/LDHE70BC/FT1UZNSLDHE70BC.png&filename=Capturar2.PNG)
![Capturar3.PNG](/proxy/?url=https://content.instructables.com/FF8/T6SI/LDHE70BD/FF8T6SILDHE70BD.png&filename=Capturar3.PNG)

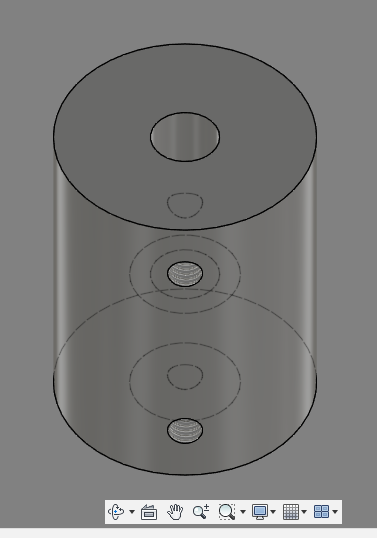

Space between the two M3/0,5mm hole are 16mm and 4,5mm of the bottom.
Flexible Shaft
![Capturar5.PNG](/proxy/?url=https://content.instructables.com/FWW/L48Q/LDHE70BN/FWWL48QLDHE70BN.png&filename=Capturar5.PNG)
![Capturar4.PNG](/proxy/?url=https://content.instructables.com/FO4/26FG/LDHE70BI/FO426FGLDHE70BI.png&filename=Capturar4.PNG)
![Capturar6.PNG](/proxy/?url=https://content.instructables.com/F4R/PUCC/LDHE70BO/F4RPUCCLDHE70BO.png&filename=Capturar6.PNG)

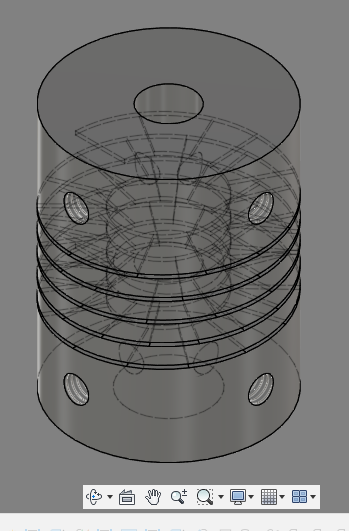

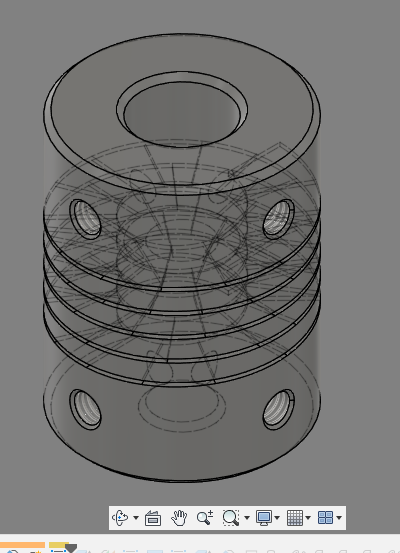

Make a coil profile using the 2D sketch.
