$10 DIY Dremel /RotaryTool
![IMG_6460.JPG](/proxy/?url=https://content.instructables.com/FXT/CQB4/J048APHL/FXTCQB4J048APHL.jpg&filename=IMG_6460.JPG)
![Fullscreen capture 12-Mar-17 125759 AM.jpg](/proxy/?url=https://content.instructables.com/F33/U30D/J048CI89/F33U30DJ048CI89.jpg&filename=Fullscreen capture 12-Mar-17 125759 AM.jpg)
![Fullscreen capture 12-Mar-17 124907 AM.jpg](/proxy/?url=https://content.instructables.com/FRX/N9SH/J048CHPU/FRXN9SHJ048CHPU.jpg&filename=Fullscreen capture 12-Mar-17 124907 AM.jpg)

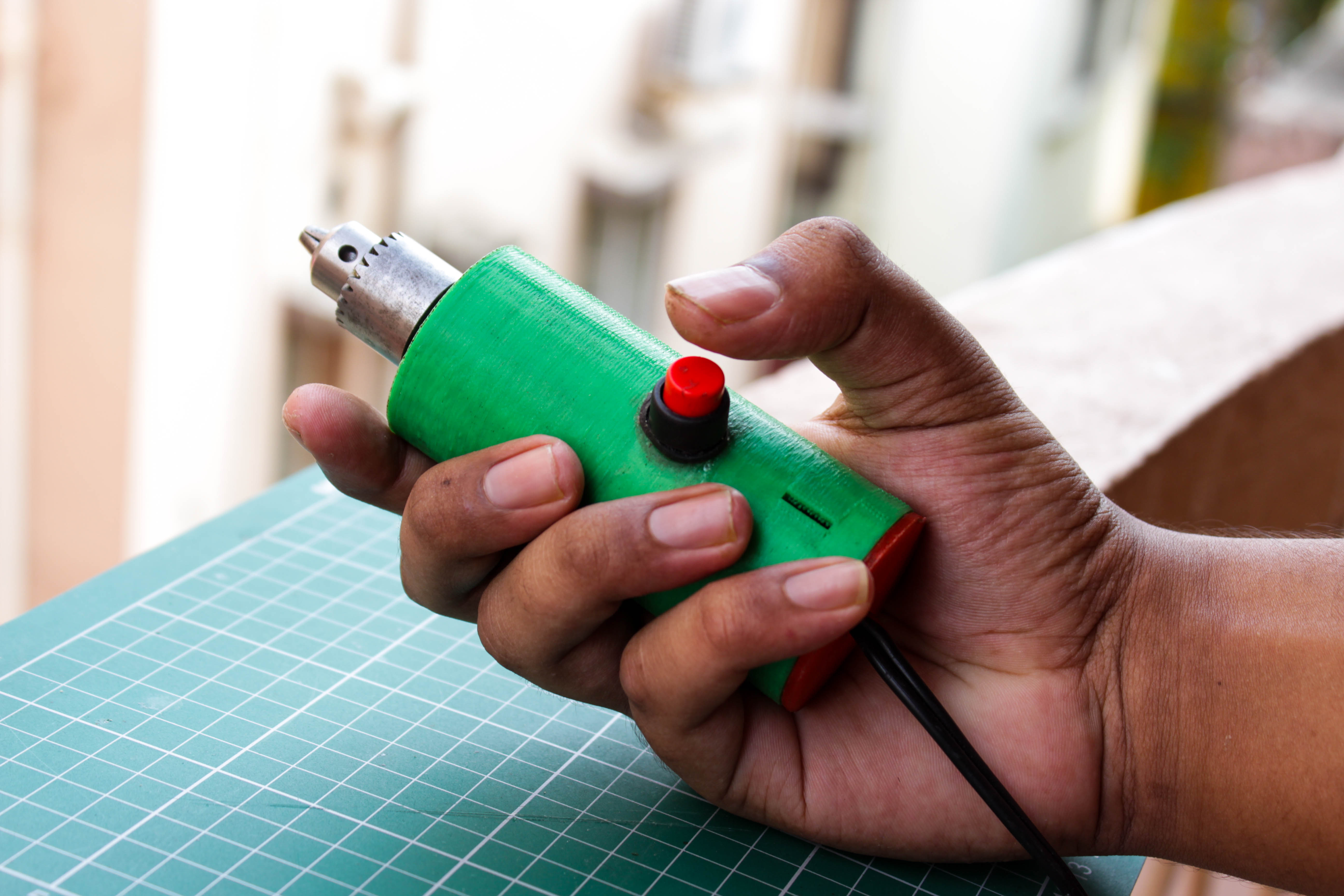

A Rotary Tool is perhaps the most used tool. It can Cut, Grind, Sand, Polish, Engrave with the Different types of bits.This small little DIY Dremel is easy to hold and cut metal, Acrylic, Drill PCB. Sand And Engrave too.
It is Easy to make and is very powerful.
It can work both with an adapter or with any battery Lipo, Lead Acid.
Mostly It will come really handy for future projects.
This project is made for the build a tool contest , so if you like it do vote for it
You Can Also Watch the Video [ Play Video]
If you like this project subscribe to my youtube channel.
List
![fd621f08-2d1c-4a54-a37a-a14523f69a32.jpg](/proxy/?url=https://content.instructables.com/FWY/1RSA/J048AO46/FWY1RSAJ048AO46.jpg&filename=fd621f08-2d1c-4a54-a37a-a14523f69a32.jpg)
![dde02c13-2082-42ed-b012-b7b19732a91d.jpg](/proxy/?url=https://content.instructables.com/FDS/6AYR/J048AP8G/FDS6AYRJ048AP8G.jpg&filename=dde02c13-2082-42ed-b012-b7b19732a91d.jpg)
![d66c7128-5b1d-4e8d-8852-2da2710bc5a6.jpg](/proxy/?url=https://content.instructables.com/FFI/K4J0/J048AP5V/FFIK4J0J048AP5V.jpg&filename=d66c7128-5b1d-4e8d-8852-2da2710bc5a6.jpg)
![c3662916-8c95-4753-af30-2f3b6da3930c.jpg](/proxy/?url=https://content.instructables.com/F7A/J985/J048AW2Y/F7AJ985J048AW2Y.jpg&filename=c3662916-8c95-4753-af30-2f3b6da3930c.jpg)
Component
Drill Chuck ::http://amzn.to/2mWX5M4
Drill Chuck Alternate link : https://goo.gl/8Z9dua
DC Motor: :http://amzn.to/2mWZQND
Momentary Switch : http://amzn.to/2mfMrLT
18 AWG wire :https://goo.gl/L3eD05
Epoxy glue :http://amzn.to/2niP3KC
M3 bolts https://goo.gl/008pi0
Attachment
Wood Cutting disk : https://goo.gl/m1X40Q
Abrasive Cutting disk :https://goo.gl/0Avubi
Drill bit : https://goo.gl/008pi0
Sanding Bit https://goo.gl/eRpX8c
Tool
3D Printer Used https://goo.gl/Xpp422
DIY Soldering Helping Hand https://www.instructables.com/id/DIY-Flexible-Sold...
DIY Fume Extractor https://www.instructables.com/id/DIY-Fume-Extracto...
:
Designing the Enclosure
![Fullscreen capture 11-Mar-17 115457 PM.jpg](/proxy/?url=https://content.instructables.com/FL7/6MRE/J048B9H9/FL76MREJ048B9H9.jpg&filename=Fullscreen capture 11-Mar-17 115457 PM.jpg)
![Fullscreen capture 11-Mar-17 115531 PM.jpg](/proxy/?url=https://content.instructables.com/FLZ/O8EP/J048B9NB/FLZO8EPJ048B9NB.jpg&filename=Fullscreen capture 11-Mar-17 115531 PM.jpg)
![Fullscreen capture 11-Mar-17 115426 PM.jpg](/proxy/?url=https://content.instructables.com/FF7/914E/J048B9B0/FF7914EJ048B9B0.jpg&filename=Fullscreen capture 11-Mar-17 115426 PM.jpg)
![Fullscreen capture 11-Mar-17 113957 PM.jpg](/proxy/?url=https://content.instructables.com/F6Q/3CQ6/J048AYXS/F6Q3CQ6J048AYXS.jpg&filename=Fullscreen capture 11-Mar-17 113957 PM.jpg)
![Fullscreen capture 11-Mar-17 114050 PM.jpg](/proxy/?url=https://content.instructables.com/F7T/IMSB/J048AYOB/F7TIMSBJ048AYOB.jpg&filename=Fullscreen capture 11-Mar-17 114050 PM.jpg)

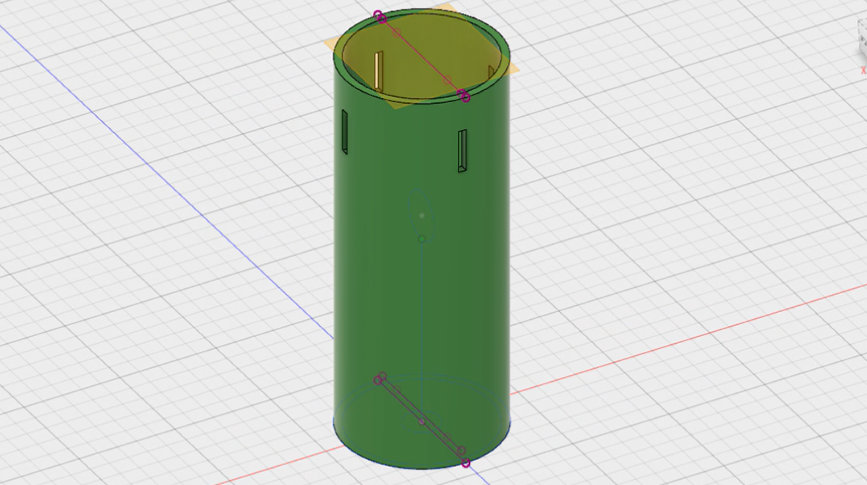

So Basically I started by designing the motor enclosure, I took a measurement of the motor diameter, the motor height, and motor shaft diameter.Then Using Fusion 360, I Started making a basic Sketch.
I then added the switch mount hole and air flow holes.
Now if you are new to 3D designing Instructables give you a good start with their instructable classes.
Jonathan Odom made a really good tutorial in it.
3D Printing the Enclosure
![27352f89-1871-49bd-9d1d-0b9dcf1565b7.jpg](/proxy/?url=https://content.instructables.com/F17/6XD4/J048AONU/F176XD4J048AONU.jpg&filename=27352f89-1871-49bd-9d1d-0b9dcf1565b7.jpg)
![57cc3666-1884-484c-934b-3a372b02c0e3.jpg](/proxy/?url=https://content.instructables.com/FHV/J5XE/J048AOFV/FHVJ5XEJ048AOFV.jpg&filename=57cc3666-1884-484c-934b-3a372b02c0e3.jpg)
![Fullscreen capture 11-Mar-17 114720 PM.jpg](/proxy/?url=https://content.instructables.com/FG9/GR6T/J048B6Z6/FG9GR6TJ048B6Z6.jpg&filename=Fullscreen capture 11-Mar-17 114720 PM.jpg)
STL Files http://www.thingiverse.com/thing:2168240
I First sliced the STL using Cura with the following Setting
Temperature 195 C
Speed 85 mm/s
Raft & Support Disabled
Layer height 0.2
Infill 20%
The Print time took around 2 Hour 30 mins
Tinning Wire
![Fullscreen capture 11-Mar-17 114317 PM.jpg](/proxy/?url=https://content.instructables.com/F5C/VI29/J048B6T1/F5CVI29J048B6T1.jpg&filename=Fullscreen capture 11-Mar-17 114317 PM.jpg)
![Fullscreen capture 11-Mar-17 114412 PM.jpg](/proxy/?url=https://content.instructables.com/FT8/2DZZ/J048BBPH/FT82DZZJ048BBPH.jpg&filename=Fullscreen capture 11-Mar-17 114412 PM.jpg)
![Fullscreen capture 12-Mar-17 120033 AM.jpg](/proxy/?url=https://content.instructables.com/FWM/R3CB/J048BE3M/FWMR3CBJ048BE3M.jpg&filename=Fullscreen capture 12-Mar-17 120033 AM.jpg)
![9d9d47f7-2f66-4475-8b1b-47b1f4d23c5d (1).jpg](/proxy/?url=https://content.instructables.com/FIV/HZT9/J048AOC6/FIVHZT9J048AOC6.jpg&filename=9d9d47f7-2f66-4475-8b1b-47b1f4d23c5d (1).jpg)
![Fullscreen capture 12-Mar-17 120117 AM.jpg](/proxy/?url=https://content.instructables.com/F4A/KRC4/J048BDXK/F4AKRC4J048BDXK.jpg&filename=Fullscreen capture 12-Mar-17 120117 AM.jpg)
I Used 18 AWG for the project as it will handle more current.Now before starting to solder it, we need to tin the wires.
To tin a wire, apply the tip of your iron to the wire for a second or two, then apply the solder to the wire. The solder should flow freely onto the wire and coat it (if it's stranded wire the solder should flow into it, and fill the wire). You may need to snip the end off afterward, particularly if you have put a little too much solder on and it has formed a little ball at the end of the wire.
Soldering the Motor
![Fullscreen capture 12-Mar-17 120757 AM.jpg](/proxy/?url=https://content.instructables.com/FLV/CNOI/J048BIN3/FLVCNOIJ048BIN3.jpg&filename=Fullscreen capture 12-Mar-17 120757 AM.jpg)
![f08bee0c-b8ab-4a5d-b46d-b3baf553496d.jpg](/proxy/?url=https://content.instructables.com/FG3/65VV/J048APBX/FG365VVJ048APBX.jpg&filename=f08bee0c-b8ab-4a5d-b46d-b3baf553496d.jpg)
![Fullscreen capture 12-Mar-17 121153 AM.jpg](/proxy/?url=https://content.instructables.com/FQB/35JU/J048BKT3/FQB35JUJ048BKT3.jpg&filename=Fullscreen capture 12-Mar-17 121153 AM.jpg)

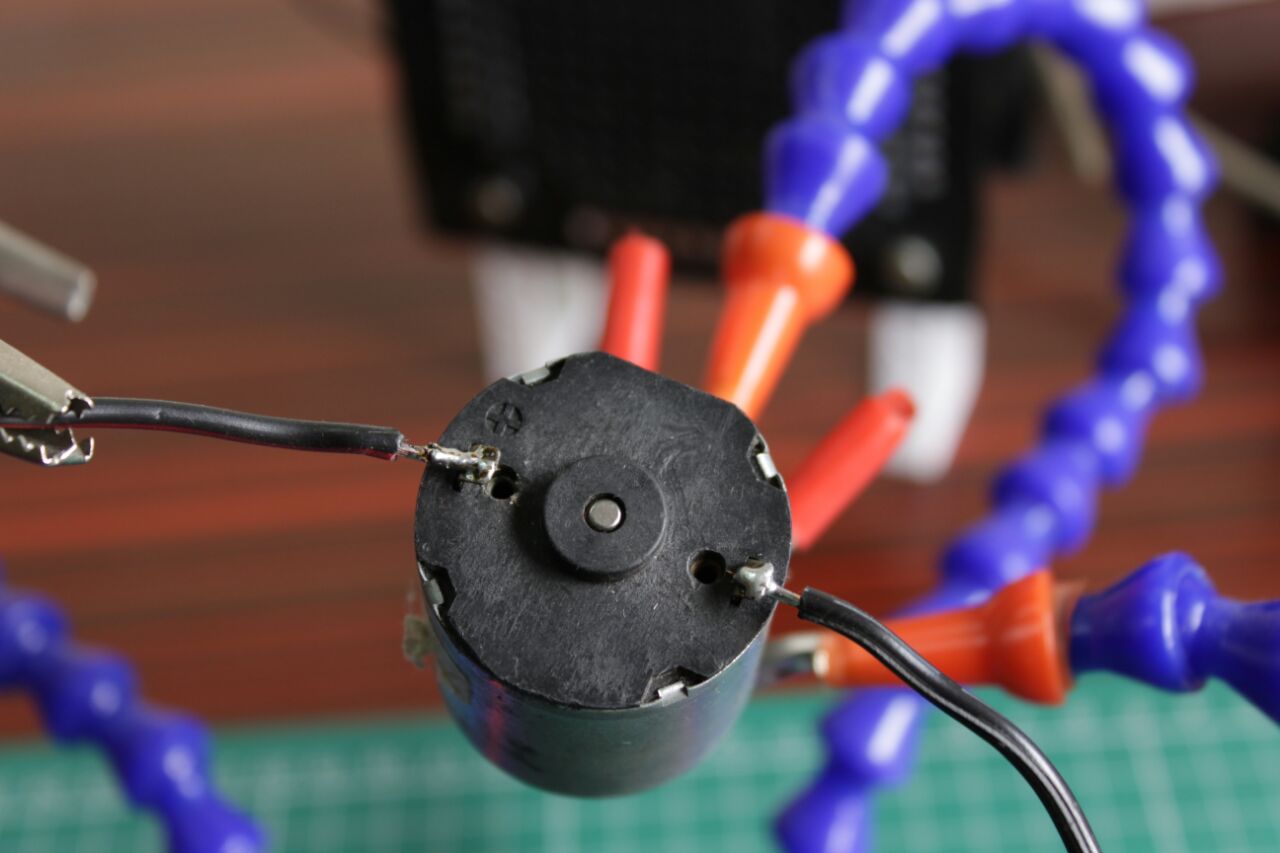

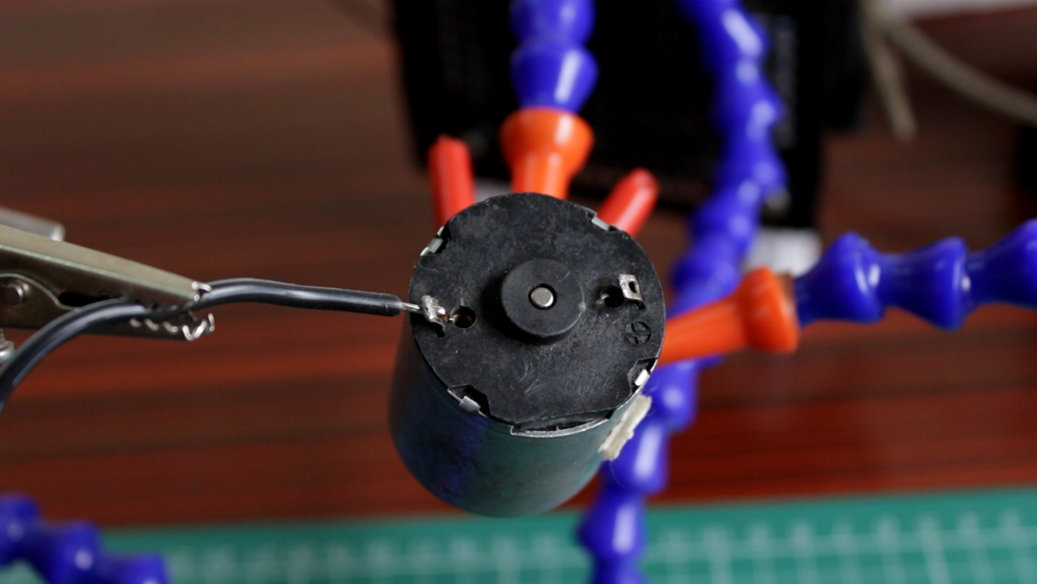

The Motor I am using can handle voltages up to 24 V. This motor is a 550 motor but I have salvaged it from an old printer long ago.The only difference is has a brass gear on the shaft. Anyways I tinned the motor terminal first with a little solder, And then soldered the tinned wire, from the last step. Btw the whole motor easy holds by the helping hand.
Soldering the Switch
![Fullscreen capture 12-Mar-17 121514 AM.jpg](/proxy/?url=https://content.instructables.com/FUH/ANU0/J048BPVP/FUHANU0J048BPVP.jpg&filename=Fullscreen capture 12-Mar-17 121514 AM.jpg)
![Fullscreen capture 12-Mar-17 121418 AM.jpg](/proxy/?url=https://content.instructables.com/FZJ/1ZS8/J048BPVZ/FZJ1ZS8J048BPVZ.jpg&filename=Fullscreen capture 12-Mar-17 121418 AM.jpg)
![Fullscreen capture 12-Mar-17 121753 AM.jpg](/proxy/?url=https://content.instructables.com/F3O/NCTD/J048BP0C/F3ONCTDJ048BP0C.jpg&filename=Fullscreen capture 12-Mar-17 121753 AM.jpg)
![Fullscreen capture 12-Mar-17 121910 AM.jpg](/proxy/?url=https://content.instructables.com/FH3/Q6VS/J048BP6L/FH3Q6VSJ048BP6L.jpg&filename=Fullscreen capture 12-Mar-17 121910 AM.jpg)
The Next step is to solder the switch. Now the Switch is used, turn on and latched to the on state until it is pressed again .You can also use a momentary switch.
Taking the wires out from the hole I started to solder the wired to the Switch.

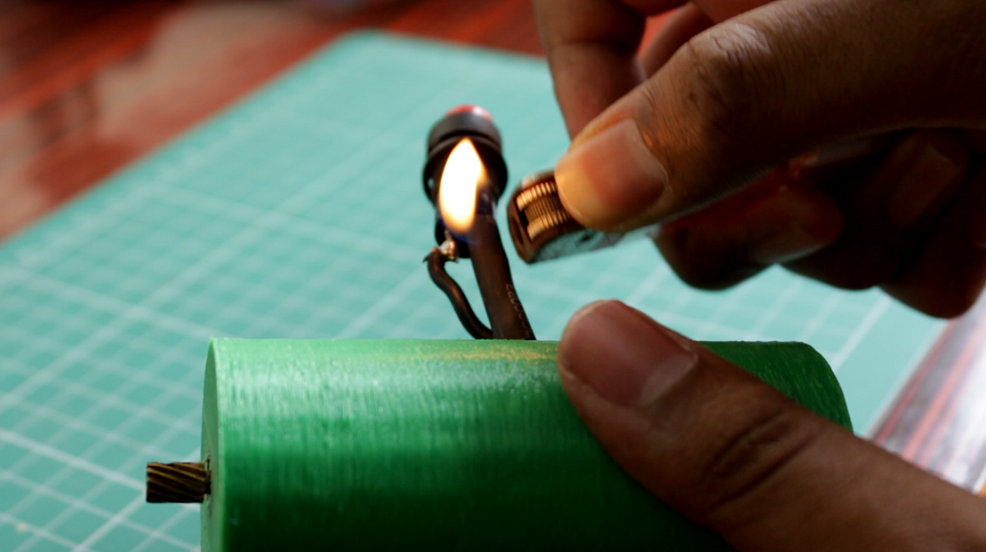

I used some heat shrinks to prevent shorts.
Then I fixed the switch in position .
Applying Glue
![Fullscreen capture 12-Mar-17 122520 AM.jpg](/proxy/?url=https://content.instructables.com/F2K/PWNZ/J048BTWC/F2KPWNZJ048BTWC.jpg&filename=Fullscreen capture 12-Mar-17 122520 AM.jpg)
![Fullscreen capture 12-Mar-17 122631 AM.jpg](/proxy/?url=https://content.instructables.com/F7X/UP27/J048BTY0/F7XUP27J048BTY0.jpg&filename=Fullscreen capture 12-Mar-17 122631 AM.jpg)
![Fullscreen capture 12-Mar-17 123159 AM.jpg](/proxy/?url=https://content.instructables.com/FGS/QC8C/J048BXYL/FGSQC8CJ048BXYL.jpg&filename=Fullscreen capture 12-Mar-17 123159 AM.jpg)
![Fullscreen capture 12-Mar-17 123048 AM.jpg](/proxy/?url=https://content.instructables.com/FG0/YYLV/J048BYAP/FG0YYLVJ048BYAP.jpg&filename=Fullscreen capture 12-Mar-17 123048 AM.jpg)
I used A bit of epoxy glue to fix the motor in the place. To apply the glue we need to prepare it at first by mixing equal amounts of resin and hardener. The bond is really tough but it takes the time to cure, hours .apphours.
Once the glue had cured it is a hard bond.Alternately you can use some m3 bolts to fix the motor
Fisnishing Up
![Fullscreen capture 12-Mar-17 123253 AM.jpg](/proxy/?url=https://content.instructables.com/FW6/AWV2/J048BY4N/FW6AWV2J048BY4N.jpg&filename=Fullscreen capture 12-Mar-17 123253 AM.jpg)
![Fullscreen capture 12-Mar-17 124253 AM.jpg](/proxy/?url=https://content.instructables.com/FU7/FAYB/J048C46J/FU7FAYBJ048C46J.jpg&filename=Fullscreen capture 12-Mar-17 124253 AM.jpg)
![IMG_6459.JPG](/proxy/?url=https://content.instructables.com/FCA/J46X/J048APFP/FCAJ46XJ048APFP.jpg&filename=IMG_6459.JPG)
![b1ca679c-5229-42b5-8ebe-ee725d0db92d.jpg](/proxy/?url=https://content.instructables.com/F43/MM9R/J048AOUF/F43MM9RJ048AOUF.jpg&filename=b1ca679c-5229-42b5-8ebe-ee725d0db92d.jpg)

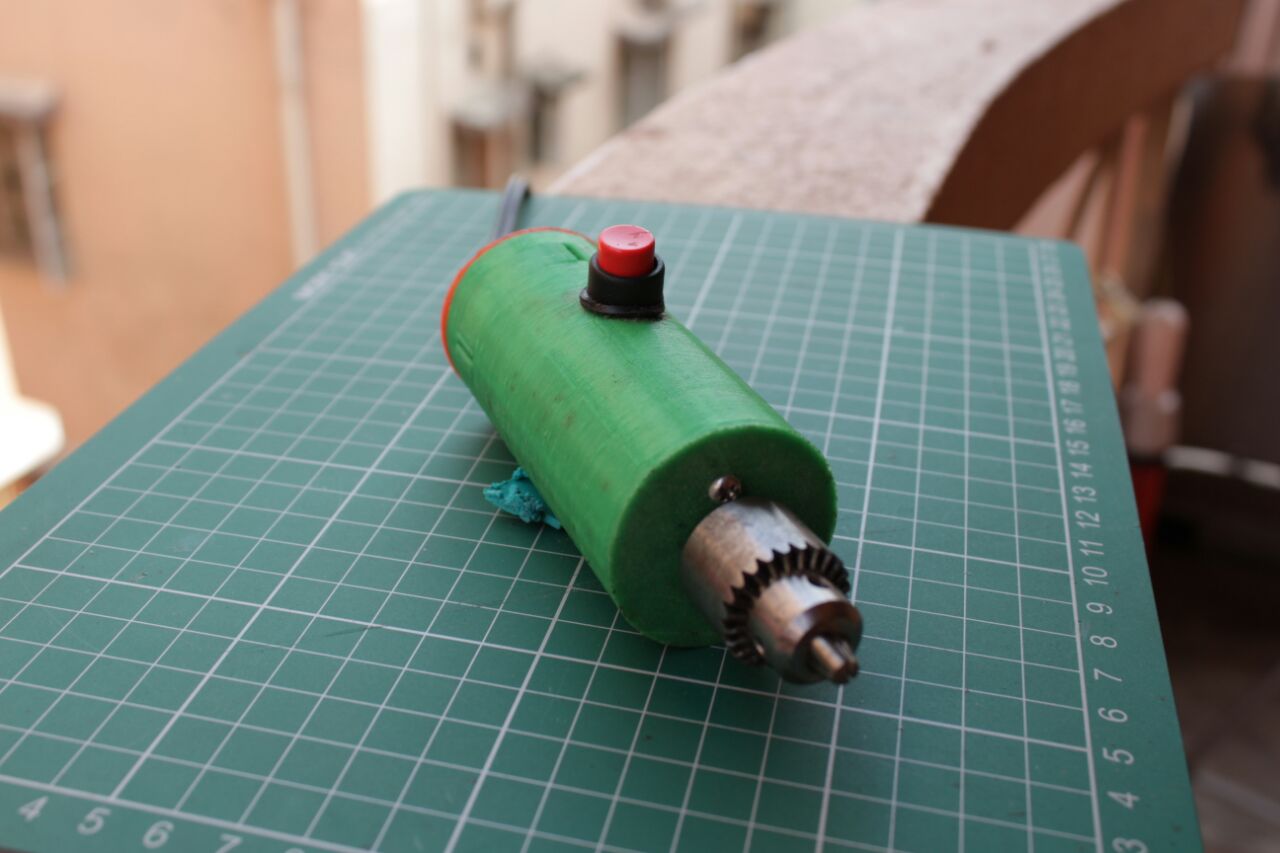

I then put the motor in the enclosure, enclosure took the wire out of end part and then closen closure with the end cap. I Also Drilled and added the nuts later just be on the safe side befoe the glue dries. Then I fixed the chuck.I took some care to make sure the chuck fits perfectly aligned .After the glue cured it was time to test the Tool
Performance Test
![Fullscreen capture 12-Mar-17 125234 AM.jpg](/proxy/?url=https://content.instructables.com/FZF/730A/J048CFIV/FZF730AJ048CFIV.jpg&filename=Fullscreen capture 12-Mar-17 125234 AM.jpg)
![Fullscreen capture 12-Mar-17 124907 AM.jpg](/proxy/?url=https://content.instructables.com/FVN/YBVF/J048CG1K/FVNYBVFJ048CG1K.jpg&filename=Fullscreen capture 12-Mar-17 124907 AM.jpg)
![Fullscreen capture 12-Mar-17 125057 AM.jpg](/proxy/?url=https://content.instructables.com/FPE/PO0G/J048CFCQ/FPEPO0GJ048CFCQ.jpg&filename=Fullscreen capture 12-Mar-17 125057 AM.jpg)
![Fullscreen capture 12-Mar-17 125638 AM.jpg](/proxy/?url=https://content.instructables.com/FMM/2K2D/J048CFIW/FMM2K2DJ048CFIW.jpg&filename=Fullscreen capture 12-Mar-17 125638 AM.jpg)
![Fullscreen capture 12-Mar-17 124749 AM.jpg](/proxy/?url=https://content.instructables.com/FQF/KCXK/J048CFV8/FQFKCXKJ048CFV8.jpg&filename=Fullscreen capture 12-Mar-17 124749 AM.jpg)
![Fullscreen capture 12-Mar-17 125759 AM.jpg](/proxy/?url=https://content.instructables.com/FLC/8BEI/J048CFIX/FLC8BEIJ048CFIX.jpg&filename=Fullscreen capture 12-Mar-17 125759 AM.jpg)
Can it Drill?
Yes, it can drill.Tested on plastic wood and PCB
Can it Cut?
Yes, it can Cut Metal bolts, Nails, and Screw.
It can also cut Plastic and Acrylic.
It can also cut wood, but I have to test it with a new Saw blade.
Can it engrave?
yes, it can engrave easily.
Tested on Plastic.

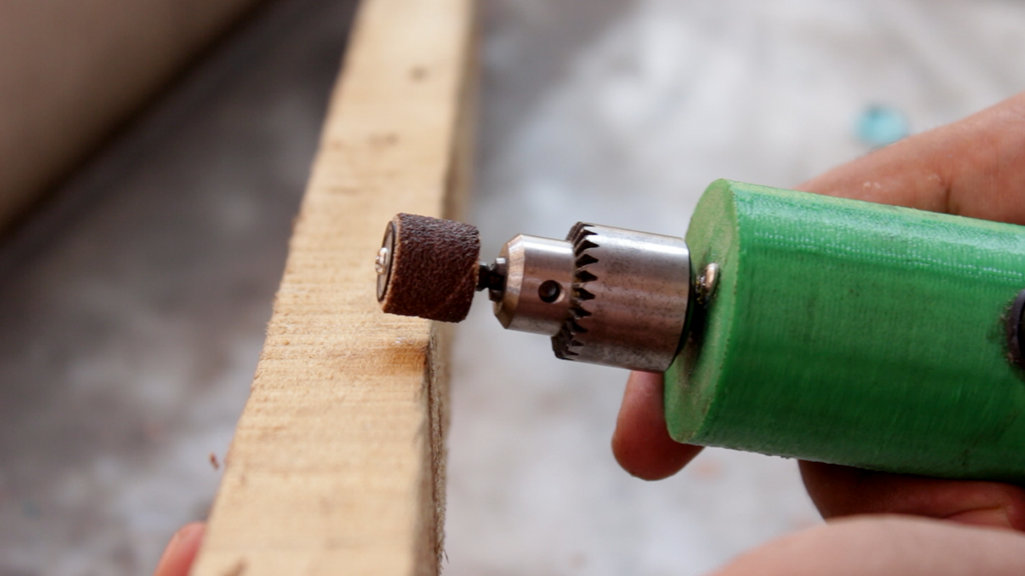

It can also be used to sand, buff and polish .you will be seeing it more in future projects.
