12V Cordless Rechargeable Drill / Dremel With 775 Motor
In this project i have made a Drill / Dremel using this very 3d print, a 775 DC Motor and a BMS 3S.
Links for all the products have been provided in the youtube video description.

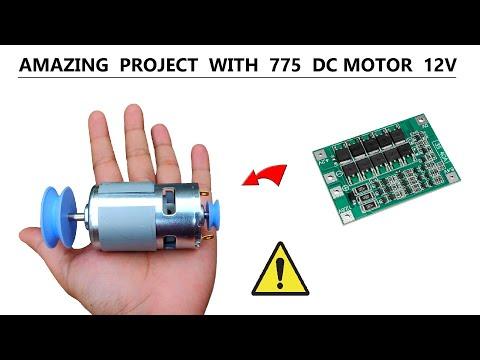

VIDEO LINK - https://youtu.be/BOSs6Tp_EZM
STL & GCODE Files - https://cults3d.com/en/3d-model/tool/12v-rechargeable-cordless-dremel-drill-using-775-dc-motor
Filament = PLA , 220 degree Nozzle temperature , 60 degree bed temperature.
NAME OF THE CREATION - 1
775 Dramel Case
Print Support
- No
Printing Time
- 7 Hours 25 minutes ( Flsun Super Racer )
- Infill of 80% (104g)
- Dramel Case Length - 185mm
- Dramel Case outer Diameter - 52.8mm
- Dramel Case inner Diameter- 42.8mm
- Dramel Case Wall Thickness - 5mm
NAME OF THE CREATION - 2
775 Dramel Cover
Print Support
- No
Base DETAILS
Printing Time
- 2 Hours 54 minutes ( Flsun Super Racer )
- Infill of 40% (52g)
- Cover Length - 121.88mm
- Cover outer Diameter - 52.8mm
- Cover inner Diameter - 42.8mm
- Cover Wall Theckness - 5mm
- Cover Base Diameter - 62.8mm
- Cover Base Thickness - 10mm
- Cover Ventilation Hole Width X Length - 4mm X 6mm
NAME OF THE CREATION - 3
775 Dramel Ring
Print Support
- No
Base DETAILS
Printing Time
- 15 minutes ( Flsun Super Racer )
- Infill of 100% (6g)
- Ring Inner Diameter - 53mm
- Ring Outer Diameter - 55mm
- Ring Thickness - 1mm
- Ring width - 27.76mm
NAME OF THE CREATION - 4
775 Dramel Cap
Print Support
- No
Base DETAILS
Printing Time
- 35 minutes ( Flsun Super Racer )
- Infill of 100% (11g)
- Cap Diameter - 52.8mm
- Cap Mid bore Diameter - 18mm
- Cap Thickness - 5mm
- Cap Screw Bore Diameter - 4mm
- Cap Screw Head Diameter - 8mm
- Cap Screw Head Depth - 3mm
NAME OF THE CREATION - 5
775 Motor Back Cover
Print Support
- No
Base DETAILS
Printing Time
- 18 minutes ( Flsun Super Racer )
- Infill of 100% (5g)
- Motor Back Cover Diameter - 42.6mm
- Motor Back Cover Thickness - 5mm
- Hole for terminal ( Length X Width ) - (6mm X 2mm)
- Number of Lock - 8 ( 2mm X 1.875mm Each)
STL & GCODE Files - https://cults3d.com/en/3d-model/tool/12v-rechargeable-cordless-dremel-drill-using-775-dc-motor
Supplies
BUY STUFF BELOW :-
775 Motor Link - https://bit.ly/34WgvbO
5S BMS - https://bit.ly/3KONHBy

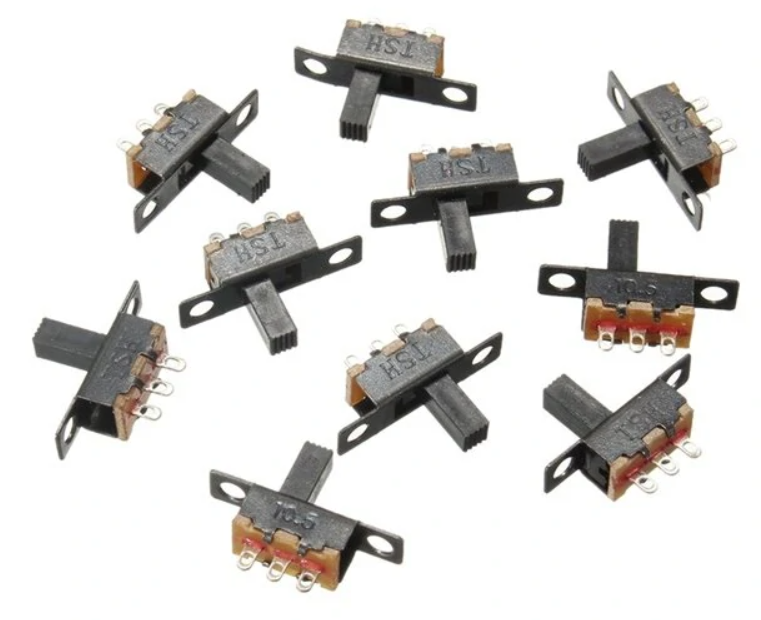

Rest of it, i salvaged from discarded stuff. I have shared the respective product picture and for reference, i have a full youtube video below.
Dremel Making Video - https://youtu.be/BOSs6Tp_EZM
I have used flsun 3d printer for this project.

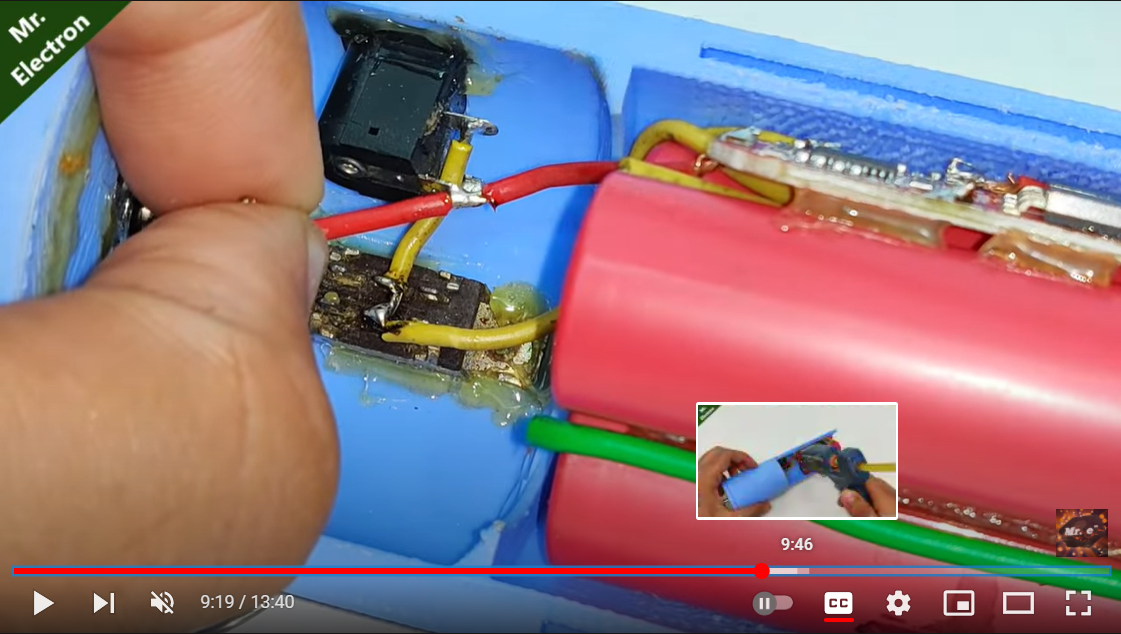

Construction Images that you will find in the DIY video.
So that's all with the project. Happy making. Bye Bye.
