5-12V Capacitive Touch Switch

Hello,

I built another LED lamp and wanted to use a TTP223 capacitive switch as usual. But Led Stripes have 12V and there was my problem again, the available TTP223 boards are 3-5V and have only a small switching current. Besides, I don’t need the LED on the board. So I decided to build my own

All the files: https://github.com/awall9999/Capacitive-Touch-Switch-12V

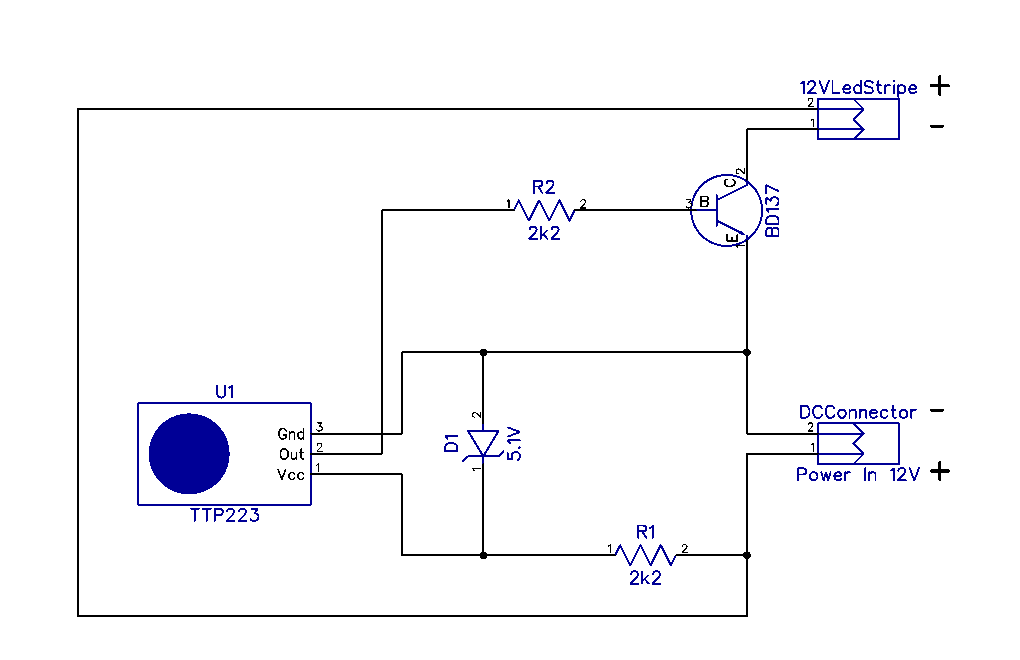

At first I built a prototype, which in itself is ok for a single Led lamp to be built, but I was always stressed by the wiring. However, this circuit can also be used

Parts for the prototype

• 1 TTP223
• 1 Zener Dioder 5.1V
• 1 2k2 Resistor
• 1 1k5 Resistor
• 1 BD137 Transistor

This works fine.

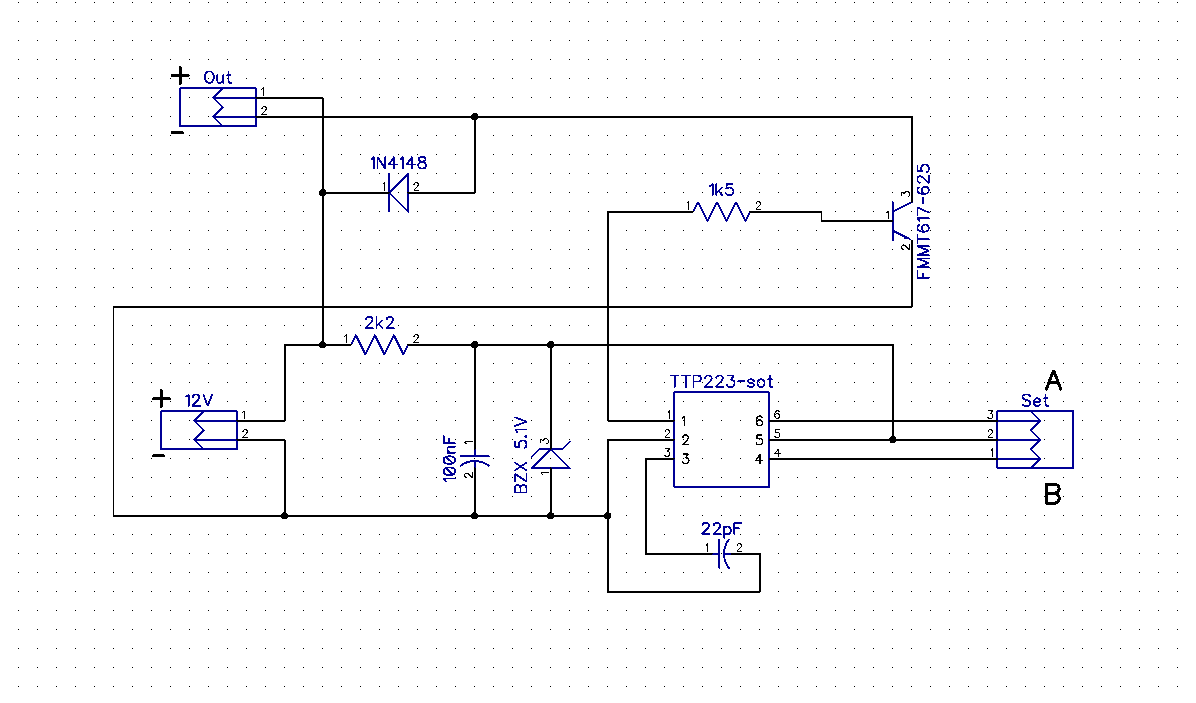

First the schematic. I also included a flyback diode in the design, so you can also directly control a relay. The TTP223 chip has the same components as on the small original board. As on that, the 22pf capacitor is optional and is used to control the sensitivity of the touch controller. An FMMT617-625 comes into play as the transitor. You can also use another one. However, according to the data sheet, this one delivers 18V 3A. But I won’t go over 1.5A, just to be on the safe side

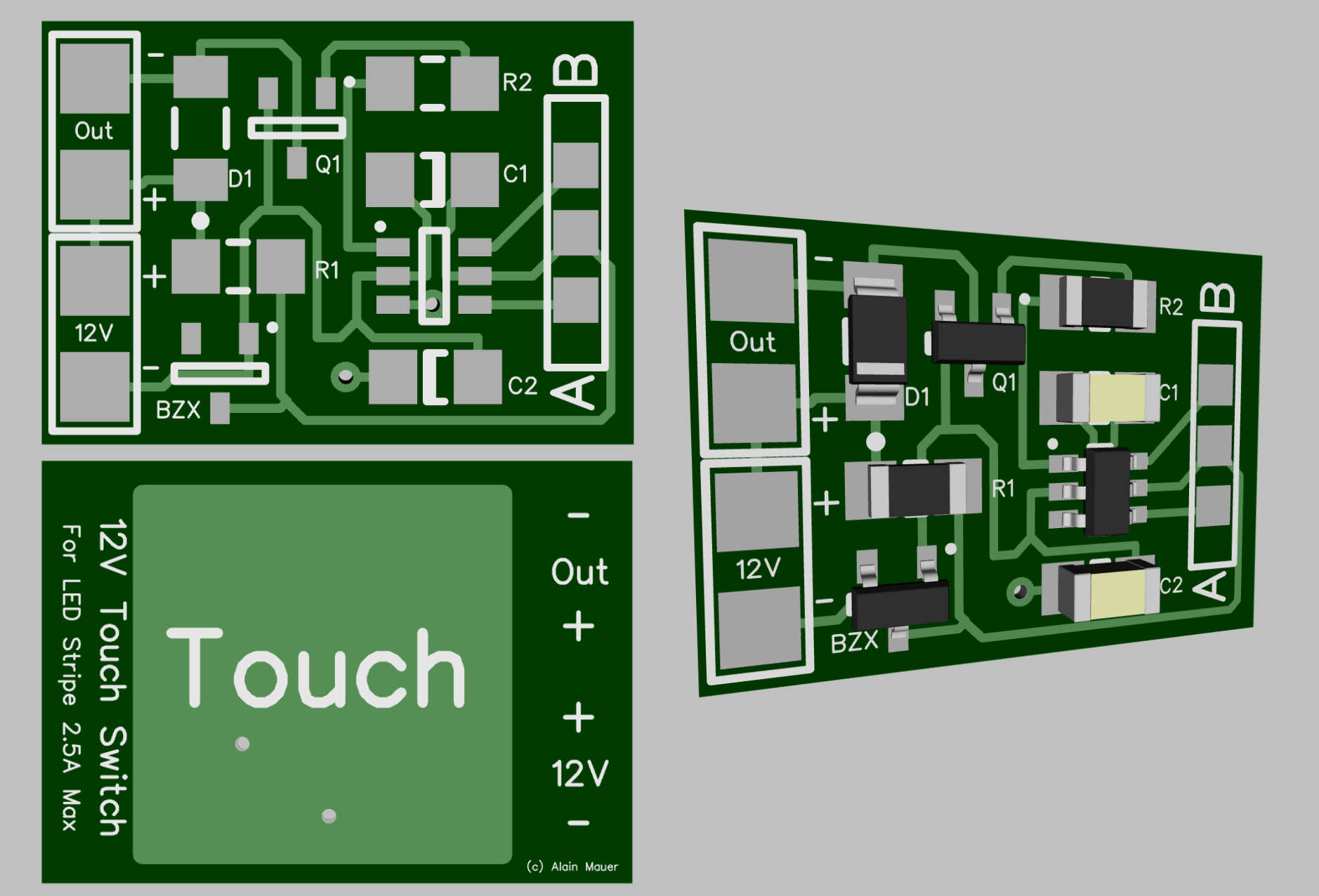

Then I ordered the boards online and they arrived after a few days. I have pannelized them, so it is easier to solder them later.

• 1 TTP223 SOT23-6 Chip
• 1 Q1 FMMT617-625 SOT23 Transistor or equivalent
• 1 D1 1N4148W SOT123 (optional)
• 1 BZX BZX84 4.7V or 5.1V SOT23
• 1 R1 Resistor 2k2 1206
• 1 R2 Resistor 1k5 1206
• 1 C1 Capacitor 100nF 1206
• 1 C2 Capacitor 22pF 1206 (optional)

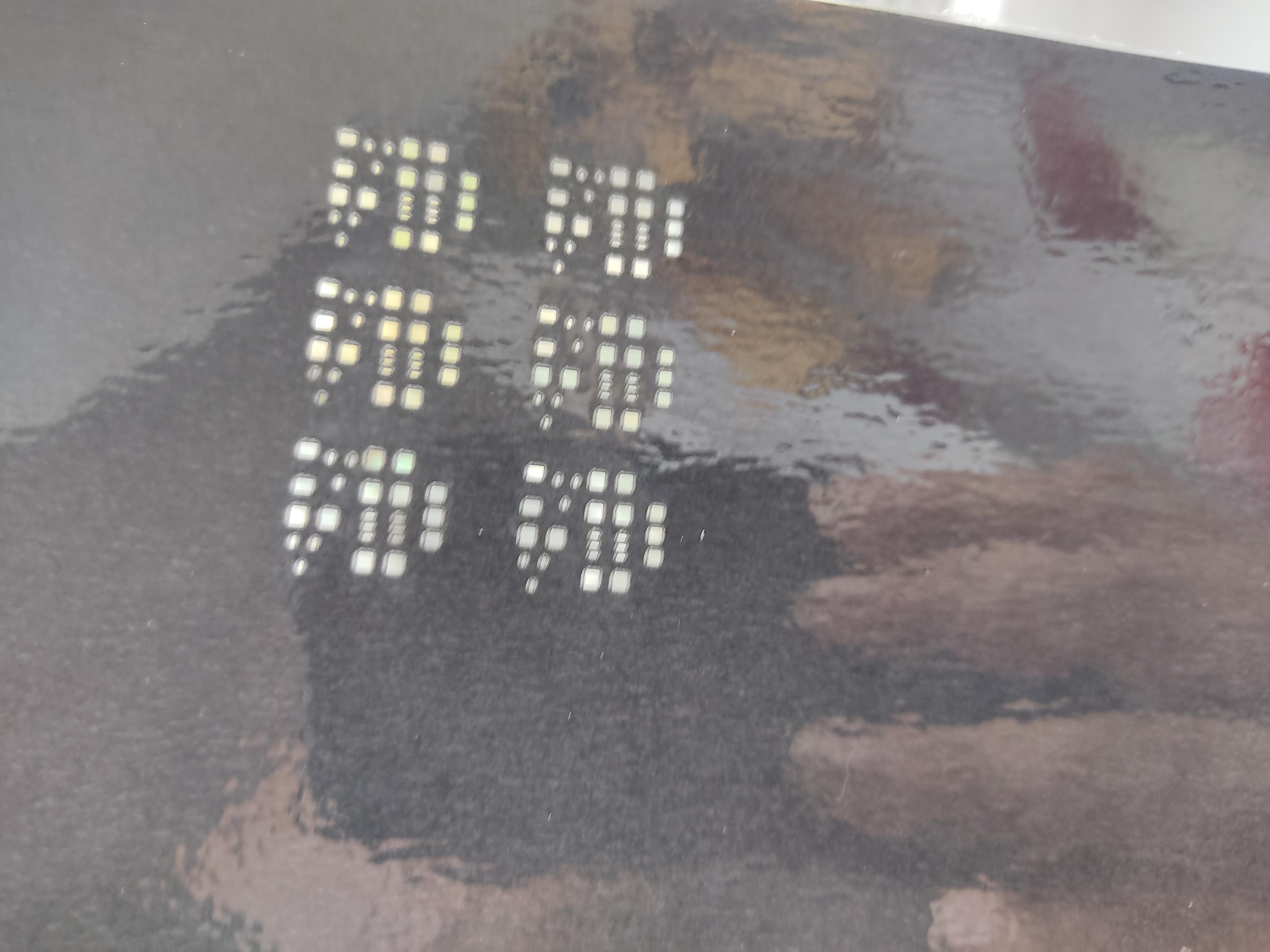

How do I make my stencil?

First I laminate a white or black sheet of paper or thin cardboard into the foil. The paper is for visibility afterwards, so that you can position the holes better.

Then I put the whole thing through the laser cutter and it’s done.

Most of the time, this works quite well.

First I built a PCB holder.

The PCB can be flush with the surface. This simplifies the application of the soldering paste. I have added a small notch to make it easier to remove the pcb. (red arrow)

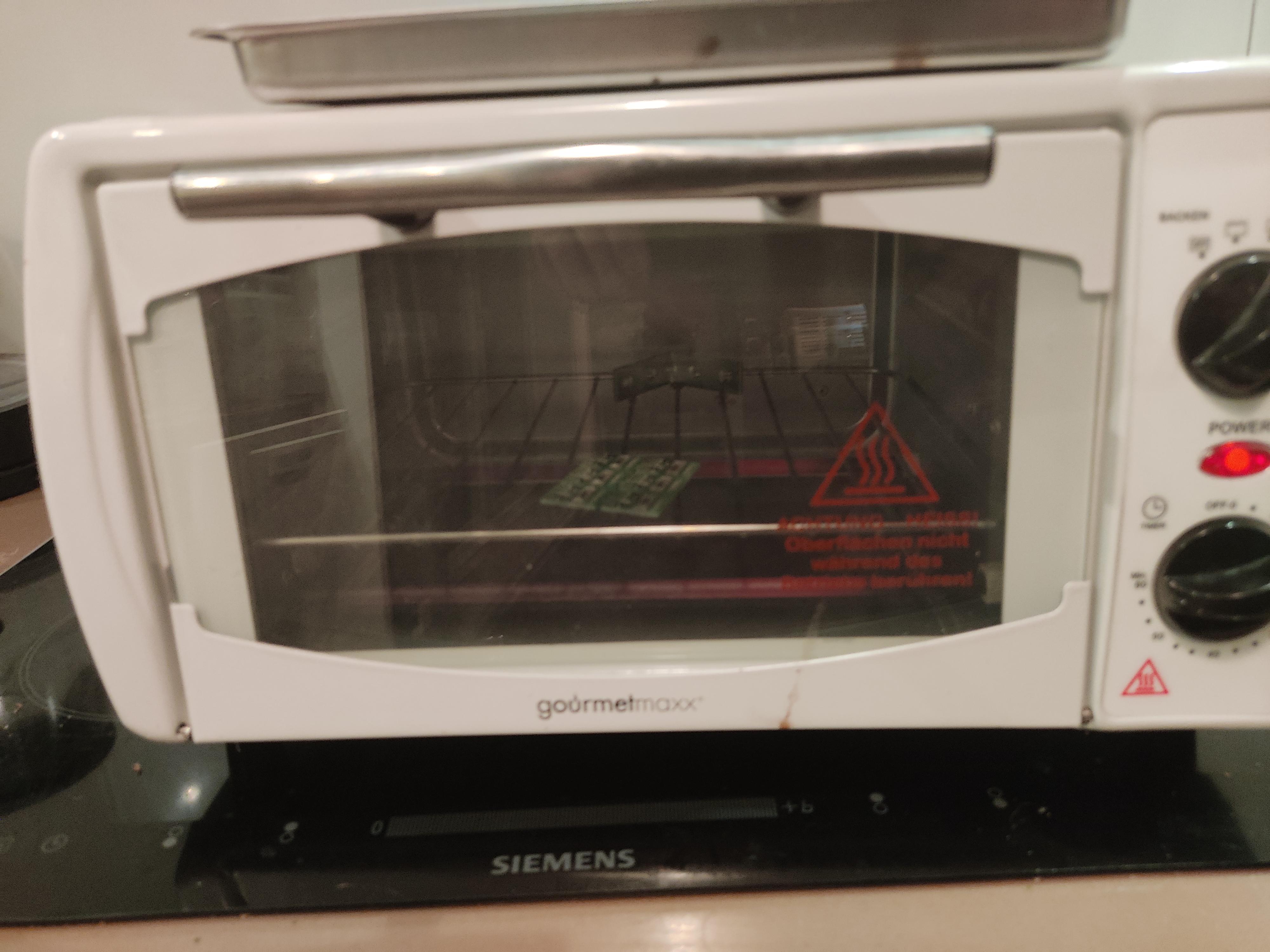

After the soldering paste is applied and all components are positioned with the help of tweezers, the whole thing goes into my unmodified 15€ pizza oven for +-10min.

Here is the finished PCB after cooling down. 5 on 6 without problems.

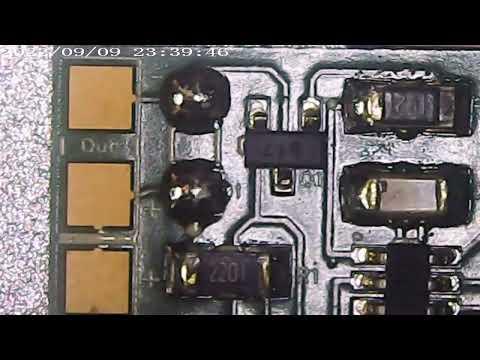

After soldering on the slipped diode,, I checked the solder joints again with a microscope. Everything looks good so far.

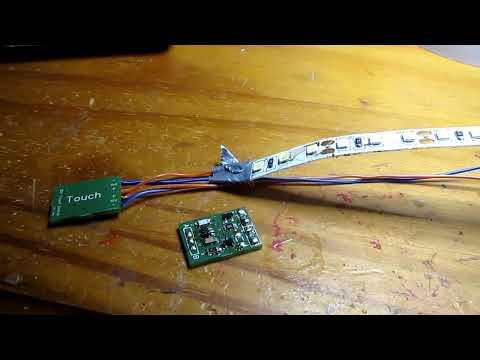

After separating the boards, I connected a 1m long Led strip with 120 LEDs. The current consumption is a little more than 800mA. The board works as I imagined it would. Although the switching transistor can handle 3A, I still wouldn’t switch more than 2A, otherwise it gets a bit too hot during continuous operation.

As on the original board, there are also solder points A and B. These are used for programming the TTP223.

I have left out the diode on the circuit board, as it is only needed when you want to switch a relay.

The 22pf capacitor can also be left out to increase the sensitivity of the switch, for example to install it behind a thin wooden or plexiglass panel.

I hope that some of you can use these instructions. As I said, all the data including the Gerber files can be found here: https://github.com/awall9999/Capacitive-Touch-Switch-12V
